WPD-900 - ViewShare WPD-900 Wireless Screen Casting Kit

Name: WPD-900 - ViewShare WPD-900 Wireless Screen Casting Kit
SKU: WPD-900
Price: 299.99 USD

| Datasheet | Media

Add to Compare

Product Overview

Upgrade your wireless casting experience with the ViewShare^® WPD-900 wireless casting kit. With the WPD-900, users can walk into a room, plug in and start presenting instantly - with no network setup, software installation, or app downloads required. Designed for broad compatibility, this award-winning screen-casting solution supports Miracast, AirPlay (iOS/macOS), and casting across almost all modern devices, making it ideal for classrooms, conference rooms and cross-device collaboration. No internet? No problem. Peer-to-peer (P2P) connection technology lets users get setup faster while ensuring secure, network-free transmissions. Present in crisp 1080p Full HD resolution, even up to 98 feet away. The WPD-900 includes a USB-C port that keeps it powered while in use. It also works with most devices—including the iPhone 15—and supports up to eight USB-C transmitters for collaborative presentations and lessons.

Overview

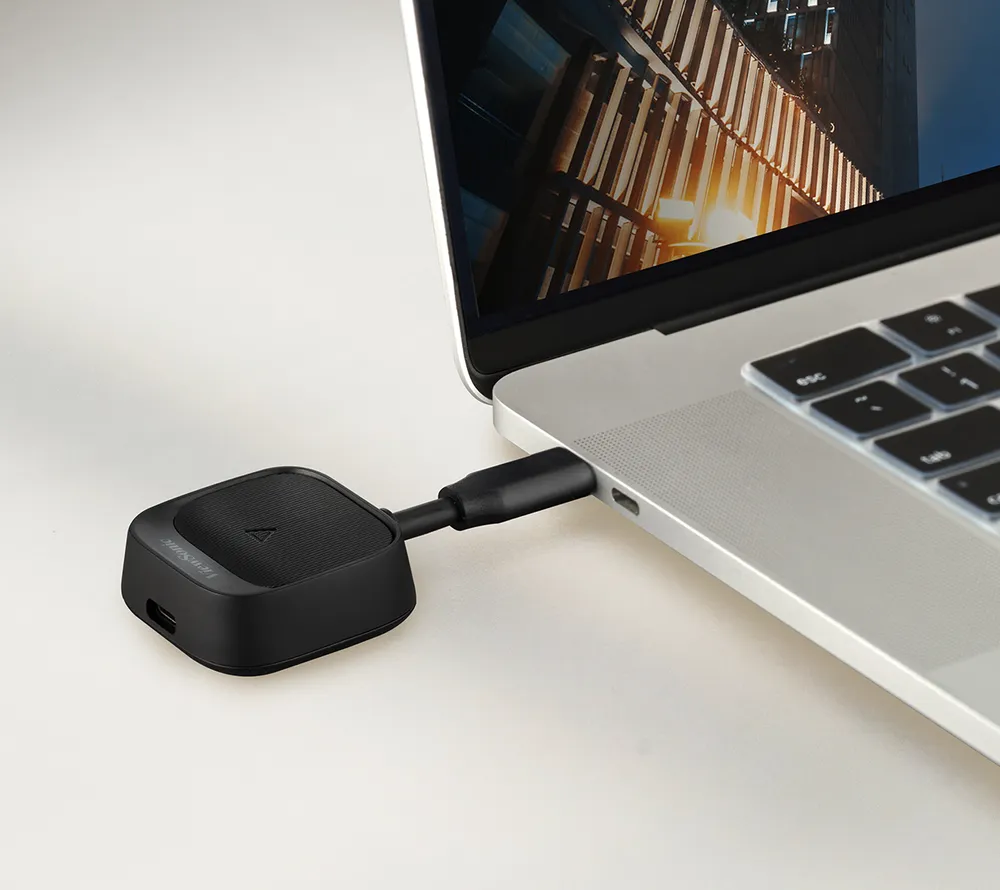

Instant Presentations

Walk into any meeting room or classroom, plug in, and start presenting instantly—no internet, network setup, software, or app downloads required. Share content and presentations wirelessly from your mobile devices with this plug-and-play wireless casting kit.

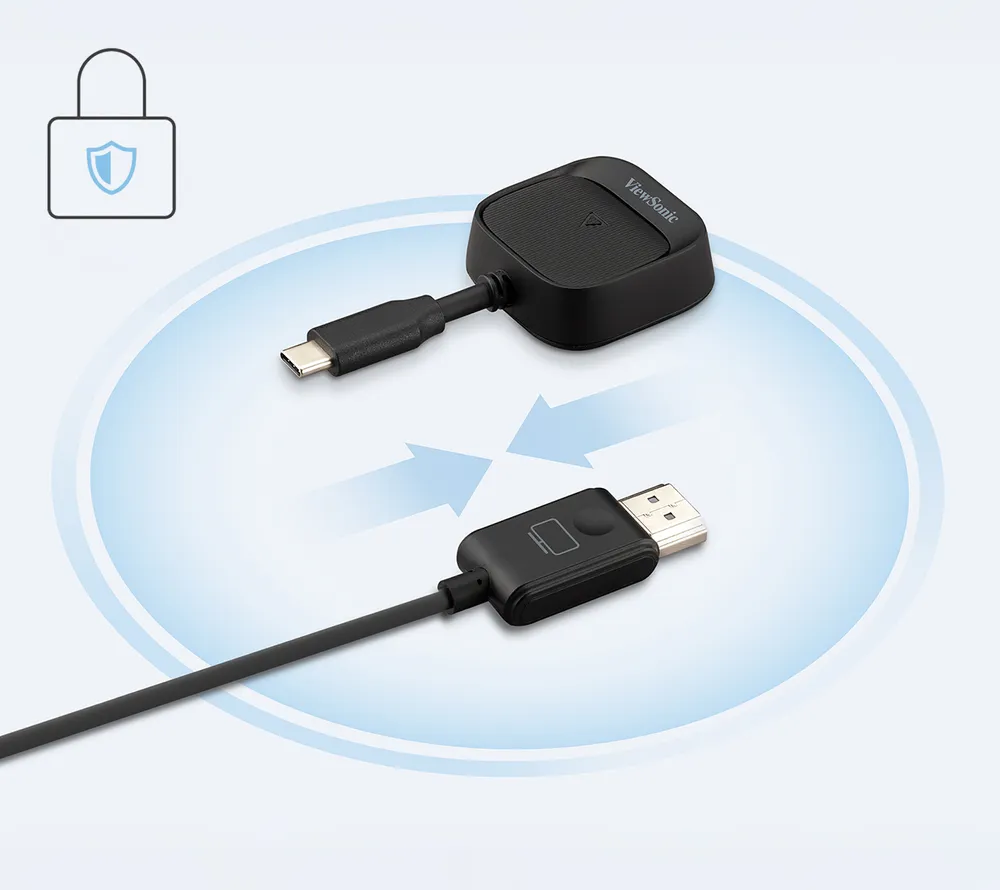

Streamlined, Internet-Free Connectivity

Connect faster with peer-to-peer (P2P) connectivity, ensuring stress-free setups, enhanced security, and uninterrupted performance with no internet connection required.

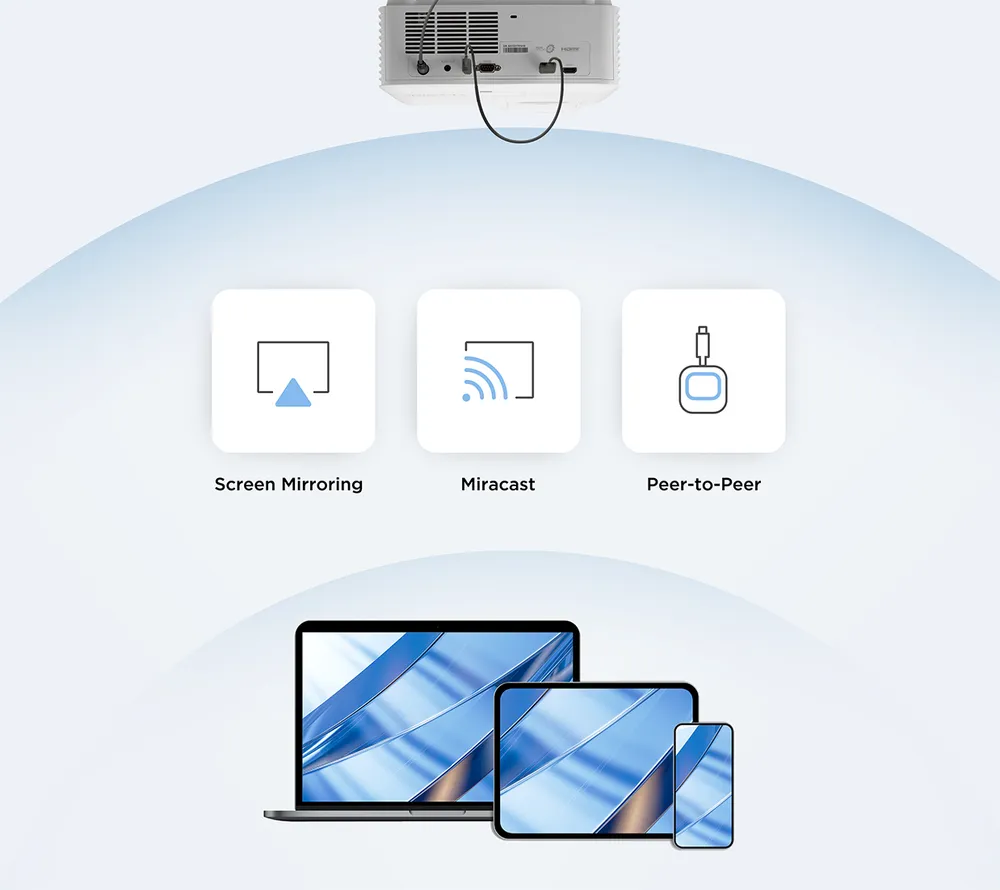

Universal Compatibility

Connect faster with peer-to-peer (P2P) connectivity, ensuring stress-free setups, enhanced security, and uninterrupted performance with no internet connection required.

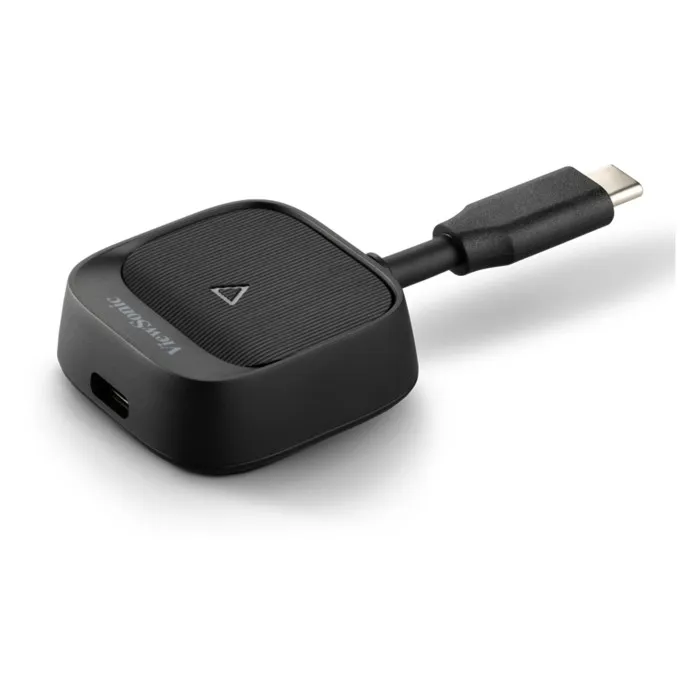

USB-C Charging and Casting

Stay powered while casting with an external USB-C port that enables simultaneous charging and screen sharing.

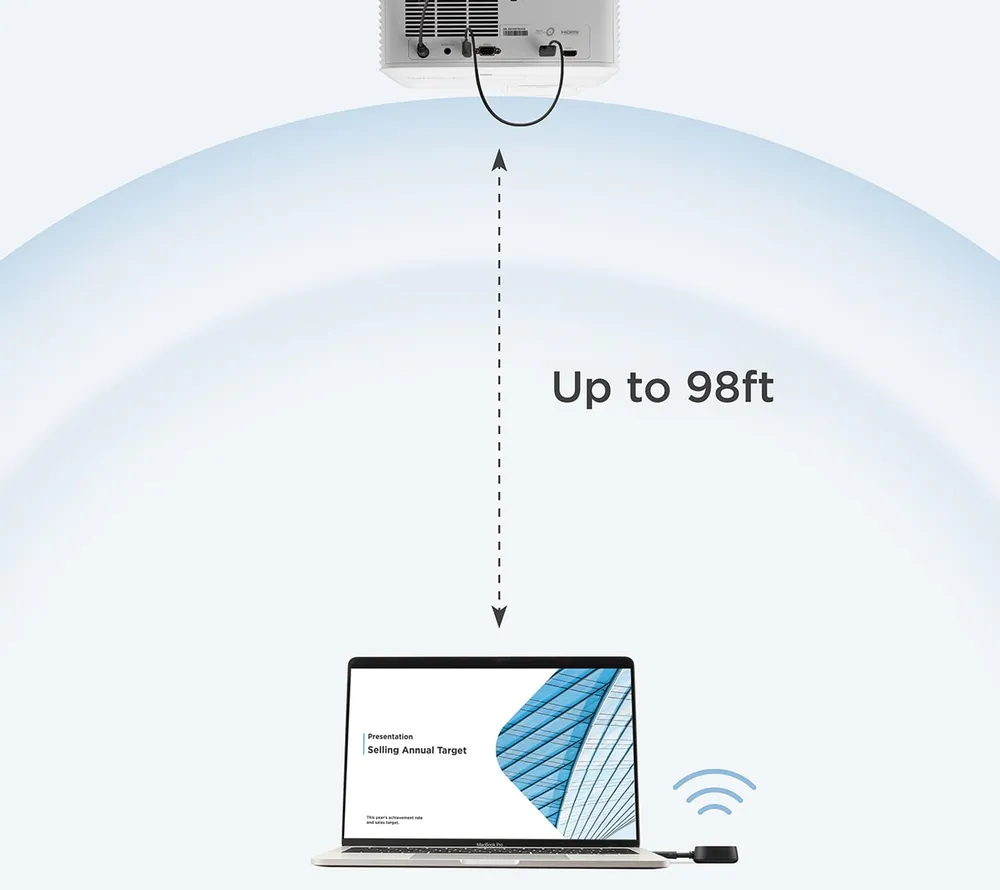

Long-Range Wireless Transmission

Broadcast content wirelessly from up to 98 feet away for greater accessibility in larger boardrooms, auditoriums or conference rooms.

DRM Content Streaming

Enjoy DRM-protected content from providers such as Disney+, Netflix and HBOMax.

Smooth Playback

Showcase content at up to 1080p FHD resolution with a latency of less than 80ms.

Inclusive Multi-Presenter Meetings

This wireless casting solution can support up to 8 transmitters via USB-C port.

Awards

Specifications

Main Chip: AM8360D
Wi-Fi: AM9421, 5GHz 1T1R
HDCP Support: HDCP 1.4
Video Support: 1080p60
Audio Support: 2 channel, PCM
USB Type C: 2 (video x1, power input support up to 60W PD x1)
Pair Button: 1
Power Input: 5V/1A
Power Consumption: 3W
Dimension: 3.4" x 1.7"x 0.6"
Weight: 0.05lbs
Main Chip: AM8268H
WiFi: AM9421, 5GHz 1T1R
HDCP Support: HDCP 1.4
Video Support: Up to 1080p 60Hz
Audio Support: 2 channel, PCM
HDMI: 1
USB A: 1(only for power input)
Pair Button: 1 (Pin hole)
Power Input: 5V/0.5A
Power Consumption: 1.5W
Dimension: 27.8" x 1" x 0.4"
Weight: 0.06lbs
Packaging (in.): 5.6"x3.5"x0.14"
Physical (in.): TX: 6.7"x1.6"x0.6" ; RX: 26.7"x0.7"x0.2"
Net (lbs): 0.1
Gross (lbs): 0.2
Warranty: One-year limited warranty

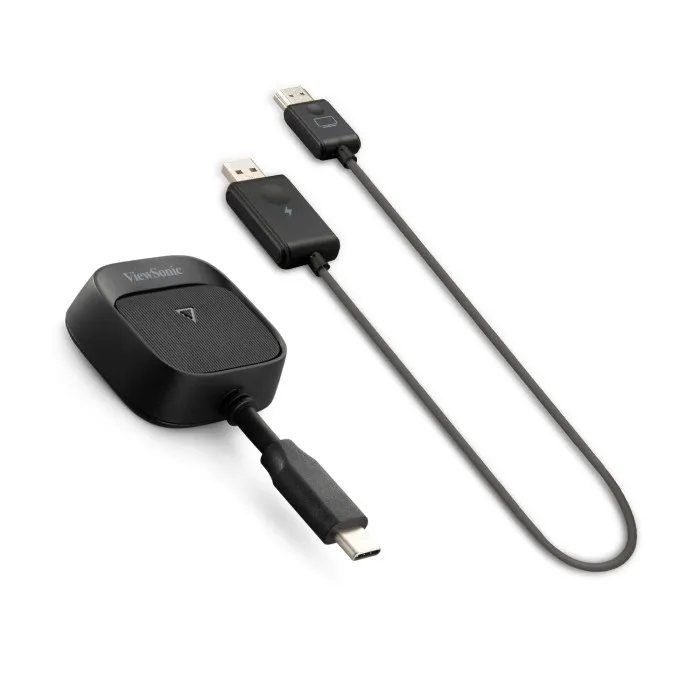

Package Contents: Wireless dongle including RX(Receiver) and TX(Transmitter)

Download

Driver & Software
