Crystal Clear, Pixel by Pixel
4K All-in-One LDP Performance Series

The ViewSonic® LDP performance series of Direct View LED displays brings bold 4K visuals to life with all-in-one simplicity and advanced Chip-On-Board technology. Built for impact in boardrooms, lobbies, and auditoriums, these sleek displays deliver brilliant color, immersive sound, and effortless setup. From powerful performance to premium design, the LDP series makes it easy to go big without the complexity.

Stunning 4K Resolution

Get ready for vibrant, immersive visuals that captivate from every angle. Our 4K displays are incredibly sharp, with brilliant colors and deep contrast that make your content pop. The sleek, frameless design means all you see is the picture. And with 600 nits of brightness, your message stays clear and powerful, even in a well-lit room.

Chip-On-Board Technology

Chip-on-Board (COB) technology delivers ultra-fine detail with tighter pixel pitches and a smooth, uniform surface. By mounting LEDs directly to the circuit board, there are no exposed wires, just a clean, durable design that’s built to last. With IP54 dust and moisture protection plus IK08 impact resistance, COB stands up to tough environments.

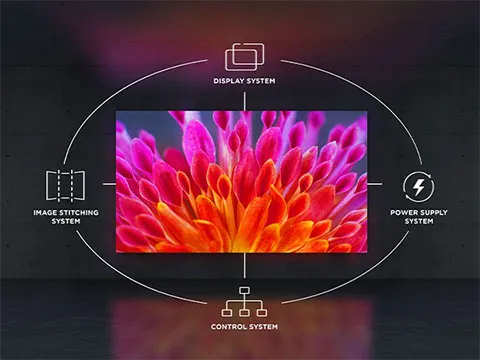

All-in-One Integration

Every ViewSonic Direct View LED display features an all-in-one design with a built-in LED display, image stitching, power supply, and control systems. All video processing and power are housed in a detachable control bar, making setup simple and hassle-free.

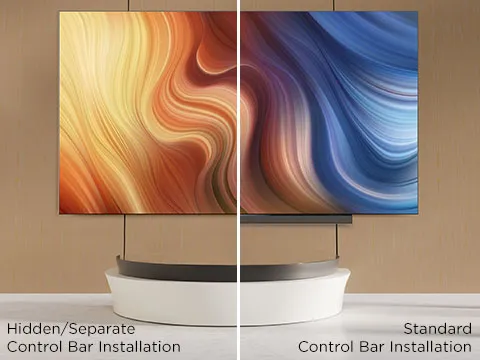

Designed for Ultimate Installation Flexibility

Our detachable control bar can be mounted up to 30 feet away or installed behind the video wall. This design helps you create a cleaner, more professional look with no distracting clutter.

*Accessory kits for hidden and separate (non-standard) installations sold separately; all components for standard installation are included.

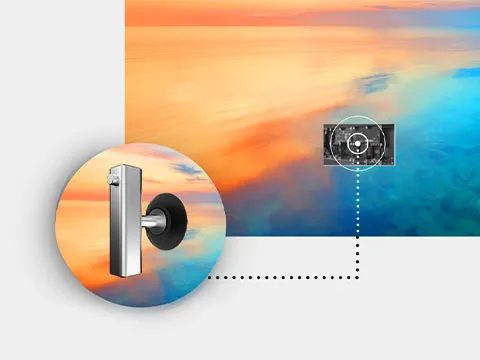

Easy Maintenance

Our user-friendly design prioritizes easy maintenance. If a module ever needs service, our hot-swappable front LED modules and an included suction tool allow for effortless replacement. This means minimal downtime for you.

Integrated Management for Your IT and AV Ecosystem

Our displays are designed to work with leading control platforms like Crestron, Extron, and AMX. They are also certified with Q-SYS. This compatibility allows intuitive management of key functions, such as power, volume, and input sources, from a central location. This approach simplifies the setup process, makes it easier to expand your system, and helps your business operate more efficiently.

Easy Screen Casting and Sharing

With our ViewSonic AirSync software, you can wirelelssly share your screen from any device. It even works with tools you already use, like AirPlay and Google Cast. No cables, no hassle.

*AirSync is available with an OTA firmware update.

LDP136-071C
136” 4K UHD All-in-One
Direct View LED Display

LDP163-091C
163” 4K UHD All-in-One
Direct View LED Display

LDP217-121C
217” 4K UHD All-in-One
Direct View LED Display

LDP136-071C
LDP163-091C
LDP217-121C
Screen Size
136"
163"
217"
Native Resolution
3840x2160
LED Package Type
Chip-on-Board (COB)
Pixel Pitch (mm)
0.78
0.93
1.25
Refresh Rate
3840Hz
LED Grayscale
13bits
Brightness (max.)
600 nits (100 levels adjustable)
Contrast Ratio (typ.)
10,000:1
LED Lifetime (typ.)
100,000 Hours
Embedded OS
Android 9.0
Resolution Support
VGA(640 x 480) to 4K(3840 x 2160@60hz)
Power Consumption (typ./max.)
680W / 2031W
805W / 2414W
1150W / 3449W
HDMI
4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1)
USB Type A
3 (USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet)
3 (internet x2, control x1)
IR in (3.5mm)
1
Wi-Fi Input
2.4G/5G Hz
USB Type C
1 (data only)
HDMI Out
1 (HDMI 2.0/HDCP 2.2) (internal x1)
Speaker
30Wx2
Audio out (3.5mm)
2
S/PDIF
1
Remote Control
BT/IR
Protection Rating
Ingress Protection Rating: IP54(Front)
Impact Protection Rating: IK08(Front)
PIP/PBP (HDMI 1/2/3/4)
LAN Control
LED Common Cathode
24/7 Operation
Auto Brightness
ViewBoard Cast
Detachable System Control Box



*Actual performance, durability, and results may vary depending on system configuration, environment, and usage conditions.
