Product Overview

Bright and versatile for any professional installation, the ViewSonic® Pro9800WUL WUXGA projector delivers everything you need for big screens in big venues. Delivering 5,500 lumens of advanced high brightness, this projector is ideal for auditoriums, large boardrooms, houses of worship, and more. Thanks to SuperColor™ technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. Designed for installers, this top-notch performer is also easy to deploy and manage with its wide 1.7x optical zoom adjustment, a centered lens design, and a vertical/horizontal lens shift feature that provides extreme flexibility in even the most challenging installations. Thanks to the stackable design of these projectors, light output can be doubled by simply placing one projector on top of the other - perfect for large venues with high ambient light.

Overview

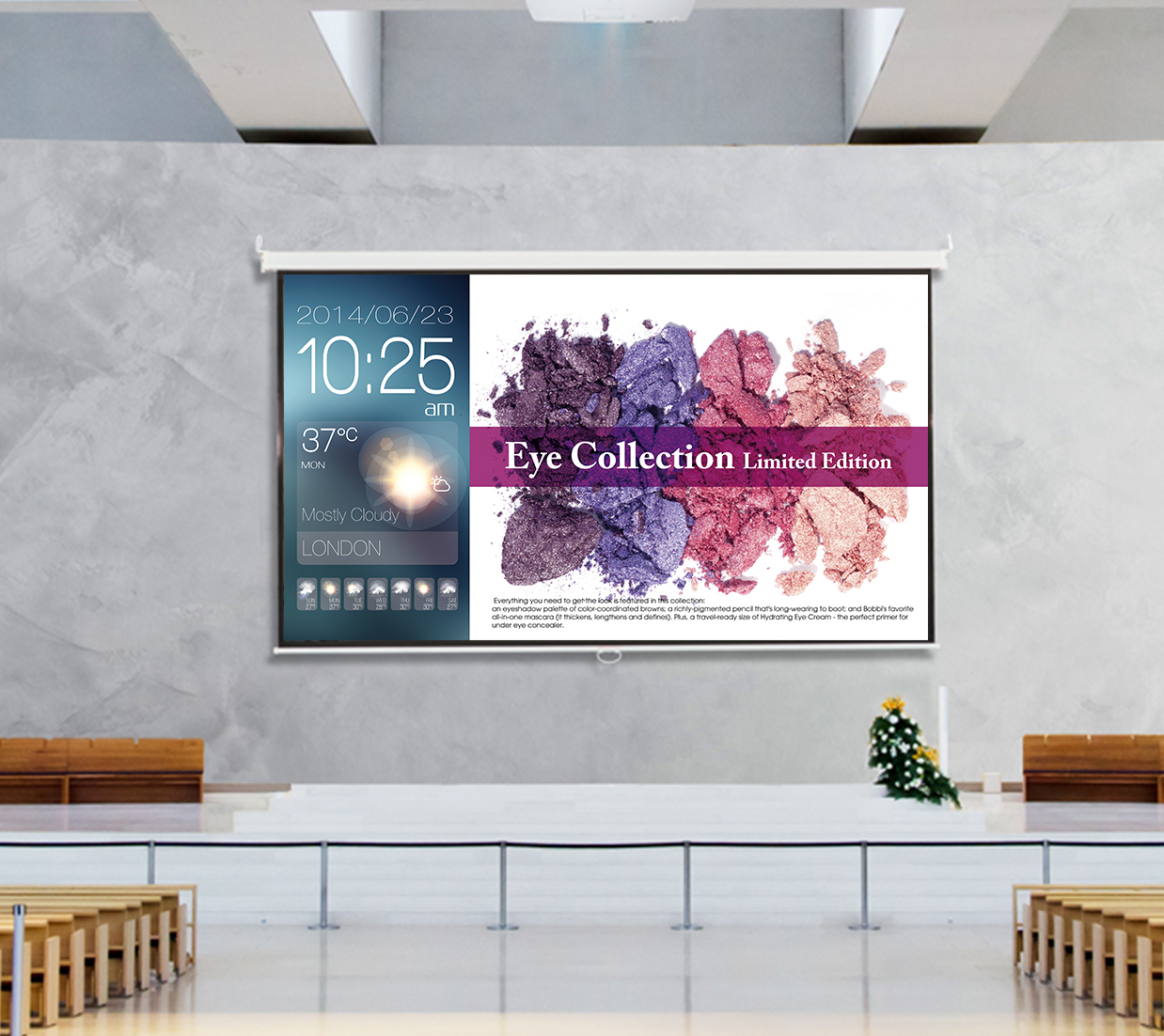

Bright Images in Large Spaces

Packed with 5,500 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

Vertical/Horizontal Lens Shift with Centered Lens

A vertical/horizontal lens shift feature offers up and down, left and right adjustments of the projection lens for flexible placement in challenging installations. What’s more, a centered lens design makes this projector ideal for replacing existing centered lens installations – making it unnecessary to move or reinstall existing ceiling mounts or projection screens.

Stackable Design

Thanks to a convenient stackable design, light output can be doubled by simply placing one projector on top of the other - perfect for large venues with high ambient light.

360-degree Orientation

A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.

SuperColor: Amazing Color Accuracy

ViewSonic’s proprietary SuperColor^™ Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.

SonicExpert^® Technology

This projector is designed with ViewSonic’s proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20Hz – 20Khz sound range. Dual integrated speakers captivate your audience with immersive sound.

Motorized Screen Control

With an integrated 12v trigger output, this projector can be connected to a motorized projection screen via a 12v cable. The screen will automatically lower when the projector is powered on, and automatically be raised when the projector is powered off.

Convenient Auto Power On/Off

This projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time.

Extreme Mounting Flexibility

A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.

Peace of Mind

ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange^® service* for an added value worth up to $150**.

*One year Express Exchange^® Service requires product registration. **Up to $150 added value over competitive models with 1-year warranty and based on extended warranties from manufacturers and not third party warranty providers.

Awards

Specifications

Screen Size: 26.2 - 371.4 in. / 0.67 - 9.43m
Throw Distance: 4 - 55.8 ft / 1.2 - 17m
Throw Ratio: 1.25 - 2.13:1
Lens: 1.7x Manual optical zoom / manual optical focus
Light Source (watt): 370
Light Source Life, Normal (hours): 1500
Light Source Life, Dynamic Eco-Mode (hours): 3500
Color Depth: 30 bits, 1.07B Color (10+10+10)
Input Lag: 37ms
Lens Shift: Vertical (-12.1%/+20.8%) / Horizontal (+/- 10.3%)
Display Resolution: WUXGA (1920x1200)
Light Source: DLP Lamp
Display Resolution: 1920 x 1200
Brightness (Lumens): 5,500 ANSI
Dynamic Contrast Ratio: 15,000:1
Aspect Ratio: 16:10
Keystone: Vertical (± 30º) / Horizontal (± 25º)
Frequency Horizontal: 15-100kHz
Frequency Vertical: 24-120Hz
PC Resolution (max): Up to 1920x1200
Mac® Resolution (max): Up to 1920x1200
USB 2.0 Type A: 1
USB 2.0 Type B: 1
Ethernet LAN (RJ45): 1
3.5mm 12V Trigger: 1
3.5mm Audio Out: 1
3.5mm Audio In: 3
Control (RS232): 1
HDMI 1.4 In: 1
HDMI MHL: 1
DVI-D: 1
VGA In: 2
VGA Out: 1
Composite RCA Video In: 1
S-Video In: 1
RCA Audio In (L/R): 1
RCA Audio Out: 1
3D VESA: 1
Wired Remote In: 1
Wired Remote Out: 1
5-BNC: 1
Internal Speakers: 7W (x2)
Voltage: 100~240VAC (Auto Switching), 50-60Hz (universal)
Consumption (max): 480W
Stand-by: <0.5W
Physical Controls: Power, H/V lens shift, focus, zoom, keystone/arrow keys, left/blank, right/panel key lock, menu/exit, mode/enter, source
On Screen Display: Display, Image, Video, Audio, Basic, Advanced
Temperature: 41-104º F (5 - 40º C)
Humidity (non-condensing): 10-85%
Kensington Lock Slot: 1
Net (lbs): 18.26
Gross (lbs): 27.31
Net (kg): 8.29
Gross (kg): 12.4
Packaging (in.): 22.68 x 17.17 x 11.46
Physical (in.): 17.51 x 12.81 x 5.82
Packaging (mm): 576 x 436 x 291
Physical (mm): 445 x 325.5 x 147.8
AV Control: AMX Certified, Crestron Certified
Regulations: UL, cUL, FCC, CE, EMC, CB, ROHS, REACH, SVCH, WEEE, ErP, Mexico NOM/ENERGY, PSB, RCM, CCC
Package Contents: Pro9800WUL projector, power cable, VGA cable, laser remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide)
Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Classification: Discontinued
