Product Overview

For extreme reliability and stunning 4K Ultra HD multimedia playback, the ViewSonic^® NMP520-W network media player delivers dynamic messaging to large format displays. Equipped with the latest Rockchip RK3368 Octa Core Cortex-A53 64-bit SoC, the NMP520-W delivers high performance in a small package. It’s slim, compact design is ideal for out-of-site installation behind digital signage. Despite its size, there are full connectivity ports such as HDMI 2.0, USB 2.0, Wired Gigabit-LAN, Wireless LAN, Bluetooth, Variable Audio Out and SD Card Reader. Thanks to 16GB of built-in memory, this media player can store and play hours and hours of stunning high-definition content. What’s more, with Android 8.1 OS, the NMP520-W is compatible with industry standard digital signage software. Perfect for retail, hospitality, and point-of-sale advertising, the NMP520-W is the media player you can trust to deliver reliable messaging and dynamic multimedia for any of your large format displays.

Overview

Powerful Octa-Core SoC

A powerful Octa-core Cortex-A53 64-bit SoC enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.

Ultra HD Video Playback

With support for 4K Ultra HD playback, this media player can deliver a breathtaking viewing experience with 3840x2160 resolution on compatible screens.

Slim, Compact Industrial Design

A slim, compact profile and VESA-compatible mount design make this media player ideal for out-of-sight installation behind digital signage, monitors, projectors, and TVs. An industrial casing provides heavy-duty durability everywhere from homes to commercial environments.

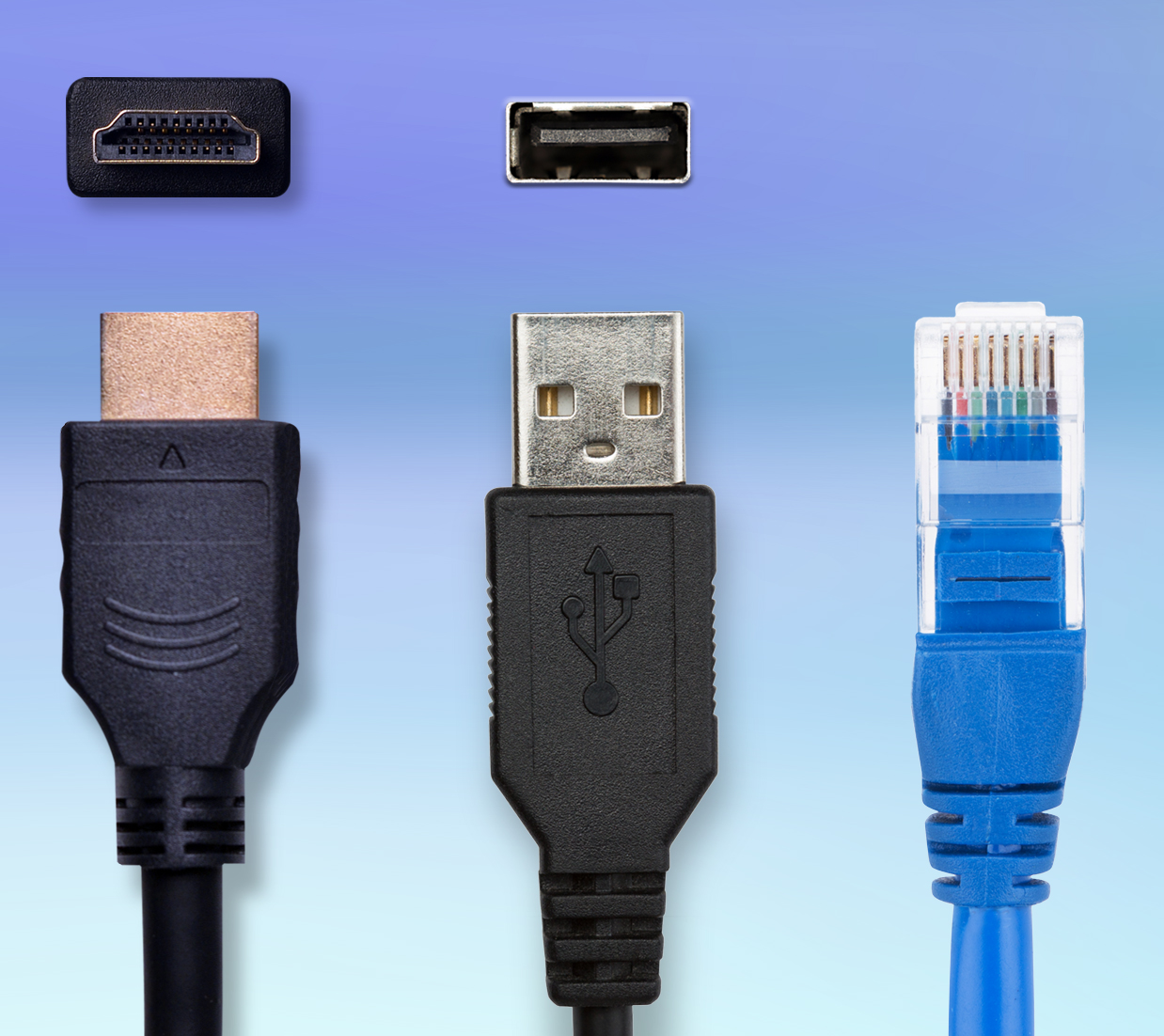

Versatile Connectivity

HDMI 2.0, USB 2.0, Wired Gigabit-LAN, Wireless LAN, and Bluetooth give you the freedom to connect to a variety of devices.

Free Digital Signage Software

With the free DS Creator 2.0 app from the Google Play or Apple App Store, users can easily schedule and dispatch their content to the media player via their mobile devices.

Auto Power-on Setting

This media player can be configured to automatically start up when power is turned on. This is perfect for use in auto-booting environments such as exhibitions, shopping malls, museums, and more.

Multiple Storage Choices

This media player has various storage options with an onboard 16GB eMMC, built-in SATA storage interface, and SD card reader. Support for one 2.5" HDD/SSD (7mm ultra slim) and SD memory card allows for expansion of space.

24/7 Operation & Fanless Design

With a passive thermal cooling system, the fanless design reduces power consumption. For an operational platform completely free of noise, use with solid state disks.

Miracast Support

Miracast support allows you to cast content to the media player from Android OS or Windows 10.

Awards

Specifications

CPU Processor Type: Rockchip RK3368 Octa-Core Cortex-A53 64-bit
CPU Processor Speed: 1.5GHz
Operating System: Android™ 8.1
Media Player Type: Media Player
Graphic Chipset: PowerVR SGX6110 GPU (Supports H.265 4K@60fps)
Resolution (max): 4K
RAM: 2GB
Memory Type: DDR3L SDRAM
Ethernet LAN: Gigabit ethernet
Wifi: 802.11 b/g/n
Bluetooth: Bluetooth 4.0
Storage Capacity: 16GB
Storage Type: eMMC
HDMI 2.0 In: 1
Ethernet LAN (RJ45): 1
3.5mm Audio Out: 1
USB 2.0 Type A: 3
SD Card Slot: 1
Consumption (typical): 8W
Consumption (max): 24W
Voltage: 12V DC; 2A
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 30-80%
VESA Compatible: 75 x 75 / 100 x 100 mm
Physical (in.): 5.6 x 1.1 x 5.6
Packaging (in.): 11.0 x 2.0 x 7.5
Physical (mm): 141.0 x 29.0 x 141.0
Packaging (mm): 279.4 x 50.8 x 190.5
Net (lbs): 0.6
Gross (lbs): 2.0
Net (kg): 0.3
Gross (kg): 0.9
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Regulations: CE, FCC, BSMI, RCM, CCC, R&TTE, CB, BSMI, ETL, RoHS, EuP Lot 6
Package Contents: NMP520-W, Power Adapter, VESA Mount Bracket, Screws, Quick Start Guide
Warranty: One-year limited warranty on parts and labor
Classification: Discontinued
