VSD243 - 24" Display, 250 cd/m2 Brightness, Integrated Media Player

Name: VSD243 - 24" Display, 250 cd/m2 Brightness, Integrated Media Player
SKU: VSD243-BKA-US0

| Datasheet | Media

Add to Compare

Product Overview

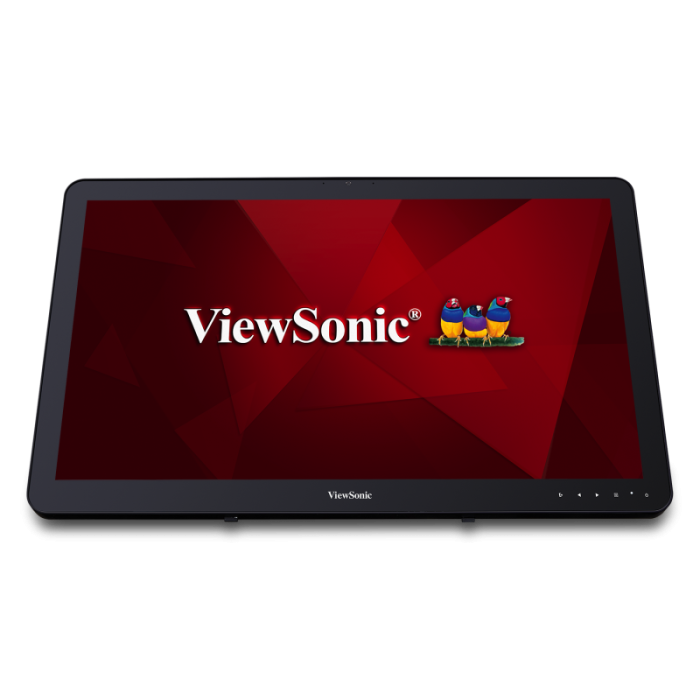

The ViewSonic^® VSD243 is a 24” (23.6” viewable) smart display with Full HD 1080p resolution, Quad-Core 1.8GHz processor, 10-point capacitive touch, and Android™ Oreo 8.1 OS. Versatile connectivity options include HDMI (In/Out), multiple USB ports, SD card reader, RJ45 Ethernet, Dual Band 2.4GHz/5GHz Wi-Fi, Bluetooth4.0, 5M pixel webcam with integrated microphone, and 2.5W speakers for video conferencing. With its sleek ID, thin bezel, fan-less design, 7H hardness screen coating, and VESA compatible mounting capabilities, the VSD243 is a flexible solution for information kiosks, public displays, or POS stations in business centers, libraries, or retail environments. The VSD243 can also be operated as a stand-alone PC replacement, or as a traditional 24’’ Full HD touch monitor via HDMI to your PC/Laptop. With a comprehensive set of enhanced features and functions, the VSD243 is perfect for a wide range of applications and commercial kiosk based solutions for business, restaurants, service counters, or retail environments.

Overview

Powerful Quad Core Processor

Equipped with a powerful Rockchip 1.8GHz Quad-Core Cortex A17 processor, this smart display provides smooth, lightning-fast computing no matter what applications are running.

Android^™ 8.1 Oreo OS

Experience better cloud services and multimedia entertainment with this smart display. It features an Android™ 8.1 Oreo operating system to provide thousands of current Android™ apps.

10-point Multi-touch

With 10-point multi-touch technology and a durable, scratch-resistant surface, this smart display provides outstanding interactive capabilities in public environments. Users can also utilize the smart display as a Full HD touch display to connect to existing PCs, notebooks, or tablets.

Equipped with Wi-Fi, Bluetooth, and RJ45

This smart display includes Dual Band 2.4GHz/5GHz wireless support, Wi-Fi 802.11 b/g/n/ac, Bluetooth 4.0, and RJ45 Ethernet, providing flexible access options for website browsing, cloud access, and data exchange.

Versatile Connectivity

HDMI Input, HDMI Output, SD Card reader, and 4 USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.

Optional Kiosk Stand

With the ViewSonic STND-042 kiosk stand, you can quickly and easily transform this smart display into an all-in-one interactive kiosk. Advanced ergonomic features allow for portrait or landscape orientations, as well as being raised up and down, and tilted forward or back depending on installation needs. Optional storage attachments for printers, literature, bar code readers, and more are available as well.

Integrated USB Multimedia Player

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.*

*Subject to ViewSonic's warranty and on-site service terms and conditions.

Awards

Specifications

CPU Processor Type: Rockchip<sup>®</sup> RK3288W Cortex-A17 Quad-Core
OS: 8.1
Type: IPS
Viewing Angles: 178º horizontal, 178º vertical
Viewable Area (in.): 23.6
Screen Size: 24
Display Resolution: Full HD (1920x1080)
Display Resolution: 1920 x 1080
Response Time (Typical GTG): 16ms
Panel Surface: Anti-glare, Hard coating (3H)
Aspect Ratio: 16:9
Light Source: LED
Brightness: 250 cd/m2
Static Contrast Ratio: 3,000:1
Voltage: 100-240 VAC
Consumption (max): 40W
Consumption (typical): 16W
Stand-by: <2W
Off: <0.5W
Temperature: 32–95º F (0 - 35º C)
Humidity (non-condensing): 20-90%
Touch Points: 10-Point Touch
Touch Technology: Capacitive
HDMI 1.4 In: 1
HDMI 1.4 Out: 1
3.5mm Mic In: 1
3.5mm Audio Out: 1
Mini USB: 1
Ethernet LAN (RJ45): 1
USB 2.0 Type A: 4
USB 2.0 Type B: 1
SD Card Slot: 1
DC Jack (12V/4A): 1
RAM: 2GB
Memory Type: DDR3
Storage Capacity: 16GB
Storage Type: eMMC
Wifi: 802.11a/b/g/n/ac
Bluetooth: Bluetooth 4.0
Webcam: 5MP
Microphone: Built In, Echo cancelling
Internal Speakers: 2.5W (x2)
Net (kg): 5.6
Gross (kg): 7.6
Net (lbs): 12.4
Gross (lbs): 16.7
Packaging (mm): 643.0 x 435.0 x 140.0
Physical (mm): 572.9 x 351.8 x 47.0
Packaging (in.): 25.3 x 17.1 x 4.9
Physical (in.): 22.6 x 13.9 x 1.9
Screw Size: M4
Screw Length (mm): 4
VESA Compatible: 100 x 100 mm
Package Contents: VSD243 smart display, power adapter and cord, Quick Start Guide
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Regulations: cTUVus, FCC-B(including ICES003), FCC-ID, CA IC
Warranty: Three-year limited warranty on parts, labor and backlight
Battery Chemistry: Lithium
