Compatible with your TD2210-S

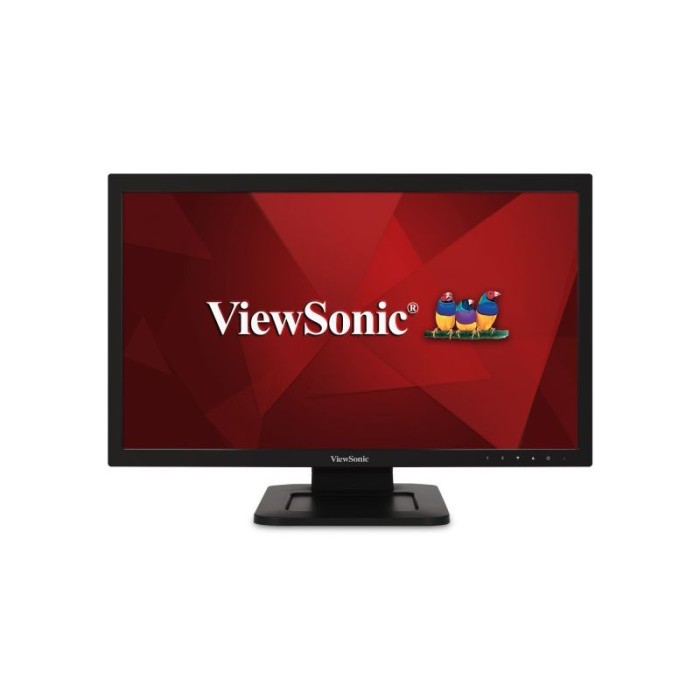

The TD2210 is a 22” (21.5” viewable) Full HD monitor with resistive touch technology. With a robust, pressure-sensing touchscreen that is resistant to screen contamination, the TD2210 is ideal for use in retail, POS, and commercial environments. Resistive touch technology on the TD2210 is also fully functional in gloved environments and compatible with styluses. Featuring stunning Full HD resolution and 20M:1 MEGA Dynamic Contrast Ratio, the TD2210 delivers extremely sharp and crisp images. Flexible connectivity options include VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Industry-leading warranty protection and ViewSonic product quality makes this durable touch display a great long-term investment for a variety of environments.
Display Size (in.)
22
Resolution
1920 x 1080
Static Contrast Ratio
1,000:1
Response Time (Typical GTG)
5ms
Display
Display Size (in.)
22
Viewable Area (in.)
21.5
Resolution
1920 x 1080
Static Contrast Ratio
1,000:1
Dynamic Contrast Ratio
20M:1
Brightness
250 cd/m2
Backlight Life (Hours)
40,000
Response Time (Typical GTG)
5ms
Panel Type
TN
Colors
16.7M
Viewing Angles
170º horizontal, 160º vertical
Light Source
LED
Panel Surface
3H Scratch Resistant Surface Hardness
Aspect Ratio
16:9
Compatibility
PC Resolution (max)
1920 x 1080
Touch
Touch Technology
Resistive
Touch Points
1-Point Touch
Connector
USB 2.0 Type A
1
USB 2.0 Type B
1
VGA
1
DVI-I
1
Audio
Internal Speakers
2W (x2)
Video Signal
Frequency Horizontal
24 ~ 83KHz
Frequency Vertical
50 ~ 76Hz
Video Input
Analog Sync
Separate Sync / Composite Sync / Sync on Green
Power
Eco Mode (Conserve)
11.5W
Eco Mode (optimized)
14W
Consumption (typical)
17.5W
Consumption (max)
29.5W
Voltage
AC 100-240V (universal), 50-60Hz
Stand-by
0.5W
Controls
Physical Controls
GameMode, 1, 2, 3, 4, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
20-90%
Ergonomics
Tilt (Forward/Back)
5º / 20º
Additional Hardware
Kensington Lock Slot
1
Mount
VESA Compatible
100 x 100 mm
Weight (metric)
Gross (kg)
6.5
Net (kg)
4.8
Net Without Stand (kg)
3.9
Weight (imperial)
Net (lbs)
10.5
Net Without Stand (lbs)
8.7
Gross (lbs)
14.4
Dimensions (metric) (wxhxd)
Packaging (mm)
570 x 427 x 214
Physical (mm)
512 x 364 x 240
Physical Without Stand (mm)
512 x 311 x 64
Dimensions (imperial) (wxhxd)
Packaging (in.)
22.4 x 16.8 x 8.4
Physical (in.)
20.1 x 14.3 x 9.5
Physical Without Stand (in.)
20.1 x 12.2 x 2.5
General
Regulations
cULus, FCC-B, ICES003, Energy Star 7.0, EPEAT, UL-MX-CoC, Mexico Energy
PACKAGE CONTENTS
LCD Display, Power Cable, VGA Cable, DVI Cable, USB2.0 Cable, Audio Cable, Quick Start Guide, ViewSonic Wizard CD-ROM
Warranty
*Refurbished. 30-day DOA policy for full refund, with a 90-day repair warranty on parts and labor.
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
Classification
Refurbished
Dimensions
20.1 x 14.3 x 9.5 in. / 512 x 364 x 240 mm
- Menu Control Panel
- Kensington Lock Slot
- USB 2.0 Type A (x2)
- USB 2.0 Type B
- AC In
- Internal Speakers
- VGA
- DVI
- VESA Compatible Wall Mount (100 x 100 mm)
- Headphones
