Availability: Out of stock

SKU

LSD400W

$699.99 USD

4,000 ANSI Lumens WXGA Lamp-Free Laser Installation Projector | LSD400W

RUNS FOR YEARS WITH MINIMAL MAINTAINENCE: Runs for up to 30,000 hours with zero lamp replacements, keeping maintenance low and uptime high.
STAYS BRIGHT IN ANY ROOM: At 4,000 ANSI lumens, images stay bright in well-lit classrooms and conference rooms without washing out color or detail.
SHARP, READABLE IMAGES AT ANY SCREEN SIZE: A precise 0.65"" DMD chip and WXGA resolution produce crisp text and vivid images at any screen size.
NO FILTER TO CLEAN OR REPLACE: The IP6X-rated sealed engine blocks dust without a filter to clean or replace.
NO WARM-UP, NO WAIT: Powers on to full brightness instantly with no warm-up and no cooldown required.
COMPACT ENOUGH TO FIT ANYWHERE: 32% smaller than previous models, simplifying installation and reducing shipping and storage costs.

Comparison Sheet (PRG)

| Datasheet | Media

Product Overview

The LSD400W WXGA laser projector brings reliable, lamp-free projection to classrooms and meeting rooms where budget matters as much as performance. This latest generation of laser phosphor technology delivers up to 30,000 hours of use with no lamp replacements, reducing maintenance and lowering the total cost of ownership. It also uses up to 49% less power than traditional lamp projectors, making long-term value easy to justify. A precise 0.65" DMD chip and WXGA resolution keep text crisp and images vivid at any screen size. And with 4,000 ANSI lumens, images stay bright even in well-lit classrooms and conference rooms without washing out color or detail. At 32% smaller than previous models, the LSD400W fits into tighter spaces and simplifies installation. Flexible features like full 360° projection and keystone correction make it easy to handle challenging setups. For rooms that need reliable projection day after day, the LSD400W keeps running without lamp replacements, filter maintenance or warm-up delays.

Overview

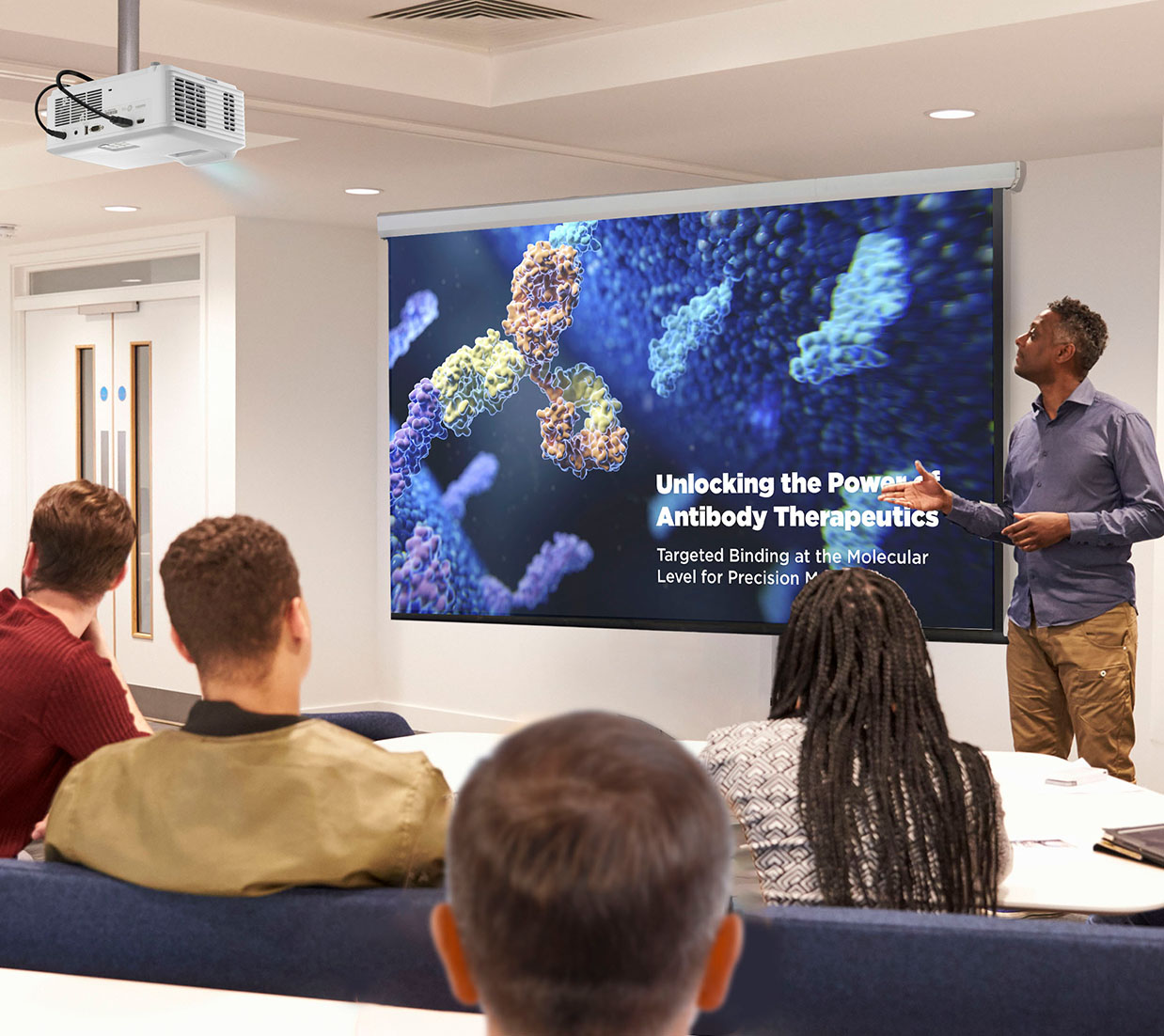

Stays Bright in Any Room

At 4,000 ANSI lumens, this projector holds up in well-lit classrooms and conference rooms without washing out color or detail. Presentations, slideshows and video content all stay sharp and readable regardless of how much ambient light is in the room.

Sharp, Readable Images at Any Screen Size

A precise 0.65" DMD chip and WXGA resolution produce crisp text and vivid images at any screen size, from a compact 30-inch setup to a full 300-inch display. Strong native contrast keeps content sharp and readable whether the room is bright or dimmed.

Lower Energy Bills

Latest-generation laser phosphor technology uses up to 49% less power than a traditional lamp projector. Over a 30,000-hour lifespan, that reduction in energy consumption adds up to meaningful savings on operating costs.

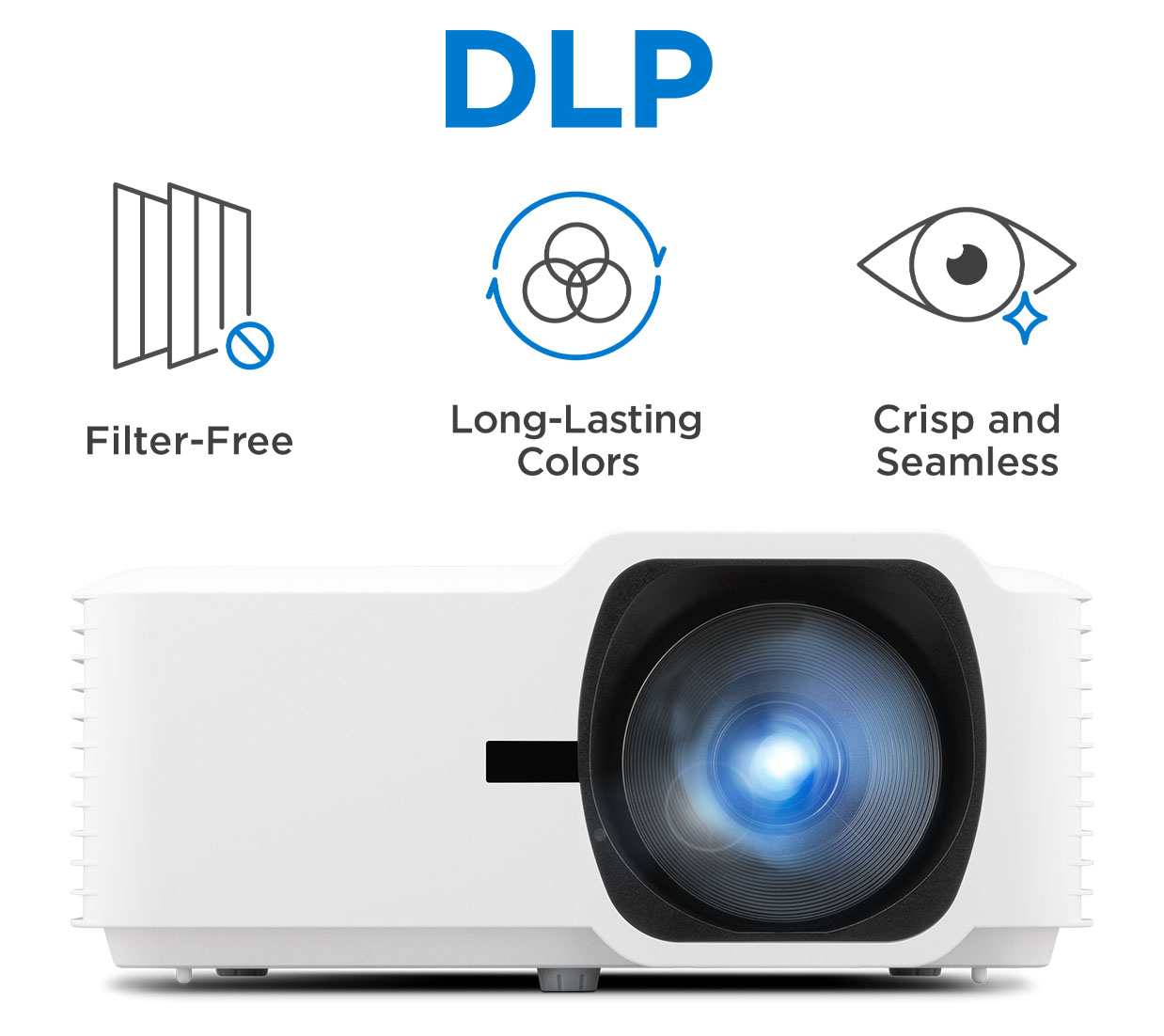

No Filter to Clean or Replace

The IP6X-rated sealed engine blocks dust from entering the optical system without a filter to clean or replace. Image quality stays consistent over the long haul with no scheduled filter maintenance required.

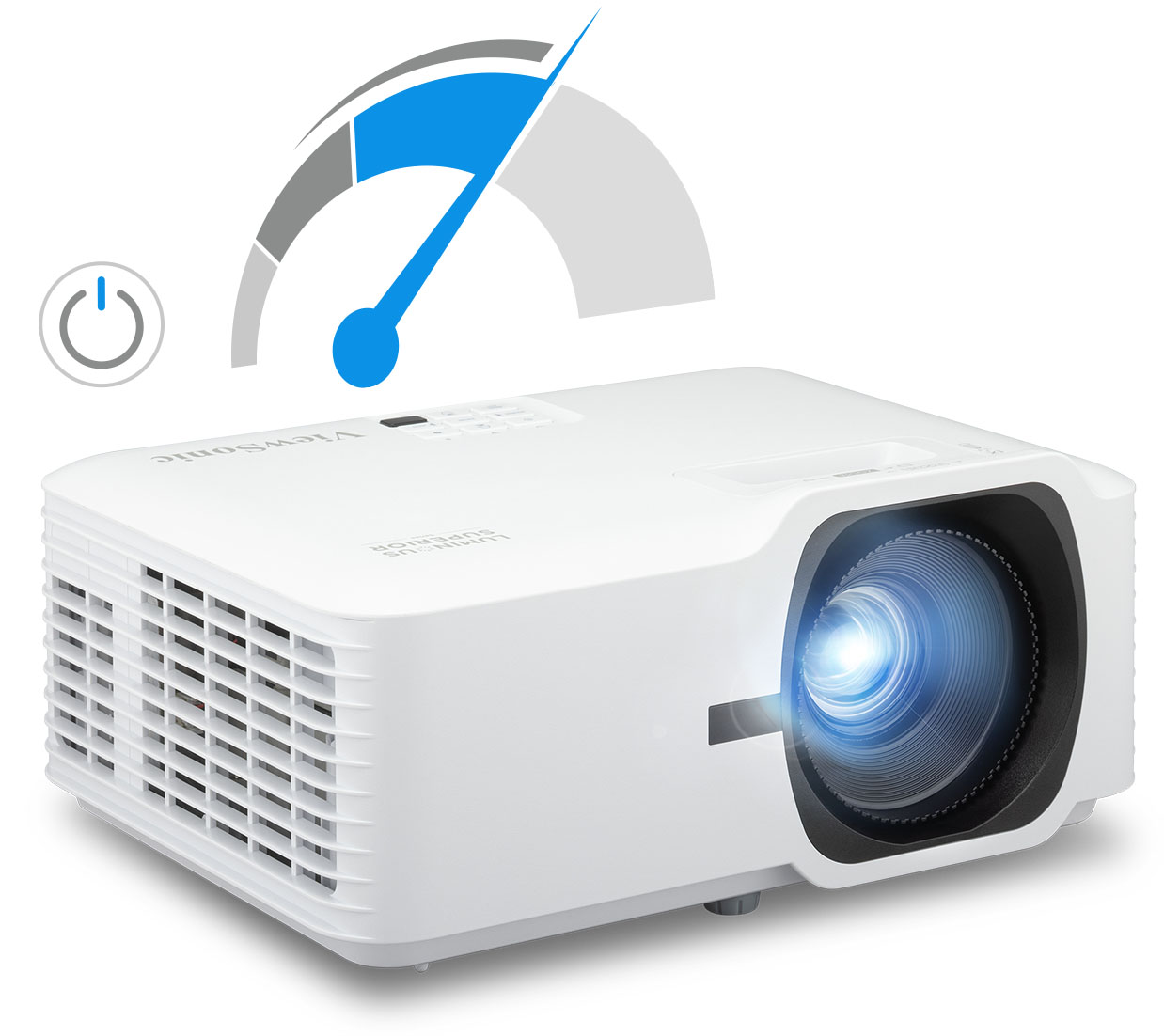

No Warm-Up, No Wait

This projector powers on to full brightness the moment it turns on, with no warm-up period or cooldown required. In classrooms and conference rooms where back-to-back sessions are the norm, that instant readiness keeps things moving.

Golf Mode with Enhanced Color

A dedicated Golf Mode fine-tunes color output to boost greens and blues. Fairways, water hazards and course details look as true-to-life on screen as they do in person, making the LSD400W a natural fit for golf simulation venues and training facilities.

Compact Enough to Fit Anywhere

At 32% smaller than previous models, this projector fits into tighter installation spaces and cuts shipping and storage costs without sacrificing performance.

Mount It Your Way With 360° Projection and Portrait Mode

The LSD400W rotates to any angle so the space dictates the setup, not the other way around. Ceiling mounts, floor projections and portrait mode all work without compromising image quality, opening up possibilities that a fixed display simply can't match.

Flexible Installation

1.1x optical zoom and horizontal and vertical keystone correction with 4-corner adjustment keep the image perfectly proportioned, even when placement isn't ideal.

Built for 24/7 Operation

Advanced cooling and a sealed engine keep this projector running day and night in demanding commercial environments.

Easy USB Firmware Updates

Update projector firmware via USB and a laptop for optimal performance with minimal downtime. No service visits required.

Awards

Specifications

Screen Size: 30 - 300 in. / 0.76 - 7.62 m
Throw Distance: 1.00m - 11.11m / 3.28 ft - 36.45 ft (100"@3.33m)
Throw Ratio: 1.544 - 1.72
Offset: 124%+/-10%
Lens: 1.1x optical zoom
Light Source Life, Normal (hours): 20000
Light Source Life, Dynamic Eco-Mode (hours): 30000
Color Depth: 1.07 Billion Colors
Input Lag: 25ms
Lens Shift: N/A (Digital Zoom: 0.8x-2.0x)
Display Resolution: WXGA (1280x800)
Light Source: DLP Laser
Display Resolution: 1280 x 800
Brightness (Lumens): 4,000 ANSI
Dynamic Contrast Ratio: 3,000,000:1
Aspect Ratio: 16:10
Keystone: Vertical (± 30º) / Horizontal (± 30º)
Frequency Horizontal: 15K-102KHz
Frequency Vertical: 24-120Hz
PC Resolution (max): WUXGA RB(1920 x 1200)
PC Resolution (min): VGA(640 x 480)
Mac® Resolution (max): WUXGA RB(1920 x 1200)
Mac® Resolution (min): VGA(640 x 480)
USB 2.0 Type A: 1 (5V/1.5A) Power, Service
3.5mm Audio Out: 1
Control (RS232): 1
HDMI 1.4 (with HDCP 1.4): 2
Internal Speakers: 3W (x1)
Voltage: 100-240V+/- 10%, 50/60Hz AC
Consumption (typical): 114W
Stand-by: <0.5W
Physical Controls: Keypad, Power key
On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
Temperature: 32-104º F (0 - 40º C)
Normal: 30dB
Eco-Mode: 25dB
Kensington Lock Slot: 1
Net (lbs): 6.83
Gross (lbs): 10.14
Net (kg): 3.1
Packaging (in.): 15.75" x 11.02" x 6.10"
Physical (in.): 11.26" x 8.5" x 5.08"
Packaging (mm): 400 x 280 x 155mm
Physical (mm): 286 x 216 x 129mm
Regulations: cTUVus, CE, FCC, RoHS, REACH, EEE
Package Contents: Projector, power cable, remote control, Quick Start Guide
Warranty: Three-year limited warranty on parts and labor, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.

Download

Quick Start Guide
LSD400W Quick Start Guide

Technical Document
LSD400W_2D_drawing
LSD400W_3D_drawing(stp)
RS-232/LAN Control Protocol Specification V1.0

Safety Compliance
LSD400W BSMI RoHS
LSD400W CE DoC

Reports
LSD400W Product Carbon Footprint

Service Manual
LSD400W Service Manual
