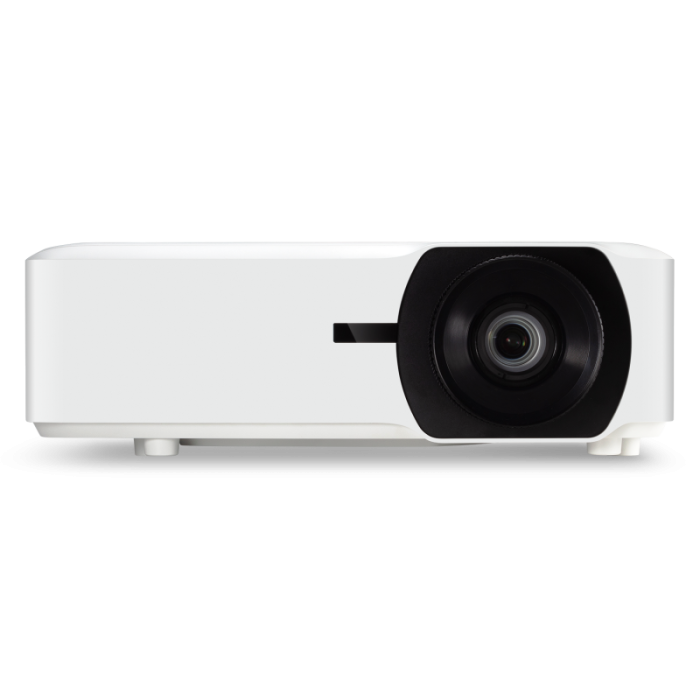

LS850WU - 5000 Lumens WUXGA Networkable Laser Projector with 1.6x Optical Zoom

Name: LS850WU - 5000 Lumens WUXGA Networkable Laser Projector with 1.6x Optical Zoom
SKU: LS850WU

| Datasheet | Media

Add to Compare

Product Overview

Bright and versatile for any professional installation, the ViewSonic^® LS850WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 5,000 lumens of advanced high brightness, 300,000:1 contrast ratio, and up to 20,000 hours* of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms, houses of worship, and more. Thanks to SuperColor™ technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. This top-notch performer is also easy to deploy and manage with its wide 1.6x optical zoom adjustment, vertical/horizontal keystone, 4 corner adjustment, and a vertical/horizontal lens shift feature that provide extreme flexibility in even the most challenging installations. Thanks to the built-in HDBT receiver, the projector is capable of receiving uncompressed HD video and audio from over 200 feet away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. The ViewSonic^® LS850WU is the ideal WUXGA laser projector for professional installations, large venues, and business and education environments. *Light source life may vary based on actual usage and other factors.

Overview

Bright Images in Large Spaces

Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

Long-lasting Laser Phosphor Light Source

Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.

*Light source lifespan may vary based on actual usage and other factors.

One-wire HDBT^® Input

With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.

360-degree Orientation

A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.

Portrait Mode Projection

This projector can be placed in a vertical position and project images in portrait orientation.

Peace of Mind

ViewSonic offers one of the industry's best overall projector warranties with 5-year (or 20,000 hours) limited parts, labor, and light source. This includes first year free Express Exchange^® service* for an added value worth up to $150**.

*One year Express Exchange^® Service requires product registration. **Up to $150 added value over competitive models with 1-year warranty and based on extended warranties from manufacturers and not third party warranty providers.

Extreme Mounting Flexibility

A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.

Horizontal and Vertical Keystone Correction

Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.

Horizontal and Vertical Lens Shift

A horizontal/vertical lens shift feature offers up and down, as well as left and right adjustments of the projection lens. This feature allows for flexible projector placement in challenging installations.

Network Monitoring & Control

IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron^® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron^® and AMX^® certified, IT admin can control and monitor the projector for any size campus or enterprise.

Reduced Input Latency

This projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.

Awards

Specifications

Screen Size: 30 - 300 in. / 0.76 - 7.62 m
Throw Distance: 2.9 – 46.2 ft / 0.9 – 14.1 m
Throw Ratio: 1.36 - 2.18
Lens: 1.6x Manual optical zoom / manual optical focus
Light Source (watt): Nichia 67W X 2
Light Source Life, Normal (hours): 20000
Light Source Life, Dynamic Eco-Mode (hours): 20000
Color Depth: 1.07B Color (R/G/B 10bit)
Input Lag: 37ms
Lens Shift: V (+50%, -50%); H (+23%, -23%)
Display Resolution: WUXGA (1920x1200)
Light Source: DLP Laser
Display Resolution: 1920 x 1200
Brightness (Lumens): 5,000 ANSI
Dynamic Contrast Ratio: 3,000,000:1
Aspect Ratio: 16:10
Keystone: Vertical (+/- 40º) / Horizontal (+/- 40º)
Frequency Horizontal: 15K-102KHz
Frequency Vertical: 23-120Hz
PC Resolution (max): 1920 x 1200
PC Resolution (min): 640 x 480
Mac® Resolution (max): 1920 x 1200
Mac® Resolution (min): 640 x 480
USB 2.0 Type A: 1
Ethernet LAN (RJ45): 1
3.5mm 12V Trigger: 1
3.5mm Audio Out: 1
3.5mm Audio In: 1
Control (RS232): 1
HDMI 1.4 In: 1
HDMI 1.4 (with HDCP 1.4): 1
VGA In: 1
VGA Out: 1
Composite RCA Video In: 1
S-Video In: 1
RCA Audio In (L/R): 1
3D VESA: 1
Internal Speakers: 10W (x2)
Consumption (typical): 430W
Stand-by: <0.5W
On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 0-90%
Kensington Lock Slot: 1
Net (lbs): 14.1
Net (kg): 6.4
Physical (in.): 15.9 x 5.7 x 12.0
Physical (mm): 403.9 x 144.8 x 304.8
Regulations: FCC, cTUVus, ROHS
Package Contents: LS850WU projector, power cable, VGA cable, remote control, Quick Start Guide
Warranty: Five-year limited warranty on parts and labor, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.

Download

Quick Start Guide
LS850WU Quick Start Guide
