LDM135-151 - 135” Display, 1920 x 1080 Resolution, 600-nit Brightness - Discontinued

Name: LDM135-151 - 135” Display, 1920 x 1080 Resolution, 600-nit Brightness - Discontinued
SKU: LDM135-151

| Datasheet | Media

Add to Compare

Product Overview

The LDM135-151 has been discontinued, replaced by the LDM136-151

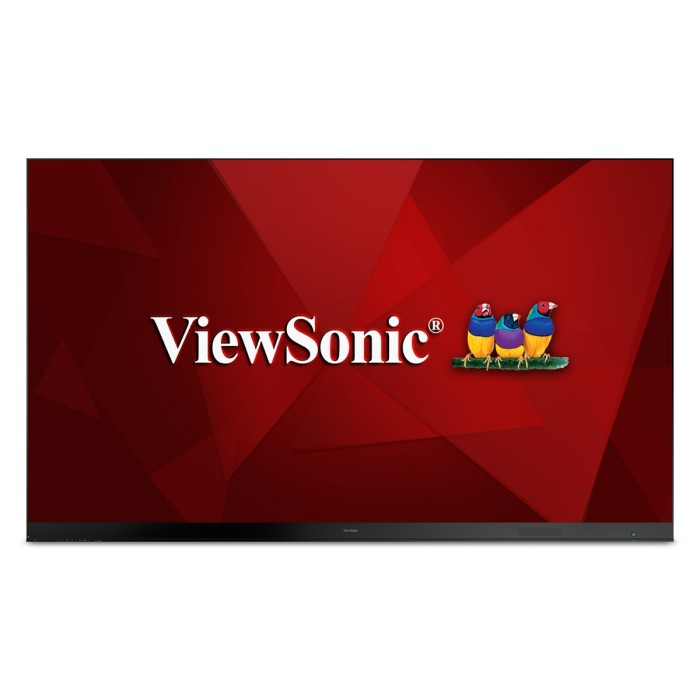

The ViewSonic^® LDM135-151 is an innovative All-in-One Direct View LED display. With a huge 135” screen size, the LDM135-151 is built to impress as a centerpiece in any conference room, boardroom, or lobby. Along with its immense screen size, this display delivers stunning visuals with Full HD resolution, 1.5mm fine pixel pitch, 600-nit high brightness, 3,840Hz ultra-fast refresh rate, and 120% Rec.709 wide color gamut. What’s more, its ultra-slim 35mm thickness and bezel-free design delivers sleek looks whether its hanging on a wall or mounted on an optional aluminum floor stand. Despite its huge screen size, a front-assembly modular design enables easy delivery, installation, and maintenance. And with remote configuration and content management system support, the ViewSonic LDM135-151 is also suitable for a wide array of diverse signage applications.

Overview

a large format display in front of a crowd of empty chairs next to a podium

High-Impact Messaging

With a huge screen size and ultra-narrow bezel, this display’s sleek and minimalist design seamlessly delivers content without lines or distortion for a more immersive visual experience.

a large format direct view led with individual panels being replaced

Simple and Easy Setup

From the LED tiles, to the AV hardware and software, power supplies and cables, this all-in-one solution includes everything you need in one box for streamlined installation.

a woman playing a violin on a large format direct view led display

Amazing Audio-Visual Experience

Enjoy stunning images thanks to immersive Full HD resolution, a 120% Rec. 709 wide color gamut and 600 nits of brightness. Built-in stereo speakers deliver crystal-clear sound to complete the audio-visual experience.

a man working on a laptop alongside a direct view led display being shown in a number of different settings

Device Management Made Easy

The included myViewBoard Manager™ software is a cloud-based management solution that empowers IT administrators to remotely monitor devices, manage apps, push out broadcasts and more within the myViewBoard ecosystem. myViewBoard Manager lets IT administrators seamlessly monitor and maintain individual displays across large organizations from a single control panel. For additional functionality, you can upgrade to myViewBoard Manager Advanced software.

a close up of the replaceable panels o the direct view led display

Easy Maintenance

A modular design features swappable LED tiles that can be easily maintained with minimal downtime. Simply remove the old panel and replace with a new panel that has been pre-calibrated for color, brightness and uniformity.

3-Year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty with onsite service.

Wireless Content Sharing

Embedded Wi-Fi allows users to easily share content to the display.

Awards

Specifications

OS: Android 8.0
CPU: Hi3751 V811
Memory: 4GB DDR4
Storage: Total 32GB (26GB available storage)
Internal Speakers: 5W (x2)
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
HDMI 1.4 In: 2
HDMI 1.4 (with HDCP 1.4): 2
HDMI 2.0 In: 3
HDMI 2.1 In: 1
HDMI Out: 1
3.5mm Audio Out: 1
USB 3.0: 1
USB 2.0: 2
RS232: 1
Ethernet LAN (RJ45): 1
IR in: 1
Voltage: 100-240V+/- 10%, (100-120V/30A, 50/60Hz ; 220-240V/15A)
Consumption (max): 2900W
Consumption (typical): 2030W
Stand-by: <0.5W
On Screen Display: Yes
Remote Control: Yes
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-80%
Net (lbs): 298
Gross (lbs): 529
Net (kg): 135
Gross (kg): 240
Packaging (in.): 70.9 x 33.5 x 29.3
Physical (in.): 118.9 x 71.1 x 1.4
Physical with Wall Mount (in.): 118.9 x 71.1 x 2.2
Packaging (mm): 1800 x 850 x745
Physical (mm): 3020.95 x 1805.95 x 35
Physical with Wall Mount (mm): 3020.95 x 1805.95 x 56
Warranty: 3-year limited warranty on parts and labor, on-site service
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Package Contents: Power Cord, Remote Control, QSG, USB Cable (A-B), Maintenance Tool (LD-MK-001) x 1, Spare Modules (LED PCB x 2)
Regulations: cTUVus, FCC, RoHS
Battery Chemistry: Lithium
Classification: Discontinued
Wifi: 2.4G / 5G n
Display Type: Direct View LED
Screen Size: 135"
Viewable Area (in.): 135
Orientation: Landscape
LED Pitch Size (mm): 1.56
LED Grayscale: 14 bits
Backlight Life (Hours): 100,000
Viewing Angles: 160º horizontal, 160º vertical
Operation Rating: 24/7
Display Resolution: 1920 x 1080
Aspect Ratio: 16:9
Brightness: 600-nit
Static Contrast Ratio: 6,000:1
Panel Type: Fine Pixel Pitch LED
Refresh Rate: 3,840Hz
