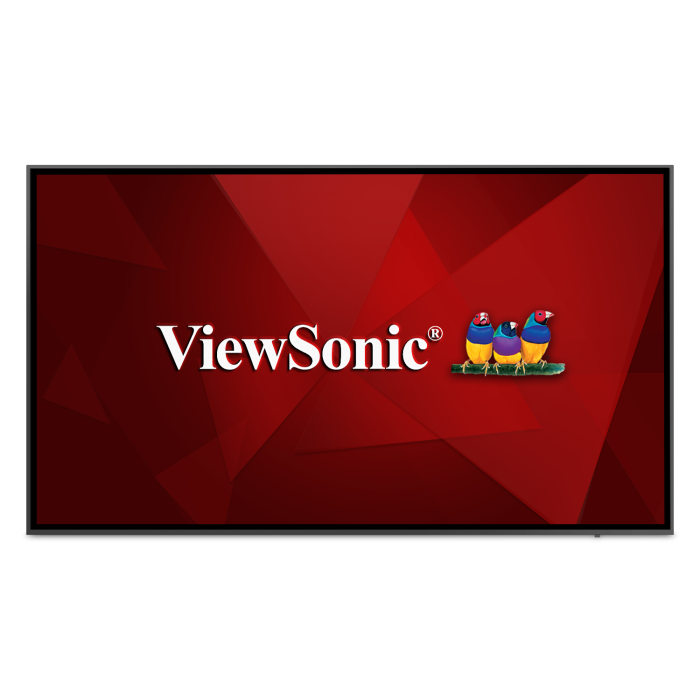

The ViewSonic® CDE7520-W is a 75” premium 4K wireless presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 16W speakers, and wireless screen sharing, the CDE7520-W transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE7520-W can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE7520-W is also suitable for a wide array of diverse signage applications.
*Chrome, Android, Windows, Mac OS, and iOS compliant
Ultra HD Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
Powerful All-in-One SoC Platform
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
Free ViewBoard ® Cast Content Sharing Software
ViewBoard® Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.
Integrated Content Management System
Enjoy a free cloud-based introductory service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are.
AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Crestron, Extron and AMX certified.
Continuous Display Maintenance
Included vController™ software provides a simple and intuitive interface for local display management, while an optional 42Gears SureMDM app allows users to monitor and remotely diagnose irregularities from virtually any location.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
RS232 In/Out with IR Pass-through
RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or PC. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display’s remote controller.
OPS Slot Compatibility
Equipped with Intel’s Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Display Size (in.)
75
Resolution
3840 x 2160
Static Contrast Ratio
1,200:1
Light Source
DLED
Lcd Display
Display Size (in.)
75
Viewable Area (in.)
75
Light Source
DLED
Resolution
3840 x 2160
Panel Type
IPS
Static Contrast Ratio
1,200:1
Backlight Life (Hours)
50,000
Brightness
450 cd/m2
Response Time (Typical GTG)
8ms
Viewing Angles
178º horizontal, 178º vertical
Operation Rating
Embedded Player
GPU
Dual-core MaliG51 MP2
CPU
2 Dual-core Processors - Cortex A73 + A53 1.4GHz
Memory
3GB DDR4
Storage
16GB eMMC
Audio
Internal Speakers
16W (x2)
Connector
HDMI 2.0 In (With CEC, HDCP 2.2)
2
HDMI 2.0 Out (with HDCP 2.2)
1
VGA
1
Display Port
1
RCA Audio Out
1
SPDIF Audio Out
1
USB 3.0
1
USB 2.0
2
OPS PC Slot
1
RS232
1
Ethernet LAN (RJ45)
1
WIFI Module Slot
1
Power
Voltage
100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption (max)
300W
Consumption (typical)
240W
Stand-by
<0.5W
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
10-80%
Weight (imperial)
Net Without Stand (lbs)
64.6
Gross (lbs)
91.9
Weight (metric)
Net Without Stand (kg)
29.3
Gross (kg)
41.7
Dimensions (imperial) (wxhxd)
Packaging (in.)
71.97 x 43.23 x 8.66
Physical (in.)
65.83 x 37.59 x 2.76
Dimensions (metric) (wxhxd)
Packaging (mm)
1828.0 x 1098.0 x 220.0
Physical (mm)
1672.0 x 955.0 x 70.0
Mount
VESA Compatible
400 x 200 mm
Screw Size
M8
General
AV Control
AMX Certified, Crestron Certified, Extron Certified
Warranty
3-year limited warranty on parts, labor and backlight, onsite warranty
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
CDE7520-W, Remote control with batteries, Quick Start Guide, Power cable (1.5m), HDMI Cable (3m), Wall Mount Screws and RS232 Adapter
Regulations
cTUVus, FCC, Energy Star, RoHS, Mexico CoC, Mexico Energy
Dimensions
65.83 x 37.59 x 2.76 in / 1672.0 x 955.0 x 70.0 mm
- RS232 in
- DisplayPort
- HDMI 2.0 in (x2)
- SPDIF
- HDMI 2.0 Out
- Internal Speakers
- Menu Controls
- Power Switch
- AC In
- VESA® Compatible Wall Mount (400 x 200 mm)
- VGA
- Audio In
- USB 3.0 Type A (x1)
- USB 2.0 Type A (x2)
- Audio Out
- LAN
- OPS Slot-in
- WiFi Slot-in
