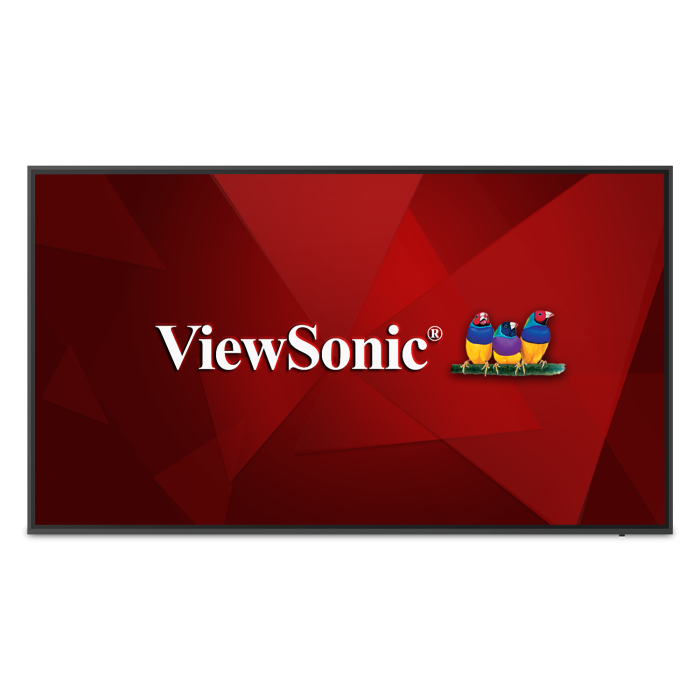

CDE6520-W - 65" Display, Resolución 3840x2160, 450 cd/m2 Brightness
Información general del producto


Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, SO Chrome, android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.


AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.


Administrador de control de dispositivos centralizado
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.


Software de Intercambio de Contenido ViewBoard Cast
ViewBoard Cast enables users to share and receive content from any device platform. Supports Chrome, iOS, Mac, android, and Windows with secure passcode and moderator control. Multiple users can simultaneously stream and share that content onto the ViewSonic display. Multi-screen casting allows up to four client screens to be shown on the ViewSonic display at once.


Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.


Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Entrada/salida RS232 con paso IR
RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or PC. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display’s remote controller.
Compatibilidad con Ranura OPS
Equipped with Intel’s Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.
Garantía limitada de 3 años
Quédese tranquilo con la calidad y la fiabilidad de su pantalla ViewSonic, respaldada por una de las mejores políticas de rendimiento de píxeles de la industria y una garantía limitada de 3 años.
- GPU: Procesadores de doble núcleo MaliG51 MP2
- CPU: 2 - Cortex A73 + A53 1.4GHz
- Memoria: DDR4 de 3 GB
- Almacenamiento: eMMC de 16 GB
- Media Player Type: Sí
- Altavoces internos: 16W (x2)
- HDMI 2.0 In (With CEC, HDCP 2.2): 2
- VGA: 1
- DisplayPort: 1
- RCA Audio Out: 1
- SPDIF Audio Out: 1
- USB 3.0: 1
- USB 2.0: 2
- Ranura de PC para ranura: 1
- RS232: 1
- Ethernet LAN (RJ45): 1
- WIFI Module Slot: 1
- Ranura Intel® OPS (80 pines): 1
- Voltaje: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
- Consumption (max): 300w
- Consumo (típico): 220w
- En espera: <0.5W
- Temperatura: 32-104 ºF (0-40 ºC)
- Humedad (sin condensación): 10-80%
- Net Without Stand (lbs): 50,59
- Bruto (lb): 70,07
- Neto sin base (kg): 22,95
- Bruto (kg): 33,60
- Empaque (in): 63,19x37,99x8,66
- Medidas (in): 57,11x32,60x3,09
- Empaque (mm): 1605,0x965,0x220,0
- Medidas (mm): 1450,6x828,1x78,5
- Screw Size: M6
- VESA Compatible: 400 x 200 mm
- AV Control: Certificado por AMX, Certificación Crestron (versión 1.0), Certificado por Extron
- Garantía: Garantía limitada de 3 años en las piezas, labor and backlight, garantía en el sitio
- Reciclaje/eliminación: Desechar de acuerdo con las leyes locales, state or federal laws.
- Contenido del paquete: CDE6520-W, Control remoto con pilas, Guía de inicio rápido, Power cable (1.5m), HDMI Cable (3m), Wall Mount Screws and RS232 Adapter
- Regulaciones: cTUVus, FCC, ENERGY STAR, RoHS, Mexico CoC, Mexico Energy
- Tamaño de pantalla: 65
- Área visible (in): 65
- Vida útil de la retroiluminación (horas): 50,000
- Ángulos de visión: 178º horizontal, 178º vertical
- Resolución de pantalla: 3840 x 2160
- Tiempo de respuesta (GTG típico): 8 ms
- Fuente de luz: DLED
- Brillo: 450 cd/m2
- Relación de contraste estático: 1,200:1
- Panel Type: IPS
-
Guías del usuario
- CDE6520-W User Guide (Dansk)
- CDE6520-W User Guide (Norsk)
- CDE6520-W User Guide (Suomi)
- CDE6520-W User Guide (Svenska)
- CDE6520-W User Guide (Česky)
- CDE6520-W User Guide (日本語)
- CDE6520-W User Guide (Deutsch)
- CDE6520-W User Guide (English)
- CDE6520-W User Guide (Español )
- CDE6520-W User Guide (Français)
- CDE6520-W User Guide (Nederlands)
- CDE6520-W User Guide (Türkçe)
- CDE6520-W User Guide (Русский)
-
Documento técnico
- CDE6520-W 3D Drawing (RFA)
- CDE6520-W 3D drawing (stp)
- CDE6520-W_2D_drawing
-
Cumplimiento de las Normativas de Seguridad
- CDE6520-W BSMI RoHS
-
Informes
- CDE6520-W Carbon Footprint Report


- Entrada de RS232
- DisplayPort
- Entrada HDMI 2.0 (x2)
- SPDIF
- Altavoces internos
- Controles de menú
- Interruptor de alimentación
- Entrada de CA
- Montaje de pared compatible con VESA® (400 x 200 mm)
- VGA
- Entrada de audio
- USB 3.0 Tipo A (x1)
- USB 2.0 Tipo A (x2)
- Salida de audio
- LAN
- Ranura de OPS
- Ranura de WiFi
