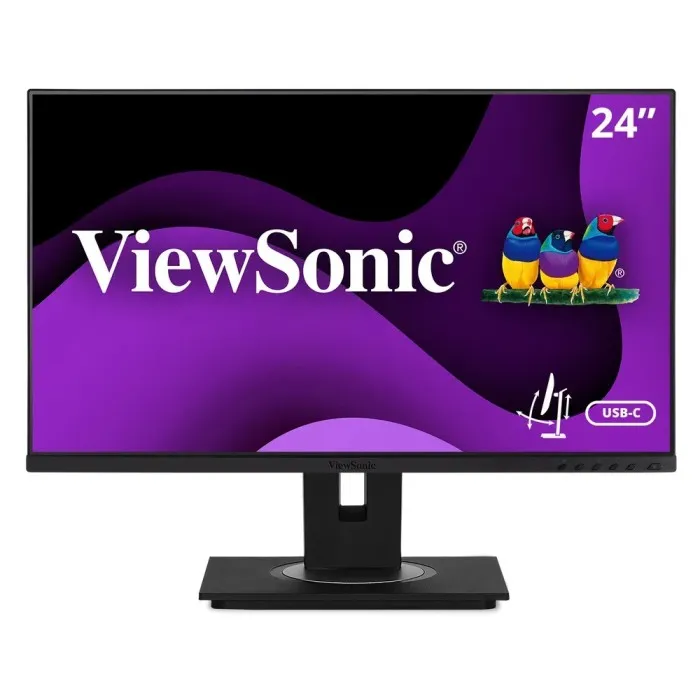

VG2456a - 24" 1080p Ergonomic IPS Docking Monitor with 90W USB C, RJ45 and Daisy Chain
- 24 Inch Full HD (1920x1080p) IPS monitor with thin bezels and 60Hz refresh rate
- Ethernet RJ45 and USB-C connectivity for fast data, audio and video transfer, 90W charging over one cable
- Advanced ergonomics (40-degree tilt, swivel, rotate and height) for all-day comfort
- Flicker-Free technology and Blue Light Filter for reduced eye fatigue
- Easy-to-install quick release stand with carrying handle and client mount
- The VG2456a supports PC, Mac and more with USB-C, RJ45, HDMI, DisplayPort (Daisy Chain), USB inputs
Product Overview
Be More Productive with ViewSonic Docking Monitors
Enjoy safety, flexibility and productivity with ViewSonic. ViewSonic offers a diverse range of display solutions to help companies make the most out of their flexible workstations.
Featuring state-of-the art ergonomic design, ViewSonic® docking monitors are the perfect setup for your changing work environment. With USB-C single-cable connectivity, RJ45 wired Ethernet connection and a USB hub for your accessories, there’s no need for expensive docks. One cable provides everything you need to connect and start working.
Enjoy peace of mind with an industry-leading warranty on all ViewSonic monitors and access to an award-winning customer support team.
Enhanced Productivity with Dual Monitor Setup
With the latest USB Type-C and DisplayPort output connectivity, these monitors can be easily daisy chained for a productivity-boosting desktop setup. With multiple screens on your desktop, you can work smarter, faster, and more efficiently.*
*MST (multi-stream transport) not supported by macOS
A More Comfortable Workspace
With advanced ergonomic features including swivel, pivot, height adjust, and tilt, this monitor is designed to provide a greater range of adjustment for increased productivity and comfort. The monitor can tilt up to 40-degrees, making it ideal for use during group discussions and screen sharing.
Command and Control Made Easy
Integrated vDisplayManager software enhances productivity by putting the On-Screen Display (OSD) menu controls on your monitor’s screen. This delivers a more comfortable viewing experience by allowing you to quickly and easily adjust display settings such as volume, brightness, contrast, and more.
Minimized Total Cost of Ownership
Designed for the busiest of office environments, this monitor helps to reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns, to user experience and screen performance, every feature of this monitor was carefully considered to not only meet your workspace demands, but to also reduce your TCO.
| Screen Size | 24 |
|---|---|
| Viewable Area (in.) | 23.8 |
| Panel Type | IPS |
| Display Resolution | 1920 x 1080 |
| Display Resolution | Full HD (1920x1080) |
| Static Contrast Ratio | 1,000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Light Source | LED |
| Brightness | 250 cd/m2 |
| Colors | 16.7M |
| Color Space Support | 6 bit + A-FRC |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 5ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 30,000 |
| Panel Surface | Anti-Glare type, Hard-coating (3H), Haze 25% |
| PC Resolution (max) | 1920 x 1080 |
| Mac® Resolution (max) | 1920 x 1080 |
| USB Type A | 2 |
| USB Type B | 1 |
| USB Type C | 1 |
| Ethernet LAN (RJ45) | 1 |
| HDMI 1.4 In | 1 |
| DisplayPort | 1 |
| DisplayPort Out | 1 |
| Internal Speakers | 2W (x2) |
| Eco Mode (Conserve) | 18W |
| Eco Mode (optimized) | 21W |
| Consumption (typical) | 24W |
| Consumption (max) | 46W |
| Voltage | AC 100-240V (universal), 50-60Hz |
| Stand-by | 0.5W |
| Power Supply | Internal |
| Cable Organization | No |
| Physical Controls | Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) |
| On Screen Display | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Temperature | 32-104º F (0 - 40º C) |
| Humidity (non-condensing) | 20-90% |
| VESA Compatible | 100 x 100 mm |
| Frequency Horizontal | 15 ~ 82 KHz |
| Frequency Vertical | 50 ~ 75 Hz |
| Height Adjust | 130 mm / 5.1 in |
| Swivel | 120º |
| Pivot (Right/Left) | 90º / 90º |
| Tilt (Forward/Back) | 5º / 40º |
| Net (lbs) | 13.9 |
| Net Without Stand (lbs) | 8.6 |
| Gross (lbs) | 20.3 |
| Net (kg) | 6.3 |
| Net Without Stand (kg) | 3.9 |
| Gross (kg) | 9.2 |
| Packaging (in.) | 23.4 x 8.3 x 15.6 |
| Physical (in.) | 21.2 x 15.99~20.15 x 8.0 |
| Physical Without Stand (in.) | 21.2 x 12.6 x 2.0 |
| Packaging (mm) | 595.0 x 210.0 x 396.0 |
| Physical (mm) | 539.0 x 406.19~511.9 x 202.0 |
| Physical Without Stand (mm) | 539.0 x 320.0 x 52.0 |
| Regulations | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy |
| PACKAGE CONTENTS | VG2456a Display, Power Cable, DisplayPort Cable, USB Type C cable, USB A/B Cable, Quick Start Guide |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
Quick Start Guide
- VG2456A Quick Start Guide
Driver & Software
- Standard Monitor Driver Signed Windows 10 x64
- Standard Monitor Driver Signed Windows 10 x86
- Standard Monitor Driver Signed Windows 11 x64
- Standard Monitor Driver Signed Windows 7
- Standard Monitor Driver Signed Windows 7 x64
- Standard Monitor Driver Signed Windows 8 x64
- Standard Monitor Driver Signed Windows 8 x86
- Standard Monitor Driver Unsigned Windows
- Standard Monitor Driver Unsigned Windows x64
- ViewSplit Software & User Guide for Windows
