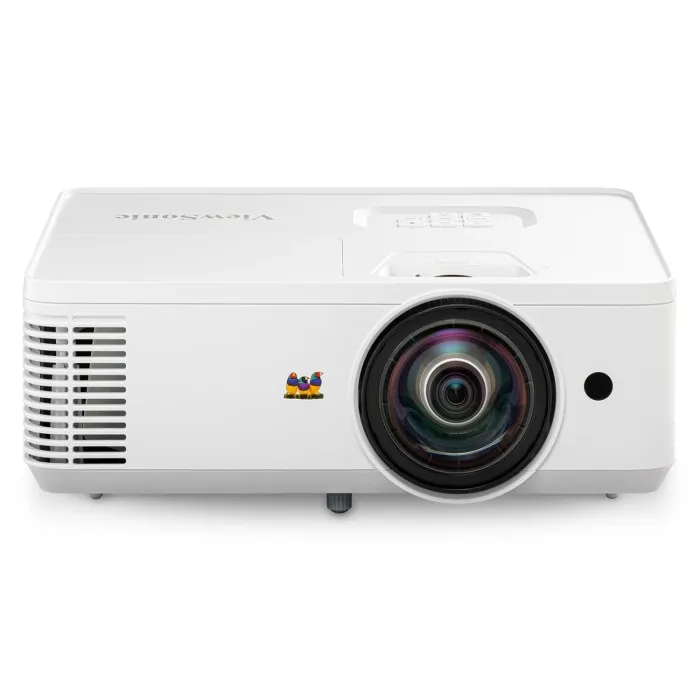

PS502W - 4000 Lumens WXGA Short Throw Projector with Dual HDMI, USB-A

Selected

  • High brighness 4000 Lumens WXGA projector with short throw lens and advanced visual features
  • Easy setup with 0.52 throw ratio, and vertical keystone adjustment
  • SuperEco Mode allows the lamp to shine bright for up to 12,000 hours
  • 6 segment color wheel and dynamic lamp control capabilities provide vivid colors
  • Supports most media players, PCs, Macs, and mobile devices with inputs such as Dual HDMI, USB Type A port
Add to Compare

Product Overview

Light up classrooms and conference rooms alike with the ViewSonic® PS502W WXGA short throw projector.

Featuring 4,000 ANSI lumens of stunning brightness, this powerful business and education projector creates crystal clear images up to 300”. And with a 0.52 short throw ratio, this projector is capable of displaying shadow-free 100” images from just a few feet away.

The PS502W projector also comes with multiple connectivity options for greater convenience. Dual HDMI ports empower users to connect multiple devices directly to the projector. Once connected, the projector can conveniently switch between different input sources at the press of a button. A USB-A port provides power to wireless HDMI dongles for a more convenient streaming experience. Rather than taking your projector to the service center, software updates can be performed easily over a simple USB cable.

With the PS502W projector, you can let your presentations shine with stunning clarity.

Bright Images in any Environment, 4,000 Lumen BrightnessBright Images in any Environment, 4,000 Lumen Brightness

Bright Images in any Environment

Packed with 4,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in nearly any environment – even in rooms with high ambient light.

a presenter in front of a room.  a comparison between short throw and standard throw projector distances is shown.a presenter in front of a room.  a comparison between short throw and standard throw projector distances is shown.

Short Throw Lens

A 0.616 short throw lens enables large images to be projected from short distances. In addition, any blinding lights in front of the projector, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector’s light source is closer to the projection surface.

projector showing a 300" screenprojector showing a 300" screen

Experience Images up to 300"

Enjoy breathtaking images on an ultra-large screen capable of reaching up to 300". This state-of-the-art projector has a lower cost-per-inch compared to commercial displays.

Side of VX1655-4K -OLED showing USB-C, mini HDMI, and 3.5mm audio connectorsSide of VX1655-4K -OLED showing USB-C, mini HDMI, and 3.5mm audio connectors

Versatile Connectivity

In addition to dual USB Type-C ports with charging, this monitor also features mini HDMI and a 3.5mm headphone jack for plug-and-play connectivity to a variety of multimedia devices.

a projector sitting next to a laptop with an updating messagea projector sitting next to a laptop with an updating message

Software Updates via USB

Software and firmware updates for this projector can be easily accessed online. Simply connect the projector to a computer via USB, and run the software update program available below, in the Support & Downloads section of the product page.

  • Screen Size: 60 - 300 in. / 1.5 - 7.6 m
  • Throw Distance: 0.75m-3.76m (77""@0.96m)
  • Throw Ratio: 0.52
  • Lens: Fixed Zoom
  • Light Source Life, Normal (hours): 4000
  • Light Source Life, Dynamic Eco-Mode (hours): 12000
  • Color Depth: 1.07 Billion Colors
  • Input Lag: 37ms
  • Display Resolution: WXGA (1280x800)
  • Light Source: DLP Lamp
  • Display Resolution: 1280 x 800
  • Brightness (Lumens): 4,000 ANSI
  • Dynamic Contrast Ratio: 15,000:1
  • Aspect Ratio: 16:10
  • Keystone: Vertical (+/- 19º)
  • Frequency Horizontal: 15K-102 KHz
  • Frequency Vertical: 23-120 Hz
  • PC Resolution (max): VGA(640 x 480) to FullHD(1920 x 1080)
  • Mac® Resolution (max): 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • USB 2.0 Type A: 1
  • 3.5mm Audio Out: 1
  • 3.5mm Audio In: 1
  • Control (RS232): 1
  • HDMI 1.4 (with HDCP 1.4): 2
  • VGA In: 1
  • VGA Out: 1
  • Internal Speakers: 16W (x1)
  • Voltage: 100-240V+/- 10%, 50/60Hz AC
  • Consumption (typical): 295W
  • Stand-by: <0.5W
  • Physical Controls: Keypad, Power key
  • On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
  • Temperature: 32-104º F (0 - 40º C)
  • Kensington Lock Slot: 1
  • Net (lbs): 6.3 lbs
  • Gross (lbs): 9 lbs
  • Net (kg): 2.87 kg
  • Gross (kg): 4.08 kg
  • Packaging (in.): 15.7 in x 13.3 in x 6.6 in
  • Physical (in.): 12.2 in x 9.2 in x 4.5 in
  • Packaging (mm): 400 mm x 337 mm x 168 mm
  • Physical (mm): 309 mm x 234 mm x 115 mm
  • Regulations: cTUVus
  • Package Contents: Projector, power cable, remote control, Quick Start Guide,
  • Warranty: Three-year limited warranty on parts and labor, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
  • Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
  • Product Sku Group Label: WXGA - 1280x800
