LS810 - 1280 x 800 Resolution, 5,200 ANSI Lumens, 0.23 Throw Ratio
- Long-lasting laser phosphor light source
- 5,200 lumen brightness
- Large images in small spaces
- Ultra-high contrast ratio
- Secure MHL/HDMI port
Product Overview

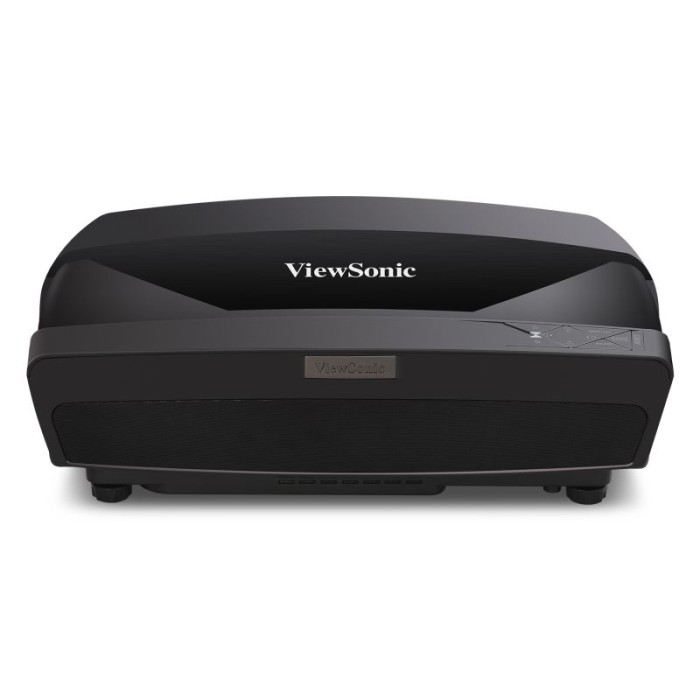

Featuring 1280x800 WXGA resolution and 5,200 lumens of brightness, the ViewSonic® LS810 Laser Projector is the ideal solution for modern business and education environments. Designed with a laser phosphor light source lasting up to 20,000 hours, this projector delivers long-term, virtually maintenance-free usage for any boardroom or classroom. With its 0.23 ultra-short throw ratio, HV keystoning and 4 corner adjustments, the LS810 makes installation a hassle-free experience. What’s more, the ultra-short throw ratio allows you to place the projector just inches away from a wall or screen to give you a huge image for less cost than a comparably sized display. The LS810 also features a hidden PortAll® compartment which accommodates additional accessories such as a wireless streaming device, or PC stick. Powered by SuperColor™ technology for true-to-life images, and SonicExpert® technology for incredibly clear sound, the LS810 delivers an immersive audiovisual performance.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
*Light source lifespan may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 5,200 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, classrooms, and public spaces.
Large Images in Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms.
Ultra-high Contrast Ratio
A 100,000:1 ultra-high contrast ratio enhances even the finest shades of gray – a key characteristic for delivering excellent clarity and detail for razor-sharp images.
*The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product
PortAll: Discreet Wireless Streaming
This projector includes ViewSonic’s exclusive PortAll® feature—a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. What’s more, an integrated Micro USB cable lets you quickly and easily power Micro USB-enabled devices.
| Light Source | DLP Laser |
|---|---|
| Display Resolution | WXGA (1280x800) |
| Display Resolution | 1280 x 800 |
| Brightness (Lumens) | 5,200 ANSI |
| Throw Distance | 1.21 – 2.62 ft. / 0.37 – 0.8 m |
| Throw Ratio | 0.23 |
| Keystone | Vertical (± 30º) / Horizontal (± 30º) |
| Lens | Digital optical focus |
| Light Source (watt) | 390 |
| Light Source Life, Normal (hours) | 15000 |
| Light Source Life, Dynamic Eco-Mode (hours) | 20000 |
| Color Depth | 30 bits, 1.07B Color (10+10+10) |
| Aspect Ratio | 16:10 |
| Input Lag | 37ms |
| Frequency Horizontal | 15–100KHz |
| Frequency Vertical | 24–120Hz |
| PC Resolution (max) | Up to 1920x1080 |
| Mac® Resolution (max) | Up to 1920x1080 (may require MAC adapter) |
| USB 2.0 Type A | 1 |
| USB Type A (5V 2A) | 1 |
| Ethernet LAN (RJ45) | 1 |
| 3.5mm 12V Trigger | 1 |
| 3.5mm Audio Out | 1 |
| 3.5mm Audio In | 1 |
| Control (RS-232) | 1 |
| Control (RS232) | 1 |
| HDMI 1.4 In | 1 |
| HDMI MHL | 1 |
| VGA In | 2 |
| VGA Out | 1 |
| Composite RCA Video In | 1 |
| Component RCA | 1 |
| S-Video In | 1 |
| Mini USB | 1 |
| Micro USB | 1 |
| RCA Audio In (L/R) | 2 |
| Internal Speakers | 8W (x2) |
| Audio Description | Dual silk tweeters + full-range drivers, ported chambers, Waves MaxxAudio(r) DSP |
| Voltage | AC 100-240V (universal), 50-60Hz |
| Consumption (max) | 450W |
| Stand-by | <0.5W |
| Physical Controls | Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source |
| On Screen Display | Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality) |
| Temperature | 32-104º F (0 - 40º C) |
| Humidity (non-condensing) | 0-90% |
| Eco-Mode | 28dB |
| Kensington Lock Slot | 1 |
| Net (lbs) | 30.0 |
| Gross (lbs) | 42.8 |
| Net (kg) | 13.6 |
| Gross (kg) | 19.4 |
| Packaging (in.) | 21.65 x 12.2 x 22.44 |
| Physical (in.) | 20.0 x 6.5 x 15.4 |
| Packaging (mm) | 550.0 x 310.0 x 570.0 |
| Physical (mm) | 508.0 x 165.0 x 392.0 |
| AV Control | AMX Certified, ATEN Certified, Crestron Certified, Extron Certified, PJ Link Certified |
| Regulations | Mexico Energy test/Registration, EAC, TUV-S Mark (Argentina), India BIS, FCC, CE, EMC, CB, CCC, RoHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, PSB, RCM, CECP |
| PACKAGE CONTENTS | LS810 Projector, Power Cable, VGA Cable, HDMI Cable, Remote Control with Batteries, Quick Start Guide |
| Warranty | Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration). |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| Classification | Discontinued |
User Guides
- LS810 User Guide (Deutshland/German)
- LS810 User Guide (English)
- LS810 User Guide (Français)
- LS810 User Guide (Italiano)
- LS810 User Guide (Polski)
- LS810 User Guide (Português)
- LS810 User Guide (Spanish/Español)
- LS810 User Guide (Suomi)
- LS810 User Guide (Svenska)
- LS810 User Guide (Türkçe)
- LS810 User Guide (Русский)
- LS810 User Guide (简体中文)
- LS810 User Guide (繁體中文)
- LS810 User Guide (한국어)
Quick Start Guide
- LS810 Quick Start Guide
