SKU
LDM216-251

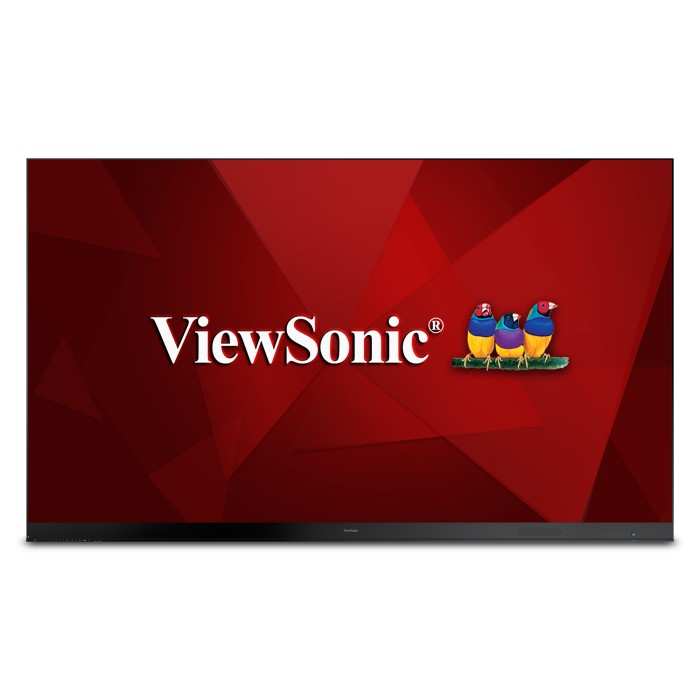

LDM216-251 - 216” All-in-One Mainstream Full HD Direct View LED Display - DISCONTINUED
Product Overview
The LDM216-251 has been discontinued, replaced by the LDM231-251
. The ViewSonic® LDM216-251 is an innovative All-in-One Direct View LED display. With a huge 216” screen size, the LDM216-251 is built to impress as a centerpiece in any conference room, boardroom, or lobby. Along with its immense screen size, this display delivers stunning visuals with Full HD resolution, 2.5mm fine pixel pitch, 600-nit high brightness, 3,840Hz ultra-fast refresh rate, and 120% Rec.709 wide color gamut. What’s more, its ultra-slim 35mm thickness and bezel-free design delivers sleek looks whether its hanging on a wall or mounted on an optional aluminum floor stand. Despite its huge screen size, a front-assembly modular design enables easy delivery, installation, and maintenance. And with remote configuration and content management system support, the ViewSonic LDM1216-2511 is also suitable for a wide array of diverse signage applications.
. The ViewSonic® LDM216-251 is an innovative All-in-One Direct View LED display. With a huge 216” screen size, the LDM216-251 is built to impress as a centerpiece in any conference room, boardroom, or lobby. Along with its immense screen size, this display delivers stunning visuals with Full HD resolution, 2.5mm fine pixel pitch, 600-nit high brightness, 3,840Hz ultra-fast refresh rate, and 120% Rec.709 wide color gamut. What’s more, its ultra-slim 35mm thickness and bezel-free design delivers sleek looks whether its hanging on a wall or mounted on an optional aluminum floor stand. Despite its huge screen size, a front-assembly modular design enables easy delivery, installation, and maintenance. And with remote configuration and content management system support, the ViewSonic LDM1216-2511 is also suitable for a wide array of diverse signage applications.
High-Impact Messaging
With a huge screen size and ultra-narrow bezel, this display’s sleek and minimalist design seamlessly delivers content without lines or distortion for a more immersive visual experience.
Simple and Easy Setup
From the LED tiles, to the AV hardware and software, power supplies and cables, this all-in-one solution includes everything you need in one box for streamlined installation.
Amazing Audio-Visual Experience
Enjoy stunning images thanks to immersive Full HD resolution, a 120% Rec. 709 wide color gamut and 600 nits of brightness. Built-in stereo speakers deliver crystal-clear sound to complete the audio-visual experience.
Device Management Made Easy
The included myViewBoard Manager™ software is a cloud-based management solution that empowers IT administrators to remotely monitor devices, manage apps, push out broadcasts and more within the myViewBoard ecosystem. myViewBoard Manager lets IT administrators seamlessly monitor and maintain individual displays across large organizations from a single control panel. For additional functionality, you can upgrade to myViewBoard Manager Advanced software.
Easy Maintenance
A modular design features swappable LED tiles that can be easily maintained with minimal downtime. Simply remove the old panel and replace with a new panel that has been pre-calibrated for color, brightness and uniformity.
- OS: Android 8.0
- CPU: Hi3751 V811
- Memory: 4GB DDR4
- Storage: 32GB (26GB available)
- Internal Speakers: 5W (x2)
- PC Resolution (max): 1920x1080
- Mac® Resolution (max): 1920x1080
- HDMI 1.4 (with HDCP 1.4): 2
- HDMI 1.4 Out (with HDCP 1.4): 1
- 3.5mm Audio Out: 1
- USB 3.0: 1
- USB 2.0: 2
- USB 2.0 Type B: 1
- RS232: 1
- Ethernet LAN (RJ45): 1
- IR in: 1
- Voltage: 100-240V+/- 10%, (100-120V/30A, 50/60Hz ; 220-240V/15A)
- Consumption (max): 4900W
- Consumption (typical): 3430W
- Stand-by: <0.5W
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 20-80%
- Net (lbs): 750
- Gross (lbs): 992
- Net (kg): 340
- Gross (kg): 450
- Packaging (in.): 109.4 x 33.5 x 40.2
- Physical (in.): 189.8 x 110.9 x 1.4
- Physical with Wall Mount (in.): 189.8 x 110.9 x 2.2
- Packaging (mm): 2780.0 x 850.0 x 1020.0
- Physical (mm): 4820.95 x 2818.45 x 35.0
- Physical with Wall Mount (mm): 4820.95 x 2818.45 x 56.0
- Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
- Battery Chemistry: Lithium
- Display Type: Direct View LED
- Screen Size: 216"
- Viewable Area (in.): 216
- Orientation: Landscape
- LED Pitch Size (mm): 2.5
- LED Grayscale: 14 bits
- Backlight Life (Hours): 100,000
- Viewing Angles: 160º horizontal, 160º vertical
- Display Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Light Source: Fine Pixel Pitch LED
- Brightness: 600-nit
- Static Contrast Ratio: 6,000:1
- Refresh Rate: 3,840Hz
-
Brochures
- Direct View LED Display Series Brochure
-
Quick Start Guide
- LDM216-251 Quick Start Guide
-
