IFP7552-E1 - 75" 4K Touch Enabled ViewBoard Smart Display with WiFi Adapter and Fixed Wall Mount

ULTRA HD RESOLUTION: 75 Inch 4K Ultra HD (3840x2160p) Display
ADVANCED TOUCH: 33-point Multi-touch lets users write or draw on the panel with their fingers and styluses
MEANINGFUL COLLABORATION: Incredible capabilities for conference rooms, classrooms, and hybrid environments
FLEXIBLE CONNECTIVITY: Powerful quad-core processor and versatile connectivity options (HDMI,VGA, RJ45, and USB-C ports)
INTEGRATED SOFTWARE: The myViewBoard suite includes Whiteboard, ViewBoard Cast, and more for better engagement
EVERYTHING TO GET STARTED: This bundle includes the interactive display, wireless AC adapter and wall mount
REMOTE MANAGEMENT: Schedule updates and monitor device status with the built-in myViewBoard® Manager software
PEACE OF MIND: Industry-leading 3-year standard warranty with optional extensions and robust support services

| Datasheet | Media

Product Overview

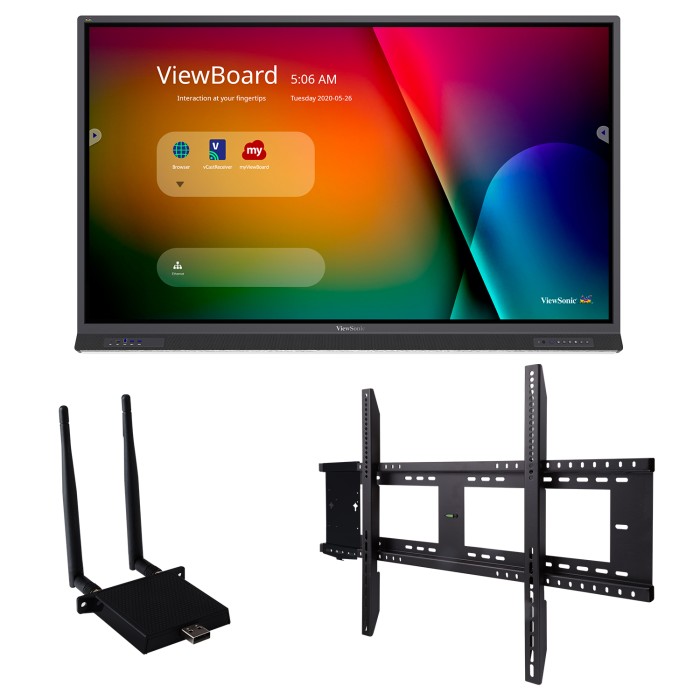

Ideal for education environments, this all-in-one ViewBoard Bundle includes a 75” ViewBoard IFP7552 4K interactive flat panel, a wireless AC adapter, and a WMK-047-2 wall mount.

Overview

Fixed Wall Mount

The ViewSonic WMK-047-2 is a durable wall mount for secure installation of ViewBoard displays. A mini PC bracket is also included for mounting external PCs.

Awards

Specifications

OS: ViewBoard OS based on Android 9.0
GPU: ARM Mali-G52
CPU: ARM Quad Core A73
CPU Processor Speed: 1.8GHz
Memory: 4GB LPDDR4
Storage: 32GB eMMC
Microphone: Beamforming array x 8, noise cancelation
Subwoofer: 15W (x1)
Internal Speakers: 15W (x2)
HDMI 2.0 In: 3
HDMI Out: 1
VGA: 1
DisplayPort: 1
SPDIF: 1
USB 3.0: 4
USB 2.0 Type B: 2
USB 3.1 Type C: 1
OPS PC Slot: 1
RS232: 1
Ethernet LAN (RJ45): 1
Intel® OPS Slot In (80-pin): 1
Line In: 1
Mic-In: 1
Voltage: 100-240 VAC
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 10-80%
Tip Detection: Dual tips, 2mm and 8mm
OS Support: Windows 7/ 8/10, MacOS 10.8 or later, Linux kenel 3.5 or later
Other: Palm recognition, objection awareness
Latency: 4ms
Touch Points: Windows: 33, Android: 20
Touch Technology: Infrared
Net (lbs): 138.4
Gross (lbs): 174.6
Net (kg): 62.7
Gross (kg): 79.1
Packaging (in.): 74.0 x 45.7 x 11.0
Physical (in.): 67.7 x 42.1 x 4.7
Packaging (mm): 1880.0 x 1160.0 x 280.0
Physical (mm): 1720.1 x 1069.6 x 118.4
Screw Size: M8
VESA Compatible: 800 x 400 mm
Warranty: 3-year limited warranty on parts, labor and backlight, onsite warranty
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Package Contents: IFP7552 display, WiFi Card, stylus pen x 2, power cable, HDMI cable, USB cable, AV cable, remote control with batteries, Camera plate, M8 screw x 8, Quick Start Guide
Regulations: cTUVus, FCC, ENERGY STAR, EPEAT Silver, Mexico Energy, CE, CB, RoHS, ErP, WEEE
Ethernet LAN: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Wifi: Optional LB-WIFI-001 adapter, 802.11AC + Bluetooth 4.0
Display Type: LCD
Screen Size: 75
Viewable Area (in.): 74.5
Backlight Life (Hours): 50,000
Viewing Angles: 178º horizontal, 178º vertical
Display Resolution: 3840 x 2160
Response Time (Typical GTG): 8ms
Aspect Ratio: 16:9
Dynamic Contrast Ratio: 4,000:1
Panel Surface: 9H
Light Source: LED
Brightness: 350 cd/m2
Static Contrast Ratio: 1,200:1
Refresh Rate: 60Hz
