Product Overview
All-in-One Solution

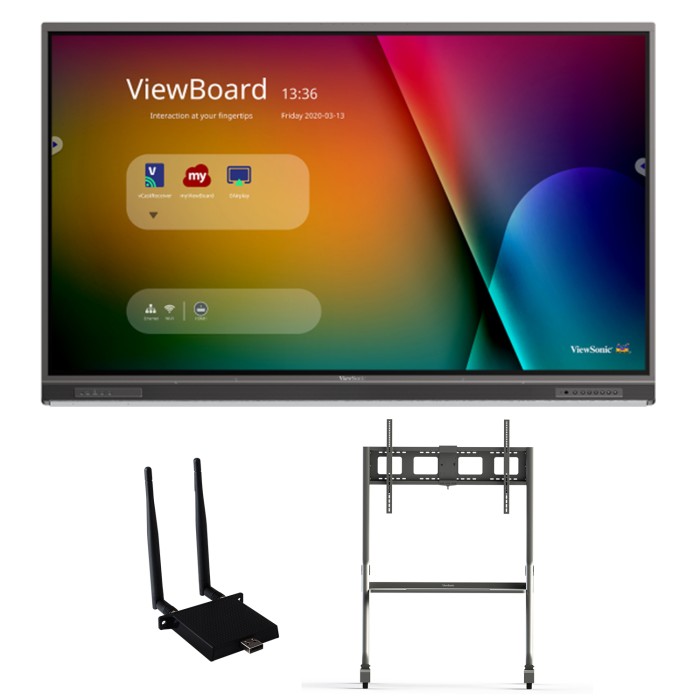

Perfect for education environments, this ViewBoard bundle delivers the most useful items classrooms need to get up and running with their ViewBoard display. You can quickly install the ViewBoard display with the included slim trolley cart, while the included plug-in module provides fast wireless internet connection.
ViewBoard Interactive Flat Panel
Featuring huge touchscreens, ViewBoard displays let multiple users write, edit, and draw onscreen for dynamic presentations and creative brainstorming. Easy-to-use annotation software makes interactivity a snap, and empowers users with instant collaboration and content sharing across an office, across campus, and across the globe.
Faster WiFi and Bluetooth
The ViewSonic® VB-WIFI-001 wireless module is an integrated solution that delivers fast wireless internet connection and reliable Bluetooth 5 connectivity for ViewSonic ViewBoard® interactive displays.
Slim Trolley Cart
The VB-STND-005 provides mobility to large format displays up to 98-inches. With a sleek, modern design and easy installation, the VB-STND-005 can be incorporated into any space with its mobility and height-adjustable design.
- OS: ViewBoard OS based on Android 9.0
- GPU: ARM Mali-G52
- CPU: ARM Quad Core A73
- CPU Processor Speed: 1.8GHz
- Memory: 4GB
- Storage: 32GB eMMC
- Subwoofer: 15W (x1)
- Internal Speakers: 15W (x2)
- HDMI 2.0 In: 4
- HDMI Out: 1
- VGA: 1
- DisplayPort: 1
- 3.5mm Audio In: 1
- 3.5mm Audio Out: 1
- SPDIF: 1
- USB 3.0: 3
- USB 2.0: 2
- USB 2.0 Type B: 3
- USB 3.1 Type C: 1
- Slot-in PC Slot: 1
- RS232: 1
- Ethernet LAN (RJ45): 2
- WIFI Module Slot: 1
- Intel® OPS Slot In (80-pin): 1
- Voltage: 100-240 VAC
- Consumption (typical): 233.5W
- Stand-by: <0.5W
- Physical Controls: OSD / Remote Control / Annotation overlay
- On Screen Display: Input, Volume, Backlight, Audio, Screen, Display, Adjust
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 10-90%
- Tip Detection: Dual tips, 2.5mm and 9mm
- Touch Points: Windows: 33, Android: 20
- Touch Technology: Infrared
- Net (lbs): 121.81
- Gross (lbs): 170.81
- Net (kg): 55.25
- Gross (kg): 77.48
- Packaging (in.): 73.2 x 46.3 x 8.9
- Physical (in.): 67.3 x 42.2 x 4.7
- Packaging (mm): 1860 x 1175 x 225
- Physical (mm): 1709 x 1071 x 120
- VESA Compatible: 800 x 400 mm
- Warranty: 3-year limited warranty on parts, labor and backlight, onsite warranty
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Package Contents: IFP7552-1C display, power cord, Remote control with AAA battery, Touch USB cable, Touch pen x 2, Quick Start Guide + Compliance statement, RS232 adapter, Clamp x 5, Camera Plate, Screw x 8, HDMI cable, Type-C cable, Eraser
- Regulations: cTUVus, FCC, ENERGY STAR 7.0, Mexico Energy, CE, CB, RoHS, ErP, WEEE
- Ethernet LAN: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
- Wifi: Optional VB-WIFI-001 adapter, 802.11AX + Bluetooth 5.2
- Display Type: LCD
- Screen Size: 75
- Viewable Area (in.): 75
- Backlight Life (Hours): 50,000
- Viewing Angles: 178º horizontal, 178º vertical
- Display Resolution: 3840 x 2160
- Response Time (Typical GTG): 8ms
- Aspect Ratio: 16:9
- Dynamic Contrast Ratio: 4,000:1
- Panel Surface: Anti-glare 7H tempered glass
- Light Source: LED
- Brightness: 350 cd/m2
- Static Contrast Ratio: 1,200:1
- Refresh Rate: 60Hz
