SKU
CDE5520-E1

CDE5520-E1 - 55" Display, 3840 x 2160 Resolution, 350 cd/m2 Brightness

  • Ultra HD Resolution
  • Powerful Embedded SOC Platform
  • All-in-One Solution
  • VIEWBOARD ® CAST CONTENT SHARING SOFTWARE
  • Remote Content Sharing from Anywhere
  • myViewBoard Manager
Add to Compare

Product Overview

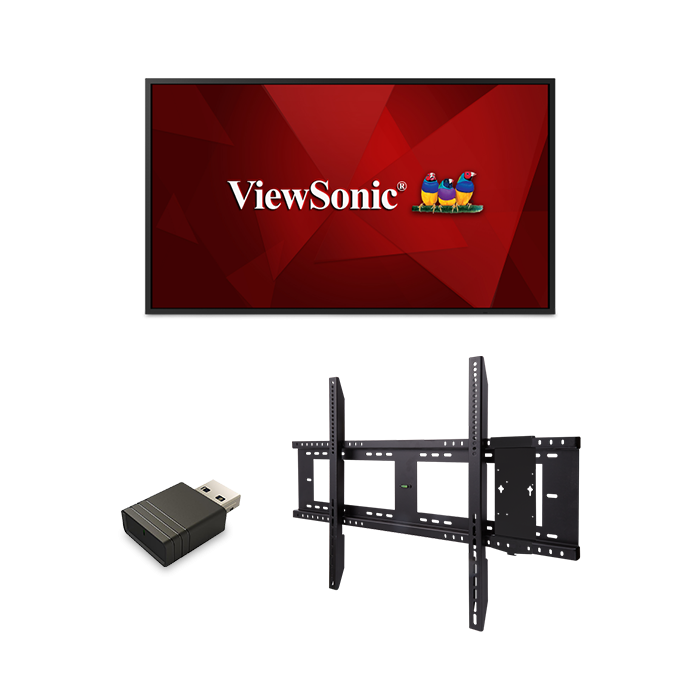

The ViewSonic® CDE5520 is a 55” (54.6"" viewable) premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 350-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the CDE5520 transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app) and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. Bundle includes CDE5520 display, USB Wi-Fi adapter and wall mount. *Chrome, Android, Windows, Mac OS, and iOS compliant
Ultra HD Resolution, 3840x2160 ResolutionUltra HD Resolution, 3840x2160 Resolution

Ultra HD Resolution

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

  • OS: Android 8.0
  • GPU: G51MP2
  • CPU: Dual CPU - Cortex A73 + A5
  • CPU Processor Speed: Quad-core, 1.4GHz
  • Memory: 3GB DDR4
  • Storage: 16GB
  • Media Player Type: Media Player
  • Internal Speakers: 10W (x2)
  • HDMI 2.0 (with HDCP 2.2): 2
  • DVI-D: 1
  • RCA Audio Out: 1
  • 3.5mm Audio In: 1
  • SPDIF Audio Out: 1
  • USB 2.0: 2
  • RS232: 1
  • Ethernet LAN (RJ45): 1
  • Micro SD Card Slot: 1
  • IR in: 1
  • IR out: 1
  • Intel® OPS Slot In (80-pin): 1
  • Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
  • Consumption (max): 115W
  • Consumption (typical): 100W
  • Stand-by: <0.5W
  • Temperature: 32-104º F (0 - 40º C)
  • Humidity (non-condensing): 20-80%
  • Altitude: 0~6,560 ft (2,000m)
  • Net (lbs): 37.1
  • Gross (lbs): 52.8
  • Net (kg): 16.8
  • Gross (kg): 23.9
  • Packaging (in.): 55.9 x 35.8 x 9.7
  • Physical (in.): 48.9 x 28.1 x 2.9
  • Packaging (mm): 1420.0 x 910.0 x 245.0
  • Physical (mm): 1243.2 x 714.0 x 74.8
  • Screw Size: M6
  • VESA Compatible: 400 x 400 mm
  • AV Control: AMX Certified, Crestron Certified, Crestron Certified (Version 1.0)
  • Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
  • Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
  • Package Contents: CDE5520, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable and RS232 cable
  • Regulations: cULus, FCC, Energy Star, RoHS
  • Display Type: LCD
  • Screen Size: 55
  • Viewable Area (in.): 54.6
  • Orientation: Landscape
  • Colors: 1.07B
  • Color Space Support: 8 bit+FRC
  • Backlight Life (Hours): 40,000
  • Bezel Width (in.): 0.55
  • Bezel Width (mm): 13.9
  • Viewing Angles: 178º horizontal, 178º vertical
  • Display Resolution: 3840 x 2160
  • Response Time (Typical GTG): 9ms
  • Aspect Ratio: 16:9
  • Panel Surface: Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
  • Light Source: DLED
  • Brightness: 350 cd/m2
  • Static Contrast Ratio: 1,200:1
  • Panel Type: IPS-Type
