SKU
CDE4320

CDE4320 - 43" Display, 3840 x 2160 Resolution, 350 cd/m2 Brightness

  • Ultra HD Resolution
  • Powerful All-in-One SoC Platform
  • Embedded LAN and Optional Wireless Connectivity
  • Reliable 24/7 Operation Rating
  • Continuous Display Maintenance
Downloads
Add to Compare

Product Overview

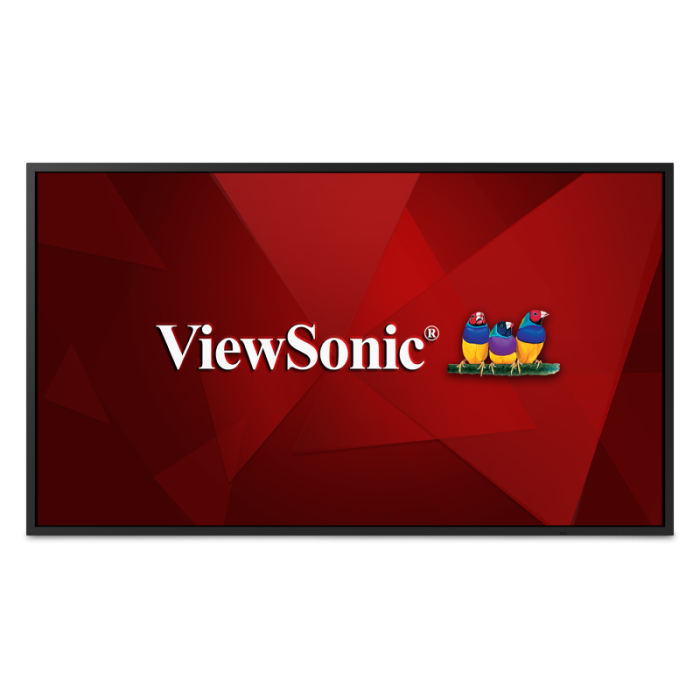

The ViewSonic® CDE4320 is a 43’’ (42.51” viewable) premium 4K large format presentation display purpose-built to deliver eye-catching imagery for hotels, restaurants, retail, business, and more. With stunning 3840x2160 resolution, 350-nit high brightness, wide viewing angles, and dual 10W speakers, this display provides immersive, high-impact messaging wherever needed. In addition to HDMI and DVI inputs to connect with various high definition devices, this display utilizes an integrated multi-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment.
Woman presenting and sharing using a CDE30 series display in front of a meeting room.Woman presenting and sharing using a CDE30 series display in front of a meeting room.

Multiple Ways to Connect and Share

Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS).  In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.

Laptop being used as AV control to control content to CDE30 series displaysLaptop being used as AV control to control content to CDE30 series displays

AV Control System Interoperability

These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.

person controlling multiple viewboards with myViewBoard Managerperson controlling multiple viewboards with myViewBoard Manager

Centralized Device Control Manager

For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.

instructor pointing to one of four images on a ViewBoardinstructor pointing to one of four images on a ViewBoard

ViewBoard Cast Content Sharing Software

ViewBoard Cast enables users to share and receive content from any device platform. Supports Chrome, iOS, Mac, Android, and Windows with secure passcode and moderator control. Multiple users can simultaneously stream and share that content onto the ViewSonic display. Multi-screen casting allows up to four client screens to be shown on the ViewSonic display at once.

ViewSonic CDE30 display showing a welcome image and comapny name in the lobby of a businessViewSonic CDE30 display showing a welcome image and comapny name in the lobby of a business

Superb and Stunning Picture Quality

With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.

Computer chip shown on a circuit boardComputer chip shown on a circuit board

Powerful Secured Embedded Platform

This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.

Internal Scheduler

An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

Integrated Content Management System

Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.

RS232 In/Out with IR Pass-through

RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or PC. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display’s remote controller.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.

  • Media Player Type: Yes
  • CPU: Quad Core - Cortex A73 + A53
  • CPU Processor Speed: 1.4GHz
  • Memory: 3GB DDR4
  • Storage: 16GB eMMC
  • Built-in Software: OSD / Remote Control
  • Internal Speakers: 10W (x2)
  • HDMI 2.0 In: 2
  • DVI-D: 1
  • RCA Audio Out: 1
  • 3.5mm Audio In: 1
  • USB 2.0: 2
  • RS232: 1
  • Ethernet LAN (RJ45): 1
  • IR in: 1
  • IR out: 1
  • Intel® OPS Slot In (80-pin): 1
  • Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
  • Consumption (max): 85W
  • Consumption (typical): 70W
  • Stand-by: <0.5W
  • Temperature: 32-104º F (0 - 40º C)
  • Humidity (non-condensing): 10-80%
  • Net Without Stand (lbs): 23.2
  • Gross (lbs): 29.8
  • Net Without Stand (kg): 10.5
  • Gross (kg): 13.5
  • Packaging (in.): 42.1 x 26.1 x 6.0
  • Physical Without Stand (in.): 38.2 x 21.9 x 3.3
  • Packaging (mm): 1070.0 x 663.0 x 153.0
  • Physical Without Stand (mm): 969.9 x 558.3 x 84.6
  • VESA Compatible: 400 x 200 mm
  • Screw Size: M6
  • AV Control: AMX Certified, Crestron Certified (Version 1.0), Extron Certified
  • Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
  • Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
  • Package Contents: CDE4320, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable and RS232 cable
  • Regulations: cULus, FCC, Energy Star, RoHS
  • Screen Size: 43
  • Viewable Area (in.): 42.51
  • Light Source: DLED
  • Display Resolution: 3840 x 2160
  • Panel Type: IPS-Type
  • Aspect Ratio: 16:9
  • Static Contrast Ratio: 1,100:1
  • Backlight Life (Hours): 40,000
  • Brightness: 350 cd/m2
  • Response Time (Typical GTG): 6ms
  • Viewing Angles: 178º horizontal, 178º vertical
  • Panel Surface: Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
