CDE4320-E1 - 43" Display, 3840 x 2160 Resolution, 350 cd/m2 Brightness

Name: CDE4320-E1 - 43" Display, 3840 x 2160 Resolution, 350 cd/m2 Brightness
SKU: CDE4320-E1

| Datasheet | Media

Add to Compare

Product Overview

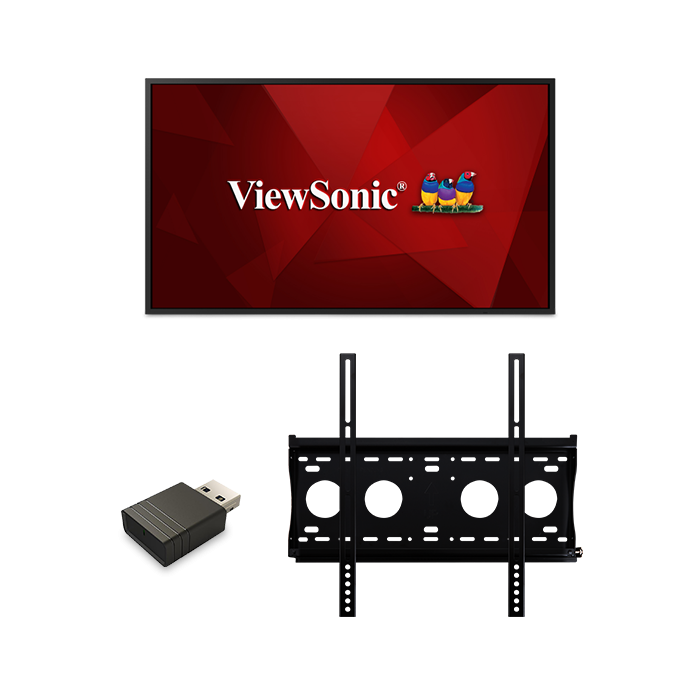

The ViewSonic^® CDE4320 is a 43’’ (42.51” viewable) premium 4K large format presentation display purpose-built to deliver eye-catching imagery for hotels, restaurants, retail, business, and more. With stunning 3840x2160 resolution, 350-nit high brightness, wide viewing angles, and dual 10W speakers, this display provides immersive, high-impact messaging wherever needed. In addition to HDMI and DVI inputs to connect with various high definition devices, this display utilizes an integrated multi-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment. Bundle includes CDE4320 display, USB Wi-Fi adapter and wall mount.

Overview

Ultra HD Resolution

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

Reliable 24/7 Continuous Operation

Featuring a long lifespan, this professional-grade commercial display is designed for reliable, continuous 24/7 use. This display also includes heat monitoring protection and a screen saver feature for added reliability and durability.

AV Control System Certified

The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified and Crestron compatible.

Internal Scheduler

An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

Integrated Content Management System

Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.

Awards

Specifications

OS: Android 8.0
GPU: G51MP2
CPU: Dual CPU - Cortex A73 + A5
CPU Processor Speed: Quad-core, 1.4GHz
Memory: 3GB DDR4
Storage: 16GB
Media Player Type: Media Player
Internal Speakers: 10W (x2)
HDMI 2.0 (with HDCP 2.2): 2
DVI-D: 1
RCA Audio Out: 1
3.5mm Audio In: 1
SPDIF Audio Out: 1
USB 2.0: 2
RS232: 1
Ethernet LAN (RJ45): 1
Micro SD Card Slot: 1
IR in: 1
IR out: 1
Intel® OPS Slot In (80-pin): 1
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption (max): 85W
Consumption (typical): 70W
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-80%
Altitude: 0~6,560 ft (2,000m)
Net (lbs): 23.2
Gross (lbs): 29.8
Net (kg): 10.5
Gross (kg): 13.5
Packaging (in.): 42.1 x 26.1 x 6.0
Physical (in.): 38.2 x 21.9 x 3.3
Packaging (mm): 1070.0 x 663.0 x 153.0
Physical (mm): 969.9 x 558.3 x 84.6
Screw Size: M6
VESA Compatible: 400 x 200 mm
AV Control: AMX Certified, Crestron Certified (Version 1.0), Extron Certified
Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Package Contents: CDE4320, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable and RS232 cable
Regulations: cULus, FCC, Energy Star, RoHS
Display Type: LCD
Screen Size: 43
Viewable Area (in.): 42.5
Orientation: Landscape
Colors: 1.07B
Color Space Support: 8 bit+FRC
Backlight Life (Hours): 40,000
Bezel Width (in.): 0.51
Bezel Width (mm): 13.0
Viewing Angles: 178º horizontal, 178º vertical
Display Resolution: 3840 x 2160
Response Time (Typical GTG): 6ms
Aspect Ratio: 16:9
Panel Surface: Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
Light Source: DLED
Brightness: 350 cd/m2
Static Contrast Ratio: 1,100:1
Panel Type: IPS-Type
