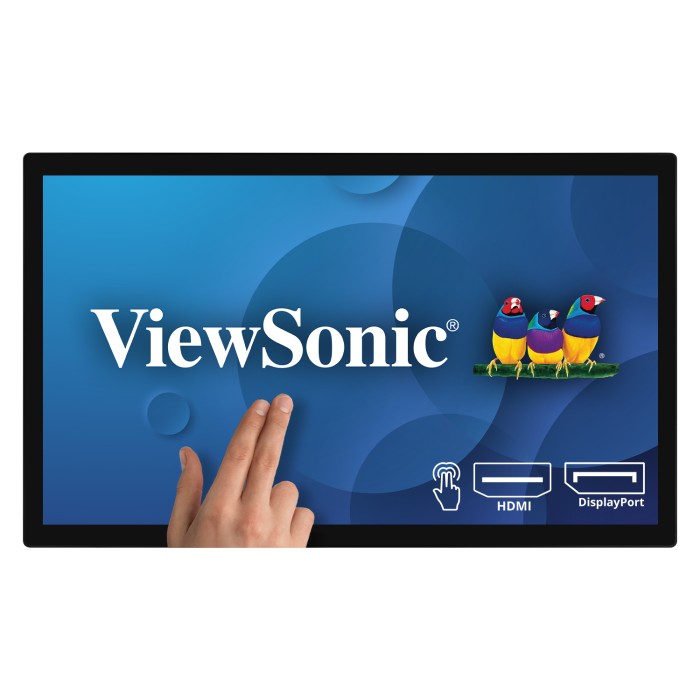

TD3207 - 32" 1080p 10-Point Touch Monitor with 24/7 Operation, HDMI, DisplayPort, RS232

32 Inch Full HD (1920x1080p) IPS touch monitor with thin bezels and 60Hz refresh rate.
Robust 10-point Projected Capacitive (PCAP) technology provides a responsive experience with every tap, pinch, and swipe.
Rated for 24/7 continuous operation, this device features an advanced cooling system and burn-in prevention for graphics-rich content around the clock.
An IP54 rated screen with 3mm-thick glass and 7H hardness offers a scratch and water-resistant surface that can stand up to hard knocks and water splashes.
MacOS users can access touch and gesture controls on touch displays connected to their Apple devices using ViewSonic's vTouch driver. Not available for iPhone and iPad.
An open frame design with 200x100mm and 400x200mm mounting options enable seamless and secure mounting in portrait, landscape, or face-up orientations.
The TD3207 supports laptops, PCs, Macs and POS Systems with USB-B, HDMI, DisplayPort and RS232 inputs.

Folha de Comparação (PRG)

| Ficha de dados | Mídia

Product Overview

The TD3207 is the ideal solution for commercial and industrial spaces. Designed for heavy, continuous usage, TD3207 delivers a 24/7 long-life. With an open frame design, and equipped with VESA mounting design suitable for portrait and landscape mode, this monitor is ready to be incorporated into industrial, retail, and commercial applications. Resistant to moisture and scratches, the 3mm thick glass screen with 7H hardness features an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring SuperClear^® VA panel technology, the device delivers lifelike imagery, vivid color, and constant brightness of up to 450 nits. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities and an RS232 allows you to control the device remotely.

Visão geral

Advanced Durability with IP65 Rating

An IP65 rated screen with 3mm-thick glass and 7H hardness offers a scratch and water-resistant surface that can stand up to hard knocks and jets of water.

Extended Use with 24/7 Functionality

Rated for 24/7 continuous operation, this device features an advanced cooling system and burn-in prevention for running graphics-rich content around the clock.

Intuitive and Responsive Touch

Equipped with 10-point Projected Capacitive (PCAP) technology, this touchscreen delivers a smooth, accurate and responsive touch experience. This precise touch recognition also functions when users are wearing latex gloves, making it ideal in food service and industrial applications.

Flexible Open Frame Design

An open frame design with 200x100mm and 400x200mm VESA mounting options enable seamless and secure mounting in portrait, landscape or face-up orientations for easy integration in different venues.

High Brightness for Better Visibility

With up to 450 nits of brightness, this screen delivers incredible clarity and detail even in well-lit environments.

Conectividade versátil

HDMI and DisplayPort inputs allow users to connect to external consoles, laptops, or high-definition devices for easy content sharing. Plus, RS232-in allows for remote control of the device.

Certificação ENERGY STAR

Este é um produto com certificação ENERGY STAR que pode economizar nos custos de energia* e ao mesmo tempo reduzir os gases de efeito estufa.

*A economia de energia pode variar com base no uso real e em outros fatores.

Certificado EPEAT

Com a certificação EPEAT, este monitor proporciona um impacto ambiental reduzido ao longo de todo o ciclo de vida do produto, tornando-o um excelente investimento ecológico e de longo prazo.

Garantia limitada de 3anos

Fique tranquilo com a qualidade e a confiabilidade do seu monitor ViewSonic, respaldado por uma das melhores políticas de desempenho de pixel do setor e uma garantia limitada de 3anos.*

*Sujeito à garantia da ViewSonic e aos termos e condições de serviço no local.

Prêmios

Especificações

Tamanho da tela: 32
Viewable Area (in.): 31.5
Colors: 16.7M
Color Space Support: 8 pouco verdadeiro
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 50,000
Display Resolution: Full HD (1920x1080)
Display Resolution: 1920 x 1080
Response Time (Typical GTG): 5ms
Dynamic Contrast Ratio: 50,000,000:1
Aspect Ratio: 16:9
Panel Surface: 7H Tempered Glass, Haze 2%
Light Source: LED
Brightness: 450 cd/m2
Static Contrast Ratio: 3,000:1
Panel Type: MVA
Refresh Rate: 60Hz
PC Resolution (max): 1920 x 1080
Mac® Resolution (max): 1920 x 1080
USB Type B: 1
3.5mm Audio Out: 1
HDMI 1.4 In: 1
DisplayPort: 1
RS232 In: 1
Touch Points: 10-Ponto de toque
Touch Technology: Capacitivo Projetivo
Internal Speakers: 2-watt (x2)
Eco Mode (Conserve): 30c
Eco Mode (optimized): 38c
Consumption (typical): 46c
Consumption (max): 50c
Voltage: CA 100-240V (universal), 50-60Hz
Stand-by: 0.5w
Power Supply: Externa
Cable Organization: Não
Physical Controls: 1, 2, Up, Down, Left, Right, Power
On Screen Display: Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Temperature: 32-104ºF (0 - 40ºC)
Humidity (non-condensing): 20-90%
VESA Compatible: 400 x 200; 200 x 100
Frequency Horizontal: 15 ~ 73 KHz
Frequency Vertical: 47 ~ 75 Hz
Net (lbs): 28.2
Gross (lbs): 34.2
Net (kg): 12.8
Gross (kg): 15.5
Packaging (in.): 34 " (W) x 22.7 " (H) x 6.4 " (D)
Physical (in.): 29.4 " (L) x 17.8 " (A) x 2.5 " (D)
Packaging (mm): 863 mm (L) x 577 mm (A) x 163 mm (P)
Physical (mm): 747 mm (L) x 451 mm (A) x 64 mm (P)
Package Contents: LCD Display, Power Cable, HDMI to HDMI Cable, USB A to USB B cable, Quick Start Guide
Recycle/Disposal: Descarte-o de acordo com as leis locais, estaduais ou federais.
Warranty: Garantia limitada de três anos para peças, mão de obra e retroiluminação
IP (Ingress Protection) Rating: IP65
