Compatible with your VS2412-h

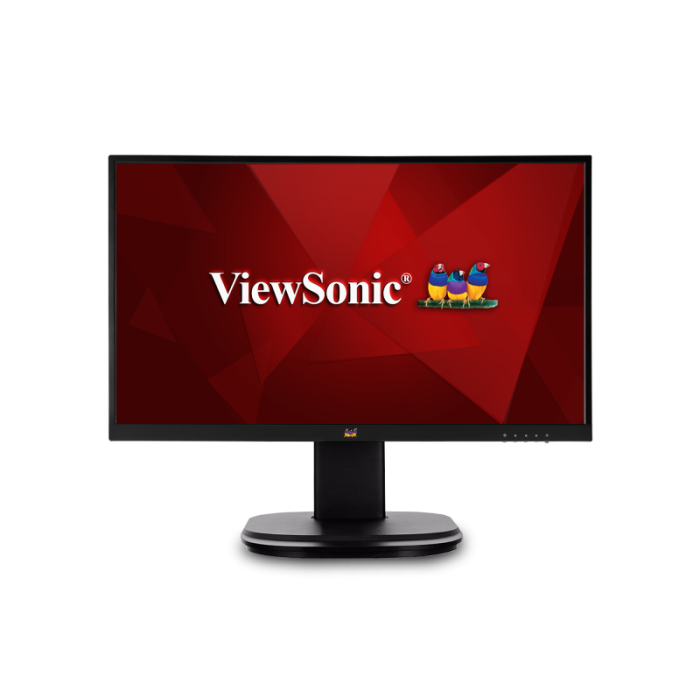

The ViewSonic® VS2412-h is a 24” (23.8” viewable) widescreen monitor with a LED backlight, and thin-bezel design ideal for use in the home or at the office. With Full HD 1920x1080 resolution and a 50M:1 MEGA Dynamic Contrast Ratio, the VS2412-h delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. It also features full-ergonomic functionality, including tilt, swivel, pivot and height adjustments for maximum productivity and comfort. VGA and HDMI inputs provide flexible and convenient connectivity, while a VESA-compatible mount offers additional flexibility.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
The Power of HDMI ®
HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.
Optimized View Settings
ViewSonic’s unique ViewMode™ feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
Ergonomic Design
With advanced ergonomic features, ViewSonic monitors are designed to provide a greater range of adjustment for increased productivity and comfort. Users can reduce eyestrain and physical fatigue by adjusting the monitor via swivel, pivot, tilt, and height adjust options.
VESA-Compatible Mount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Display Size (in.)
24
Panel Type
IPS
Resolution
1920 x 1080
Static Contrast Ratio
1,000:1
Display
Display Size (in.)
24
Viewable Area (in.)
23.8
Panel Type
IPS
Resolution
1920 x 1080
Resolution Type
Full HD (1920x1080)
Static Contrast Ratio
1,000:1
Dynamic Contrast Ratio
50,000,000:1
Light Source
LED
Brightness
250 cd/m2
Colors
16.7M
Color Space Support
6 bits with Hi-FRC color depth
Aspect Ratio
16:9
Response Time (Typical GTG)
14ms
Response Time (GTG w/OD)
5ms
Viewing Angles
178º horizontal, 178º vertical
Backlight Life (Hours)
30,000
Panel Surface
Anti-glare, Hard coating 3H
Compatibility
PC Resolution (max)
1920 x 1080
Mac® Resolution (max)
1920 x 1080
Connector
3.5mm Audio Out
1
VGA
1
HDMI 1.4 In
1
Power
Eco Mode (Conserve)
13W
Eco Mode (optimized)
18W
Consumption (typical)
20W
Consumption (max)
22W
Voltage
AC 100-240V (universal), 50-60Hz
Stand-by
0.5W
Power Supply
Internal
Additional Hardware
Kensington Lock Slot
1
Controls
Physical Controls
Key Buttons 1, 2, 3, 4, 5 (Power)
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
20-90%
Mount
VESA Compatible
100 x 100 mm
Video Signal
Frequency Horizontal
24 ~ 83 KHz
Frequency Vertical
50 ~ 75 Hz
Video Input
Digital Sync
TMDS
Ergonomics
Height Adjust
135 mm / 5.3 in
Pivot (Right/Left)
90º / 90º
Tilt (Forward/Back)
3° / 20°
Weight (imperial)
Net (lbs)
10.4
Net Without Stand (lbs)
7.3
Gross (lbs)
14.1
Weight (metric)
Net (kg)
4.7
Net Without Stand (kg)
3.3
Gross (kg)
6.4
Dimensions (imperial) (wxhxd)
Packaging (in.)
23.8 x 17.5 x 7.8
Physical (in.)
21.7 x 17.0 x 9.4
Physical Without Stand (in.)
21.7 x 13.0 x 2.0
Dimensions (metric) (wxhxd)
Packaging (mm)
605.0 x 445.0 x 198.0
Physical (mm)
551.0 x 431.2 x 240.0
Physical Without Stand (mm)
551.0 x 331.0 x 50.0
General
Regulations
cTUVus, FCC-B, ICES003, CEC
PACKAGE CONTENTS
VS2412-h, Power Cable, VGA Cable, Quick Start Guide
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
Warranty
Three-year limited warranty on parts, labor and backlight
Dimensions
21.7 x 17.0 x 9.4 in / 551.0 x 431.2 x 240.0 mm
- Menu Controls
- VESA Compatible Wall Mount 100 x 100 mm
- AC In
- Kensington® Lock Slot
- Audio Out
- VGA In
- HDMI
