SKU

VPC37-W53-G1

VPC37-W53-G1 - OPS Slot-in PC

| Datasheet | Media

Product Overview

The ViewSonic^® VPC37-W53-G1 Windows slot-in PC delivers a full Windows experience for users of ViewSonic ViewBoard^® interactive displays. This slot-in PC module easily plugs into compatible displays and supports up to 5K resolution. With a powerful Intel^® i7 processor, and fast SSD, the VPC37-W53-G1 provides the computing power needed for fast-moving educational or corporate environments. Flexible connectivity options include HDMI, USB 3.0 and Type-C ports, as well as Giga LAN RJ45 and integrated Wi-Fi 6 connection.

Powerful Intel Processor

Equipped with an Intel^® i7 processor, this slot-in PC provides smooth and quick performance needed for serious computing.

a diagram showing comparisons between different screen resolutions

a diagram showing comparisons between different screen resolutions

Stunning 5K Ultra HD Resolution

With support for resolutions up to 5K, this device enables you to enjoy stunning images on your ViewBoard interactive display.

WiFi 6 icon

WiFi 6 icon

Faster WiFi

The latest WiFi 6 standard delivers incredibly fast WiFi performance with internet speeds of up to several gigabits per second.

multiple viewboard displays next to a slot in PC module

multiple viewboard displays next to a slot in PC module

Versatile Compatibility

Based on an industry standardized interface - Open Pluggable Specification, this slot-in computing module is compatible with any OPS-compliant interactive or commercial display.

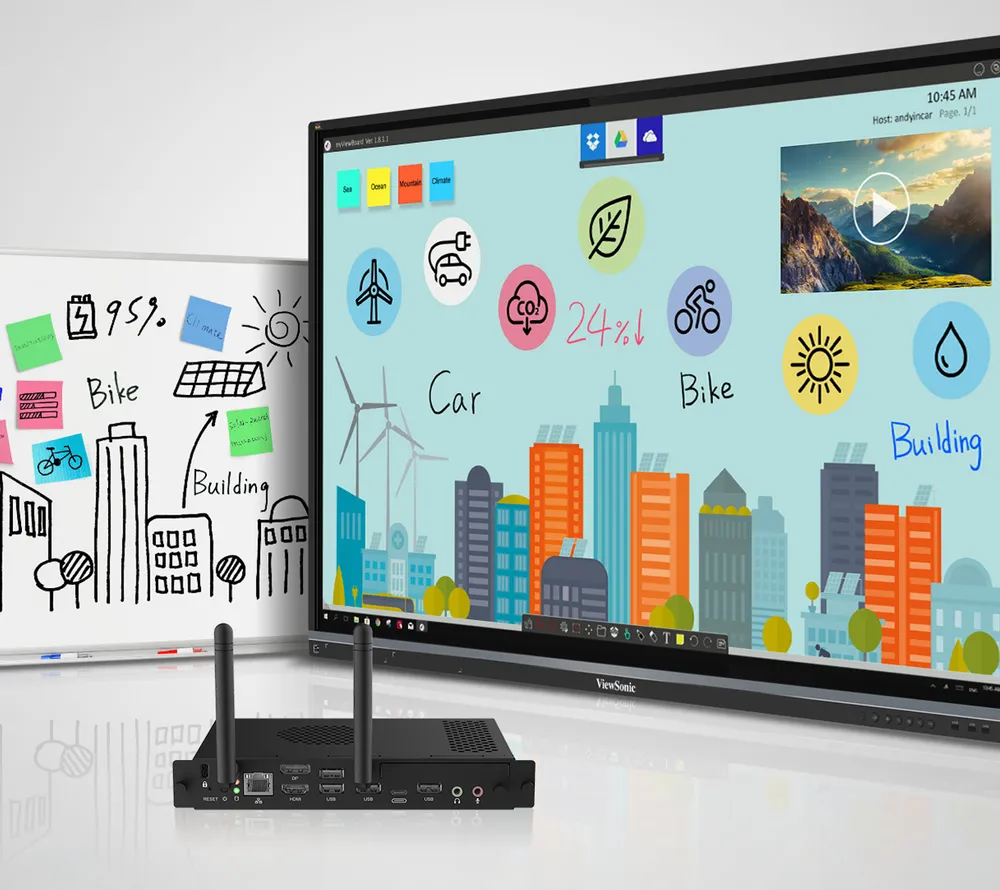

a viewboard display, and a traditional whiteboard next to a VPC module

a viewboard display, and a traditional whiteboard next to a VPC module

myViewBoard^® Software Suite

myViewBoard Whiteboard software is preloaded to boost your productivity and collaboration.

CPU Processor Type: Intel® Core™ i7-1260P
CPU Processor Speed: 2.1G Turbo boost 4.7G
Operating System: Windows® 11 Pro 64 bit
Compatible IFP: IFP5550, IFP6550, IFP7550, IFP8650
Graphic Chipset: Integrated Intel® iris Xe Graphics
Resolution (max): 5K
RAM: 16GB
Wifi: Wi-Fi 6 (802.11ax (a/b/g/n/ac/ax))
Bluetooth: Bluetooth 5.1
Storage Capacity: 256GB
Storage Type: SSD
HDMI 2.0 Out: 1
DisplayPort Out: 1
Ethernet LAN (RJ45): 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
USB 3.0 Type A: 4
USB Type C: 1
Voltage: DC 12-19V/ 8A
Temperature: 23°F–104°F (-5C – 40Cº)
Humidity (non-condensing): 10-90%
Physical (in.): 7.95 x 4.83 x 1.18
Packaging (in.): 10.51 x 7.56 x 2.83
Physical (mm): 202 x 122.6 x 30 mm
Packaging (mm): 267 x 192 x 72 mm
Net (lbs): 1.33
Gross (lbs): 2.14
Net (kg): 0.6
Gross (kg): 0.97
Regulations: FCC, FCC ID, cTUVus, CA IC
Package Contents: VPC37-W53-G1, Antenna x 2, QSG
Warranty: 1-year limited warranty on parts and labor on-site service

Quick Start Guide
VPC37-W53-G1 Quick Start Guide

Driver & Software
VPC3 driver for windows

Safety Compliance
VPC37-W53-G1 BSMI RoHS
