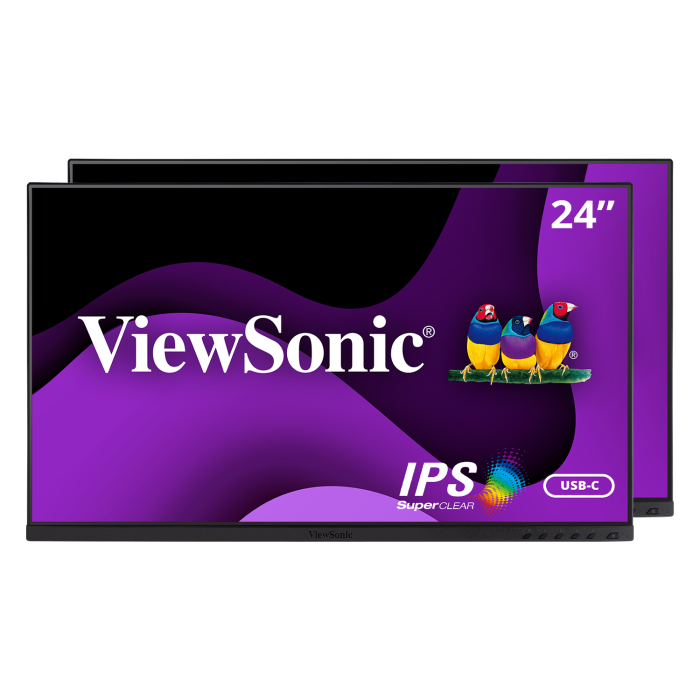

VG2455_56a_H2 - 24" Dual Pack Head-Only 1080p IPS Docking Monitors with USB C
- 24 Inch Full HD (1920x1080p) IPS monitors with thin bezels and 60Hz refresh rate
- Sold as a dual pack without monitor stands (two different monitor heads: VG2456a_H and VG2455_H)
- Ethernet RJ45 (VG2456a_H) and USB-C connectivity for fast data, audio and video transfer, 90W charging
- Flicker-Free technology and Blue Light Filter for reduced eye fatigue
- Supports PC, Mac and more with USB-C, HDMI, and DisplayPort, USB and VGA inputs
Product Overview
Two Monitors in a Single Package
Sold as a dual pack without monitor stands, these monitors require less packaging for a reduced environmental footprint, while still providing VESA compatible mounting for easy installation.
Be More Productive With ViewSonic Docking Monitors
Enjoy safety, flexibility and productivity with ViewSonic. ViewSonic offers a diverse range of display solutions to help companies make the most out of their flexible workstations.
Featuring state-of-the art ergonomic design, ViewSonic® docking monitors are the perfect setup for your changing work environment. The VG2456a_H offers USB-C single-cable connectivity with 90w Power Delivery, RJ45 wired Ethernet connection and a USB hub for your accessories, eliminating the need for expensive docks. One cable provides everything you need to connect and start working.
Enjoy peace of mind with an industry-leading warranty on all ViewSonic monitors and access to an award-winning customer support team.
Enhanced Productivity with Dual Monitor Setup
With the latest USB Type-C and DisplayPort output connectivity, the VG2456a_H can be easily daisy chained to the VG2455_H for a productivity-boosting desktop setup. With multiple screens on your desktop, you can work smarter, faster, and more efficiently.*
*MST (multi-stream transport) not supported by macOS
Reduce Clutter with Single-Cable Solution
With a slim and reversible connector and easy single-cable docking, USB 3.2 Type-C connectivity reduces the reliance on multiple wires, cables, and adapters. In addition to fast data, audio, and video transfer, USB Type-C also provides quick charging over a single cable.*
Command and Control Made Easy
Integrated vDisplayManager software enhances productivity by putting the On-Screen Display (OSD) menu controls on your monitor’s screen. This delivers a more comfortable viewing experience by allowing you to quickly and easily adjust display settings such as volume, brightness, contrast, and more.
Minimized Total Cost of Ownership
Designed for the busiest of office environments, these monitors help to reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns, to user experience and screen performance, every feature of this monitor was carefully considered to not only meet your workspace demands, but to also reduce your TCO.
| Screen Size | 24 |
|---|---|
| Viewable Area (in.) | 23.8 |
| Panel Type | IPS |
| Display Resolution | 1920 x 1080 |
| Display Resolution | Full HD (1920x1080) |
| Static Contrast Ratio | 1,000:1 |
| Dynamic Contrast Ratio | 50,000,000:1 |
| Light Source | LED |
| Brightness | 250 cd/m2 |
| Colors | 16.7M |
| Color Space Support | 6 bit + A-FRC |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 5ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 30,000 |
| Panel Surface | Anti-Glare type, Hard-coating (3H), Haze 25% |
| PC Resolution (max) | 1920 x 1080 |
| Mac® Resolution (max) | 1920 x 1080 |
| Internal Speakers | 2W (x2) |
| Eco Mode (Conserve) | VG2455_H: 13.4W, VG2456a_H: 17.9W |
| Eco Mode (optimized) | VG2455_H: 15.9W, VG2456a_H: 20.7W |
| Consumption (typical) | VG2455_H: 19.3W, VG2456a_H: 24.5W |
| Consumption (max) | VG2455_H: 45.1W, VG2456a_H: 48.5W |
| Voltage | AC 100-240V (universal), 50-60Hz |
| Stand-by | 0.5W |
| Power Supply | Internal |
| Cable Organization | No |
| Kensington Lock Slot | 1 |
| Physical Controls | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| On Screen Display | Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) |
| Temperature | 32-104º F (0 - 40º C) |
| Humidity (non-condensing) | 20-90% |
| VESA Compatible | 100 x 100 mm |
| Frequency Horizontal | VG2455_H: HDMI (v1.4): 15 ~ 82 KHz, DisplayPort: 15 ~ 82 KHz, USB Type C: 15 ~ 82 KHz. VG2456a_H: HDMI (v1.4): 15 ~ 82 KHz, DisplayPort: 15 ~ 82 KHz, USB Type C: 15 ~ 82 KHz. |
| Frequency Vertical | VG2456a_H: HDMI (v1.4): 24 ~ 75 Hz, DisplayPort: 24 ~ 75 Hz, USB Type C: 24 ~ 75 Hz. VG2456a_H: HDMI (v1.4): 50 ~ 75 Hz, DisplayPort: 50 ~ 75 Hz, USB Type C: 50 ~ 75 Hz. |
| Net Without Stand (lbs) | 17.4 |
| Gross (lbs) | 24.0 |
| Net Without Stand (kg) | 7.9 |
| Gross (kg) | 10.9 |
| Packaging (in.) | 24.4 x 10.2 x 16.4 |
| Physical Without Stand (in.) | 21.2 x 12.6 x 2.0 |
| Packaging (mm) | 620.0 x 260.0 x 417.0 |
| Physical Without Stand (mm) | 539.0 x 320.0 x 52.0 |
| Regulations | Energy Star 8.0, EPEAT Silver |
| PACKAGE CONTENTS | LCD Displays (VG2455_H, VG2456a_H) Power Cable x2, DisplayPort Cable, USB Type C cable, USB A/B Cable, Quick Start Guide |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
