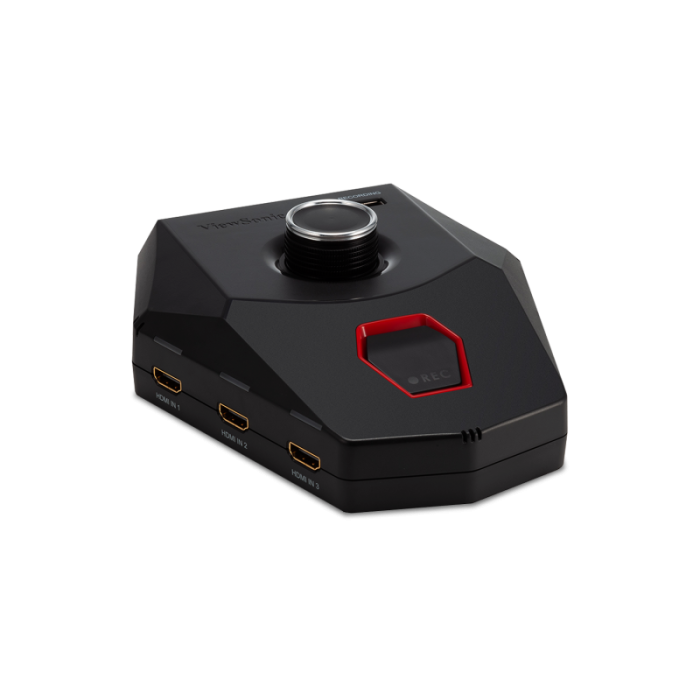

Designed for group presentations and screen sharing, the ViewSonic ViewBoard® Huddle enables multiple users to broadcast content from their personal devices onto a larger shared display. Users can simply plug their devices into the Huddle via six (6) HDMI inputs, and one (1) USB Type-C input, and begin sharing their screens to a connected ViewSonic® ViewBoard® interactive display, large format display, or projector. Switching from one user screen to the other is as simple as turning the knob on the Huddle, while a separate button activates video and audio recording in an external USB flash drive. What’s more, HDBaseT output (connected with Cat6 cable or above for up to 100m) provides convenient long-distance installation for any classroom or meeting room.
Record Function
With its integrated microphone, the ViewBoard Huddle is ready to not only record the active presenter, but also the meeting room conversation, all at the touch of a button.
Touch Back Function
A single USB A-B port acts as a bypass when connecting the ViewBoard Huddle to any touch enabled-interactive display. This provides active control capabilitlies to the presenter's PC.
Kensington Lock Slot
The Kensington lock slot provides an easy way for organizations to secure their conference room hardware with standardized cables.
Connector
HDMI In
6
HDMI Out
1
USB 2.0 Type A
2
USB 2.0 Type B
1
USB 3.1 Type C
1
HDBT
1
Power
Voltage
AC 100-240V (universal), 50-60Hz
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Dimensions (imperial) (wxhxd)
Packaging (in.)
8.3 x 7.4 x 4.4
Physical (in.)
5.9 x 2.2 x 6.6
Dimensions (metric) (wxhxd)
Packaging (mm)
210.0 x 189.0 x 111.0
Physical (mm)
150.2 x 56.3 x 169.7
Weight (imperial)
Net (lbs)
1.2
Gross (lbs)
3.1
Weight (metric)
Gross (kg)
1.4
General
PACKAGE CONTENTS
VSH100, power adapter with power cord, Quick Start Guide, HDMI cable x 2
Additional Hardware
Kensington Lock Slot
1
