Compatible with your VA2746MH-LED-S

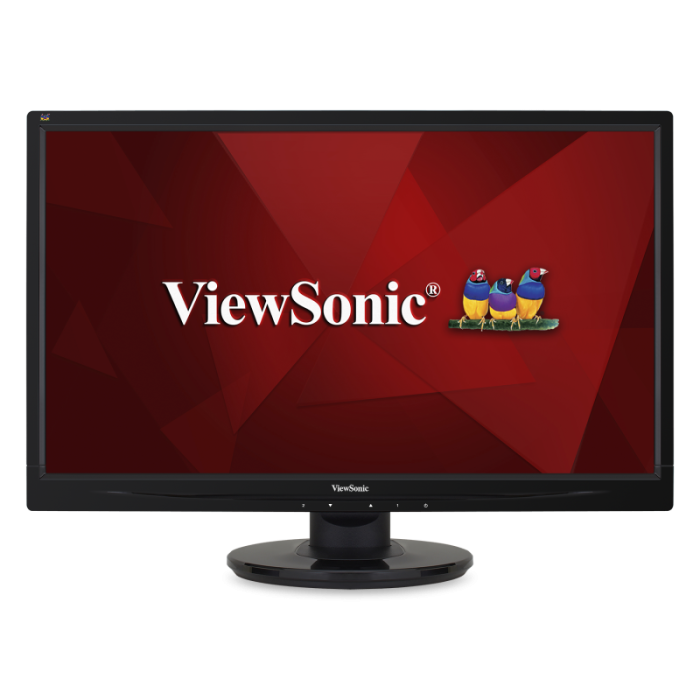

The ViewSonic® VA2746mh-LED is a 27" widescreen monitor with an LED backlight and glossy, thin-bezel design ideal for use in the home or at the office. With Full HD 1920x1080 resolution and a 50M:1 MEGA Dynamic Contrast Ratio, the VA2746mh-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. As a complete multimedia package, the display also includes a pair of integrated speakers. VGA and HDMI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With an environmental friendly LED backlight and ViewSonic's proprietary Eco-mode, the VA2746mh-LED reduces users' total energy cost. In addition, a 3-year limited warranty, along with one of the industry's best pixel performance policies, make the VA2746mh-LED a great long-term investment.
Display Size (in.)
27
Panel Type
TN
Resolution
1920 x 1080
Static Contrast Ratio
1,200:1
Display
Display Size (in.)
27
Viewable Area (in.)
27
Panel Type
TN
Resolution
1920 x 1080
Static Contrast Ratio
1,200:1
Dynamic Contrast Ratio
50,000,000:1
Light Source
WLED
Brightness
300 cd/m2
Colors
16.7M
Color Space Support
6-Bit+ HI-FRC
Aspect Ratio
16:9
Response Time (Typical GTG)
5ms
Viewing Angles
170º horizontal, 160º vertical
Backlight Life (Hours)
50,000
Panel Surface
Anti-glare, Hard coating (3H)
Compatibility
PC Resolution (max)
1920 x 1080
Mac® Resolution (max)
1920 x 1080
Connector
3.5mm Audio In
1
3.5mm Audio Out
1
VGA
1
HDMI 1.4 In
1
Audio
Internal Speakers
2.5W (x2)
Power
Eco Mode (Conserve)
22W
Eco Mode (optimized)
28W
Consumption (typical)
30W
Consumption (max)
40W
Voltage
AC 100-240V (universal), 50-60Hz
Stand-by
0.5W
Additional Hardware
Kensington Lock Slot
1
Controls
Physical Controls
1, 2, 3, 4, 5, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
20-90%
Mount
VESA Compatible
100 x 100 mm
Video Signal
Frequency Horizontal
24 ~ 82KHz
Frequency Vertical
50 ~ 75Hz
Video Input
Analog Sync
Separate Sync
Digital Sync
TMDS
Ergonomics
Tilt (Forward/Back)
5º / 23º
Weight (imperial)
Net (lbs)
11.6
Net Without Stand (lbs)
10.69
Gross (lbs)
14.99
Weight (metric)
Net (kg)
5.26
Net Without Stand (kg)
4.85
Gross (kg)
6.8
Dimensions (imperial) (wxhxd)
Packaging (in.)
28.11 x 20.67 x 5.55
Physical (in.)
25.4 x 17.4 x 9.75
Physical Without Stand (in.)
25.4 x 15.69 x 2.22
Dimensions (metric) (wxhxd)
Packaging (mm)
714 x 525 x 141
Physical (mm)
645.26 x 442.08 x 247.59
Physical Without Stand (mm)
645.26 x 398.56 x 56.4
General
Regulations
cULus, FCC-B, ICES003, Energy Star 7.0, Mexico Energy, UL-MX-CoC, MEPS
PACKAGE CONTENTS
VA2746mh-LED Display, Power Cable (1.5m), VGA Cable (1.5m), Audio Cable (1.5m), Quick Start Guide
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
Warranty
Three-year limited warranty on parts, labor and backlight
Classification
Discontinued
Dimensions
25.4 x 17.4 x 9.75 in / 645.26 x 442.08 x 247.59 mm
- Menu Controls
- VESA Compatible Wall Mount 100 x 100 mm
- Internal Speaker
- Kensington® Lock Slot
- AC In
- Audio Out
- Audio In
- VGA
- HDMI
