Compatible with your TD2740-S

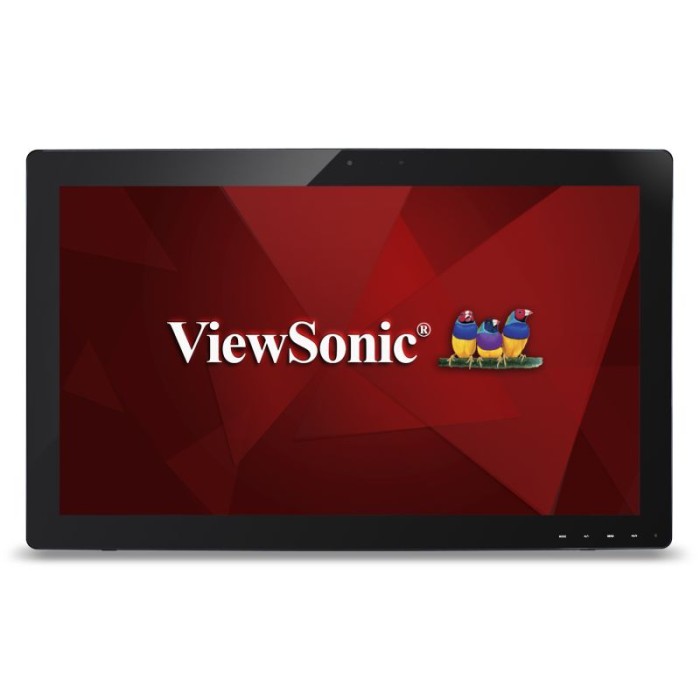

The ViewSonic TD2740 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and full 1080p HD resolution, the 27-inch TD2740 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, or as a teaching tool in interactive learning environments. The bookstand support of the TD2740 provides advanced ergonomics and allows the display to be tilted or laid flat on a tabletop for more comfortable use. SuperClear VAtechnology with ultra-wide viewing angles and 20M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. As a complete package, the display also includes a pair of integrated 2W speakers, anHD webcam, and a microphone for video chatting. VGA, HDMI,and DisplayPort inputs provide flexible and future-proof connectivity. Touch the Difference with the ViewSonic TD2740 interactive multi-touch display.
SuperClear ® MVA Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
10-point Multi-touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
Display Size (in.)
27
Panel Type
MVA
Resolution
1920 x 1080
Static Contrast Ratio
3,000:1
Display
Display Size (in.)
27
Panel Type
MVA
Resolution
1920 x 1080
Static Contrast Ratio
3,000:1
Dynamic Contrast Ratio
50,000,000:1
Light Source
LED
Brightness
260 cd/m2
Response Time (Typical GTG)
12ms
Viewing Angles
178º horizontal, 178º vertical
Backlight Life (Hours)
30,000
Panel Surface
7H Scratch Resistant Surface Hardness
Compatibility
PC Resolution (max)
1920x1080
Mac® Resolution (max)
1920x1080
Connector
USB 2.0 Type A
2
3.5mm Audio In
1
3.5mm Audio Out
1
HDMI In
2
VGA
1
HDMI 1.4 In
1
Display Port
1
Touch
Touch Technology
Capacitive
Touch Points
10-Point Touch
Audio
Internal Speakers
2W (x2)
Power
Eco Mode (Conserve)
29W
Eco Mode (optimized)
35W
Consumption (typical)
41W
Voltage
AC 100-240V (universal), 50-60Hz
Additional Hardware
Kensington Lock Slot
1
Controls
Physical Controls
1, 2, Down, Up, Power
On Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
20-90%
Mount
VESA Compatible
100 x 100 mm
Video Signal
Frequency Horizontal
24~82kHz
Frequency Vertical
50~75Hz
Video Input
Analog Sync
Separate Sync
Weight (imperial)
Net (lbs)
19.4
Gross (lbs)
22.5
Weight (metric)
Net (kg)
8.2
Gross (kg)
10.2
Dimensions (imperial) (wxhxd)
Packaging (in.)
29.1 x 20.1 x 5.0
Physical (in.)
26.5 x 16.5 x 2.0
Dimensions (metric) (wxhxd)
Packaging (mm)
739 x 510 x 127
Physical (mm)
672.6 x 418.9 x 49.9
General
Regulations
cULus, FCC, ICES2003, UL-MX-CoC, Mexico Energy, CE, REACH, WEEE, UkrSEPRO
PACKAGE CONTENTS
TD2740 display, power cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only)
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
Warranty
*Refurbished. 30-day DOA policy for full refund, with a 90-day repair warranty on parts and labor.
Classification
Discontinued, Refurbished
Dimensions
26.5 x 16.5 x 2.0 in. / 672.6 x 418.9 x 49.9 mm
