TD2423d - 24" 1080p 10-Point Multi IR Touch Monitor with HDMI, VGA, and DP

24 Inch Full HD (1920x1080p) LED touch monitor with 75Hz refresh rate
Robust 10-point (infrared) IR touch technology feature for a natural touchscreen experience
Freestanding tablet design with muted black finish, stable adjustable stand, and 7H scratch resistant surface
Enjoy less eye strain and fatigue with flicker-free technology and a built-in blue light filter
MacOS users can access touch and gesture controls on touch displays connected to their Apple devices using ViewSonic's vTouch driver. Not available for iPhone and iPad
The TD2423d supports laptops, PCs, Macs and POS Systems with USB, HDMI, DisplayPort and VGA inputs

$279.99 USD

Downloads

Datasheet Media

Add to Compare

Comparison Sheet(PRG)

Skip to the beginning of the images gallery

Product Overview

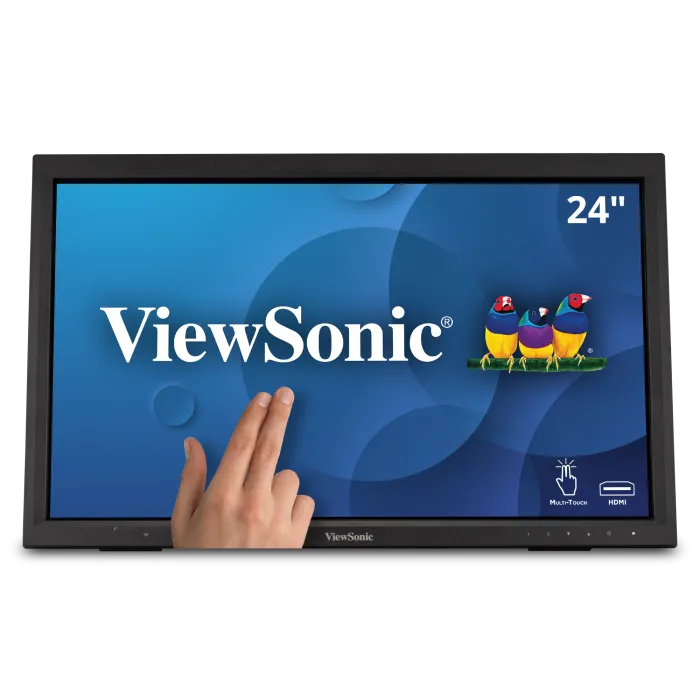

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic^® TD2423d is a 24” touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio and 7H screen hardness, the TD2423d delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, DisplayPort, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What’s more, ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.

Overview

touchscreen display with a person using a pen to enter information via an onscreen keyboard

10-point IR Touchscreen

Thanks to infrared (IR) touch technology, this interactive display delivers an intuitive and natural touchscreen experience. 10-point touch allows multiple users to simultaneously write or draw on the display’s surface using styluses or their fingers, or both at the same time.

picture of lake showing viewsonic full HD image

Full HD 1080p Resolution

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.

Durable, Scratch-resistant Screen

This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

Multi-Touch for macOS

vTouch 3.1 works with both Intel and M1 processors and is MacOS Monterey compatible. vTouch does not currently support iOS devices such as the iPad or iPhone. If you are experiencing issues with vTouch on Apple devices, we recommend upgrading to the latest version of vTouch.

Versatile Connectivity

HDMI, DisplayPort, DVI, VGA, and USB inputs give you the freedom to connect your monitor to a variety of devices.

VA Panel Technology

A VA panel delivers incredible contrast ratio and color for a versatile viewing experience.

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient VESA-compatible mount design.

EPEAT Certified

With EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.

ENERGY STAR Certification

This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.

*Energy savings may vary based on actual usage and other factors.

Awards

Specifications

Screen Size: 24
Viewable Area (in.): 24
Panel Type: MVA
Display Resolution: 1920 x 1080
Display Resolution: Full HD (1920x1080)
Static Contrast Ratio: 3,000:1
Light Source: LED
Brightness: 250 cd/m2
Colors: 16.7M
Color Space Support: 8 bits
Aspect Ratio: 16:9
Response Time (Typical GTG): 7ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30,000
USB Type A: 2
USB Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
VGA: 1
HDMI 1.4 In: 1
DisplayPort: 1
Touch Technology: Infrared
Touch Points: 10-Point Touch
Internal Speakers: 2W (x2)
Eco Mode (Conserve): 14W
Eco Mode (optimized): 16W
Consumption (typical): 18W
Consumption (max): 21.5W
Voltage: AC 100-240V (universal), 50-60Hz
Stand-by: 0.5W
Power Supply: Internal
Cable Organization: No
Kensington Lock Slot: 1
Physical Controls: 1,2,3,4,5,6 (Power)
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-90%
VESA Compatible: 100 x 100 mm
Frequency Horizontal: 24 ~ 82 KHz
Frequency Vertical: 50 ~ 75 Hz
Tilt (Forward/Back): 22º / 38º
Net (lbs): 11.5
Net Without Stand (lbs): 10.3
Gross (lbs): 15.4
Net (kg): 5.2
Net Without Stand (kg): 4.7
Gross (kg): 7.0
Packaging (in.): 25.4 x 16.6 x 6.5
Physical (in.): 22.5 x 13.7 x 4.0
Physical Without Stand (in.): 22.5 x 13.7 x 2.4
Packaging (mm): 6445.0 x 422.0 x 166.0
Physical (mm): 571.0 x 348.0 x 101.0
Physical Without Stand (mm): 571.0 x 348.0 x 61.0
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy
Package Contents: TD2423d, Power Cable, HDMI cable, USB Type B Uplink Cable, Quick Start Guide
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: Three-year limited warranty on parts, labor and backlight
