Availability: In stock

SKU

LSD500HD

$1,049.99 USD

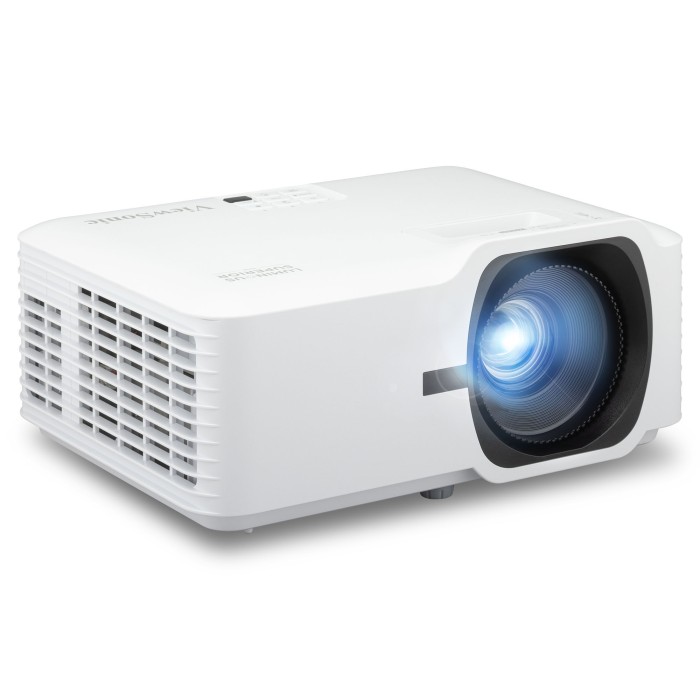

5,500 ANSI Lumens 1080p Lamp-Free Laser Installation Projector | LSD500HD

RUNS FOR YEARS WITH MINIMAL MAINTENANCE: Runs up to 30,000 hours with zero lamp replacements, keeping maintenance low and uptime high.
STAYS BRIGHT IN ANY LIGHTING: At 5,500 ANSI lumens, images remain clear in fully lit commercial spaces without washing out color or detail.
MANAGE EVERY UNIT REMOTELY WITH LAN CONTROL: Certified for Crestron and Q-SYS, and compatible with AMX, PJ Link and Extron for seamless AV integration.
SHARP, HIGH-CONTRAST IMAGING: A precise 0.65"" DMD chip delivers deep blacks, crisp text and vivid color at any screen size.
LOWER RUNNING COSTS: Uses up to 62% less power than traditional lamp projectors, cutting energy costs significantly over the life of the unit.
NO WARM-UP, NO WAIT: Powers on to full brightness instantly with no warm-up and no cooldown required.

Comparison Sheet (PRG)

| Datasheet | Media

Product Overview

The LSD500HD is a 5,500-lumen standard-throw projector designed to deliver clarity in fully lit boardrooms, lecture halls or large commercial venues. The latest-generation laser phosphor technology keeps it running up to 30,000 hours with zero lamp replacements, so facilities teams spend less time on service calls and more time on everything else. A precise 0.65"" DMD chip and Full HD 1080p resolution produce deep contrast and crisp detail at any screen size, from a compact conference room to a 300"" auditorium screen. HDMI 2.0 with HDR10 and HLG support accepts 4K UHD source content at 60Hz, so high-quality media plays back without signal compromise. Certified for Crestron and Q-SYS and compatible with AMX, PJ Link and Extron, the LSD500HD drops into existing control infrastructure and lets AV teams monitor and manage multiple units from a single location. With 360° projection, 1.3x optical zoom and full keystone correction, installers have the range to handle any room layout cleanly.

Overview

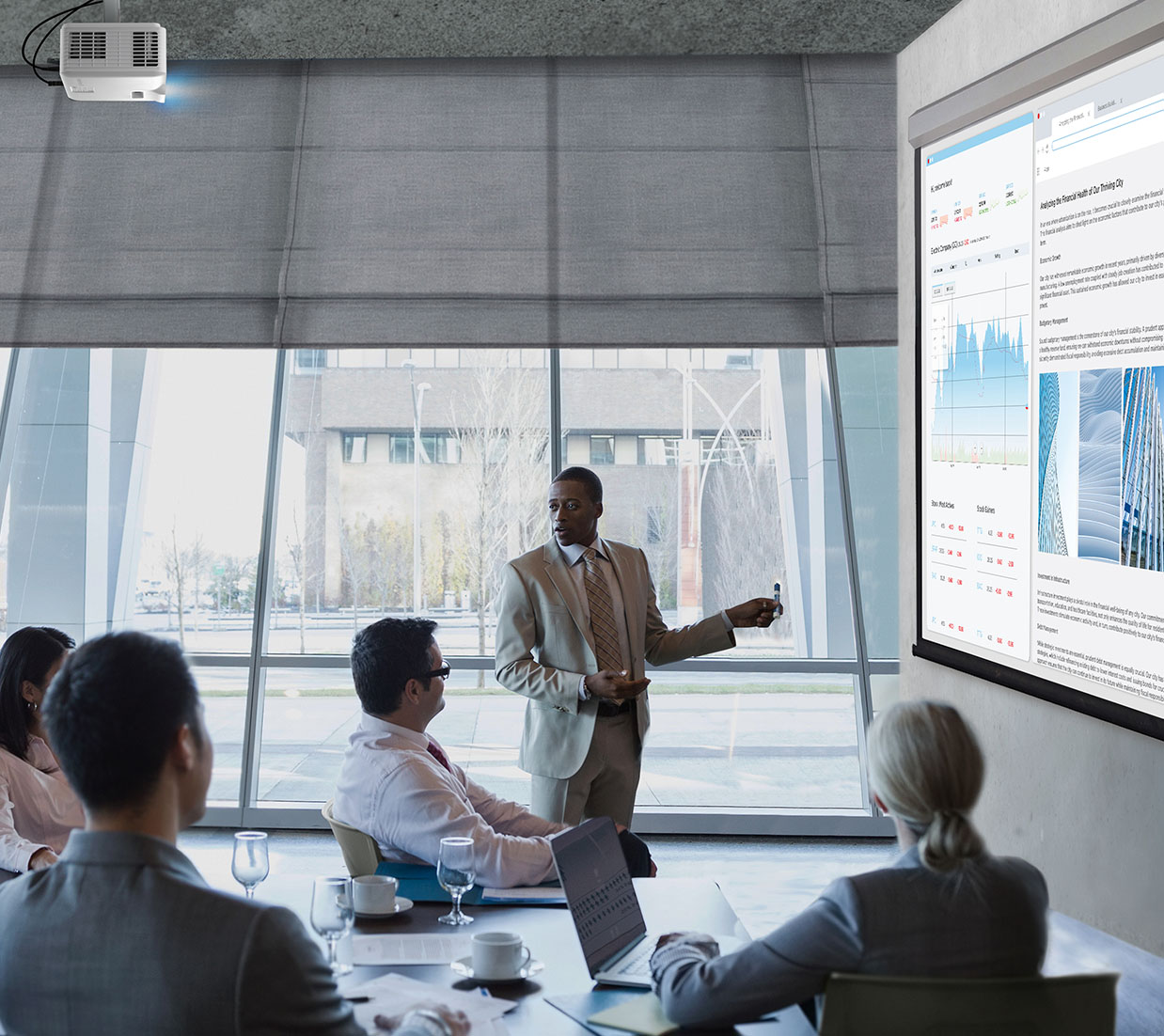

STAYS BRIGHT IN ANY LIGHTING

At 5,500 ANSI lumens, this projector holds up in fully lit commercial spaces without washing out color or detail. Boardrooms, lecture halls and high-ambient-light venues get a sharp, vivid image whether the lights stay on or not.

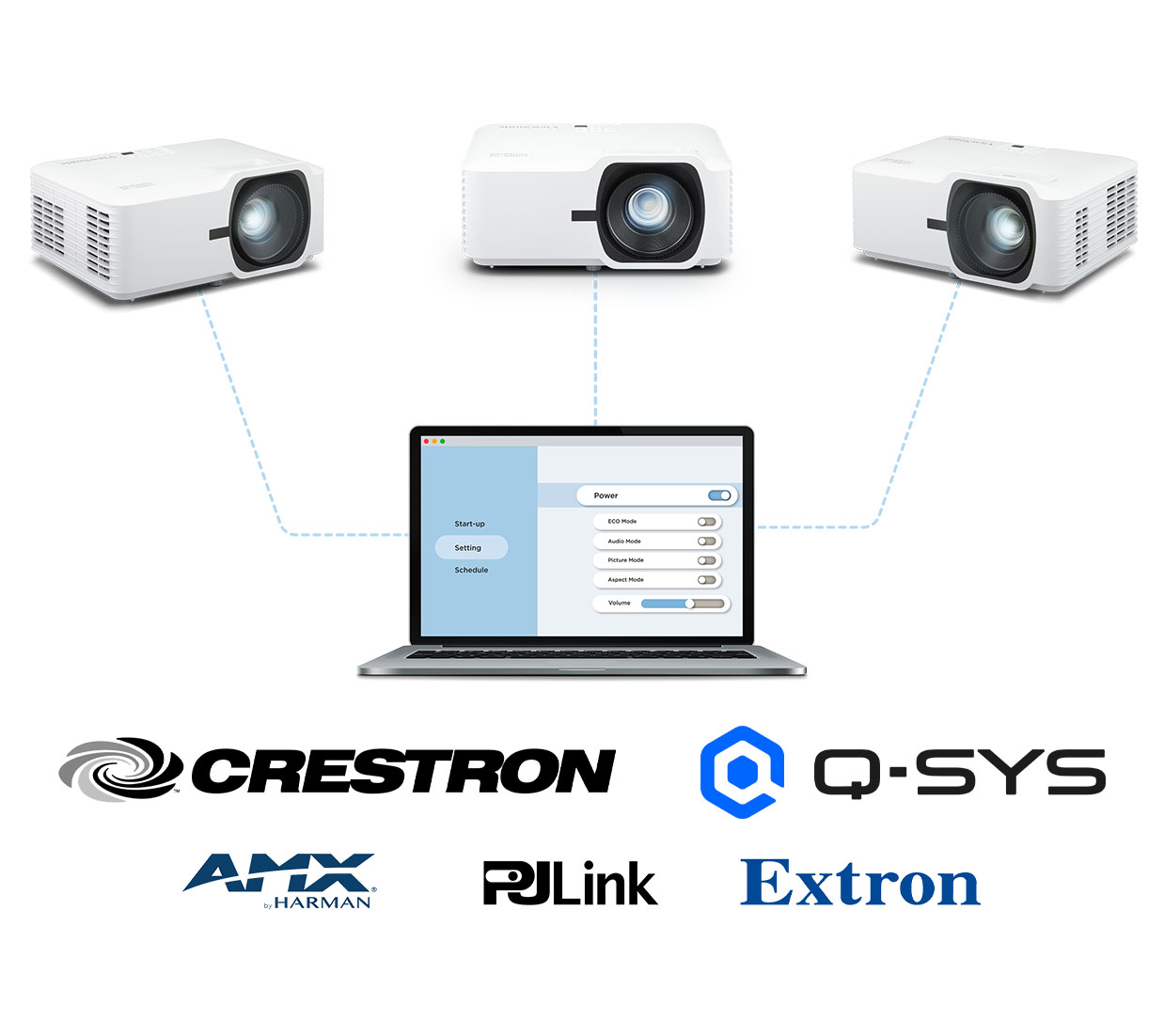

MANAGE EVERY UNIT REMOTELY WITH FULL LAN CONTROL

Certified for Crestron and Q-SYS, and compatible with AMX, PJ Link and Extron, the LSD500HD integrates directly into professional AV control systems. IT managers can monitor and manage multiple units over LAN without needing to be on-site, making it a practical choice for multi-room commercial installs.

SHARP, HIGH-CONTRAST IMAGING

A precise 0.65" DMD chip and 1920 x 1080p resolution produce deep blacks, bright whites and crisp text at any screen size. Strong native contrast keeps images sharp and readable whether the content is a detailed slide or a full- motion video on a 300" screen.

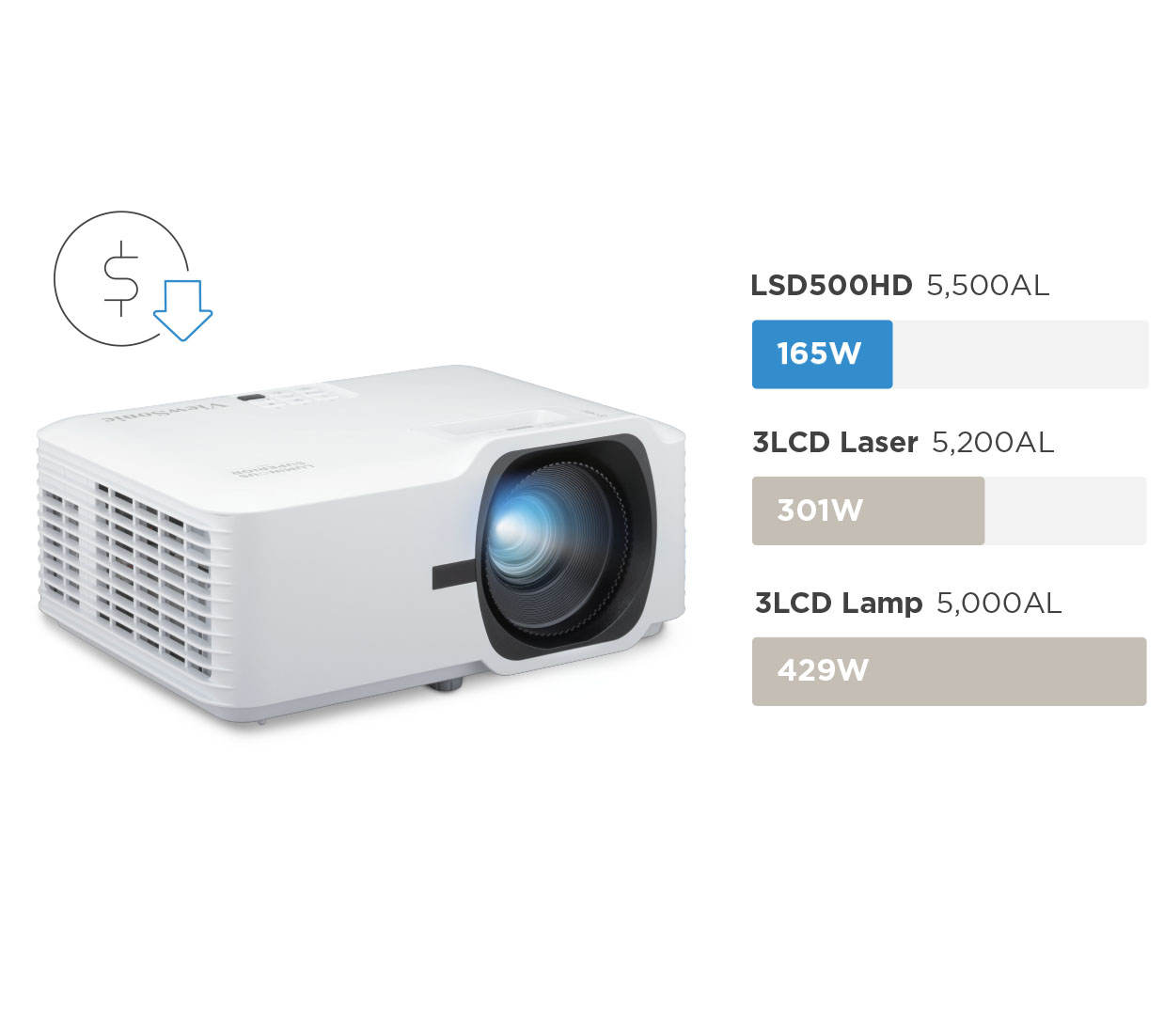

LOWER RUNNING COSTS

Laser phosphor technology uses up to 62% less power than a traditional lamp projector. Over a 30,000-hour lifespan, that difference in energy consumption adds up to significant savings on operating costs.

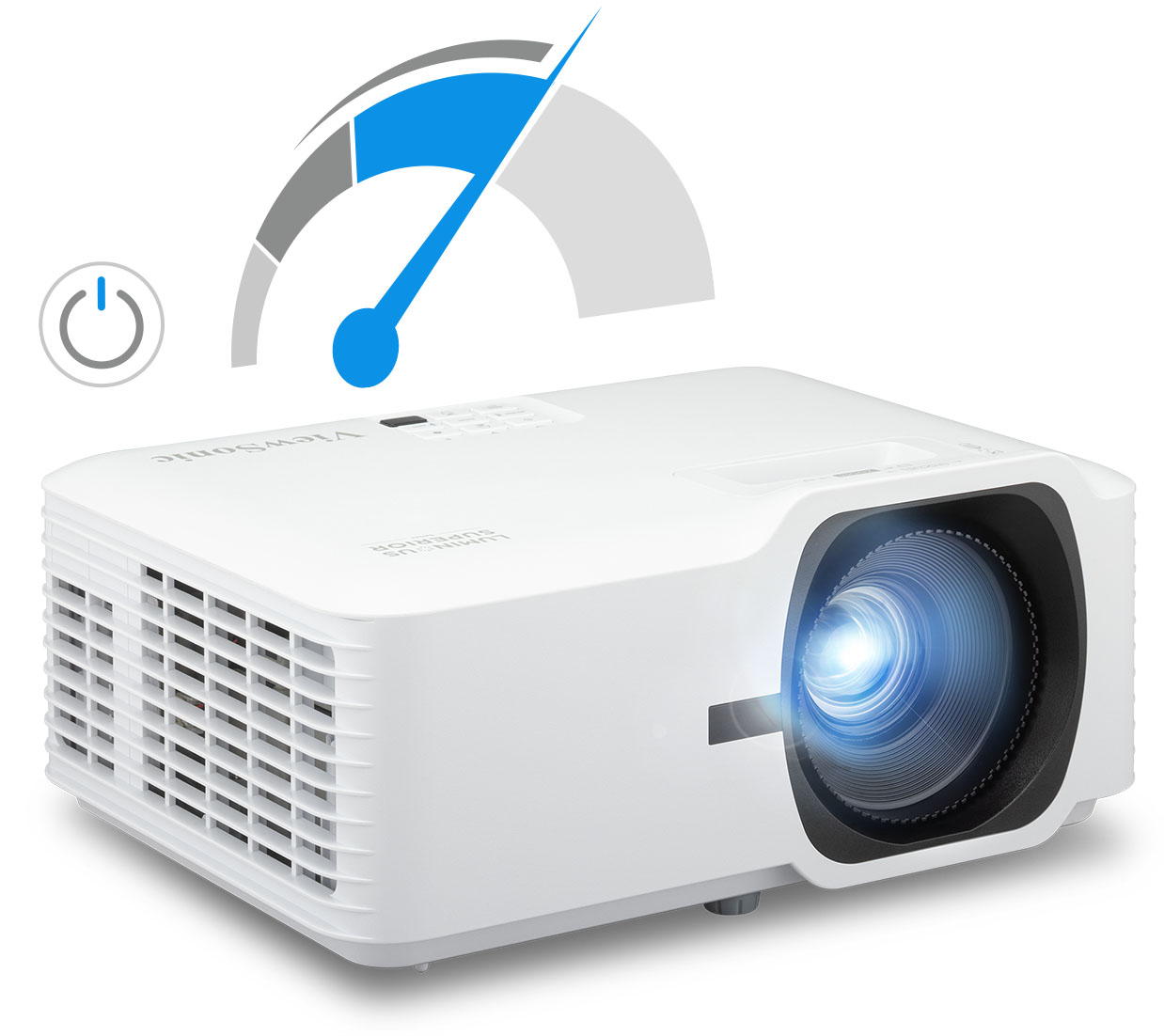

NO WARM-UP, NO WAIT

This projector powers on to full brightness the moment it turns on, with no warm-up period or cooldown required. In commercial environments where every minute counts, that responsiveness keeps things moving without delay.

GOLF MODE WITH ENHANCED COLOR

A dedicated Golf Mode fine-tunes color output to boost greens and blues. Fairways, water hazards and course details look as true-to-life on screen as they do in person, making the LSD500HD a natural fit for golf simulation venues and training facilities.

True-to-Source Playback

HDMI 2.0 with HDCP 2.2 accepts 4K UHD source content at 60Hz with HDR10 and HLG support. Brighter highlights, deeper shadows and a wider color range make every frame more vivid and true to the original source.

Golf Mode with Enhanced Color

Mount It Your Way With 360° Projection and Portrait Mode

The LSD500HD rotates to any angle so the space dictates the setup, not the other way around. Ceiling mounts, floor projections and portrait mode all work without compromising image quality, opening up possibilities that a fixed display simply can't match.

Flexible Installation

1.3x optical zoom and horizontal and vertical keystone correction with 4-corner adjustment keep the image perfectly proportioned, even when placement isn't ideal.

Built for 24/7 Operation

Advanced cooling and a sealed engine keep this projector running day and night in demanding commercial environments. Venues, museums and public spaces can count on consistent performance without scheduled downtime or interruption.

Crisp, Built-In Audio

A built-in 15W speaker delivers clear audio for presentations and public displays without requiring a separate sound system. That means a cleaner install, fewer cables to run and one less piece of equipment to source.

Awards

Specifications

Screen Size: 30 - 300 in. / 0.76 - 7.62 m
Throw Distance: 0.75-9.76m (100"@2.50m)
Throw Ratio: 1.13~1.47
Offset: 132%+/-10%
Lens: 1.3x optical zoom
Light Source Life, Normal (hours): 20000
Light Source Life, Dynamic Eco-Mode (hours): 30000
Color Depth: 1.07 Billion Colors
Input Lag: 16.8ms
Lens Shift: N/A (Digital Zoom: 0.8x-2.0x)
Display Resolution: Full HD (1920x1080)
Light Source: Laser Phosphor System
Display Resolution: 1920 x 1080
Brightness (Lumens): 5,500 ANSI
Dynamic Contrast Ratio: 3,000,000:1
Aspect Ratio: 16:9
Keystone: Vertical (± 30º) / Horizontal (± 30º)
Frequency Horizontal: 15K-102KHz
Frequency Vertical: 24-120Hz
PC Resolution (max): 4K UHD(3840 x 2160)
PC Resolution (min): VGA(640 x 480)
Mac® Resolution (max): 4K UHD(3840 x 2160)
Mac® Resolution (min): VGA(640 x 480)
USB 2.0 Type A: 1
Ethernet LAN (RJ45): 1
3.5mm Audio Out: 1
Control (RS232): 1
HDMI 2.0 In: 2
Internal Speakers: 15W (x1)
Voltage: 100-240V+/- 10%, 50/60Hz AC
Consumption (typical): 165W
Stand-by: <0.5W
Physical Controls: Keypad, Power key
On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
Temperature: 32-104º F (0 - 40º C)
Normal: 32dB
Eco-Mode: 27dB
Kensington Lock Slot: 1
Net (lbs): 6.4lbs
Gross (lbs): 10.14lbs
Net (kg): 2.90 kg
Packaging (in.): 15.75 x 11.02 x 6.10
Packaging (mm): 400 x 280 x 155
Physical (mm): 286 x 216 x 129
Regulations: cTUVus, CE, FCC, RoHS, REACH, EEE
Package Contents: Projector, power cable, remote control, Quick Start Guide,
Warranty: Three-year limited warranty on parts and labor, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.

Download

Quick Start Guide
LSD500HD Quick Start Guide

Technical Document
LSD500HD_2d_drawing(pdf)
LSD500HD_3d_drawing(stp)
RS-232/LAN Control Protocol Specification V1.0

Service Manual
LSD500HD Service Manual
