ViewSonic 34" UWQHD Ergonomic 21:9 Curved Docking Monitor with 100W USB-C and RJ45 Ethernet | VG3456CA
Selected
Product Overview

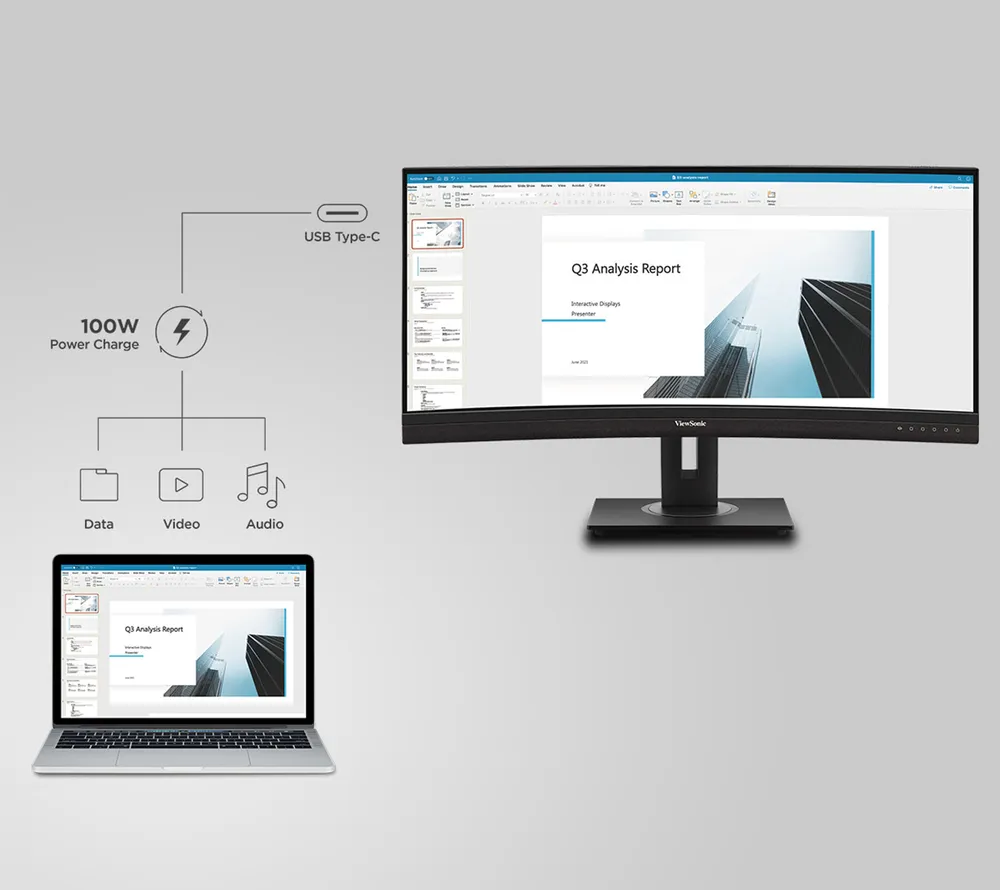

Built-In Docking Station
With USB-C single-cable connectivity, this monitor eliminates the need for costly external docking stations. One cable delivers video, audio, data, and up to 100W of power to your laptop, while an RJ45 Ethernet port ensures a fast, secure internet connection. An integrated USB hub makes it easy to connect your accessories directly through the monitor, while a second USB-C port with 15W charging lets you plug in additional devices.

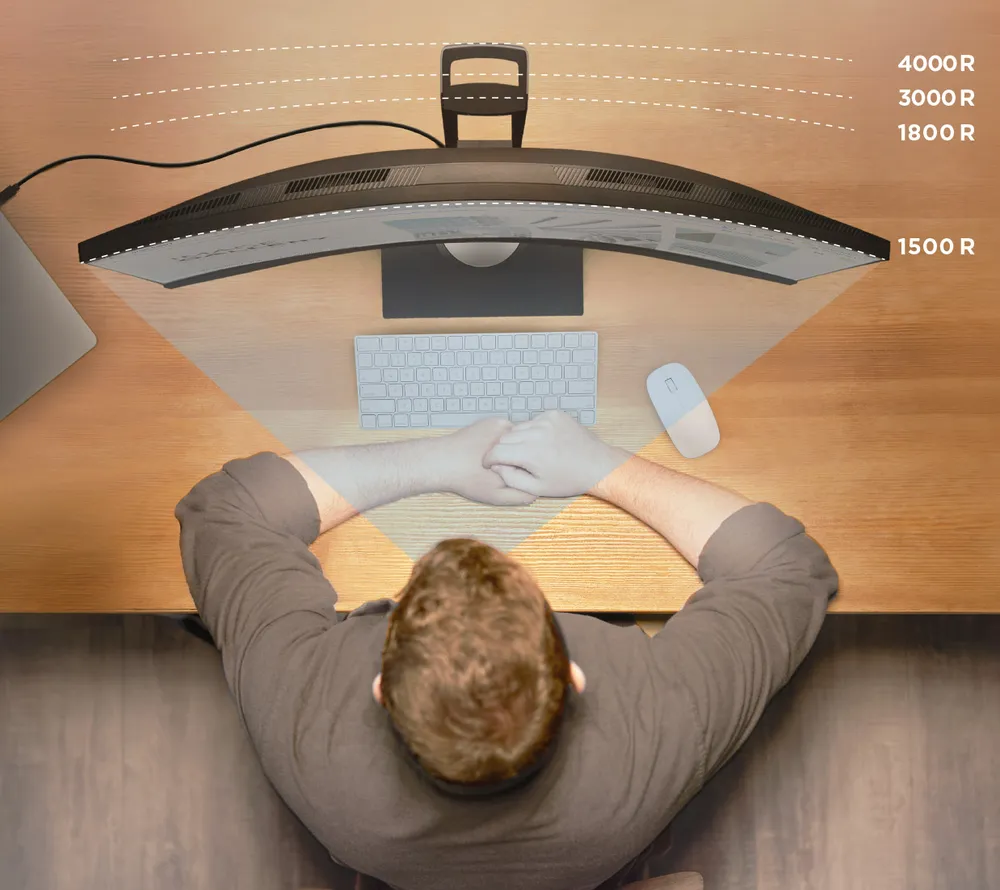

Immersive Curved Screen Design
A 1500R curved display delivers a more immersive experience and helps reduce eye strain by keeping the edges of your screen within a natural viewing distance.

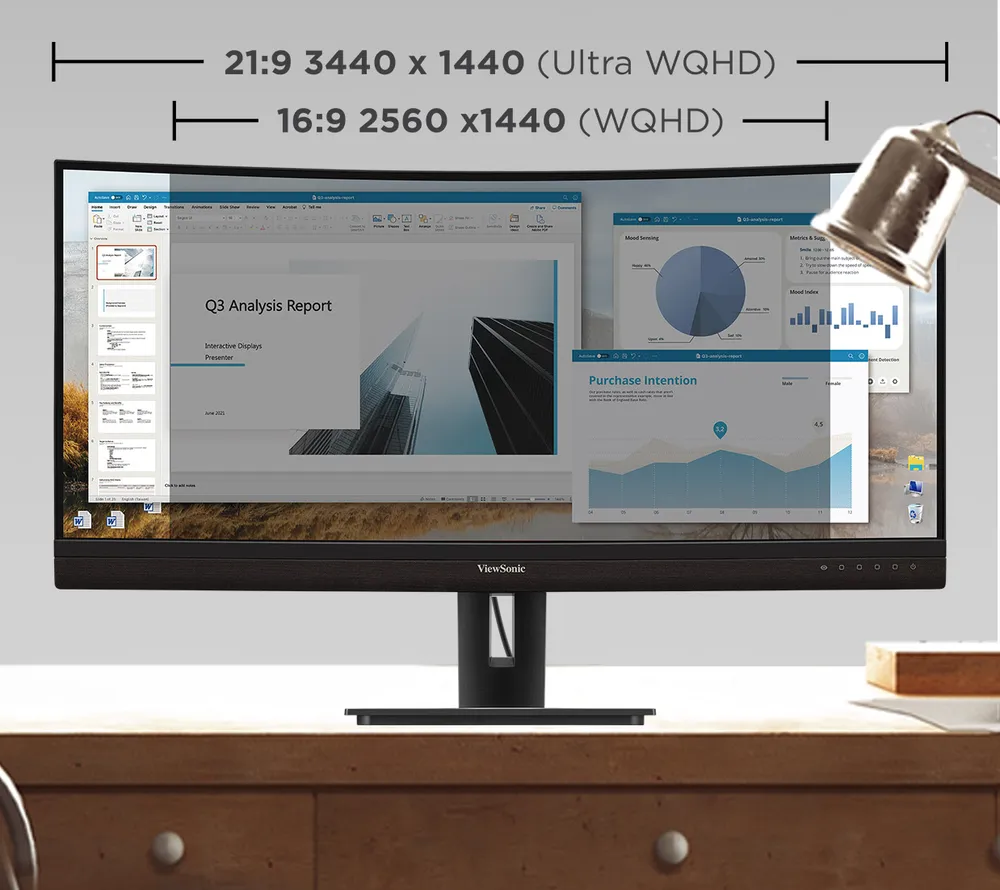

Ultrawide Quad HD Resolution with a 21:9 Aspect Ratio
Ultrawide Quad HD 3440 x 1440 resolution delivers incredibly sharp picture quality, while a 21:9 aspect ratio provides more screen real estate.

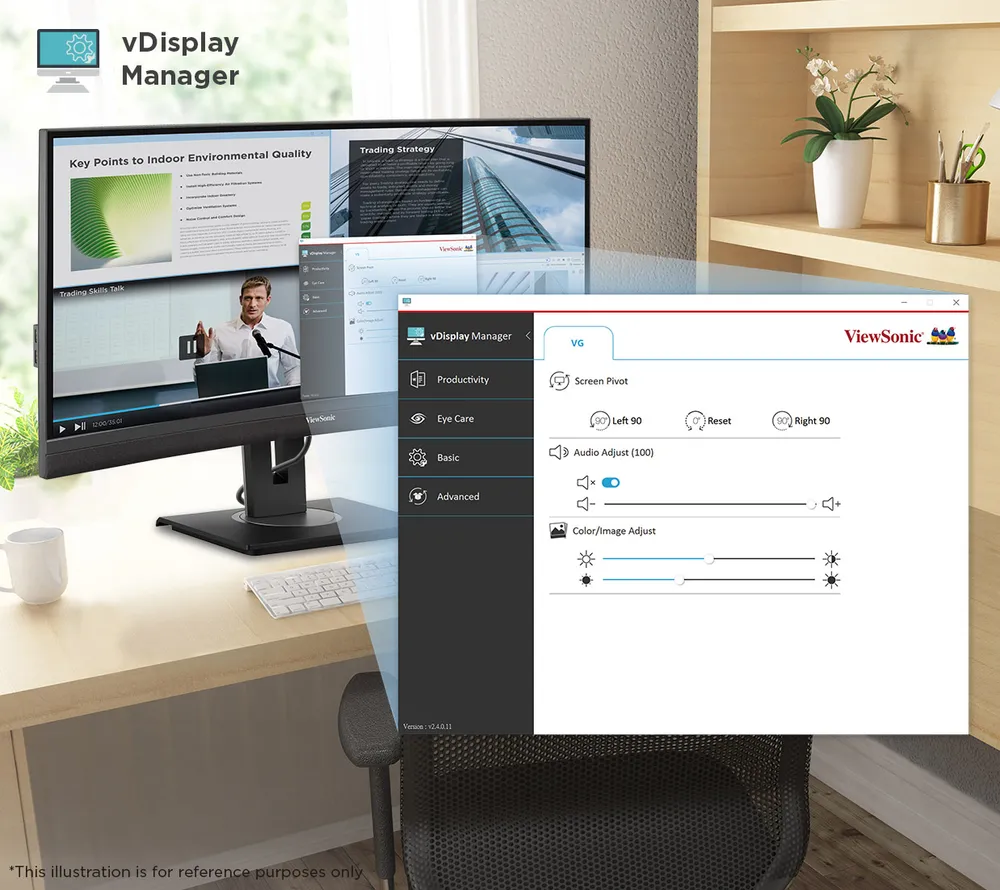

Command and Control Made Easy
vDisplayManager software boosts productivity by placing the On-Screen Display (OSD) controls directly on your screen. It also includes split-screen functionality, letting you customize window layouts and sizes with ease.

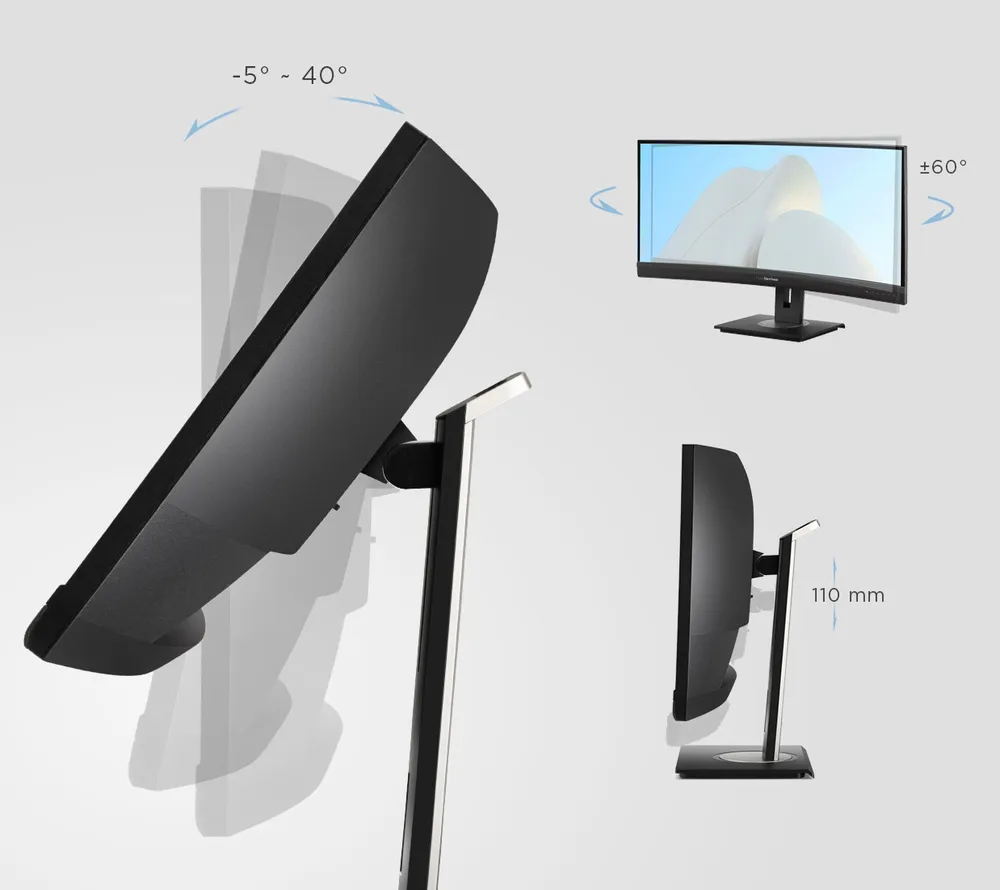

A More Comfortable Workspace
With advanced ergonomic features including swivel, height adjust, and tilt, this monitor is designed to provide a greater range of adjustment to help increase productivity and comfort. Built-in cable management helps keep your desktop set-up streamlined and organized.
Minimized Total Cost of Ownership
From installation and daily use to performance and recycling, every detail of this monitor has been carefully designed to meet the needs of your workplace while also reducing the total cost of ownership.
Environmentally Friendly Packaging
This monitor is shipped in eco-friendly, biodegradable, paper-based packaging that cuts down on recycling costs and delivers a reduced environmental footprint. An easy-open box streamlines unpacking for instant out-of-the-box monitor setup. Mono color printing is also used on the exterior of the packaging.
ENERGY STAR Certification
This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
EPEAT Certified
With EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.*
*Subject to ViewSonic's warranty and on-site service terms and conditions.
- Screen Size: 34
- Viewable Area (in.): 34
- Colors: 1.07B
- Color Space Support: 10 bit (8 bit + FRC)
- Viewing Angles: 178º horizontal, 178º vertical
- Backlight Life (Hours): 30,000
- Curvature: 1500R
- Display Resolution: UWQHD (3440x1440)
- Display Resolution: 3440 x 1440
- Response Time (Typical GTG): 5ms
- Dynamic Contrast Ratio: 80M:1
- Aspect Ratio: 21:9
- Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25%
- Light Source: LED
- Brightness: 350 cd/m2
- Static Contrast Ratio: 3,000:1
- Panel Type: VA
- Refresh Rate: 100Hz
- PC Resolution (max): 3440 X 1440
- Mac® Resolution (max): 3440 X 1440
- USB Type A: 4
- USB Type C: 100W x 1, 15W x 1
- Ethernet LAN (RJ45): 1
- HDMI 2.0 In: 2
- DisplayPort: 1
- Internal Speakers: 5W (x2)
- Eco Mode (Conserve): 33W
- Eco Mode (optimized): 38W
- Consumption (typical): 43W
- Consumption (max): 210W
- Voltage: 100-240 VAC, 50-60Hz
- Stand-by: 0.3
- Power Supply: Internal
- Cable Organization: No
- Kensington Lock Slot: 1
- Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
- On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 20-90%
- VESA Compatible: 100 x 100 mm
- Frequency Horizontal: 30 ~ 150 KHz
- Frequency Vertical: 48 ~ 100 Hz
- Height Adjust: 110 mm / 4.3 in
- Swivel: 120º
- Tilt (Forward/Back): 5º / 40º
- Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, NOM, Mexico Energy
- Net (lbs): 20.7
- Net Without Stand (lbs): 15.4
- Gross (lbs): 33.7
- Net (kg): 9.4
- Net Without Stand (kg): 7
- Gross (kg): 15.3
- Packaging (in.): 39 " (W) x 19.5 " (H) x 9.4 " (D)
- Physical (in.): 31.81 " (W) x 16.7~21.01 " (H) x 9.3 " (D)
- Physical Without Stand (in.): 31.81 " (W) x 15.41 " (H) x 4.53 " (D)
- Packaging (mm): 990 mm (W) x 495 mm (H) x 238 mm (D)
- Physical (mm): 808 mm (W) x 424.1~533.7 mm (H) x 236.2 mm (D)
- Physical Without Stand (mm): 808 mm (W) x 391.3 mm (H) x 115 mm (D)
- Package Contents: LCD Display, Power Cable, HDMI Cable, USB Type C Cable, Quick Start Guide
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Warranty: Three-year limited warranty on parts, labor and backlight
- Product Sku Group Label: 34 Inch, 1440p, Curved, 100W USB-C
-
