Product Overview

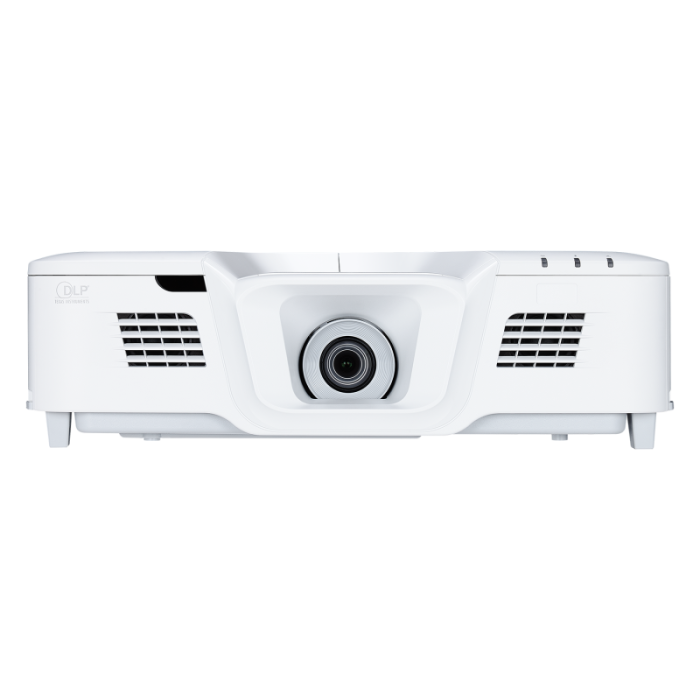

Delivering 1920 x 1080 resolution and 5000 lumens of brightness, the ViewSonic® PG800HD is the ideal 1080p projector for professional installations, large venues, and business and education environments. With its 1.3x optical zoom, centered lens, vertical lens shift, and vertical keystoning, the PG800HD provides extreme flexibility even in the most challenging installations. The PG800HD boasts a sleek top cover design for quick lamp and accessory access, while an intuitive PortAll® compartment accommodates additional accessories such as an HDBaseT receiver, wireless streaming device, or PC stick. A 4-in-1 power button serves as a central point for LED notifications. Moreover, two HDMI ports and additional audio and video ports allow for extensive connectivity to handle multiple devices without the need to switch cables. Powered by SuperColor™ technology for beautiful image reproduction, and SonicExpert® technology for incredibly clear sound, the PG800HD delivers a professional audiovisual performance.
Bright Images in Large Spaces
Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.
Vertical Lens Shift with Centered Lens
A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. What’s more, a centered lens design makes this projector ideal for replacing existing centered lens installations – making it unnecessary to move or reinstall existing ceiling mounts or projection screens.
PortAll: Discreet Wireless Streaming
This projector includes ViewSonic’s exclusive PortAll® feature—a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. What’s more, an optional HDBT adapter lets you discreetly stream multimedia content from set-top boxes, Blu-ray players, AV receivers and more via an HDBT receiver.
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
SuperColor: Amazing Color Accuracy
ViewSonic’s proprietary SuperColor™ Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.
Convenient Auto Power On/Off
This projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time.
SonicExpert® Technology
This projector is designed with ViewSonic’s proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20Hz – 20Khz sound range. Dual integrated speakers captivate your audience with immersive sound.
4-in-1 Power Button with IR Pass-through
A centrally located, easy-to-use power button not only turns the projector on and off, but also functions as an IR receiver and control for remote devices. In addition, intuitive LED lights on the power button indicate whether any dongles are powered on within the PortAll compartment.
Extreme Mounting Flexibility
A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.
Peace of Mind
ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange® service* for an added value worth up to $150**.
*One year Express Exchange® Service requires product registration. **Up to $150 added value over competitive models with 1-year warranty and based on extended warranties from manufacturers and not third party warranty providers.
- Screen Size: 30 - 300 in. / 0.76 - 7.62 m
- Throw Distance: 2.5 - 32.7 ft / .76 - 10 m
- Throw Ratio: 1.15-1.5
- Lens: 1.3x Manual optical zoom / manual optical focus
- Light Source (watt): 370
- Light Source Life, Normal (hours): 2000
- Light Source Life, Dynamic Eco-Mode (hours): 2500
- Color Depth: 1.07B Color (R/G/B 10bit)
- Input Lag: 37ms
- Display Resolution: Full HD (1920x1080)
- Light Source: DLP Lamp
- Display Resolution: 1920 x 1080
- Brightness (Lumens): 5,000 ANSI
- Dynamic Contrast Ratio: 5,000:1
- Aspect Ratio: 16:9
- Keystone: Vertical (+/- 40°)
- Frequency Horizontal: 15K~102KHz
- Frequency Vertical: 23~120Hz
- PC Resolution (max): 1920 x 1200
- Mac® Resolution (max): 1920 x 1200
- USB 2.0 Type A: 1
- USB 2.0 Type B: 1
- Ethernet LAN (RJ45): 1
- 3.5mm 12V Trigger: 1
- 3.5mm Audio Out: 1
- 3.5mm Audio In: 2
- Control (RS232): 1
- HDMI In: 2
- VGA In: 2
- VGA Out: 1
- Composite RCA Video In: 1
- S-Video In: 1
- Mini USB: 1
- RCA Audio In (L/R): 1
- 3D VESA: 1
- IR out: 1
- Internal Speakers: 10W (x2)
- Voltage: 100-240V+/- 10%, 50/60Hz AC
- Consumption (max): 574W
- Stand-by: <0.5W
- Physical Controls: Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source
- On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 0-90%
- Kensington Lock Slot: 1
- Net (lbs): 13.7
- Gross (lbs): 18.7
- Net (kg): 6.2
- Gross (kg): 8.5
- Packaging (in.): 22.7 x 21.1 x 10.2
- Physical (in.): 18.5 x 12.4 x 5.5
- Packaging (mm): 577 x 537 x 260
- Physical (mm): 470 x 316 x 140
- AV Control: AMX Certified, ATEN Certified, Crestron Certified, Extron Certified, PJ Link Certified
- Regulations: FCC, ROHS, cTUVus
- Package Contents: PG800HD projector, power cable, VGA cable, remote control with AAA batteries, Quick Start Guide
- Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
-
