Product Overview

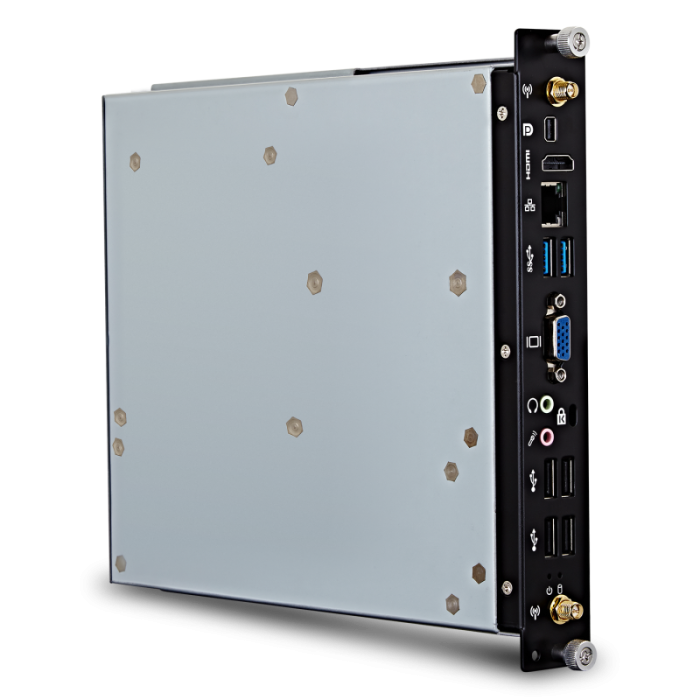

The ViewSonic® NMP712-N network media player delivers smart whiteboard functionality for interactive digital signage displays. This slot-in PC module easily plugs into compatible digital signage displays and supports high-definition audio and video. With a powerful Intel® i7 processor, the NMP712-N provides the computing power needed for educational, or corporate environments. In addition, after the installation of a Windows® 10 Pro* OS onto the media player, the NMP712-N delivers Windows-compatible touch functionality and simple navigation to a variety of applications. The NMP712-N is capable of storing and playing hours and hours of high-definition multimedia content thanks to its 8GB of built- in memory and 128GB SSD storage. Connectivity options include DisplayPort, HDMI, VGA, ve USB 2.0 ports, and two high-speed USB 3.0 ports, as well as RJ45. In addition, optional ViewBoard annotation software offers the ability to annotate on top of any content, simultaneously capture annotations, and enables multiple users to work collaboratively. *Windows 10 Pro OS not included

Overview

Awards

Specification

More Information
Media Player Type	Slot-in PC
CPU Processor Type	Intel® CoreTM i7-4790S
Operating System	FreeDOS
Real-time Clock (RTC)	No
W3C SMIL	No
HTML5, JavaScript and CSS	No
Graphic Chipset	Descrete Graphics GT730M
Resolution (max)	Up to 3840 × 2160
RAM	8GB
Memory Type	DDR3 SDRAM
Ethernet LAN	10/100/1000 Gigabit Ethernet
Wifi	802.11ac
Bluetooth	Bluetooth 4.0
Storage Capacity	128GB
Storage Type	SSD
HDMI In	1
Mini DisplayPort	1
Ethernet LAN (RJ45)	1
VGA	1
3.5mm Audio In	1
3.5mm Audio Out	1
USB 2.0 Type A	4
USB 3.0 Type A	2
Temperature	32–95º F (0 - 35º C)
Humidity (non-condensing)	20-90%
Physical (in.)	9.76 x 8.54 x 1.3
Packaging (in.)	12.76 x 11.18 x 2.09
Physical (mm)	248 x 217 x 33
Packaging (mm)	324 x 284 x 53
Net (lbs)	4.34
Gross (lbs)	5.2
Net (kg)	1.97
Gross (kg)	2.36
Recycle/Disposal	Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS	NMP712-N network media player, screw driver
Warranty	Three-year limited warranty on parts and labor
Classification	Discontinued
