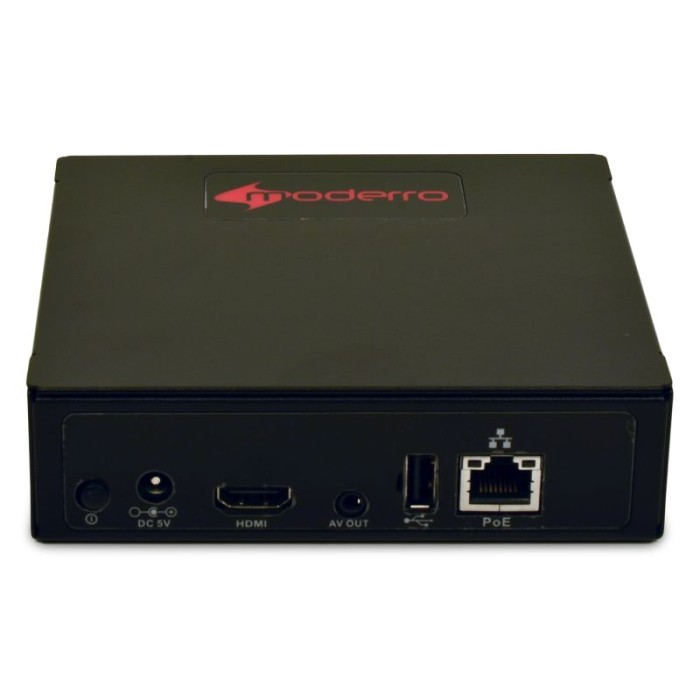

  • NMP012 Front NMP012 Front
  • NMP012 Front Connectors NMP012 Front Connectors
  • NMP012 Right NMP012 Right
  • NMP012 Left NMP012 Left
  • NMP012 Top NMP012 Top
  • NMP012 Back NMP012 Back
  • NMP012 Connectors NMP012 Connectors

NMP012-S - Sigma Design ARM, Linux, 8GB Flash

When combined with ViewSonic® commercial displays, the NMP012 Moderro* network media player allows any organization to create stunning video walls simply and affordably. Transform a virtually unlimited number of screens into larger-than-life digital displays. Build captivating artistic configurations with screen tiling in nearly any imaginable layout. The NMP012 is a Full HD 1080p network media player, but can support brilliant 4K Ultra HD resolution across four screens configured in a 2x2 daisy chain.
*Moderro and the Moderro logo are registered trademarks of Moderro Technologies.

Availability: In stock

$147.00

When combined with ViewSonic® commercial displays, the NMP012 Moderro* network media player allows any organization to create stunning video walls simply and affordably. Transform a virtually unlimited number of screens into larger-than-life digital displays. Build captivating artistic configurations with screen tiling in nearly any imaginable layout. The NMP012 is a Full HD 1080p network media player, but can support brilliant 4K Ultra HD resolution across four screens configured in a 2x2 daisy chain.
*Moderro and the Moderro logo are registered trademarks of Moderro Technologies.

CPU Processor Type

Sigma Design ARM

Operating System

Linux

Storage Capacity

8GB

Media Player Type

Video Wall Player

System

Media Player Type

Video Wall Player

CPU Processor Type

Sigma Design ARM

Operating System

Linux

Graphics

Graphic Chipset

Sigma Design

Resolution (max)

3840 × 2160

Memory

RAM

1GB

Networking

Ethernet LAN

GbE LAN Port with POE

Storage

Storage Capacity

8GB

Storage Type

Flash

Connector

HDMI 1.4 In

1

Ethernet LAN (RJ45)

1

RCA Audio Out

1

USB 2.0 Type A

1

RS232

1

GPIO

1

Power

Consumption (typical)

10w

Voltage

AC adapter 5V, 4A

Operating Conditions

Temperature

32-104º F (0 - 40º C)

Humidity (non-condensing)

20-80%

Dimensions (imperial) (wxhxd)

Physical (in.)

5.1 x 5.0 x 1.4

Dimensions (metric) (wxhxd)

Physical (mm)

130 x 127 x 35

Weight (imperial)

Net (lbs)

1.25

Gross (lbs)

2.4

Weight (metric)

Net (kg)

0.6

Gross (kg)

1.1

General

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

Regulations

CE, CD LVD/ FCC class B

PACKAGE CONTENTS

HDMI cable (Male to Female, 35cm), AC Adapter, Power Plug, USB Cable, Ethernet Cable, VESA Mount

Warranty

*Refurbished. 30-day DOA policy for full refund, with a 90-day repair warranty on parts and labor.

Classification

Refurbished

Dimensions

5.1 x 5.0 x 1.4 in. / 130 x 127 x 35 mm.

  1. RS232
  2. Status Light
  3. GPIO Port
  4. HDMI 1.4
  5. DC Power In
  6. Power Switch
  7. RCA audio out
  8. USB 2.0 Type A
  9. LAN
