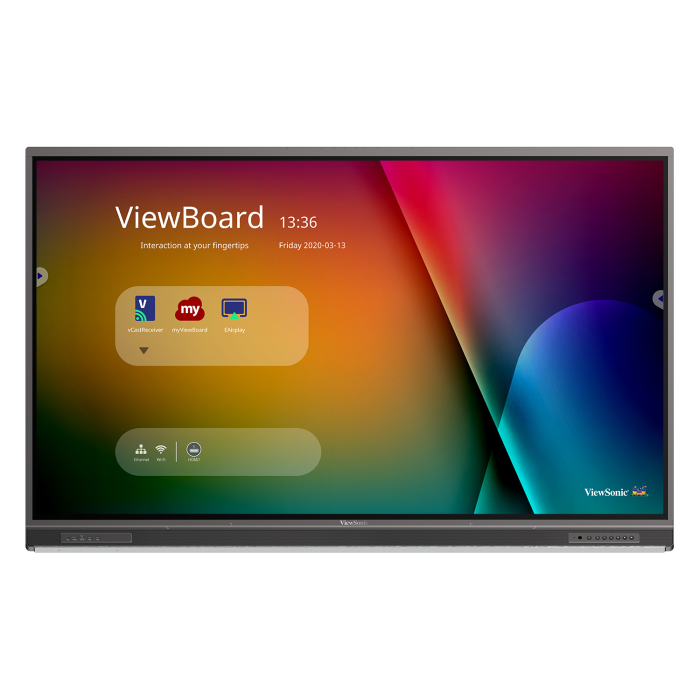

IFP7552-1C - 75" 4K Touch Enabled ViewBoard Smart Display
- Intuitive and Ultra-Responsive Touchsceen
- Front-Facing Soundbar
- Built-in Beamforming Microphone
- USB-C with Power Delivery
- myViewBoard Manager
Product Overview
Intuitive and Ultra-Responsive Touchscreen
33-point touch allows multiple users to simultaneously write or draw on the display’s surface using styluses or their fingers, or both at the same time. Palm recognition technology minimizes errant touch inputs from palms, wrists, sleeves, etc., so that users can write and annotate freely.
Front-Facing Soundbar
An integrated front-facing soundbar and subwoofer delivers incredible audio to every corner of the classroom.
Built-in Beamforming Microphone
An integrated beamforming mic array with noise cancelation perfectly captures speech from up to 8 feet away, enabling teachers to be clearly heard by remote learners, or during recorded lessons.
USB-C with Power Delivery
This device easily connects to a PC, laptop or Chromebook via USB-C. In addition, USB-C connectivity provides up to 60W power delivery for convenient charging of your peripherals and accessories.
myViewBoard Manager
myViewBoardTM Manager is a cloud-based management solution that empowers IT administrators to remotely monitor devices, manage apps, push out broadcasts and more within the myViewBoard ecosystem. myViewBoard Manager lets IT administrators seamlessly monitor and maintain individual displays across large organizations from a single control panel.
Learn More
Aug 2021
| Display Type | LCD |
|---|---|
| Screen Size | 75 |
| Viewable Area (in.) | 74.5 |
| Light Source | LED |
| Display Resolution | 3840 x 2160 |
| Refresh Rate | 60Hz |
| Aspect Ratio | 16:9 |
| Static Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 4,000:1 |
| Backlight Life (Hours) | 50,000 |
| Brightness | 350 cd/m2 |
| Response Time (Typical GTG) | 8ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Panel Surface | G1S, AG glass, 9H pencil hardness, 4mm |
| Ethernet LAN | (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000) |
| Wifi | Optional VB-WIFI-001 adapter, 802.11AX + Bluetooth 5.2 |
| OS | ViewBoard OS based on Android 9.0 |
| GPU | ARM Mali-G52 |
| CPU | ARM Quad Core A73 |
| CPU Processor Speed | 1.8GHz |
| Memory | 4GB LPDDR4 |
| Storage | 32GB eMMC |
| Microphone | Beamforming array x 8, noise cancelation |
| Internal Speakers | 15W (x2) |
| Subwoofer | 15W (x1) |
| HDMI 2.0 In | 4 |
| HDMI Out | 1 |
| VGA | 1 |
| SPDIF | 1 |
| USB 2.0 | 5 |
| USB 2.0 Type B | 2 |
| USB 3.1 Type C | 1 |
| OPS PC Slot | 1 |
| RS232 | 1 |
| Ethernet LAN (RJ45) | 2 |
| Intel® OPS Slot In (80-pin) | 1 |
| Voltage | 100-240 VAC |
| Consumption (typical) | 170W |
| Stand-by | <0.5W |
| Temperature | 32-104º F (0 - 40º C) |
| Humidity (non-condensing) | 10-90% |
| Touch Technology | Infrared |
| Touch Points | Windows: 33, Android: 20 |
| Tip Detection | Dual tips, 2mm and 9mm |
| Other | Palm recognition, object awareness |
| Net (lbs) | 121.8 |
| Gross (lbs) | 170.8 |
| Net (kg) | 55.3 |
| Gross (kg) | 77.5 |
| Packaging (in.) | 72.75 x 46.8 x 10.6 |
| Physical (in.) | 67.3 x 42.2 x 4.7 |
| Packaging (mm) | 1848.0 x 1190.0 x 270.0 |
| Physical (mm) | 1709.0 x 1071.0 x 120.0 |
| VESA Compatible | 800 x 400 mm |
| Screw Size | M8 |
| Warranty | 3-year limited warranty on parts, labor and backlight, onsite warranty |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| PACKAGE CONTENTS | IFP7552-1C, Remote control with AAA battery, 3m touch USB cable, Touch pen x 2 (a set), eraser, Quick Start Guide + Compliance statement, RS232 adapter, Clamp x 5, Camera Plate, Screw x 8 (camera 2+2, wall mount 4), HDMI cable 3m, Typc-C cable 1.8 (Data & |
| Regulations | cTUVus, FCC, ENERGY STAR, EPEAT Silver, Mexico Energy, CE, CB, RoHS, ErP, WEEE |
