EP5542 - 55" Display, 3840 x 2160 Resolution, 400 cd/m2 Brightness, 16/7
- Ultra HD Resolution
- Embedded SoC Platform
- Free-standing Design
- Optional Content Management Software
- Anti-Scratch, Anti-Glare Glass Faceplate

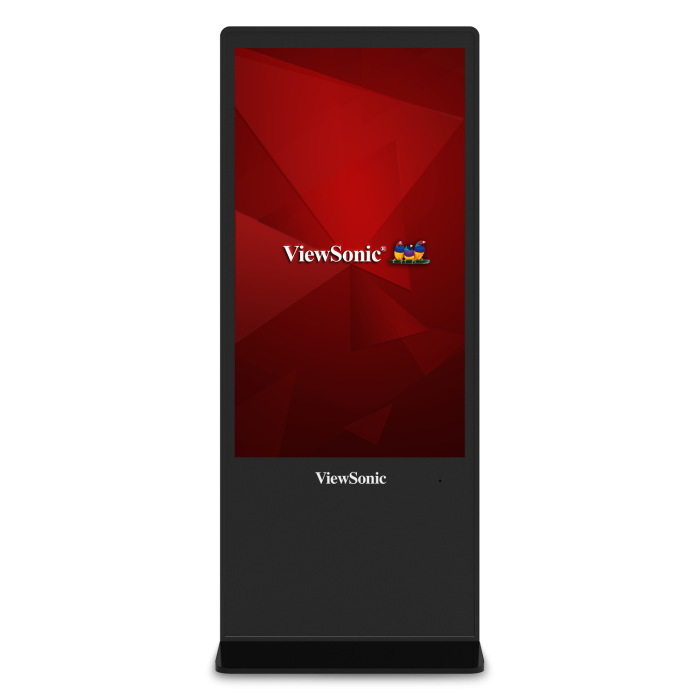

Product OverviewThe ViewSonic® EP5542 is a 55” 4K Ultra HD all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the EP5542 comes with a scratch-proof tempered glass faceplate for added durability. Featuring an IPS-type panel, 4K Ultra HD resolution, 178°/178° wide-angle viewing, 400-nit brightness, 1,300:1 contrast ratio, and dual 10W stereo speakers, the EP5542 delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded Quad-core media player and 16GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door.
Ultra HD Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
Anti-scratch, Anti-glare Glass Faceplate
This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.
Media Player Cradle with Lockable Security Door
A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.
DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
Easy LAN Control
This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.
1-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 1-year limited warranty.
|Viewable Area (in.)||55|
|Display Resolution||3840 x 2160|
|Static Contrast Ratio||1,300:1|
|Viewing Angles||178º horizontal, 178º vertical|
|Backlight Life (Hours)||30,000|
|Response Time (Typical GTG)||9ms|
|Panel Surface||Anti-Glare 3H, Haze = 2%, 7H / 4mm Tempered glass|
|Internal Speakers||10-watt (x2)|
|3.5mm Audio In||1|
|3.5mm Audio Out||1|
|HDMI 2.0 (with HDCP 2.2)||3|
|Ethernet LAN (RJ45)||1|
|USB 2.0 Type A||3|
|CPU||Multi-CPU (ARM Cortex A73 x 2 + Cortex A53 x 2)|
|Operating System||Android™ 8.0|
|Voltage||100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz|
|Temperature||32-104º F (0 - 40º C)|
|Packaging (in.)||38.2 x 80.1 x 24.0|
|Physical (in.)||30.3 x 73.6 x 17.7|
|Packaging (mm)||970.0 x 2034.0 x 609.0|
|Physical (mm)||768.5 x 1870.0 x 400.0|
|Regulations||cTUVus, FCC, Energy Star, CE, CB, RoHS, ErP, EEI, WEEE, BSMI|
|Package Contents||EP5542 Multimedia Digital Poster, Remote Control with batteries, Quick Start Guide, Power Cable|
|Recycle/Disposal||Please dispose of in accordance with local, state or federal laws.|
|Warranty||One-year limited warranty on parts, labor and backlight|
Quick Start Guide
- EP5542 Quick Start Guide
Driver & Software
- EP5542 Firmware Pack_20220905
