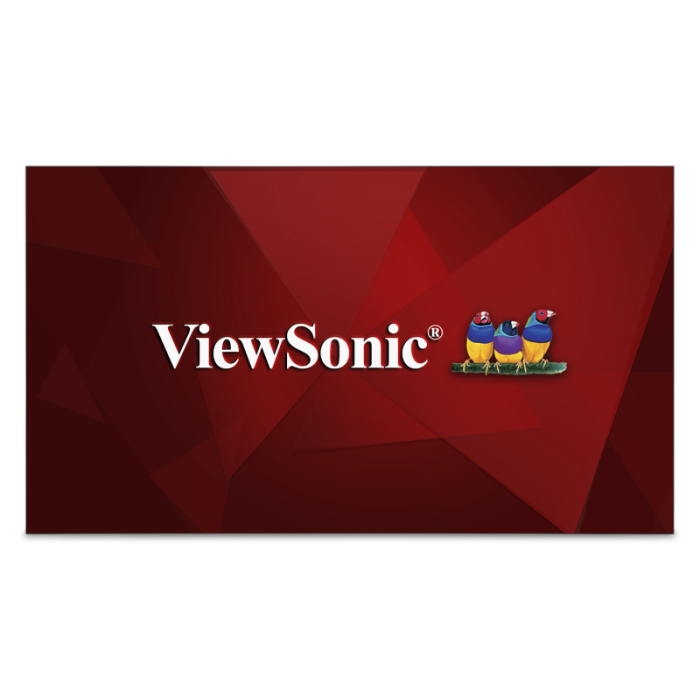

CDX5562 - 55" Display, 1920 x 1080 Resolution, 700 cd/m2 Brightness, 24/7

The ViewSonic® CDX5562 is a 55" (54.64’’ viewable) commercial display with a super ultra-narrow bezel optimized for multi-panel video wall applications. With an edge-to-edge bezel width of only 1.8mm between combined displays, and 10x10 installation via DisplayPort or DVI daisy-chain, the CDX5562 delivers nearly seamless, high-impact video walls for public, retail, and transportation settings. With Full HD 1080p resolution, 700-nit high brightness, SuperClear® technology for wide viewing angles, and dual 10W stereo speakers, the CDX5562 delivers sharp, vivid images with incredible sound and multimedia performance.

Availability: In stock

$6,999.99

Compatible with your CDX5562



Items 1 to 4 of 21 total

The ViewSonic® CDX5562 is a 55" (54.64’’ viewable) commercial display with a super ultra-narrow bezel optimized for multi-panel video wall applications. With an edge-to-edge bezel width of only 1.8mm between combined displays, and 10x10 installation via DisplayPort or DVI daisy-chain, the CDX5562 delivers nearly seamless, high-impact video walls for public, retail, and transportation settings. With Full HD 1080p resolution, 700-nit high brightness, SuperClear® technology for wide viewing angles, and dual 10W stereo speakers, the CDX5562 delivers sharp, vivid images with incredible sound and multimedia performance.

Ultra-narrow Bezel

Ultra-narrow Bezel

With a thin edge-to-edge bezel between combined displays, this commercial display creates stunning, near-seamless images when used in large video wall configurations.

SuperClear IPS Panel Technology

SuperClear® IPS Panel Technology

SuperClear image enhance technology delivers 178-degrees of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colors, and consistent brightness levels whether looking at the screen from above, below, the front, or the side—with no distortion or decay.

10x10 Daisy-Chain Support with DisplayPort or DVI

10x10 Tiling Support with DisplayPort or DVI

With integrated DisplayPort and DVI outputs, this display supports up to a 10x10 tiling setup for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.

Control Multiple Devices

HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

Free Bundled vController™ Software

Free Bundled vController™ Software

Included vController™ software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

OPS Slot Compatibility

Equipped with Intel’s Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.

Display Size (in.)

55

Resolution

1920 x 1080

Static Contrast Ratio

1,200:1

Light Source

DLED

Display

Display Size (in.)

55

Viewable Area (in.)

54.6

Orientation

Landscape / Portrait

Light Source

DLED

Resolution

1920 x 1080

Aspect Ratio

16:9

Static Contrast Ratio

1,200:1

Backlight Life (Hours)

50,000

Brightness

700 cd/m2

Response Time (Typical GTG)

8ms

Bezel Width (mm)

Top 0.09 mm / Left 0.09 mm / Bottom 0.09 mm / Right 0.09 mm

Viewing Angles

178º horizontal, 178º vertical

Panel Surface

Anti-glare, Hard coating (3H)

Operation Rating

24/7

Embedded Player

CPU

USB Supported internal media player

Interface

OSD / Remote Control

Audio

Internal Speakers

10W (x2)

Connector

HDMI 1.4

2

DVI-D

1

DVI-D Out

1

VGA

1

Display Port

1

Display Port Out

1

Composite RCA

1

Component RCA

1

3.5mm Audio In

1

3.5mm Audio Out

1

Speaker Out

1

USB 2.0

1

RS232

1

RS232 Out

1

Ethernet LAN (RJ45)

1

Power

Voltage

100-240 VAC

Consumption With Slot-In PC (typical)

334W

Consumption Without Slot-In PC (typical)

270W

Stand-by

<0.5W

Operating Conditions

Temperature

41-104º F (5 - 40º C)

Humidity (non-condensing)

20-80%

Weight (metric)

Net (kg)

26.7

Net Without Stand (kg)

24.4

Gross (kg)

36.8

Weight (imperial)

Net (lbs)

58.8

Net Without Stand (lbs)

53.7

Gross (lbs)

81.1

Dimensions (metric) (wxhxd)

Packaging (mm)

1475.0 x 983.0 x 375.0

Physical (mm)

1211.4 x 682.2 x 98.5

Dimensions (imperial) (wxhxd)

Packaging (in.)

58.1 x 38.7 x 14.8

Physical (in.)

47.7 x 26.9 x 3.9

Mount

VESA Compatible

400 x 400 mm

Screw Size

M6

Screw Length (mm)

10

General

Warranty

Three-year limited warranty on parts, labor and backlight

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS

CDX5562 Commercial Display, Remote control, User Manual, Quick Start Guide, power cables, VGA cable, RS232 cable, IR sensor cable, RS232 daisy chain cable, Edge Alignment kit 1 & 2, Thumb screw

Regulations

UL/cUL, FCC, Energy Star 6.0, UL-MX-CoC, Mexico Energy

Dimensions

47.7 x 26.9 x 3.9 in / 1211.4 x 682.2 x 98.5 mm

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 400 x 400 mm
  3. AC In
  4. Menu Controls
  5. IR In/Out
  6. RS232 In/Out
  7. LAN
  8. EXT. SPK Terminal
  9. USB 2.0
  10. Audio Out
  11. Audio In
  12. PC Audio In
  13. Y Pb Pr
  14. VGA In
  15. Display Port In/Out
  16. DVI In/Out
  17. HDMI 1.4 x2
