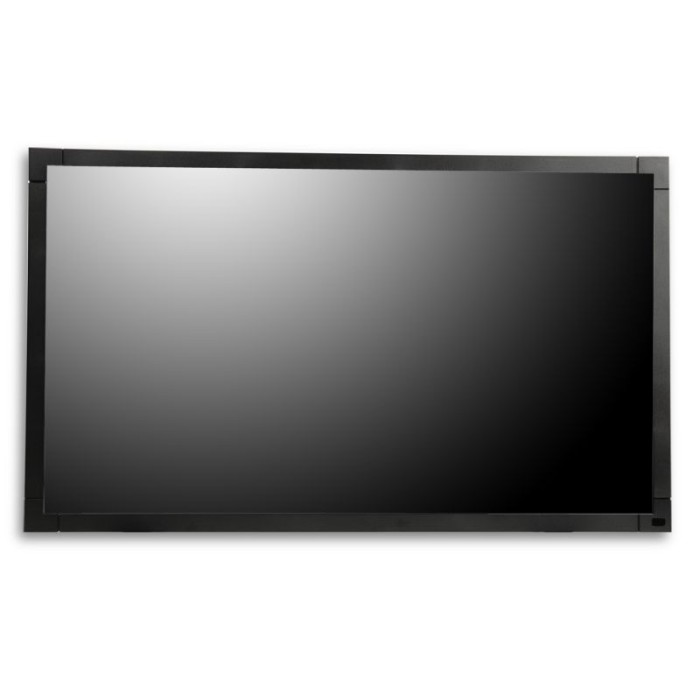

CDP4235

Name: CDP4235
SKU: CDP4235
Price: 809.00 USD

| Datasheet | Media

Add to Compare

Product Overview

*This product has been replaced by CDE4200-L.

ViewSonic’s new CDP4235 Full HD Commercial display features a FHD 1920x1080panel with 4000:1 contrast and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S video and composite, YPbPr and built in 10W x 2 speakers. The CDP4235 will support up to a 5x5 display video wall with internal clock and scheduler. RS232 daisy chain and RJ45 are provided for remote control.

Overview

Control Multiple Devices

RS232 IR pass-through offers local control for set-top boxes, and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

Awards

Specifications

Internal Speakers: 10W (x2)
HDMI In: 1
VGA: 1
Consumption (typical): 210W
Screen: N/A
Input: VGA, DVI, HDMI, YPbPr
Controls: N/A
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Audio: Volume, mute, audio source
Sound: N/A
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Set Up: N/A
TV: N/A
Advanced Options: N/A
Humidity (non-condensing): 10-80%
Physical (in.): 39.04" x 24.4" x 12.98"
Physical Without Stand (in.): 39.04" x 22.9" x 4.52"
Physical (mm): 991.6mm x 621mm x 329.8mm
Physical Without Stand (mm): 991.6mm x 584mm x 115.5mm
VESA Compatible: 400 x 400 mm
Wall Mount: VESA 400mm x 400mm
Recycle/Disposal: The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
Optional Accessories (sold separately): N/A
Package Contents: LCD display, power cable, remote control with batteries, User Guide CD
Regulations: FCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
Classification: Discontinued
Screen Size: 42
Backlight Life (Hours): 50,000
Viewing Angles: 178º horizontal, 178º vertical
Display Resolution: 1920 x 1080
Response Time (Typical GTG): 11ms
Aspect Ratio: 16:9
Panel Surface: Anti-glare, Hard coating 3H
Light Source: LCD
Brightness: 450 cd/m2
Static Contrast Ratio: 4,000:1
