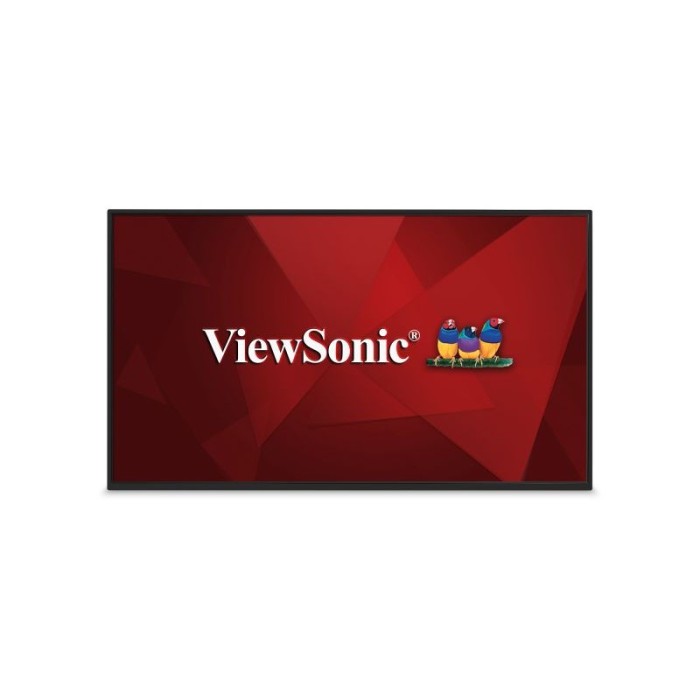

CDM5500R - 55" Display, 1920 x 1080 Resolution, 450 cd/m2 Brightness, 24/7

Physical deployment, content creation, and message delivery couldn’t be easier than with the ViewSonic®CDM5500R. Featuring an internal media player this commercial display gives you everything you need for easy digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500R also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall application, and commercial construction for reliable messaging 24 hours a day, 7 days a week.

Availability: In stock

$1,999.99

Compatible with your CDM5500R

  • All (29)
  • Media Players (2)
  • Stands (3)
  • Wall Mounts (1)
  • Wireless (2)



Items 1 to 4 of 29 total

Physical deployment, content creation, and message delivery couldn’t be easier than with the ViewSonic®CDM5500R. Featuring an internal media player this commercial display gives you everything you need for easy digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500R also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall application, and commercial construction for reliable messaging 24 hours a day, 7 days a week.

Quad-core Media Player

Built-in Quad-core Media Player

A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.

Embedded LAN, Wi-Fi, and Internet Browser

An integrated RJ45 connection, as well as Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated internet browser provides simple content delivery via connection to the web.

Internet Browser

An integrated internet browser provides simple content delivery via connection to the web.

Internal Scheduler

An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

Content Management Software

Content Management Software

Great for all venues and scenarios, the bundled Signage Manager software lets users transfer multimedia content onto the display from PCs and laptops. This embedded content management tool also lets you format, schedule, and save playback settings.

Integrated USB Multimedia Player

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

Portrait or Landscape Mountable

This display is VESA-mountable in either portrait or landscape orientation for display flexibility in a variety of settings.

10x10 Tiling Support with DisplayPort or DVI

With integrated DisplayPort and DVI outputs, this display supports up to a 10x10 tiling setup for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.

Display Size (in.)

55

Resolution

1920 x 1080

Static Contrast Ratio

1,100:1

Light Source

ELED

Display

Display Size (in.)

55

Viewable Area (in.)

54.6

Orientation

Landscape / Portrait

Light Source

ELED

Resolution

1920 x 1080

Aspect Ratio

16:9

Static Contrast Ratio

1,100:1

Backlight Life (Hours)

50,000

Brightness

450 cd/m2

Response Time (Typical GTG)

12ms

Bezel Width (in.)

Top 0.38 in / Left 0.38 in / Bottom 0.62 in / Right 0.38 in

Bezel Width (mm)

Top 9.6 mm / Left 9.6 mm / Bottom 15.7 mm / Right 9.6 mm

Viewing Angles

178º horizontal, 178º vertical

Panel Surface

3H Anti-glare, hard-coating

Operation Rating

24/7

Embedded Player

CPU

Quad core A9 CPU - RK3188

Interface

OSD / Remote Control

Audio

Internal Speakers

10W (x2)

Connector

HDMI 1.4

2

DVI-I

1

DVI-I Out

1

Display Port

1

Display Port Out

1

RCA Audio In

1

RCA Audio Out

1

Speaker Out

2

USB 2.0

2

RS232 Out

1

Ethernet LAN (RJ45)

1

SD Card Reader

1

Power

Voltage

100-240 VAC

Consumption (max)

130W

Consumption (typical)

75W

Stand-by

<.5W

Controls

On Screen Display

POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU

Remote Control

Brightness, Contrast, Sharpness, Black Level, Tint, Color, Noise Reduction, Gamma Selection, Color Temperature, Color Control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture Reset, Brightness, Contrast, Sharpness, Black Level, Tint, Color, Noise Reduction, Gamma Selection, Color Temperature, Color Control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture Reset, Balance, Treble, Bass, Volume, Maximum Volume, Minimum Volume, Mute, Audio Source, Audio Out, Sync. Volume, Audio Reset, Sub Mode, PIP Size, PIP Position, PIP Change, PIP Source, PIP Audio, PIP Reset, Switch on State, Panel Saving, RS232 Routing, Boot on Source, WOL, DDC/CI, Light Sensor, Human Sensor, Power LED Light, Configuration 1 Reset, Factory Reset, OSD Turn Off, OSD H Position, OSD V Position, OSD Transparency, Information OSD, Logo, Monitor ID, Heat Status, Monitor Information, DP Version, Window Selection, Rotation, Language, QR Code, Configuration 2 Reset, Input Resolution, IR Control, Keyboard Control, Off Timer, Date and Time, Schedule, HDMI with One Wire, Auto Signal Detection, Power Save, Scaler FW Update, Auto FW Update, USB Cloning, Advanced Option Reset

Operating Conditions

Temperature

41-104º F (5 - 40º C)

Humidity (non-condensing)

10-90%

Weight (metric)

Net (kg)

22

Net Without Stand (kg)

18

Gross (kg)

24.3

Weight (imperial)

Net (lbs)

48.7

Net Without Stand (lbs)

39.6

Gross (lbs)

53.5

Dimensions (metric) (wxhxd)

Packaging (mm)

1448 x 952 x 223

Physical (mm)

1233 x 710 x 45.5

Dimensions (imperial) (wxhxd)

Packaging (in.)

54.0 x 37.4 x 8.7

Physical (in.)

48.5 x 27.9 x 1.8

Mount

VESA Compatible

400 x 400 mm

General

Warranty

Three-year limited warranty on parts, labor and backlight

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS

CDM5500R, Remote control, User Manual, Quick Start Guide, power cables, RS232 cable, IR sensor cable, RS232 daisy chain cable

Regulations

UL/cUL, FCC, Energy Star 7.0, UL-MX-CoC, Mexico Energy

Dimensions

48.5 x 27.9 x 1.79 in / 1233 x 710 x 45.5 mm

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 400 x 400 mm
  3. Menu Controls
  4. AC In
  5. SD Reader
  6. Micro USB
  7. DisplayPort In/Out
  8. DVI-I In/Out
  9. Audio In
  10. USB 2.0 (Type A x2, Type B x1)
  11. Audio Out
  12. RS232 In/Out
  13. LAN
  14. IR In/Out
  15. HDMI x2
