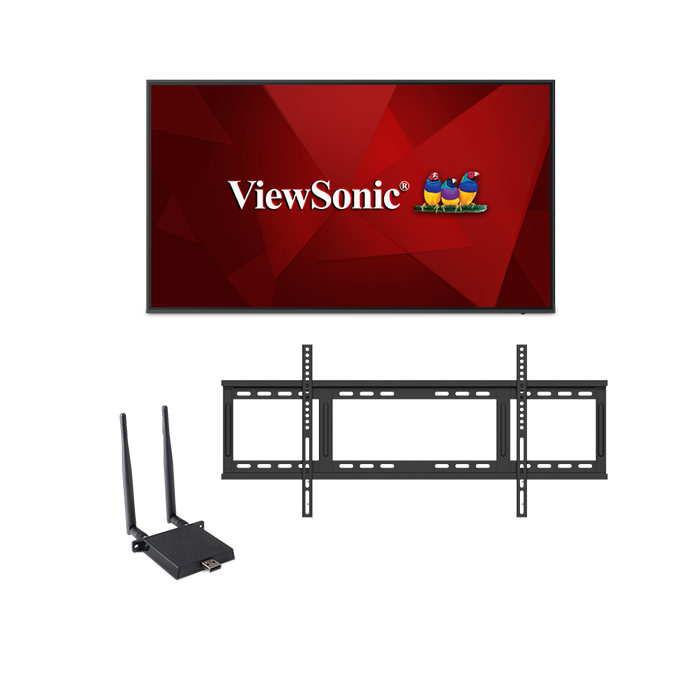

CDE6520-E1 - 65" Display, 3840 x 2160 Resolution, 450 cd/m2 Brightness
Product Overview
Ultra HD Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified and Crestron compatible.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Integrated Content Management System
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
- OS: Android 8.0
- GPU: G51MP2
- CPU: Dual CPU - Cortex A73 + A5
- CPU Processor Speed: Quad-core, 1.4GHz
- Memory: 3GB DDR4
- Storage: 16GB
- Media Player Type: Media Player
- Internal Speakers: 16W (x2)
- HDMI 2.0 (with HDCP 2.2): 2
- DVI-D: 1
- RCA Audio Out: 1
- 3.5mm Audio In: 1
- SPDIF Audio Out: 1
- USB 2.0: 2
- RS232: 1
- Ethernet LAN (RJ45): 1
- Micro SD Card Slot: 1
- IR in: 1
- IR out: 1
- Intel® OPS Slot In (80-pin): 1
- Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
- Consumption (max): 300W
- Consumption (typical): 220W
- Stand-by: <0.5W
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 20-80%
- Altitude: 0~9,842 ft (3,000m)
- Net (lbs): 50.6
- Gross (lbs): 70.1
- Net (kg): 23.0
- Gross (kg): 33.6
- Packaging (in.): 63.2 x 38.0 x 8.7
- Physical (in.): 57.1 x 32.6 x 3.1
- Packaging (mm): 1605.0 x 965.0 x 220.0
- Physical (mm): 1450.6 x 828.1 x 78.5
- Screw Size: M6
- VESA Compatible: 400 x 200 mm
- AV Control: AMX Certified, Crestron Certified (Version 1.0), Extron Certified
- Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Package Contents: CDE6520-W, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, Wall Mount Screws and RS232 cable
- Regulations: cULus, FCC, Energy Star, RoHS
- Display Type: LCD
- Screen Size: 65
- Viewable Area (in.): 65
- Orientation: Landscape
- Colors: 1.07B
- Color Space Support: 8 bit+FRC
- Backlight Life (Hours): 50,000
- Viewing Angles: 178º horizontal, 178º vertical
- Display Resolution: 3840 x 2160
- Response Time (Typical GTG): 8ms
- Aspect Ratio: 16:9
- Panel Surface: Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
- Light Source: DLED
- Brightness: 450 cd/m2
- Static Contrast Ratio: 1,200:1
- Panel Type: IPS-Type
