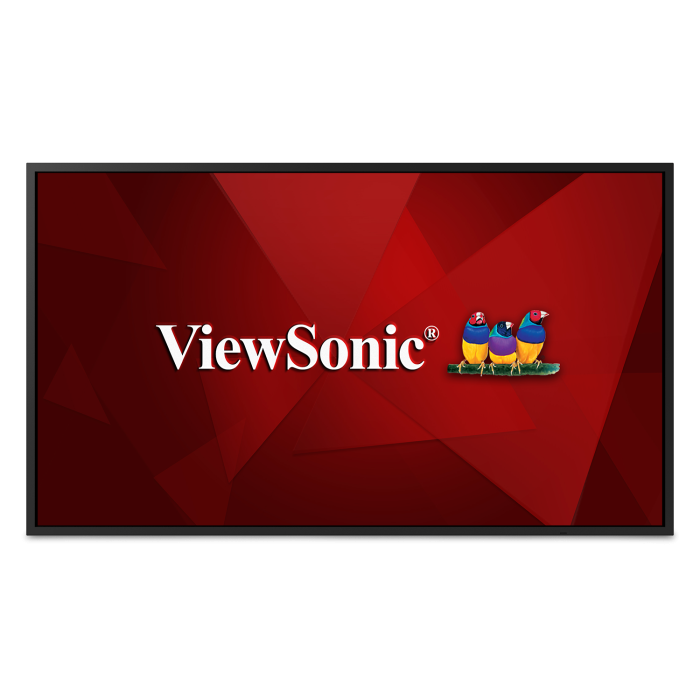

The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. *Chrome, Android, Windows, Mac OS, and iOS compliant
Ultra HD Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
Powerful All-in-One SoC Platform
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
Free ViewBoard ® Cast Content Sharing Software
ViewBoard® Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.
AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Crestron, Extron and AMX certified.
Embedded LAN and Optional Wireless Connectivity
An integrated RJ45 connection, as well as optional Wi-Fi capabilities, provide easy network connection options for content streaming.
Continuous Display Maintenance
Included vController™ software provides a simple and intuitive interface for local display management, while an optional 42Gears SureMDM app allows users to monitor and remotely diagnose irregularities from virtually any location.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Display Size (in.)
55
Resolution
3840 x 2160
Static Contrast Ratio
1,200:1
Light Source
DLED
Lcd Display
Display Size (in.)
55
Viewable Area (in.)
54.6
Light Source
DLED
Resolution
3840 x 2160
Panel Type
IPS-Type
Static Contrast Ratio
1,200:1
Backlight Life (Hours)
40,000
Brightness
400 cd/m2
Response Time (Typical GTG)
9ms
Bezel Width (in.)
0.55 (uniform)
Bezel Width (mm)
13.9 (uniform)
Viewing Angles
178º horizontal, 178º vertical
Panel Surface
Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
Operation Rating
Embedded Player
GPU
Dual-core MaliG51 MP2
CPU
2 x Dual-core Processors - Cortex A73 + A53
CPU Processor Speed
1.4GHz
Memory
3GB DDR4
Storage
16GB eMMC
Audio
Internal Speakers
10W (x2)
Compatibility
PC Resolution (max)
3840 x 2160
Mac® Resolution (max)
3840 x 2160
Connector
HDMI 2.0 In (With CEC, HDCP 2.2)
2
DVI-D
1
RCA Audio Out
1
SPDIF Audio Out
1
USB 2.0
2
RS232
1
Ethernet LAN (RJ45)
1
IR in
1
IR out
1
Power
Voltage
100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption (max)
115W
Consumption (typical)
100W
Stand-by
<0.5W
Controls
On Screen Display
Yes
Remote Control
Yes
Operating Conditions
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
10-80%
Weight (imperial)
Net (lbs)
37.1
Gross (lbs)
52.8
Weight (metric)
Net (kg)
16.8
Gross (kg)
23.9
Dimensions (imperial) (wxhxd)
Packaging (in.)
55.9 x 35.8 x 9.7
Physical (in.)
48.9 x 28.1 x 2.9
Dimensions (metric) (wxhxd)
Packaging (mm)
1420.0 x 910.0 x 245.0
Physical (mm)
1243.2 x 714.0 x 74.8
Mount
VESA Compatible
400 x 200 mm
Screw Size
M8
General
AV Control
AMX Certified, Crestron Certified, Extron Certified
Warranty
3-year limited warranty on parts, labor and backlight, onsite warranty
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
CDE5520, Remote control with batteries, Quick Start Guide, Power cable (1.8m), HDMI Cable (1.8m) and RS232 cable (1.8m)
Regulations
cULus, FCC, Energy Star, RoHS, TUV Mexico, Mexico Energy
