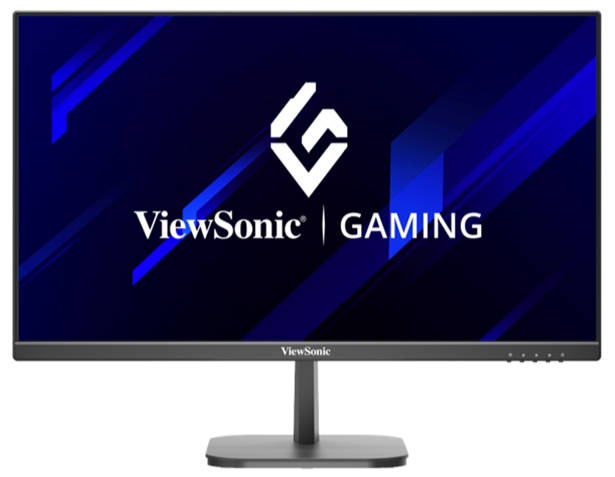

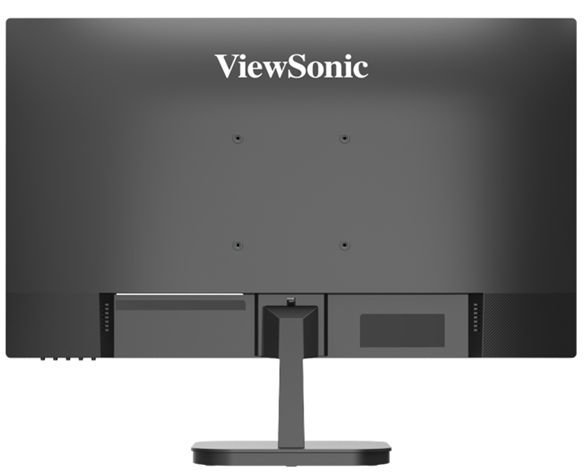

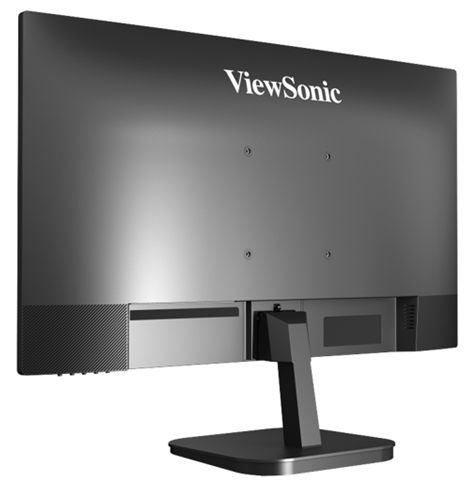

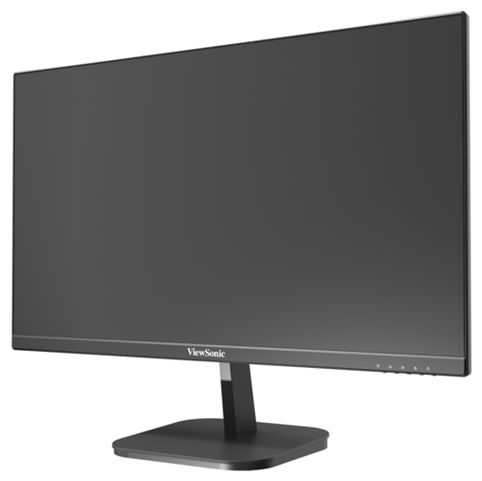

VX24G10

23.8” FHD Fast IPS hard screen, 240Hz, HDR technology, blue light filtering, flicker-free, DP/HDMI gaming monitor

LCD panel
Panel Type: Fast IPS
Screen Size: 23.8 inches
Viewable Area: 527.04mm (H) x 296.46mm (V)
Optimal Resolution: 1920 × 1080
Refresh Rate: HDMI / DP @ 240Hz (Overclocked)
Aspect Ratio: 16:9
Contrast Ratio: 1000:1 (Typ) (DCR: 80M:1)
Brightness: 250cd/m² (Typ)
Viewing Angle: H: 178º / V: 178º (CR ≥ 10)
Pixel Pitch: 0.2745mm (H) x 0.2745mm (V)
Response Time: 1ms (GTG) / 0.2ms (MPRT)
Surface Coating: Anti-glare; 3H; Haze 25%
Color Space Support: 16.7M colors; 8bit
Color Gamut: NTSC: 72% coverage (Typ.) / sRGB: 104% size (Typ.)
*Slight deviations may occur due to different test environments and equipment.
The above color gamut data comes from ViewSonic Labs.
HDCP: 2.2
Special Features: Low Blue Light; Flicker-Free; ViewMode; HDR10; FreeSync & G-sync Compatible; Gaming Crosshair; Black Stabilization
Input Signal
Digital: HDMI x 2, DP x 1
Frequency: HDMI/DP: 1920x1080 @ 240Hz 8bit RGB
*240Hz is the refresh rate under overclocking mode. The native refresh rate is 200Hz.
If any abnormality occurs under overclocked status please adjust to 200Hz.
Compatibility
PC: Windows 10/11 tested
Mac: macOS tested

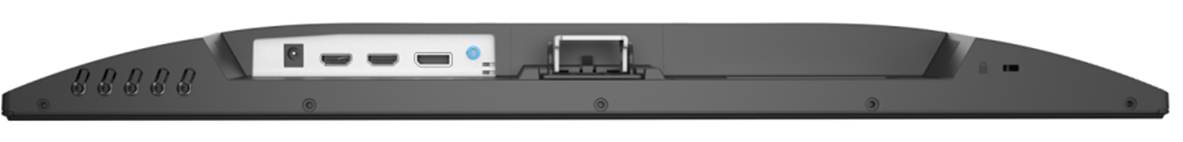

Connectors
Digital: HDMI 2.0 x 2, DP 1.2 x 1
Audio: Audio out
Power: External Power Adapter 12V/2.5A (Wall-mount adapter)
Multimedia
Built-in Speaker: None
Ergonomics
Tilt: -5°±2° ~ 20°±2°
Power
Voltage: AC 100-240V / 50-60Hz
Power Consumption: 26W (Typ) ; ≤28W (Max) ; ≤0.5W (Standby)
Operating Env.
Temperature: 0 ~ 40°C (32 ~ 104°F)
Humidity: 20 ~ 90% (Non-condensing)
Storage Env.
Temperature: -20 ~ 60°C (-4 ~ 140°F)
Humidity: 5 ~ 90% (Non-condensing)
Dimensions (W x H x D)
With Base: 541.9mm (W) x 416.5mm (H) x 185mm (D)
Without Base: 541.9mm (W) x 323mm (H) x 43.5mm (D)
Package Size: 598mm (W) x 391mm (H) x 113mm (D)
Wall Mount: 100mm x 100mm & recommended wall mount screw: M4*10mm
Buttons: 5 keys
Weight
Net Weight (with base): 3.1 kg
Net Weight (without base): 2.78 kg
Package Weight: 4.2 kg
Regulatory Compliance
CCC; WEEE; CEL (Level 3); China RoHS
Accessories
DP cable (v1.2) (1.5 meters) ; Power adapter (1.5 meters)
Regulatory Model
VS20401
