Activarea RGB-ului monitorului dvs

1.) Conectați cablul USB 3.0 la monitor și la computer.

Type-A (dreptunghi) se conectează la computer.
Se conectează tip B (pătrat) la monitor.

2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.

Dezactivarea semnalului de avertizare

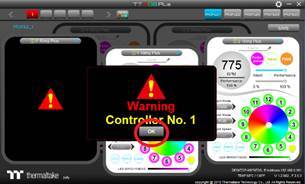

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.

2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.

Sincronizarea dvs. XG240R cu software-ul TT RGB PLUS

1.) Click the square RGB button at the top, center of the program.

2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.

Controlul LED-urilor

**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).

Monitorul dumneavoastră va executa aceleași comenzi date dispozitivului din Port 1.

1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

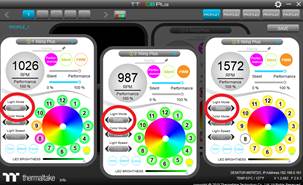

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

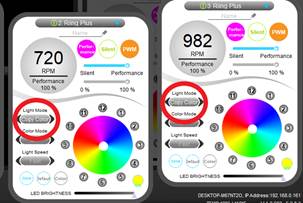

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.

4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.

RGB Single



5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.

Frozen LED Units Unfrozen LED Units

Urmăritor ecran (modul jucător)

1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.

2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.

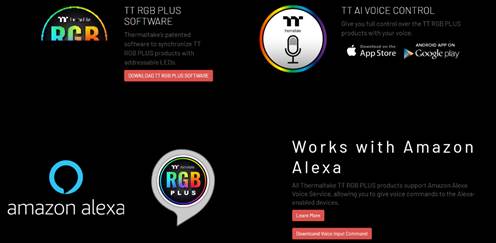

Voice Control and Additional Info Link
For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/

Produse Compatibile

"Sincronizarea iluminării RGB a monitorului ViewSonic Elite cu ecosistemul RGB Thermaltake funcționează în prezent
doar dacă dețineți unul dintre produsele TT de mai jos considerate „Obligatorii”."

Consultați lista de produse compatibile de mai jos. Pentru mai multe informații , vă rugăm să vizitați site-ul Thermaltake.

Trebuie să aibă Produs¹	Produse sincronizabile²
	Răcitoare lichide AIO
	Floe Riing RGB 360 TT Premium Edition
	Floe Riing RGB 280 TT Premium Edition
	Floe Riing RGB 240 TT Premium Edition
	Pompă + Rezervor
	Pacific PR22-D5 Plus
	Radiatoare
	Radiator Pacific CL360 Plus RGB
	Radiator Pacific RL360 Plus RGB
	Blocuri de apă
	Water Block CPU Pacific W4 Plus
	Water Block CPU Pacific W5
	Water Block CPU Pacific W6 (AMD Ryzen Threadripper TR4)
	Pacific V-GTX 1080Ti Plus transparent (ASUS ROG)
	Pacific V-GTX 1080Ti Plus transparent (ASUS ROG)
	Pacific V-RTX 2080 Plus Series Founders Edition
	Ventilatoare de carcasă
	Riing Trio 12 LED RGB Radiator Fan TT Premium Edition (3-Fan Pack)
	Riing Trio 14 LED RGB Radiator Fan TT Premium Edition (3-Fan Pack)
	Riing Plus 20 TT Premium Edition (Single Fan Pack w/ Controller)
	Riing Plus 14 TT Premium Edition (5 Fan Pack)
	Riing Plus 14 TT Premium Edition (3 Fan Pack)
	Riing Plus 12 TT Premium Edition (5 Fan Pack)
	Riing Plus 12 TT Premium Edition (pachet de 3 fani)
	Riing Plus 12 TT Premium Edition (Single Fan Pack)
	Pure Plus 12 TT Premium Edition (pachet 3 ventilatoare)
	Ventilator pentru radiator Pure Plus 14 LED RGB TT Premium Edition (pachet 3 ventilatoare)
	Şasiu
	View 91 Tempered Glass RGB Edition Super Tower Chassis
	Level 20 Tempered Glass Edition Full Tower Chassis
	Level Level 20 GT RGB Plus Edition Full Tower Chassis
	Unități de alimentare cu energie electrică
	Toughpower iRGB PLUS 1250W Titanium
	Toughpower iRGB PLUS 1200W Platinum
	Toughpower iRGB PLUS 1050W Platinum
	Toughpower iRGB PLUS 850W Platinum
	Accesorii
	Pachet de 3 benzi LED Pacific Lumi Plus
	Pacific Rad Plus LED Panel
	Tastaturi
	Tastatură TT Premium X1 Cherry MX Speed Silver
	Tastatură TT Premium X1 RGB Cherry MX Blue
	Tastatură pentru jocuri RGB Titanium Nivel 20 (Speed Silver)
	Tastatură pentru jocuri RGB Titanium Nivel 20 (comutator albastru)
	Tastatură pentru jocuri RGB Cherry MX Blue de nivel 20
	Tastatură pentru jocuri RGB Cherry MX Speed Silver de nivel 20
	Căști
	Cronos Riing RGB 7.1 gaming headset (Coming Soon)
	Suport pentru cască - disponibil în curând
	Mouse
	Nemesis Switch RGB gaming mouse
	Mouse de gaming Iris RGB

Variațiile de mod, caracteristicile de personalizare și oricare alte caracteristici sau utilizări vor fi bazate pe și supuse termenilor de utilizare, acordului de licență pentru utilizatorul final și capabilităților software specificate sau furnizate în software-urile partenerilor.

Pentru a sincroniza monitorul Viewsonic cu produsele RGB Thermaltake,
utilizatorii trebuie să dețină fie modelul XG240R, fie modelul XG350R-C și unul dintre produsele marcate ca „obligatorii”.

Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
