Aktywacja funkcji RGB monitora

1.) Podłącz przewód USB 3.0 do monitora i komputera.

Typ A (prostokąt) podłączany do komputera.
Wtyczka typu B (kwadratowa) do monitora.

2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.

Wyłączanie sygnału ostrzegawczego

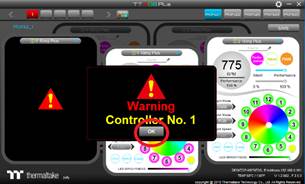

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.

2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.

Synchronizacja XG240R z oprogramowaniem TT RGB PLUS

1.) Click the square RGB button at the top, center of the program.

2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.

Sterowanie LED-ami

**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).

Twój monitor będzie wykonywał te same polecenia, co urządzenie w Porcie 1.

1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

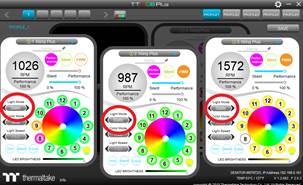

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.

4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.

RGB Single



5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.

Frozen LED Units Unfrozen LED Units

Obserwator ekranu (tryb gracza)

1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.

2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.

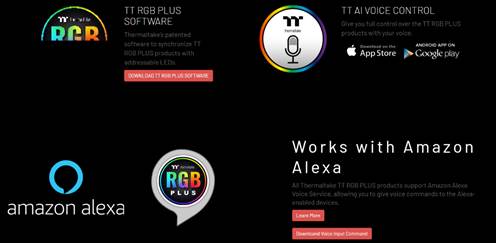

Voice Control and Additional Info Link
For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/

Kompatybilne produkty

Synchronizacja oświetlenia akcentującego RGB monitora ViewSonic Elite z ekosystemem RGB firmy Thermaltake działa
obecnie tylko, jeśli posiadasz jeden z poniższych produktów "Must Have" TT.

Zobacz listę kompatybilnych produktów poniżej. Więcej informacji można znaleźć na stronie internetowej Thermaltake.

Niezbędny produkt¹	Produkty synchronizowane²
	Chłodnice cieczy typu AIO
	Floe Riing RGB 360 TT Premium Edition
	Floe Riing RGB 280 TT Premium Edition
	Floe Riing RGB 240 TT Premium Edition
	Produkty synchronizowane²
	Pacific PR22-D5 Plus
	Chłodnice
	Chłodnica Pacific CL360 Plus RGB
	Chłodnica Pacific RL360 Plus RGB
	bloki chłodzenia wodnego
	Pacific W4 Plus CPU Water Block
	Pacific W5 CPU Water Block
	Pacific W6 CPU Water Block (AMD Ryzen Threadripper TR4)
	Pacific V-GTX 1080Ti Plus Transparent (ASUS ROG)
	Pacific V-GTX 1080Ti Plus Transparent (MSI GAMING X)
	Pacific V-RTX 2080 Plus Series Founders Edition
	wentylator
	Riing Trio 12 LED RGB Radiator Fan TT Premium Edition (zestaw 3 wentylatorów)
	Riing Trio 14 LED RGB Radiator Fan TT Premium Edition (zestaw 3 wentylatorów)
	Riing Plus 20 TT Premium Edition (zestaw z jednym wentylatorem i kontrolerem)
	Riing Plus 14 TT Premium Edition (pakiet 5 wentylatorów)
	Riing Plus 14 TT Premium Edition (pakiet 3 wentylatorów)
	Riing Plus 12 TT Premium Edition (pakiet 5 wentylatorów)
	Riing Plus 12 TT Premium Edition (pakiet 3 wentylatorów)
	Riing Plus 12 TT Premium Edition (Single Fan Pack)
	Pure Plus 12 TT Premium Edition (zestaw 3 wentylatorów)
	Wentylator chłodnicy Pure Plus 14 LED RGB TT Premium Edition (zestaw 3 wentylatorów)
	obudowa
	View 91 Tempered Glass RGB Edition Super Tower Chassis
	Level 20 Tempered Glass Edition Full Tower Chassis
	Level Level 20 GT RGB Plus Edition Full Tower Chassis
	Zasilacze
	Toughpower iRGB PLUS 1250W Titanium
	Toughpower iRGB PLUS 1200W Platinumm
	Toughpower iRGB PLUS 1050W Platinum
	Toughpower iRGB PLUS 850W Platinum
	Akcesoria
	Pacific Lumi Plus LED Strip 3Pack
	Pacific Rad Plus LED Panel
	Klawiatury
	Klawiatura TT Premium X1 Cherry MX Speed Silver
	Klawiatura TT Premium X1 RGB Cherry MX Blue
	Klawiatura do gier Level 20 RGB Titanium (Speed Silver)
	Klawiatura do gier Level 20 RGB Titanium (niebieski przełącznik)
	Klawiatura do gier Level 20 RGB Cherry MX Blue
	Klawiatura do gier Level 20 RGB Cherry MX Speed Silver
	Słuchawki
	Cronos Riing RGB 7.1 gaming headset (Coming Soon)
	Stojak na słuchawki już wkrótce***
	Myszki
	Nemesis Switch RGB gaming mouse
	Mysz gamingowa Iris RGB

*Warianty trybów, funkcje dostosowywania i wszelkie inne funkcje lub zastosowania będą oparte na warunkach użytkowania, umowie licencyjnej użytkownika końcowego i możliwościach oprogramowania określonych lub dostarczonych w oprogramowaniu partnerów i będą podlegać tym warunkom.

Aby zsynchronizować monitor Viewsonic z produktami Thermaltake RGB,
użytkownicy muszą posiadać XG240R lub XG350R-C i jeden z oznaczonych "must have"

Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
