DLP or 3LCD? If you’re shopping for a projector for entertainment or professional use you likely came across these terms. Digital Light Processing (DLP) and Liquid Crystal Display (3LCD) are the technologies behind most projectors, and the choice between them is key to finding the right fit. So, what’s the difference and which one should you pick? Stay tuned to find out!
Keep reading to explore the differences between DLP and 3LCD technologies and then take a look at ViewSonic’s range of projectors tailored for both professional and entertainment needs.
You may not know it, but projectors don’t all work the same way. In fact, two major image processing technologies power most of today’s devices: DLP, developed by Texas Instruments in 1987, and 3LCD, introduced by Epson in 1988. Each technology now claims roughly half of the global market, with 3LCD widely adopted by Japanese brands and DLP favored by other major tech giants.
So, what sets these two technologies apart, and is one truly better than the other?
DLP vs. 3LCD Projector: Understanding the Technologies
To understand the pros and cons of each option, let’s first break down how DLP and 3LCD projectors work with a closer look at what makes each technology unique.

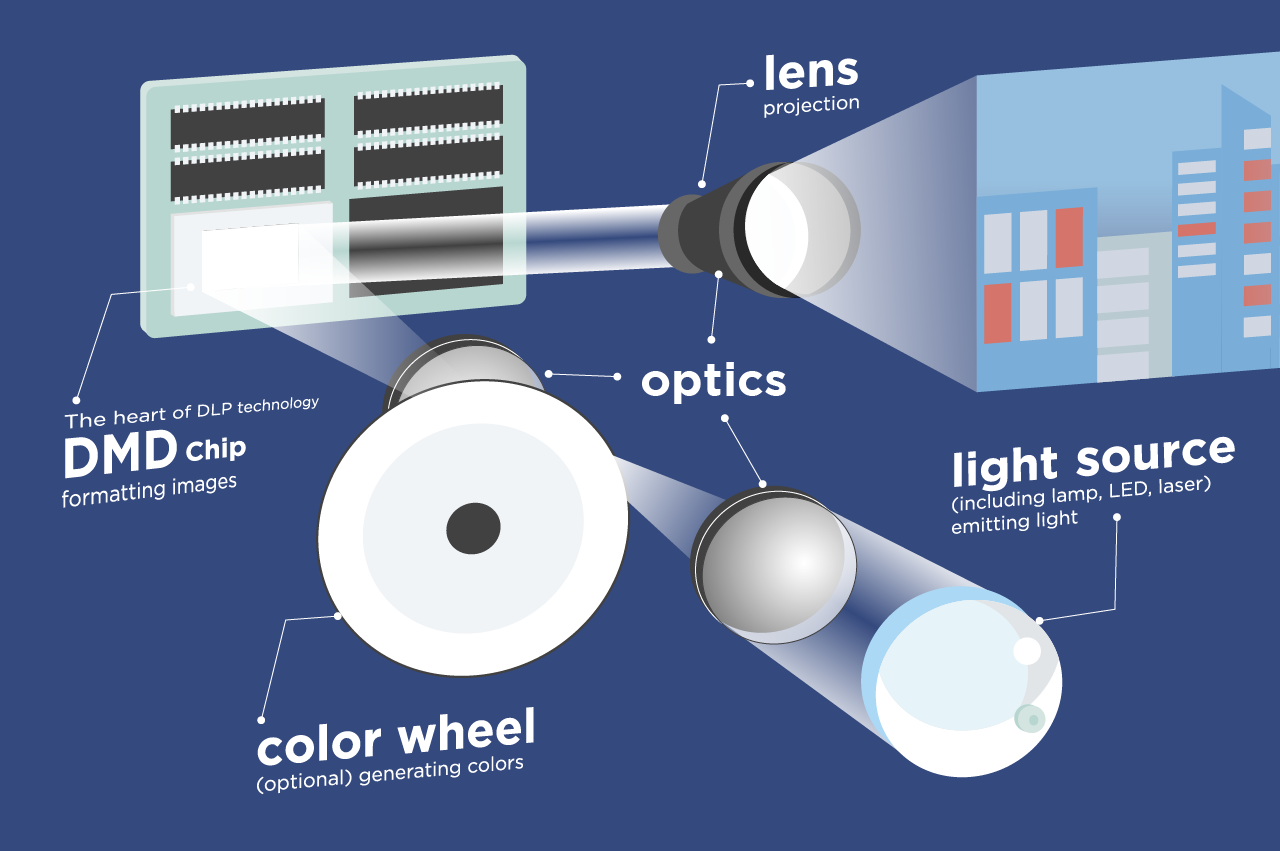

What’s DLP Technology?
DLP projectors create images using a DMD (Digital Micromirror Device) chip that contains thousands of tiny mirrors capable of tilt to reflect light. Light from the projector’s source either passes through a high speed color wheel (for lamp and laser light sources) or directly converges onto the DMD chip (for LED and RGB laser light sources) to produce rapid red, green, and blue sequences. Each mirror on the DMD adjusts to create bright or dark pixels, and combines these hues into a smooth, full color image that projects onto a screen.

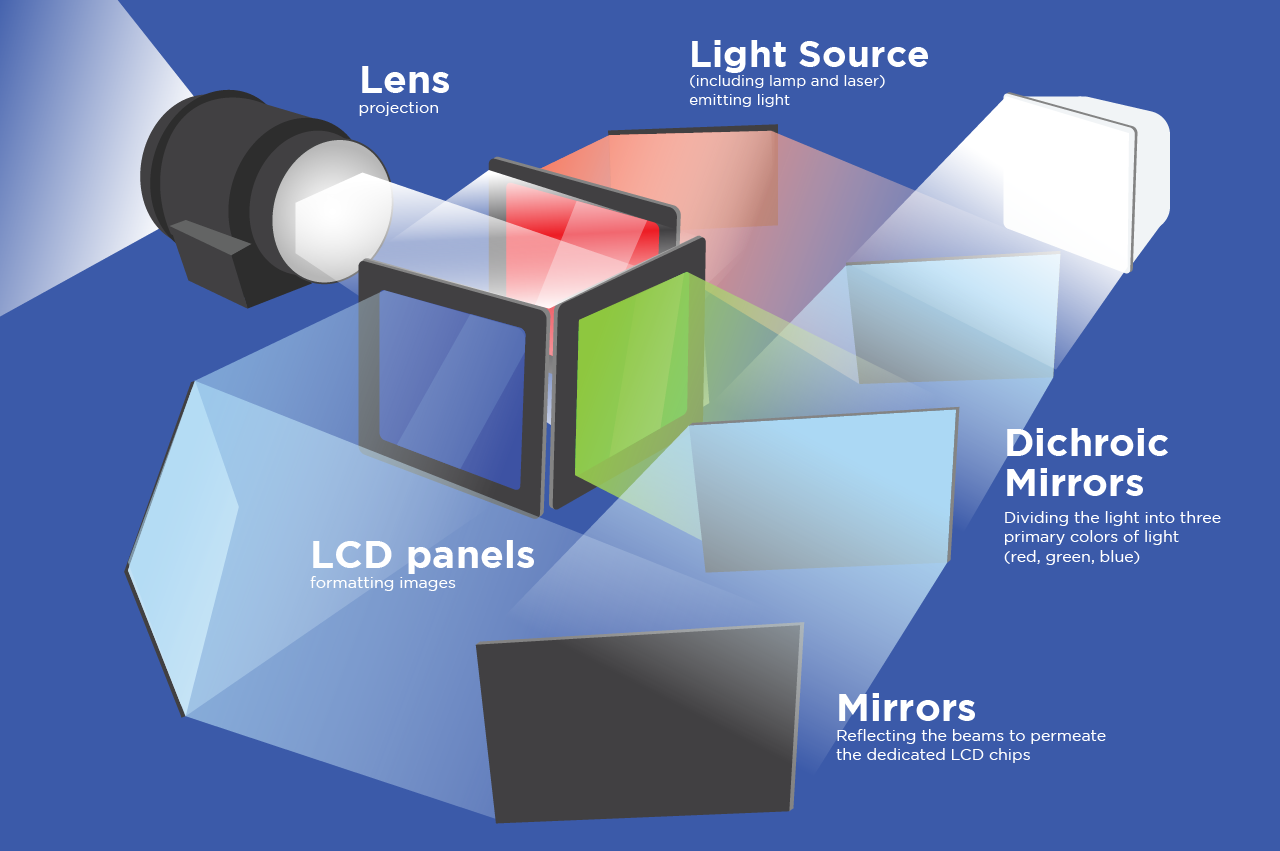

What’s 3LCD Technology?
Compared to DLP, 3LCD projectors create images by passing light through three LCD panels, one each for red, green, and blue. Light from the projector’s light source passes through these panels, which adjust the amount of each color conveyed by opening or blocking pixels with liquid crystals. The colored light then combines to form a full color image, projected through a lens onto the screen.
DLP vs. 3LCD Projector: A Detailed Comparison

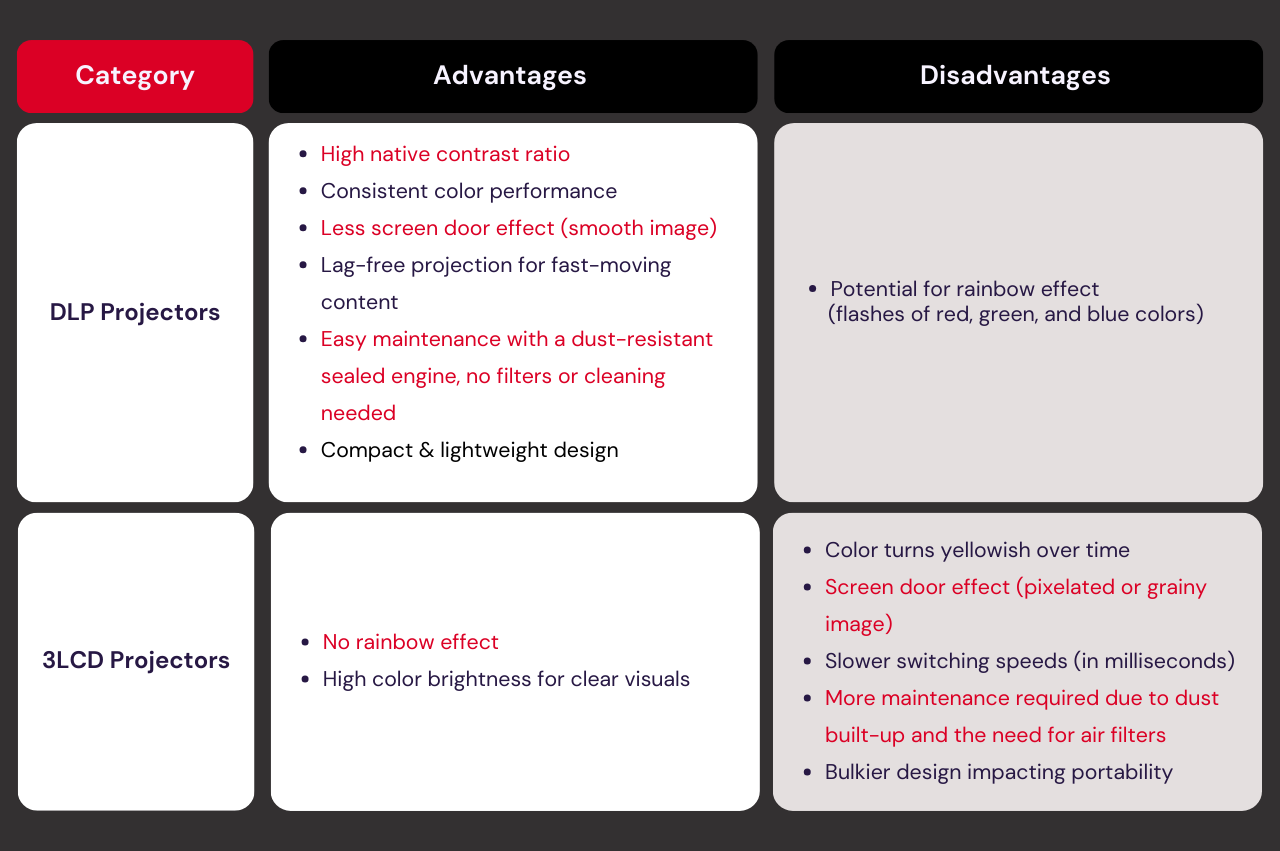

Now that we covered the technical details and better understand these two technologies, it’s time to tackle the big question. DLP vs. 3LCD: which one should you choose? To help answer this, let’s review the comparison table below.
Image Quality
Image quality is a crucial factor in choosing a projector, especially if you aim for clear, lifelike visuals. Here’s how DLP and 3LCD projectors stack up in terms of image clarity, smoothness, and color performance.
DLP Projectors:
- High Native Contrast Ratio: DLP projectors use DMD (Digital Micromirror Device) chips from Texas Instruments that reflect light with high precision to deliver deep blacks. This high contrast enhances image depth and realism and makes visuals particularly impressive in darker scenes. That contrast works great in both entertainment and professional applications.
- Consistent Color Performance: DLP relies on a color wheel and digital processing, which resist heat-induced damage and prevent color decay over time to ensure long lasting color vibrancy.
- Reduced Screen Door Effect: the precise control of micromirrors in the DMD chip minimizes visible pixel grids known as the screen door effect. This results in smooth and seamless visuals that appear more natural and immersive.
- Lag-Free Motion Handling: the DMD chip’s ability to switch within microseconds enables lag-free projection for fast moving content. This makes DLP projectors perfect for dynamic viewing experiences like cinema and gaming, where smooth motion is critical.
3LCD Projectors:
- Color Vibrancy and Brightness: 3LCD projectors use three separate LCD panels to process red, green, and blue light simultaneously, ensuring vibrant and accurate color reproduction. This approach results in vivid images even in bright ambient light conditions.
- Color Degradation: 3LCD projectors may develop a yellowish tint over time as light and heat break down the liquid crystal compounds in the panels, causing gradual color shift and reduced color accuracy.
- Potential Visual Limitations: LCD projectors may show a slightly pixelated or grainy effect and have slower switching speeds (in milliseconds), making them less smooth for fast motion content compared to DLP projectors.
Reliability and Maintenance
Reliability and ease of maintenance are essential factors for projector durability and cost effectiveness, whether for professional or entertainment use. Let’s explore how DLP and 3LCD projectors compare in terms of upkeep and durability.
DLP Projectors:
- Sealed Engine Design: DLP projectors feature a sealed engine with fewer internal components that enables compact product design while significantly reducing maintenance requirements and associated costs. The sealed structure effectively minimizes dust infiltration and mechanical wear to enhance the projector’s overall reliability and longevity.
- Superior Durability: robust construction makes DLP projectors a reliable choice for users who prioritize long term performance and minimal maintenance requirements.
3LCD Projectors:
- Complex Maintenance Requirements: these projectors have an open engine design that is more susceptible to dust accumulation, necessitating more frequent and thorough maintenance.
- Filter Management: 3LCD projectors rely on air filters to trap dust. Filtration requires regular cleaning and replacement to maintain optimal image quality. Such ongoing maintenance adds complexity and increases operating costs.
- Thermal Performance Challenges: Clogged filters impede heat dissipation and force the cooler fan to work harder and potentially increase projector noise levels. Noise obviously hampers your viewing experience.
DLP vs. 3LCD Projectors: Choosing the Right Projector
When choosing between DLP and 3LCD projectors, understanding their strengths helps guide your decision, especially when distinguishing between entertainment and professional applications. DLP projectors, renowned for cinema-quality visuals, offer a versatile solution for both entertainment and professional use due to their consistent color performance and sharpness. Known for high contrast, deep blacks, and minimal motion blur, DLP projectors excel in home theater and gaming. In fact, over 90% of digital cinemas and IMAX theaters rely on DLP technology, not only for sharp detail but also for stable, reliable color performance. These also make DLP a top choice for professional environments such as conference halls, museums, and exhibition spaces.
3LCD projectors, while effective in spaces with higher ambient light, are particularly suited for environments like classrooms and small boardrooms. Their brightness and vibrant color displays stay clear even in well-lit conditions, making them a practical choice for education and collaborative sessions. However, 3LCD technology may require more maintenance due to dust buildup and is more prone to color degradation over time.
Final Thoughts
If you want a projector that performs well across diverse environments, both DLP and 3LCD technologies offer compelling choices. DLP’s durability and stable performance make it adaptable for various settings, from home theaters to professional presentations. The technology delivers consistently clear and impactful visuals with minimal upkeep. Meanwhile, 3LCD projectors often provide superior color brightness (also known as luminance) in many settings, but they require more frequent filter changes and maintenance.
Ready to make your choice? Explore ViewSonic professional and entertainment projectors, all ready to boost your viewing experience.
Frequently Asked Questions for DLP vs. 3LCD Projectors
What are DLP and 3LCD technologies? DLP (Digital Light Processing) uses a chip covered with tiny mirrors (a Digital Micromirror Device, or DMD) which tilt to reflect light from a source through a color wheel and then generate an image. 3LCD uses three separate LCD panels, one each for red, green, and blue light. White light is split into three primary colors, as each passes through its respective panel to recombine and then project onto a surface.
How does DLP and 3LCD image quality compare? Color and brightness: 3LCD projectors tend to produce more vivid colors and higher color light output (aka luminance or color brightness) per lamp than many single-chip DLPs.
Contrast and black levels: DLP designs often deliver deeper blacks and better contrast in darker rooms.
Rainbow and color artifact issues: single-chip DLP projectors (with a color wheel) may show a rainbow effect (brief flashes of color), which some people may find annoying. 3LCD avoids this because all three colors display simultaneously.
Which is better for a bright room vs. a dark room? For brighter rooms or for professional presentations, 3LCD tends to have the upper hand because of stronger color brightness and less dependence on dark ambiance. For darker rooms (esp. home theater) where black levels and contrast matter more, DLP is preferable.
What about maintenance, size, and cost? DLP projectors often have fewer moving parts and sealed chip packages (less dust ingress), which means less maintenance. 3LCD units may require periodic filter changes and more maintenance due to dust exposure. In terms of cost, depending on features and lamp types, both technologies go from entry level to high end. One is not consistently cheaper than the other.
What about gaming, motion, and input lag? For fast motion scenes or gaming, you should really check how the specific model you have in mind handles input lag, refresh rate, and motion blur. DLPs from reputable brands have the edge in overall responsiveness. If you are sensitive to the dreaded rainbow effect, you may want to test a DLP unit in person before buying.
What are the downsides of each technology?
DLP downsides:
– Potential rainbow effect in some single-chip models.
– With same lamp specs, may produce less perceived color brightness than 3LCD.
3LCD downsides:
– Black levels and contrast may not match the best DLP units in dark environments.
– Potentially larger size, more maintenance (due to filters), slight noise added due to cooling fan activity. Cheaper models have a noticeable pixel structure.
Which should I choose for my main usage type?
Business presentations in a well-lit room: 3LCD might be the safer choice because of bright color performance.
Home theater in a darkened room focusing on deep blacks and cinematic feel: DLP is most appropriate.
Gaming and general home use: look at specific model capabilities, but DLP is overall a safer bet.
If you’re sensitive to color flicker and the rainbow effect: consider avoiding single chip DLP or try first in person.
