How to Choose a Touchscreen Display for Transportation Wayfinding Systems

A wayfinding display in a transportation environment needs to do more than show a map. It has to work reliably under continuous use, remain readable in bright or unpredictable lighting, and hold up in spaces where thousands of people pass through every day. Choosing the wrong screen means dealing with failures, poor visibility, and expensive replacements.

Read on to learn what separates a purpose-built wayfinding touchscreen from a standard display, which specifications actually matter, and how to match the right hardware to your environment. You can also explore the ViewSonic range of commercial touchscreen displays.

Open Frame vs Finished Displays: Which Is Right for Wayfinding?

Most wayfinding kiosks in airports, train stations, and transit hubs use open frame touchscreens rather than finished commercial displays. An open frame panel is a screen without a housing: just the display, touch layer, and electronics, designed to fit into a custom enclosure.

This matters for transportation projects because operators rarely want an off-the-shelf kiosk form factor. Wayfinding systems often need to match architectural finishes, fit into existing structures, or incorporate additional hardware like ticket printers, cameras, or payment readers. An open frame panel gives system integrators the flexibility to build around a known, tested display component.

Finished commercial displays are also a valid option in some scenarios. For example, a wall-mounted information point in a smaller station or a freestanding unit in a lower-traffic area. The decision comes down to whether the enclosure is custom-built or pre-specified.

Key Requirements for Transportation Wayfinding Touchscreens

1. Brightness and Readability

Lighting conditions vary widely across transit environments, from dimly lit underground stations to glass-fronted terminals with direct sunlight exposure. A display that looks sharp in a controlled setting can become unreadable in the field.

For indoor environments without direct light exposure, 500–700 nits is typically sufficient. For areas near windows, glass facades, or outdoor-adjacent spaces, 1,000 nits or more is recommended. Semi-outdoor or covered outdoor installations may require 1,500–2,500 nits. Some environments also benefit from anti-glare coatings to reduce reflections, particularly where overhead lighting creates hotspots on the screen surface. Always account for the brightest conditions the screen will face, not average conditions.

2. 24/7 Reliability

Airports, rail hubs, and ferry terminals operate around the clock. A wayfinding display that goes down at 2am creates an immediate service problem. Commercial-grade panels carry a 24/7 operation rating, with components and thermal management designed for continuous duty. Consumer displays and standard commercial monitors are not built for this operating profile and will fail earlier under sustained use.

Look for panels with a mean time between failures (MTBF) rating appropriate for continuous operation, typically 50,000 hours or more.

3. Touch Performance Under Heavy Use

A wayfinding kiosk in a busy terminal may receive hundreds or thousands of interactions per day, from users of all ages, wearing gloves, using fingers of different sizes, or pressing with varying force. Projected capacitive (PCAP) touch technology handles this well, supporting multi-touch, gloved input (depending on the sensitivity setting), and accurate response even after extended use.

Infrared touch works as an alternative for larger formats and offers good accuracy, but bright ambient light can affect performance in certain configurations. For most transportation wayfinding applications, PCAP on a tempered glass surface is the standard choice.

4. Durability and Impact Resistance

Public spaces expose displays to accidental impacts and general wear from heavy daily use. IK ratings measure how much impact force a panel can withstand. IK08 handles up to 5 joules, roughly equivalent to a 1.7kg object dropped from 30cm, which covers most incidental knocks and luggage contact. IK10 handles up to 20 joules, comparable to a 5kg object dropped from 40cm, and is appropriate for exposed or unsupervised locations where harder impacts are plausible. The front glass should be hardened, typically 4mm or 6mm tempered glass.

5. Environmental Protection

Even in covered indoor environments, displays may face cleaning agents, humidity, dust, and temperature variation. An IP rating (Ingress Protection) indicates resistance to dust and moisture. IP54 is a practical baseline for most indoor transit environments. Outdoor or semi-outdoor installations should target IP65 or higher.

Temperature tolerance also matters in spaces with large external doors, loading areas, or HVAC variation. Confirm the panel’s operating temperature range covers the conditions it will actually face, not just the annual average.

Use Cases by Environment

Airport Terminal Wayfinding

Airports require high brightness (1,000+ nits near windows), 24/7 operation, and robust touch performance. Displays typically integrate into custom kiosk enclosures near gates, check-in areas, and baggage claim. Screen sizes of 32 to 55 inches are common, depending on mounting height and viewing distance. Remote monitoring and the ability to push content updates across multiple units are important operational requirements.

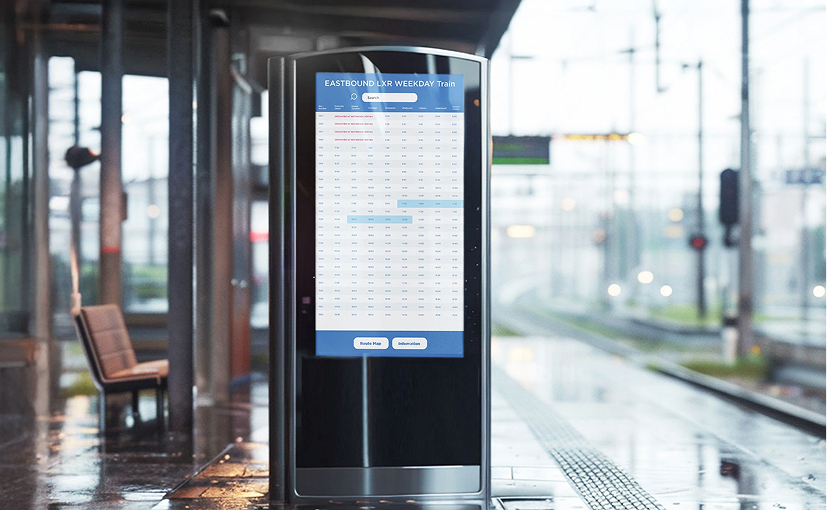

Train and Metro Stations

Stations present a mix of controlled indoor environments and semi-outdoor platforms. Displays near entrances and on platforms need higher brightness ratings and stronger IP protection. Underground stations with stable temperatures and controlled lighting can use standard commercial panels, but units near access points should meet higher durability specs. IK10-rated enclosures are worth considering for platform installations that are unsupervised during off-peak hours.

Bus Terminals and Ferry Ports

These environments often have larger open spaces, variable natural light, and exposure to dust and moisture from passenger traffic and weather near doorways. Brightness of 700–1,500 nits is appropriate depending on placement. Enclosures should be sealed to at least IP54. Touch sensitivity settings may need adjustment for gloved use in colder climates.

Smaller Transit Hubs and Information Points

For lower-traffic installations such as a regional bus station, a ferry terminal waiting area, or a hospital transport link, a finished commercial display rather than an open frame panel may be practical. 32 to 43-inch commercial touchscreens with 400–500 nits brightness and 16/7 or 24/7 ratings can serve as wall-mounted or pedestal-mounted information points without requiring a custom enclosure.

ViewSonic Open Frame Touchscreens for Transportation Wayfinding

ViewSonic’s open frame touchscreen range is built for system integrators working on transportation and public information projects. The panels ship without a housing, ready to be mounted into custom kiosk enclosures, information pillars, or built-in architectural installations.

The lineup runs from 15.6″ to 32″ and covers the core specifications that wayfinding projects require: PCAP 10-point multi-touch, 24/7 continuous operation, IP65-rated front panels for dust and moisture resistance, and IK08-rated construction for impact resistance. Wide temperature tolerance from -30°C to 85°C makes them suitable for locations near building entrances or platforms with variable conditions.

For remote management across multiple units, ViewSonic’s vController software allows operators to control power, brightness, input source, and content distribution from a central dashboard without requiring physical access to each screen.

ViewSonic also supports customization on size, connectivity, brightness, and mounting configuration, with a technical response or proposal within one business week. This is particularly useful for transportation projects where display specs need to match a specific enclosure design or environmental requirement.

Final Thoughts

Choosing a touchscreen display for transportation wayfinding is a decision about reliability as much as specification. The right panel depends on the operating environment, expected usage intensity, enclosure approach, and long-term maintenance requirements. Brightness, touch technology, IP and IK ratings, and 24/7 operating certification are the specifications that determine whether a display holds up in the field, not size or resolution alone.

Identify the hardest conditions your display will face: the brightest light, the heaviest traffic, the most exposed location. Specify from there, rather than averaging across the site.

Explore ViewSonic’s range of commercial and open frame touchscreens to find the right solution for your transportation wayfinding project.
