An ATM touchscreen display needs to hold up to constant public use while keeping every transaction accurate, from account selection to amount entry and confirmation. The screen affects how fast a withdrawal takes, how well it reads in daylight, and how many service calls the machine needs over its lifetime.
Read on to learn what to look for in an ATM touchscreen display, including touch technology, brightness, durability, and uptime, or explore ViewSonic’s open frame touchscreens for financial kiosk deployments.
What Does an ATM Touchscreen Display Control?
An ATM touchscreen display handles on-screen navigation, such as selecting an account, choosing a transaction type, entering a withdrawal amount, and confirming an action. PIN entry runs through a separate, PCI-certified keypad built into the machine, not the touchscreen itself.
This split exists because PCI PTS security standards require PIN entry through a physically secured, tamper-resistant keypad rather than a general-purpose touchscreen. A handful of certified “PIN on glass” solutions exist, but they require dedicated hardware and certification well beyond a standard display. The table below shows how the two components divide responsibility.
| Component | Handles | Certification Required |
|---|---|---|
| Touchscreen | Menu navigation, transaction type, amount entry, confirmation | No PCI PIN certification needed |
| PIN pad | PIN entry | PCI PTS certified, tamper-resistant keypad |
For most ATM deployments, the touchscreen doesn’t need PIN pad certification, but it still needs to register input reliably, since a missed tap on “confirm” or “cancel” can interrupt a transaction already in progress.
Key Features to Look for in an ATM Touchscreen
The features below determine how well an ATM touchscreen performs in the field. Each one affects a different part of the machine’s performance, from transaction speed to how long it lasts between service visits.
Touch Technology
Projected capacitive (PCAP) touch is the standard choice for ATM displays because it responds accurately to a single, deliberate tap and continues to work reliably under a sealed protective glass layer. That matters for ATMs specifically, since the display sits behind several millimeters of cover glass to guard against vandalism and weather.
The choice between PCAP and resistive touch comes down to how the screen holds up under heavy, unattended public use:
- PCAP: reads accurately through 3mm or thicker cover glass, resists false triggers from dust or moisture, and needs little recalibration over time
- Resistive: requires physical pressure between two layers, wears faster under high daily contact, and tends to drift out of calibration sooner
For a machine that gets touched by hundreds of people a day with no staff nearby, PCAP holds up better over the life of the deployment.
Brightness
Brightness requirements depend entirely on where the ATM sits. The table below breaks down typical brightness needs by installation environment.
| Installation Environment | Recommended Brightness |
|---|---|
| Indoor lobby | 250–500 nits |
| Covered outdoor vestibule or drive-through | 1,000+ nits |
| Standalone outdoor, direct sunlight | 3,000+ nits |
Anti-glare coatings and optical bonding help at every brightness level, but they don’t replace the need for adequate nits. A 1,000-nit outdoor-rated screen with no anti-glare treatment will still wash out in direct sun, while a 400-nit indoor screen with anti-glare coating can look sharp in a dim lobby corner.
The safest way to confirm the right brightness is to check the installation site at its worst-case lighting moment, not its average. A vestibule that looks shaded in the morning can face direct low-angle sun in late afternoon, and a display specified only for average conditions will underperform during exactly the hours when foot traffic tends to peak.
Durability and Vandal Resistance
ATM touchscreens face direct public contact without staff supervision most of the time, so the physical build of the display matters as much as the touch technology inside it. Before finalizing a spec, check for the following:
- Cover glass in the 3mm to 4mm range with a hardened, scratch-resistant coating
- Sealed edges that keep out dust and moisture
- A bezel design without gaps a tool could pry into
- An IP65 rating for any unit installed outdoors or in a semi-exposed vestibule
Indoor lobby ATMs generally don’t need IP-rated sealing, but anything installed outside, in a drive-through lane, or facing rain and snow does.
Uptime and Backlight Life
Most ATMs need to operate around the clock, since customers expect access at any hour. Backlight life is one of the clearest indicators of how long a display holds up under that schedule. A panel rated for roughly 50,000 hours of backlight life covers several years of continuous operation before brightness starts to noticeably decline.
Remote diagnostics reduce how often a technician needs to visit the machine in person. Displays that support remote control and status monitoring over a standard connection let an operations team catch a failing panel before it goes dark on customers, which matters more for a fleet of machines spread across multiple branches or standalone locations.
Static screen elements are another factor worth checking. ATM menus often display the same logo, prompt, or idle screen for long stretches between transactions, and a panel without burn-in protection can develop faint ghosting of those static elements over months of continuous use. Panels with built-in burn-in prevention hold up better under this kind of repetitive, unattended display cycle.
Connectivity and Mounting
Open frame touchscreens work well for ATM builds because they come without an outer case, which lets integrators mount the panel directly inside a secured, custom enclosure instead of working around a retail-style bezel. A few specifics are worth confirming before finalizing the enclosure design:
- VESA mounting patterns such as 200x100mm or 400x200mm for horizontal, vertical, or face-up orientations
- HDMI and DisplayPort inputs to cover most compute modules
- An RS232 or network connection to support the remote diagnostics mentioned above
- Rear-facing, recessed connectors that stay clear of moving parts like a cash dispenser or card reader
Compatibility with common ATM operating environments, including Windows-based controllers, keeps the display from becoming the limiting factor in an otherwise finished system design.
Common Mistakes When Choosing an ATM Touchscreen
A few recurring mistakes show up across ATM deployments, often because a design choice that works for one location gets applied to every machine in a fleet.
- Specifying one brightness level across every location instead of accounting for indoor lobbies, covered vestibules, and direct-sun outdoor walls separately
- Choosing a display built for indoor kiosks for an outdoor or drive-through ATM, which leads to poor readability and premature failure from temperature swings and moisture
- Overlooking backlight life and duty cycle during procurement, which results in dimming or replacement earlier than expected in machines that never power down
- Treating the touchscreen and the PIN pad as a single component during specification, which creates confusion about which part actually needs PCI certification
Reviewing these factors against each installation site, rather than standardizing on one spec for the whole fleet, is what keeps ATM displays reliable over time. The same environment-first approach applies to other self-service touchscreens, including POS kiosk touchscreens, where brightness and touch requirements shift based on where the terminal sits.

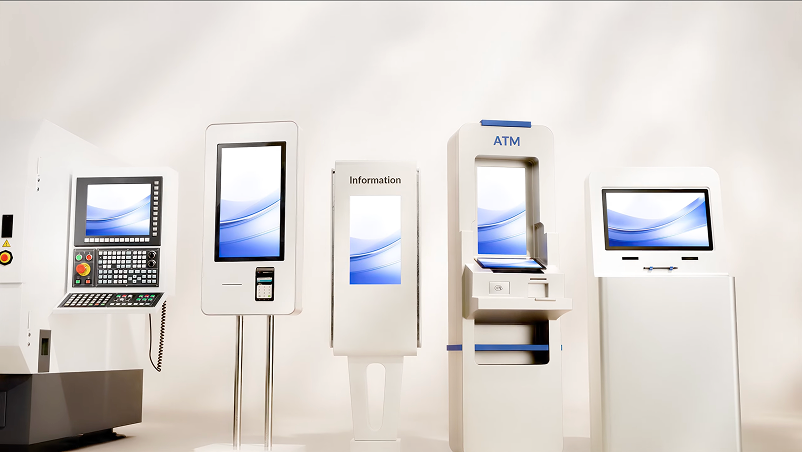

ViewSonic Open Frame Touchscreens for ATM Deployments
ViewSonic’s open frame touchscreen line supports self-service financial applications, including ATMs and self-service banking kiosks, alongside retail, healthcare, and industrial deployments. For fleets that span multiple sites, the lineup includes:
- 10-point PCAP multi-touch for accurate input
- Brightness options that scale from indoor to outdoor use
- IP65-rated sealing for installations exposed to dust and moisture
- VESA mounting for custom enclosures
- Configurable size, brightness, and connectivity to match a specific deployment
That level of customization makes it possible to specify one product line while still matching each machine’s display to its actual installation environment.
Final Thoughts
Choosing an ATM touchscreen display starts with separating what the touchscreen actually does, on-screen navigation and confirmation, from PIN entry, which runs through a certified keypad. From there, matching brightness to the installation location, choosing PCAP touch with durable cover glass, and planning for 24/7 operation determines how well the display holds up in the field.
Explore ViewSonic’s open frame touchscreens to find a display suited to your ATM deployment.
Frequently Asked Questions
Does an ATM touchscreen need to be IP-rated?
Only if the ATM sits outdoors or in a location exposed to moisture and dust. Indoor lobby ATMs typically don’t need an IP rating, but outdoor units and drive-through lanes do, to keep out rain, snow, and airborne dust.
How long does an ATM touchscreen typically last before it needs replacement?
With continuous 24/7 operation, a panel rated for around 50,000 hours of backlight life covers several years before brightness noticeably declines. In practice, touch surface wear from heavy public contact often determines replacement timing before the backlight does.
Can the same touchscreen work for both indoor and outdoor ATM installations?
Not usually. Outdoor units need higher brightness, a wider operating temperature range, and better sealing than an indoor-rated display. Most integrators specify different models for each environment, even within the same ATM fleet.
Does an ATM touchscreen need multi-touch support?
No. ATM transactions are single-tap interactions, such as selecting an option or confirming an amount, so single-touch response is enough. Most PCAP panels support multi-touch by default, but it doesn’t add functional value for this use case.
What operating temperature range should an outdoor ATM touchscreen support?
Outdoor ATMs need a wider operating range than indoor units to handle seasonal temperature swings without dimming or losing touch accuracy. Indoor lobby ATMs can use a standard commercial-range display since the space is climate controlled.
Can an existing ATM be retrofitted with a new touchscreen without replacing the whole machine?
In many cases, yes, if the new display matches the mounting footprint, connector types, and touch controller compatibility of the original panel. Open frame displays make this easier since they aren’t tied to a specific enclosure design, but bezel depth and cable routing still need to match the existing housing.
