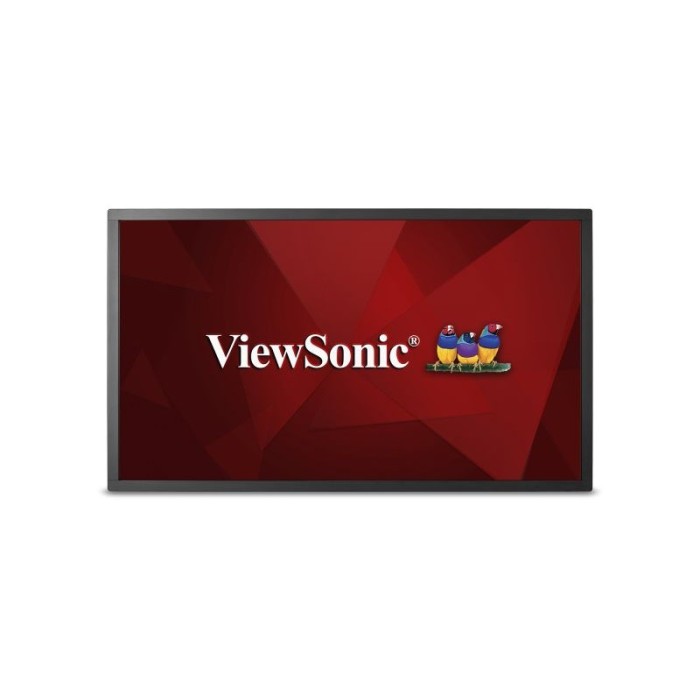

Content deployment, interactivity, and messaging couldn’t be easier than with the ViewSonic® CDM5500T. Featuring a 10-point touchscreen and internal media player, this commercial display gives you everything you need for easy interactive digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.
For more detailed information on how ViewSonic ViewBoards can best be utilized in a school environment, see our ViewBoard FAQs.
10-point Multi-Touch
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
Built-in Quad-core Media Player
A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.
Embedded LAN, Wi-Fi, and Internet Browser
An integrated RJ45 connection, as well as Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated internet browser provides simple content delivery via connection to the web.
Internal Scheduler
An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.
Content Management Software
Great for all venues and scenarios, the bundled Signage Manager software lets users transfer multimedia content onto the display from PCs and laptops. This embedded content management tool also lets you format, schedule, and save playback settings.
Integrated USB Multimedia Player
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.
Portrait or Landscape Mountable
This display is VESA-mountable in either portrait or landscape orientation for display flexibility in a variety of settings.
10x10 Tiling Support with DisplayPort or DVI
With integrated DisplayPort and DVI outputs, this display supports up to a 10x10 tiling setup for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
Display Size (in.)
55
Resolution
1920 x 1080
Static Contrast Ratio
1,100:1
Light Source
ELED
Display
Display Size (in.)
55
Viewable Area (in.)
54.6
Orientation
Landscape / Portrait
Light Source
ELED
Resolution
1920 x 1080
Aspect Ratio
16:9
Static Contrast Ratio
1,100:1
Backlight Life (Hours)
50,000
Brightness
450 cd/m2
Response Time (Typical GTG)
12ms
Viewing Angles
178º horizontal, 178º vertical
Panel Surface
3H Anti-glare, hard-coating
Operation Rating
Networking
Ethernet LAN
10/100 BASE-T
Wifi
802.11 b/g/n
Embedded Player
Android Version
4.4.4
CPU
Quad core A9 CPU - RK3188
Memory
2GB
Storage
16GB
Interface
OSD / Remote Control
Audio
Internal Speakers
10W (x2)
Connector
HDMI 1.4
2
DVI-I
1
DVI-I Out
1
Display Port
1
Display Port Out
1
3.5mm Audio In
1
3.5mm Audio Out
1
Speaker Out
2
USB 2.0
2
RS232 Out
1
Ethernet LAN (RJ45)
1
Power
Voltage
100-240 VAC
Consumption (max)
130W
Consumption (typical)
75W
Stand-by
<.5W
Controls
On Screen Display
Input, Volume, Backlight, Audio, Screen, Display, Adjust
Remote Control
Volume, Channel, Source, Mute, Back, Input, Menu
Operating Conditions
Temperature
41-104º F (5 - 40º C)
Humidity (non-condensing)
10-90%
Touch
Touch Technology
Infrared
Touch Points
10-Point Touch
Weight (metric)
Net (kg)
35.1
Net Without Stand (kg)
31
Gross (kg)
39.6
Weight (imperial)
Net (lbs)
77.3
Net Without Stand (lbs)
68.3
Gross (lbs)
87.3
Dimensions (metric) (wxhxd)
Packaging (mm)
1448 x 952 x 223
Physical (mm)
1271 x 809 x 400
Dimensions (imperial) (wxhxd)
Packaging (in.)
54.0 x 37.4 x 8.7
Physical (in.)
50 x 29.2 x 3.6
Mount
VESA Compatible
400 x 400 mm
Screw Size
M6
Screw Length (mm)
10
General
Warranty
Three-year limited warranty on parts, labor and backlight
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
CDM5500T, Remote control, User Manual, Quick Start Guide, power cables, RS232 cable, IR sensor cable, RS232 daisy chain cable
Regulations
UL/cUL, FCC, Energy Star 7.0, UL-MX-CoC, Mexico Energy
Dimensions
50 x 29.2 x 3.6 in / 1271 x 809 x 400 mm
- Internal Speakers
- VESA®Compatible Wall Mount 400 x 400 mm
- Menu Controls
- AC In
- SD Reader
- Micro USB
- DisplayPort In/Out
- DVI-I In/Out
- Audio In
- USB 2.0 (Type A x2, Type B x1)
- Audio Out
- RS232 In/Out
- LAN
- IR In/Out
- HDMI x2
