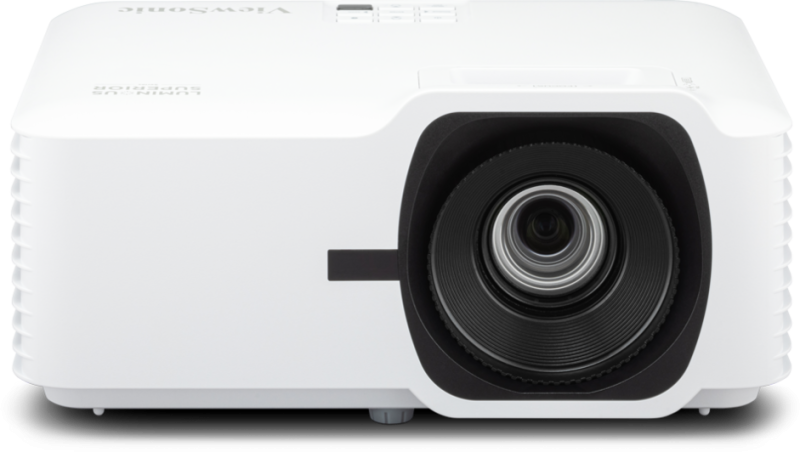

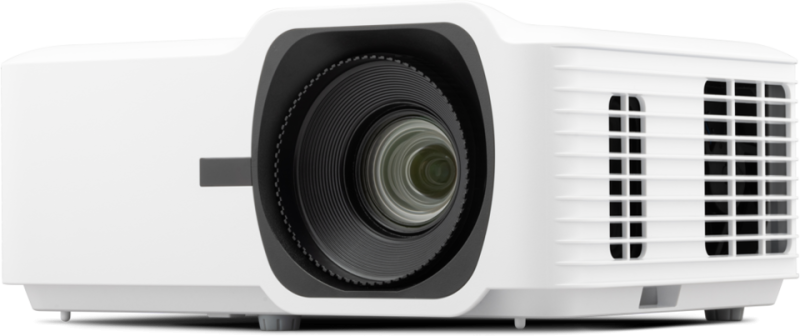

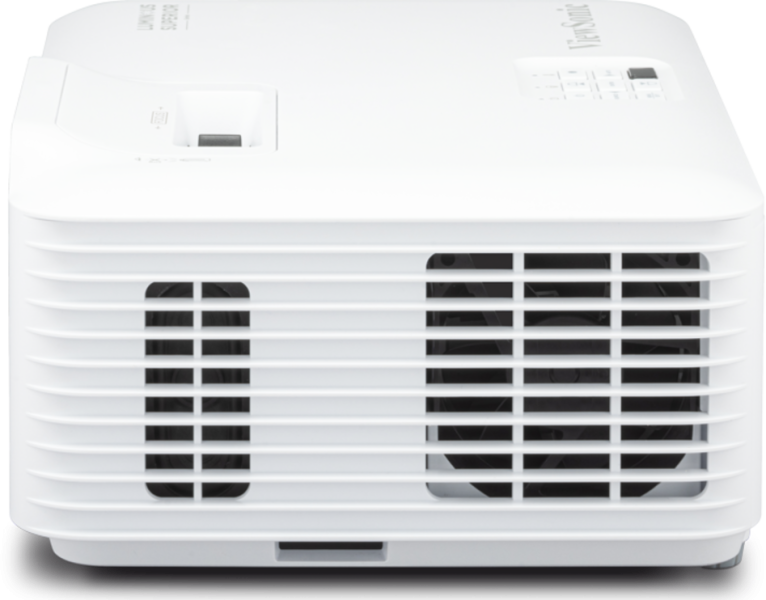

LSD401HD

4,000 ANSI Lumens 1080p Laser Business/Education Projector

  • 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
  • 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
  • High native contrast ratio powered by a 0.65” DMD chip and DLP technology
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
  • Centralized LAN control for efficient management
Контакти відділу продажу  Поділитися

ОГЛЯД

The LS401HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS401HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

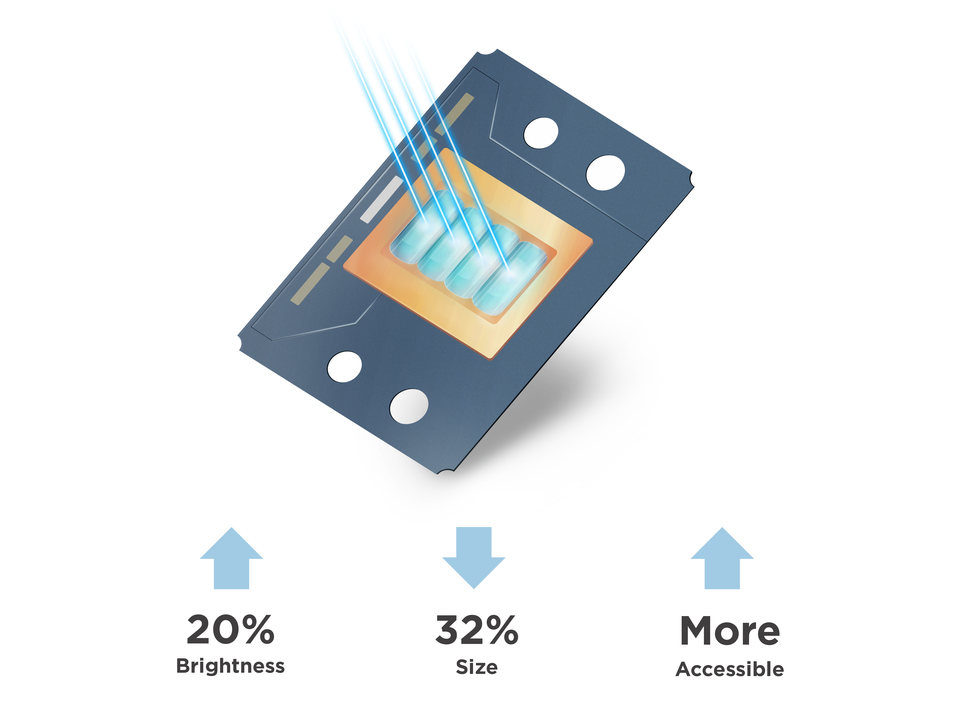

Bright, Compact, Durable

The LSD401HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd-gen Laser Phosphor Technology
Bright, Compact, Durable 1

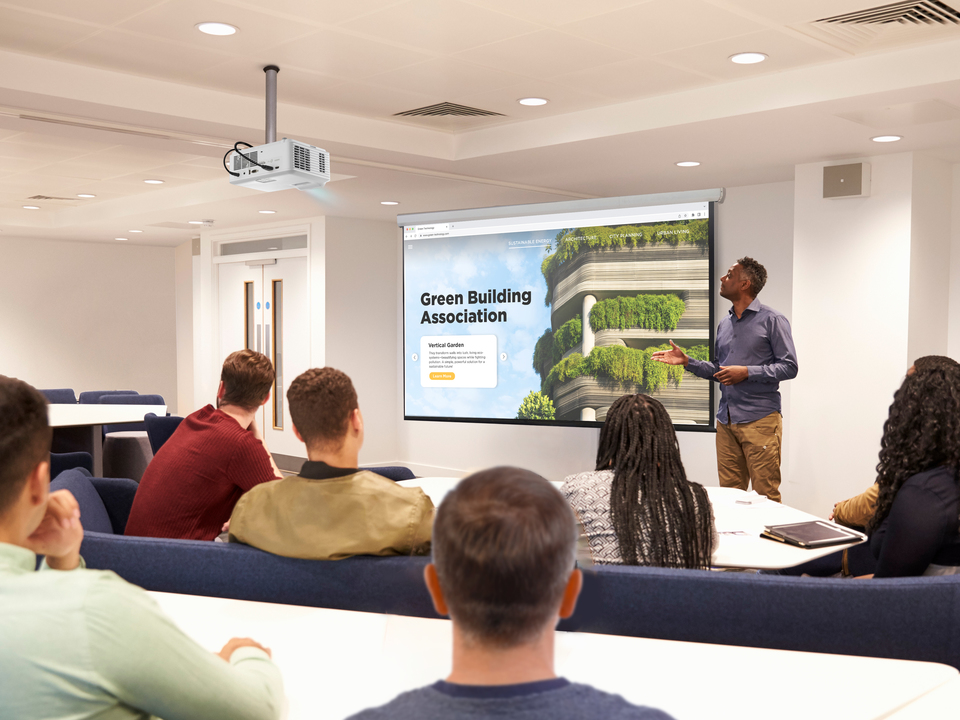

Bright Images for Large Venues

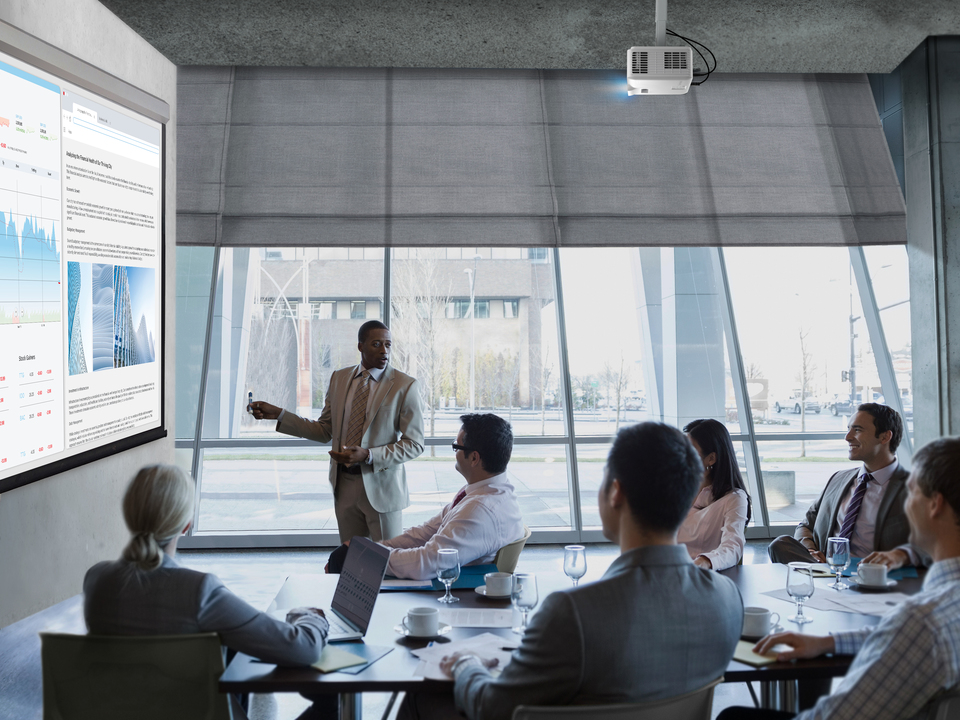

Delivering 4,000 ANSI Lumens, the LSD401HD provides vibrant and sharp 1080p FHD projection for meeting rooms, classrooms and golf simulation setups.
4,000 ANSI Lumens, 1080p FHD
Brilliant Clarity in Every Detail 1
Brilliant Clarity in Every Detail 2

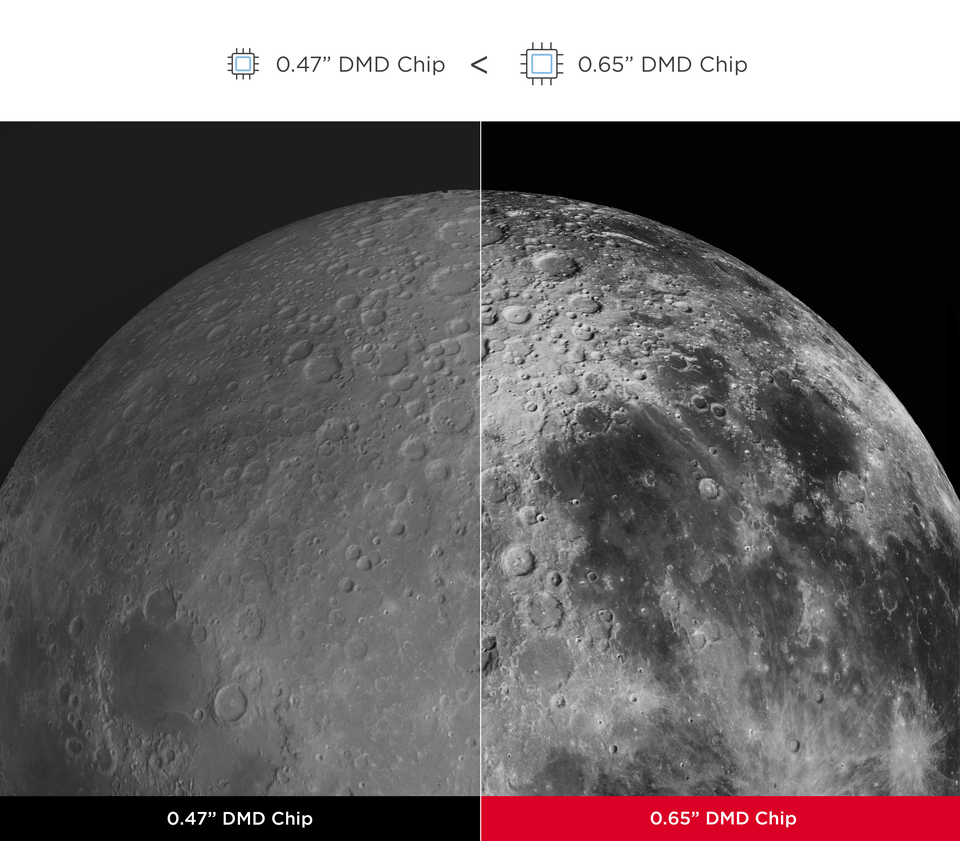

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LSD401HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
0.65” DMD Chip, High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

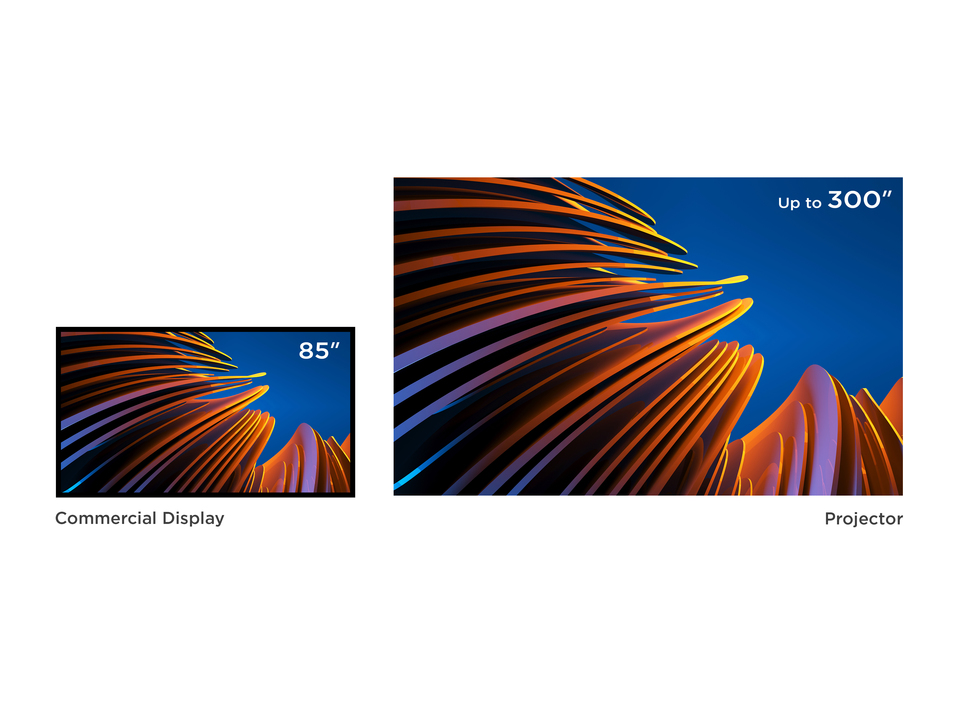

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to 300”
Ultra-Large Screen with Lower Cost-per-Inch 1

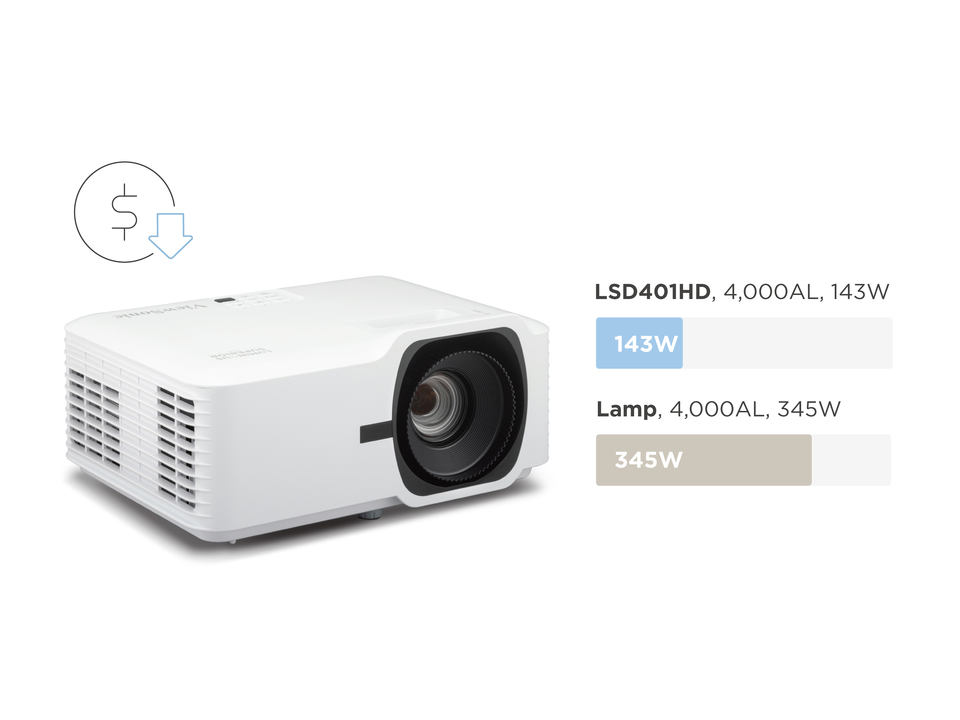

Save on Costs and Energy

With its advanced lamp-free light source, the LSD401HD offers a highly energy-efficient and cost-saving display solution by consuming up to 59% less power than competing projectors.
Less Power Consumption
Save on Costs and Energy 1

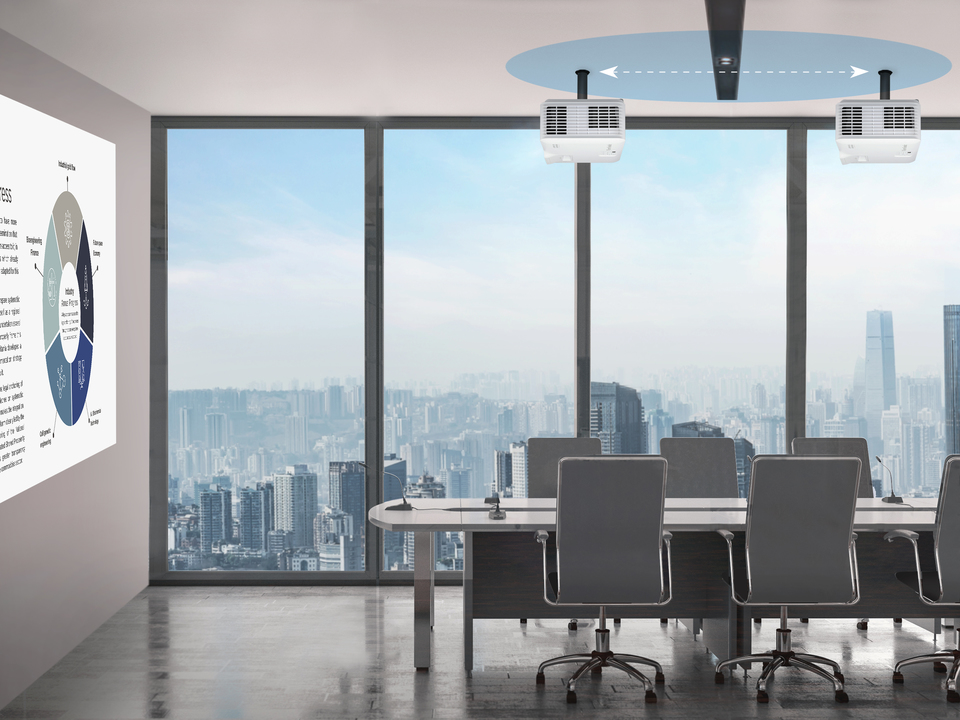

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.
1.3x Optical Zoom
Enhanced Installation Flexibility 1

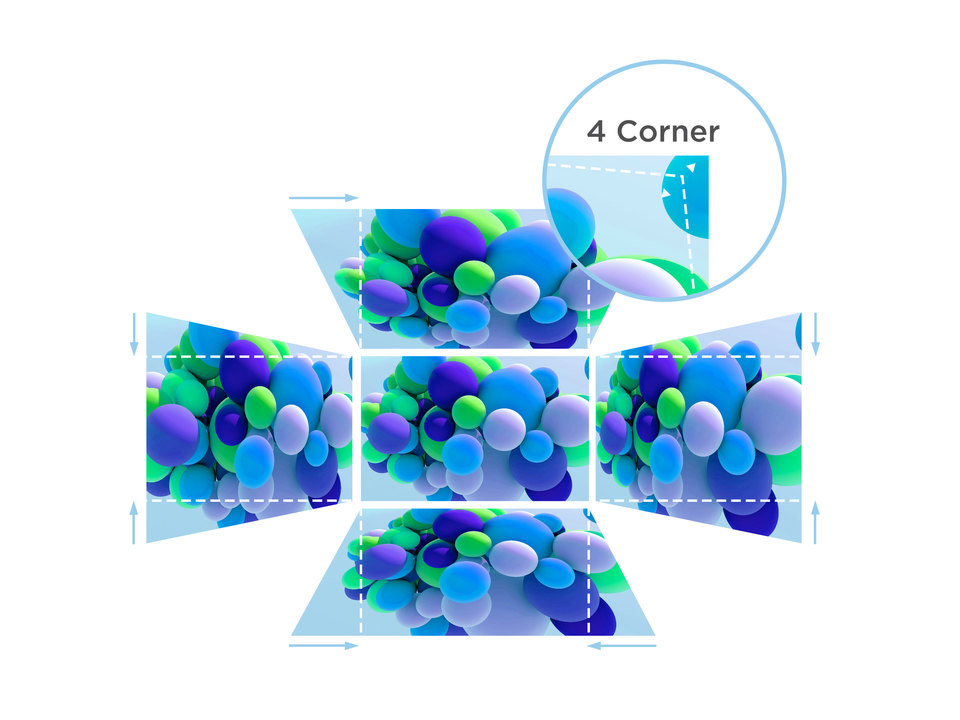

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment
Get ​​Perfectly-Shaped Images Effortlessly 1

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Versatile Creative Application​s 1

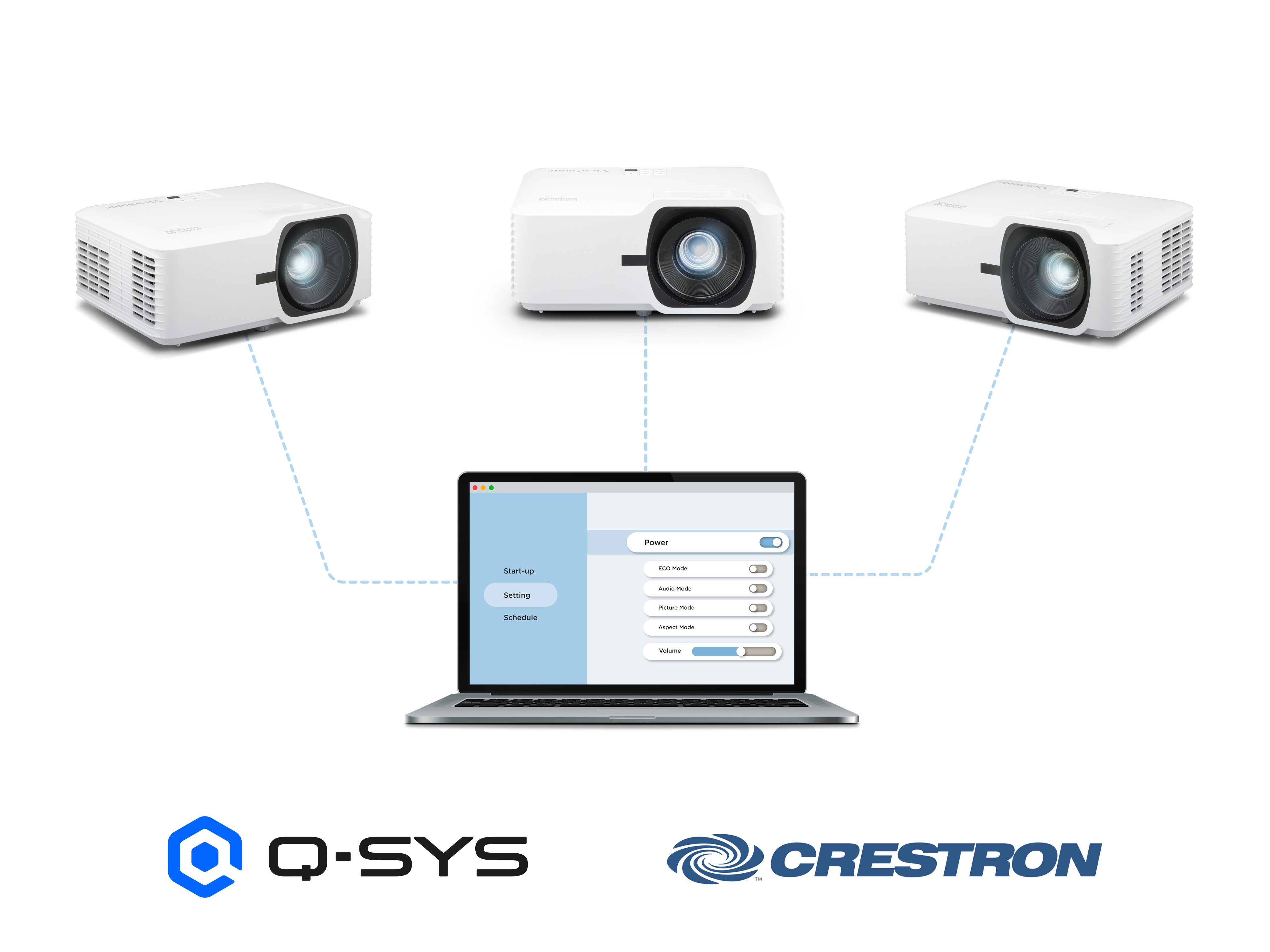

Centralized Control for Management Efficiency

The LSD401HD is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

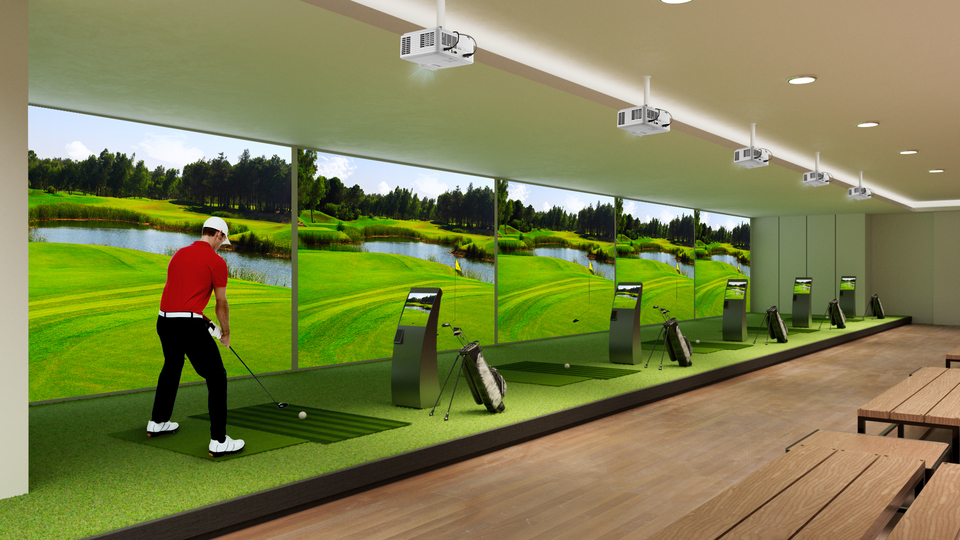

Brilliant Colors for an Authentic Golf Experience

Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
Golf Color Mode
Brilliant Colors for an Authentic Golf Experience 1

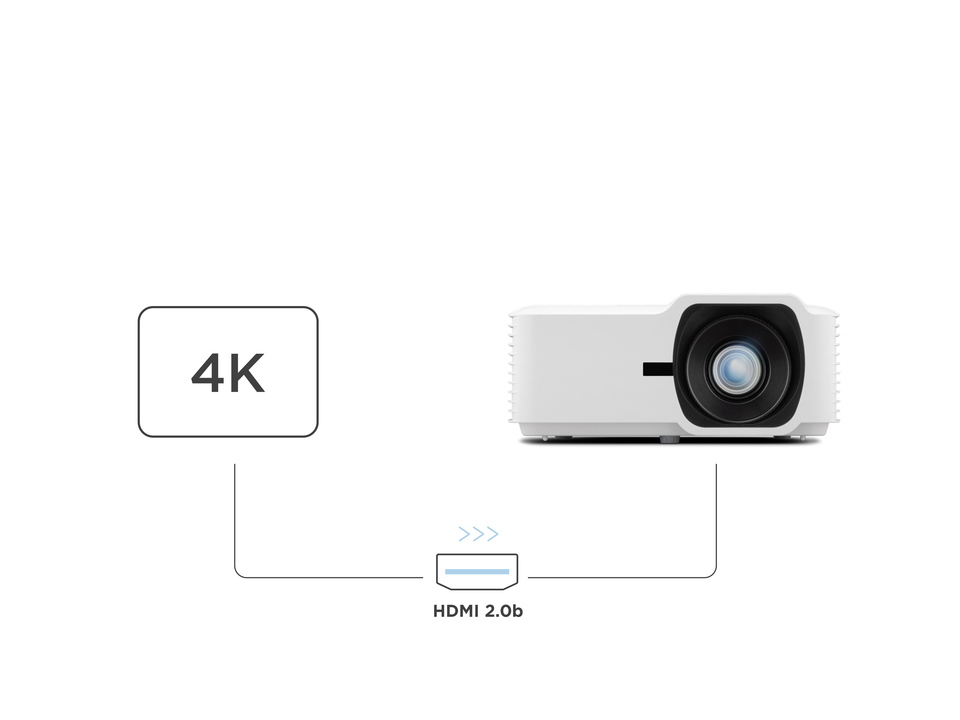

HDR / HLG / 4K UHD supported by HDMI 2.0b

The LSD401HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.
HDR / HLG / 4K UHD supported by HDMI 2.0b 1

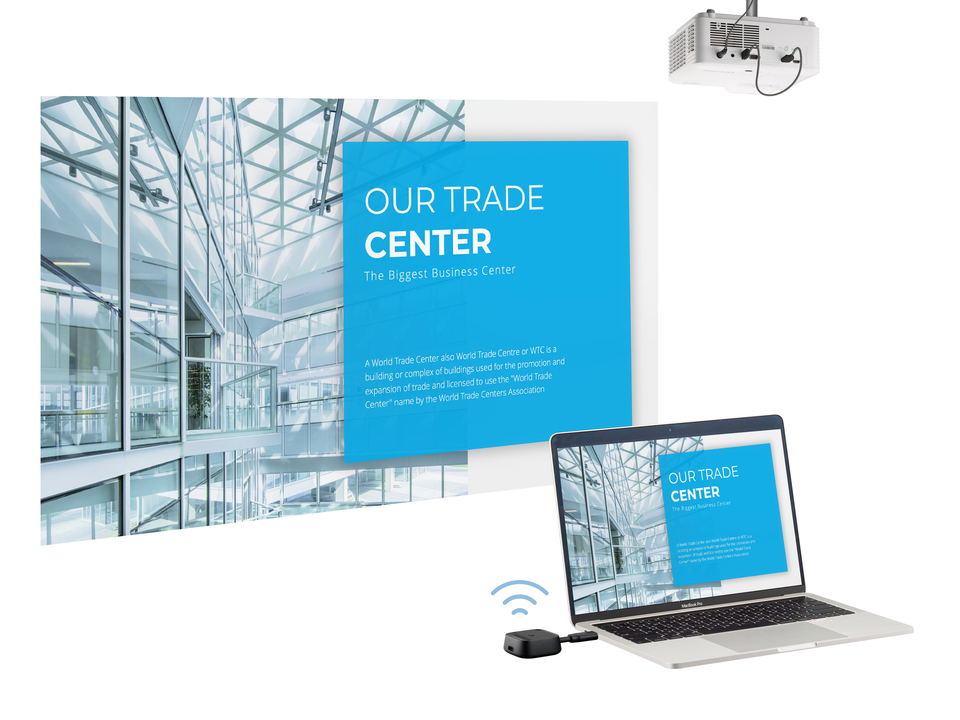

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
*ViewShare sold separately
ViewShare​, USB-A Power Supply
Upgrade Your Projector with Wireless Content Casting 1

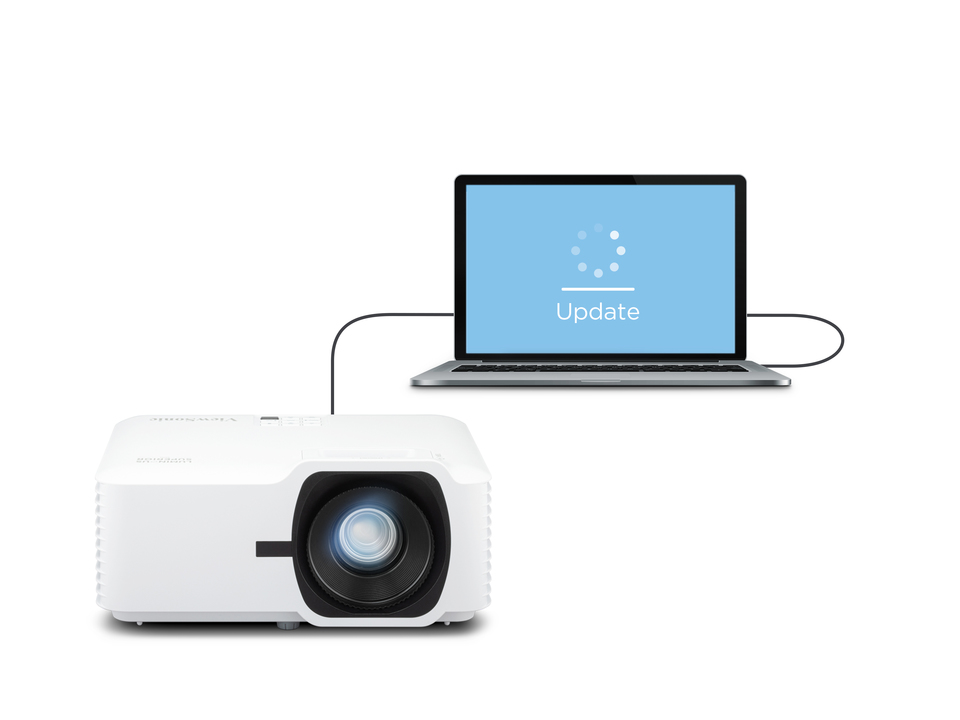

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.
Projector Software Update
A Simpler Way to Update Projector Software 1

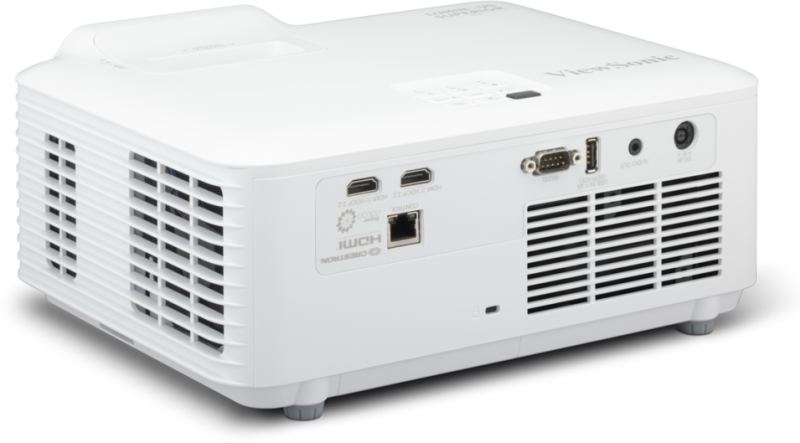

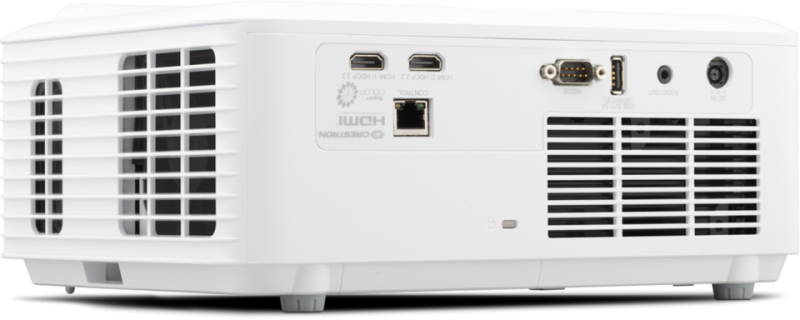

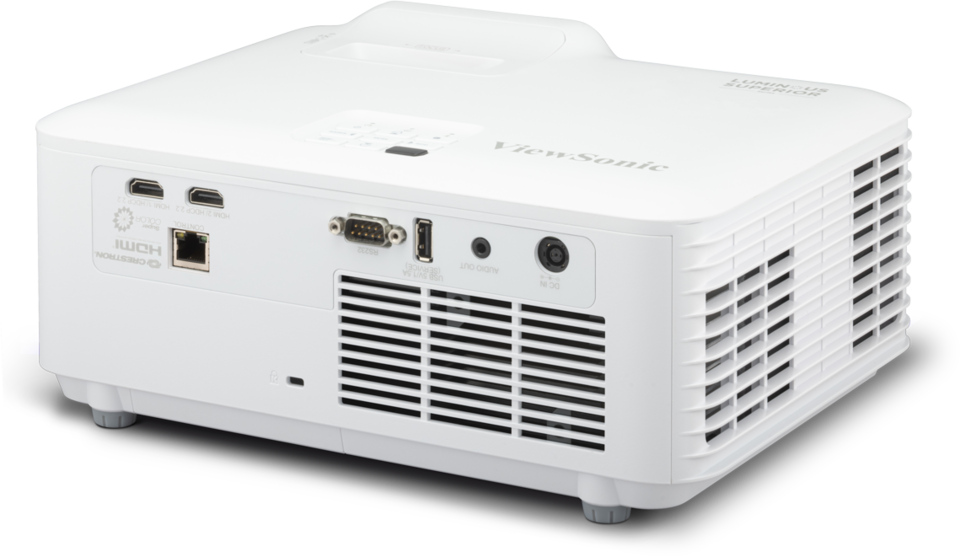

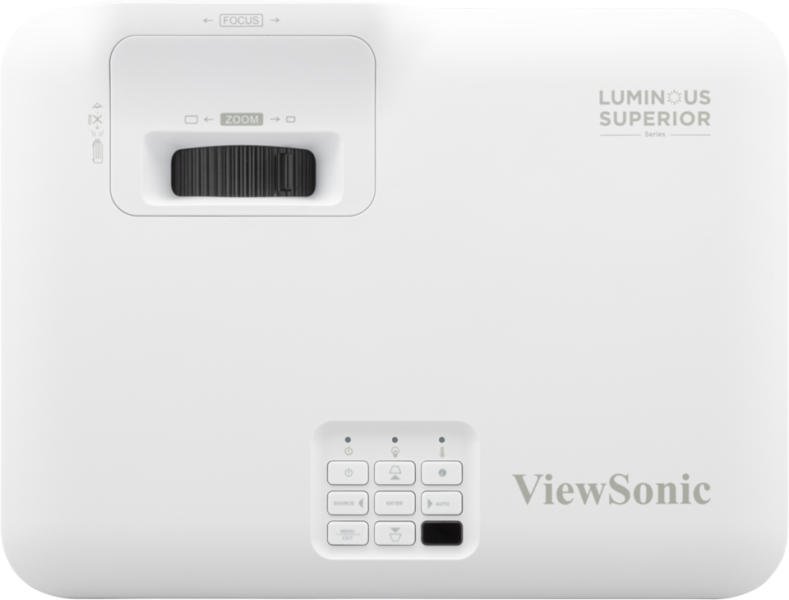

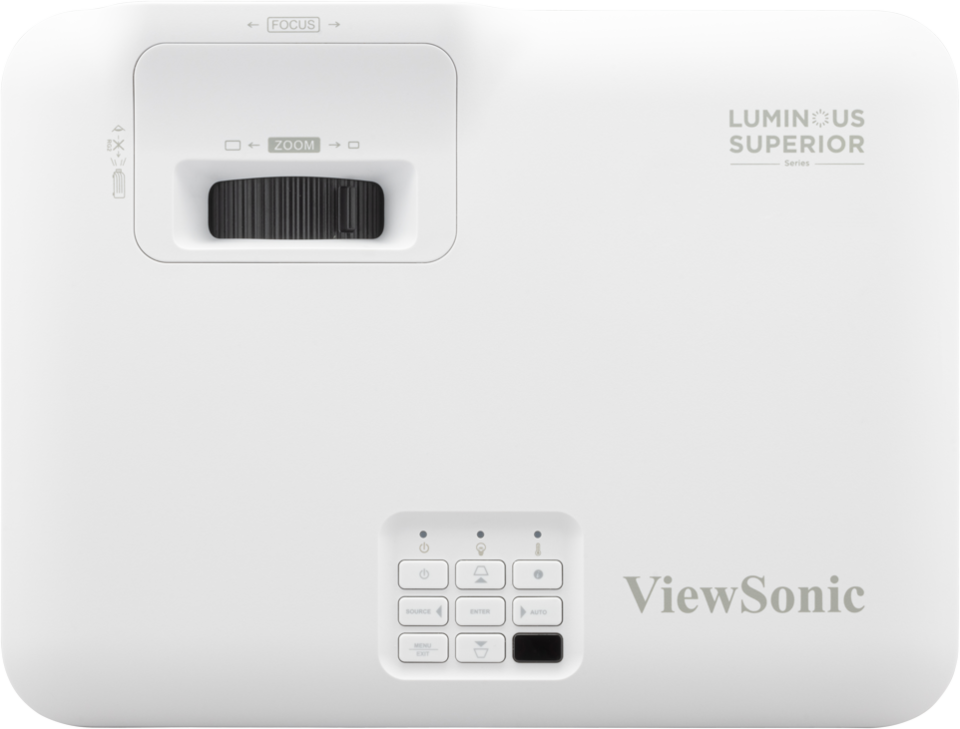

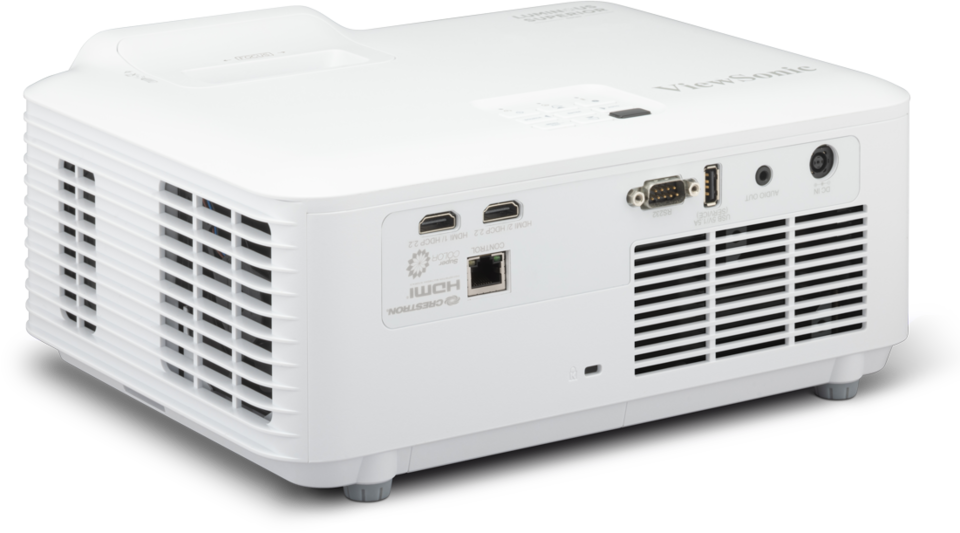

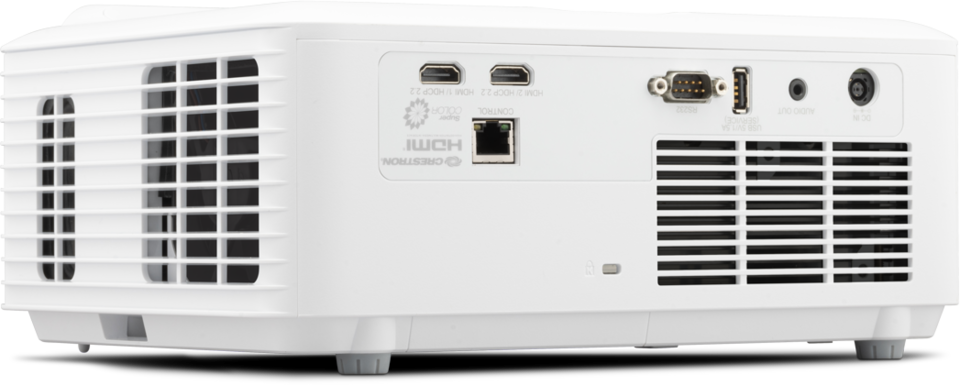

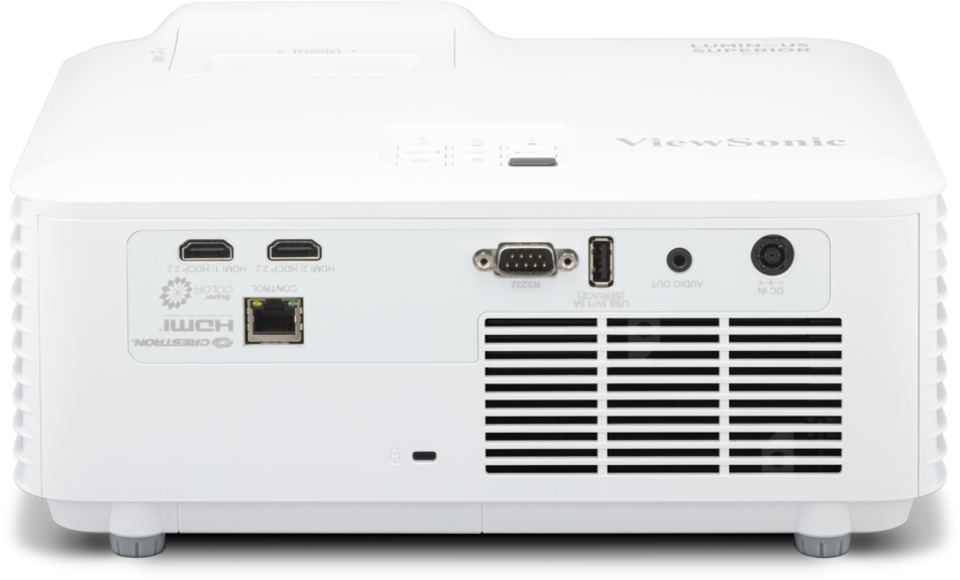

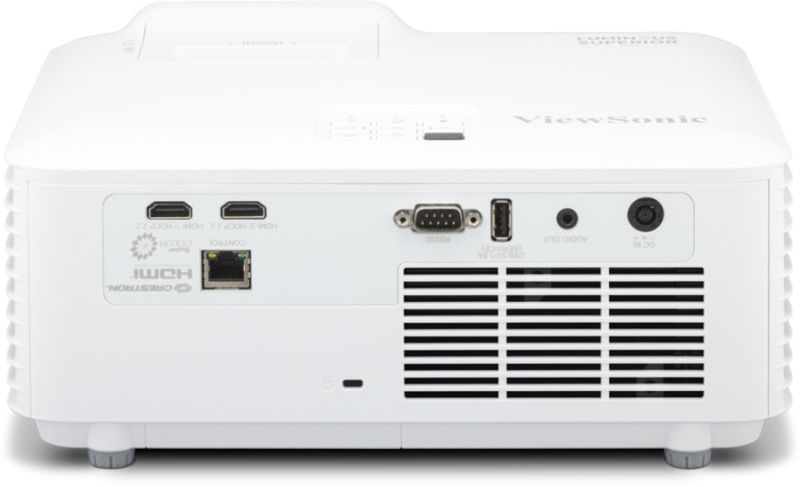

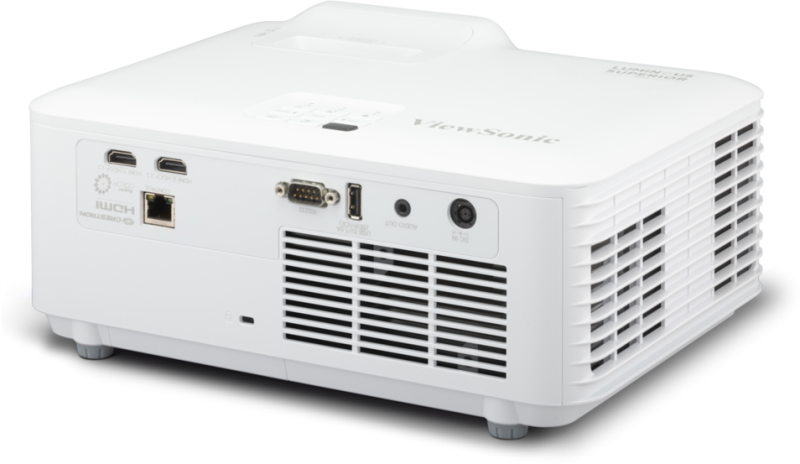

Dimensions & I/O Ports

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 2.0 / HDCP 2.2 x2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC In
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR

ТЕХНІЧНІ ХАРАКТЕРИСТИКИ


  • Характеристика
    Проекційна система: 0.65" 1080P
    Рідна роздільна здатність: 1920x1080
    Яскравість: 4000 (ANSI Lumens)
    Brightness (Center Lumens): 4400
    Коефіцієнт контрастності: 3000000:1
    Display Color: 1.07 Billion Colors
    Тип джерела світла: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Об'єктив: F=2.43-2.78, f=16.90-21.61mm
    Зсув проекції: 132%+/-10%
    Проекційний коефіцієнт: 1.13-1.47
    Оптичний зум: 1.3X
    Цифрове збільшення: 0.8x-2.0x
    Розмір зображення: 30"-300"
    Проекційна відстань: 0.75-9.76m
    (100"@2.50m)
    Трапеція: H:+/-30° , V:+/-30°
    Чутний шум (звичайний): 32dB
    Audible Noise (Eco): 27dB
    Затримка введення: 16.7ms
    Підтримка роздільної здатності: VGA(640 x 480) to 4K UHD(3840 x 2160)
    Сумісність з HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Горизонтальна частота: 15K-135KHz
    Швидкість вертикального сканування: 24-120Hz
  • Вхід
    HDMI: 2
    (HDMI 2.0, HDCP 2.2)
  • Вихід
    Audio-out (3.5mm): 1
    Динамік: 15W
    USB Type A (Живлення): 1 (5V/ 1.5A)
