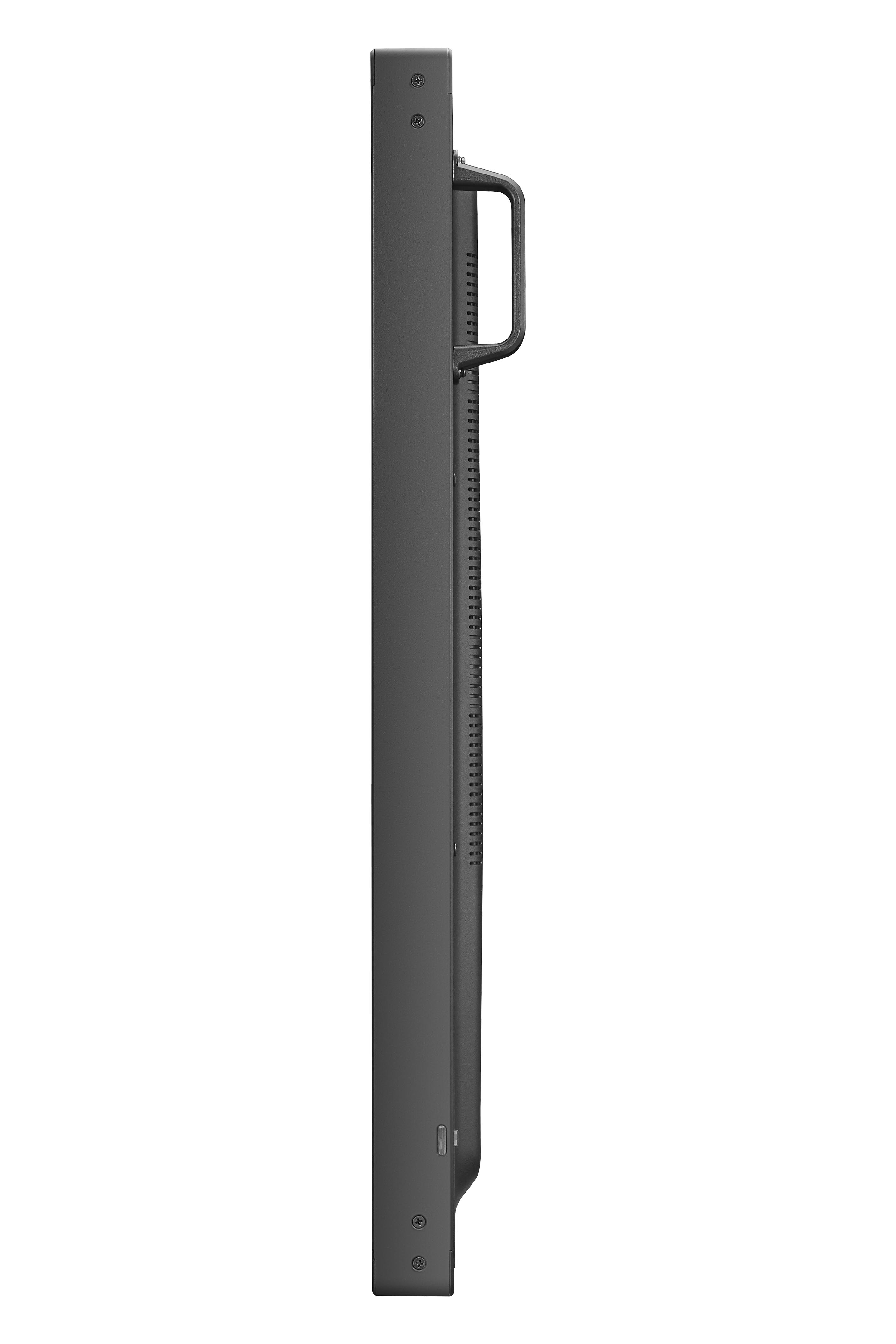

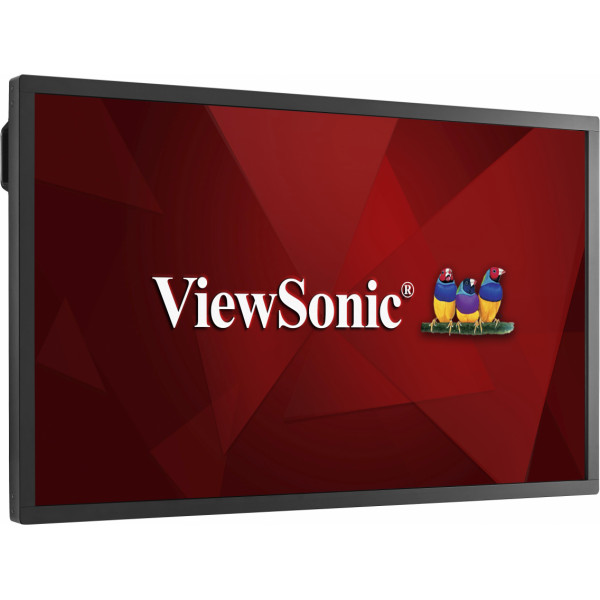

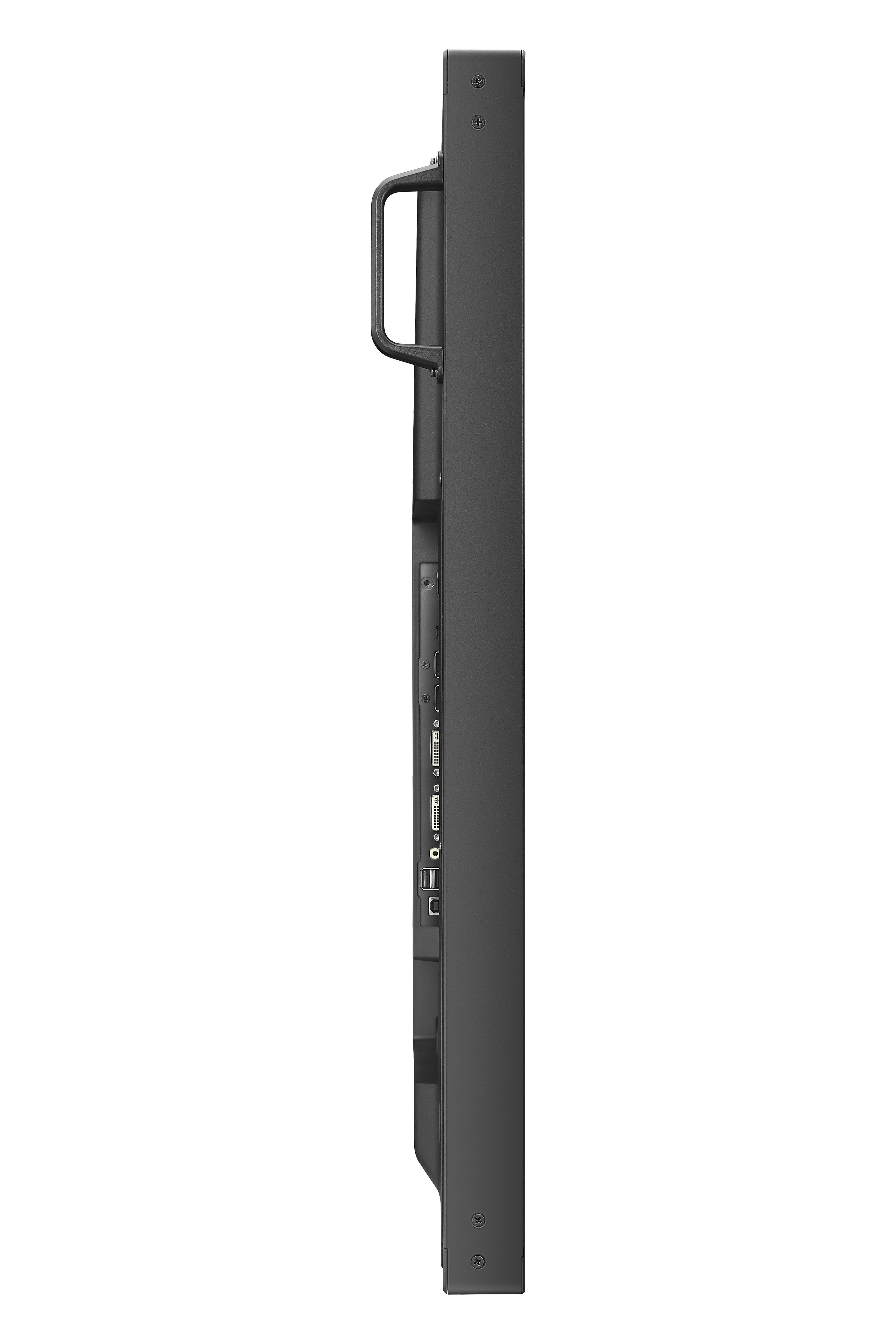

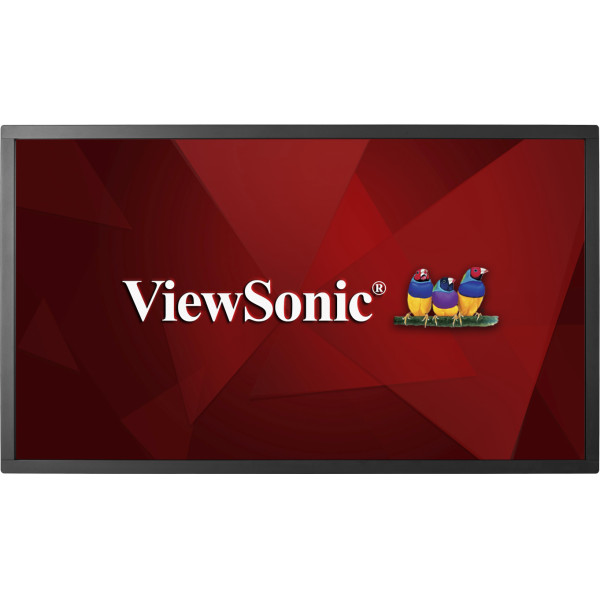

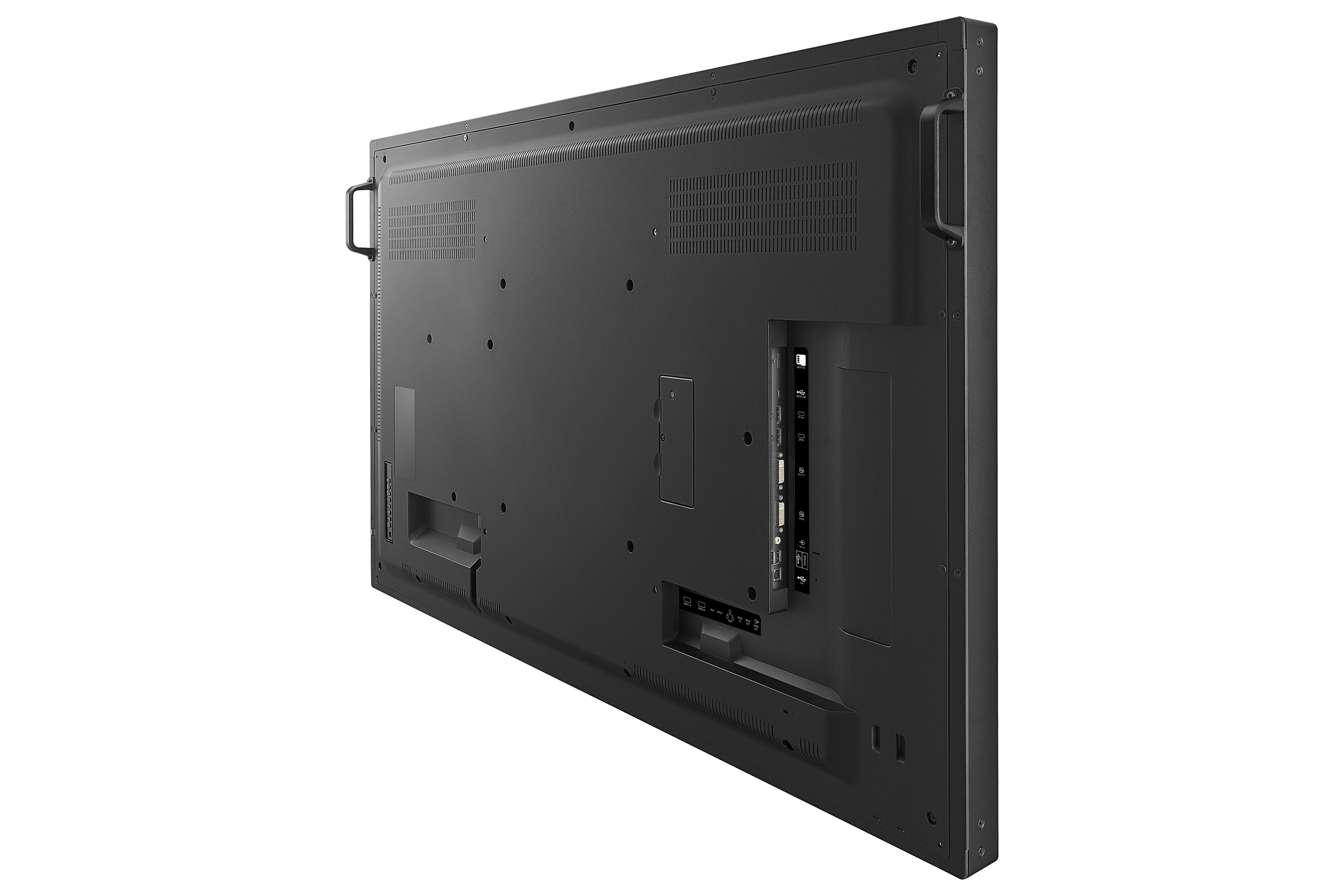

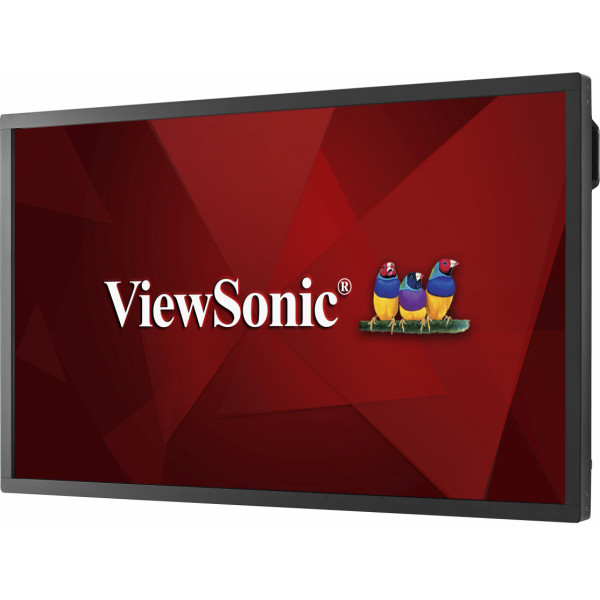

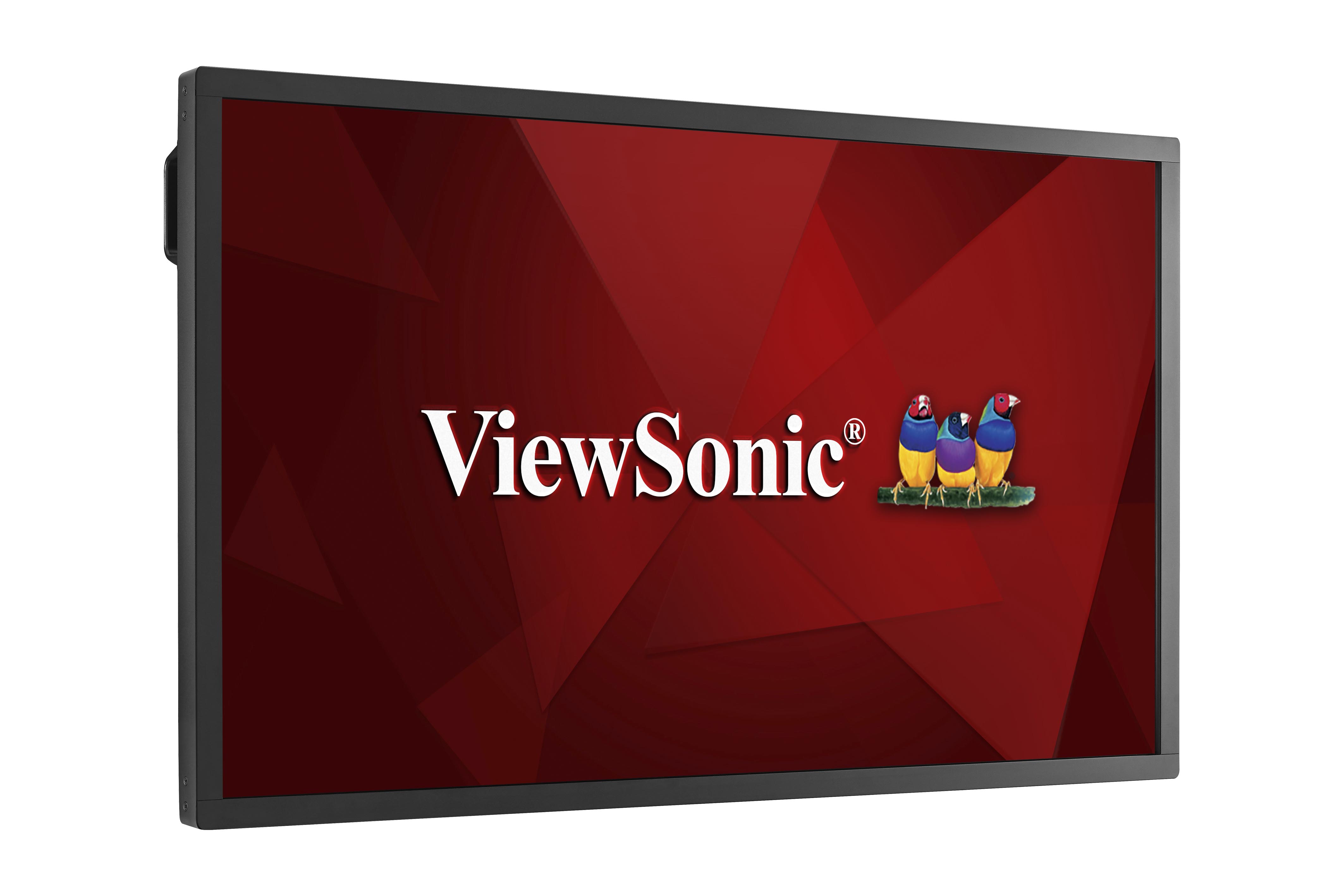

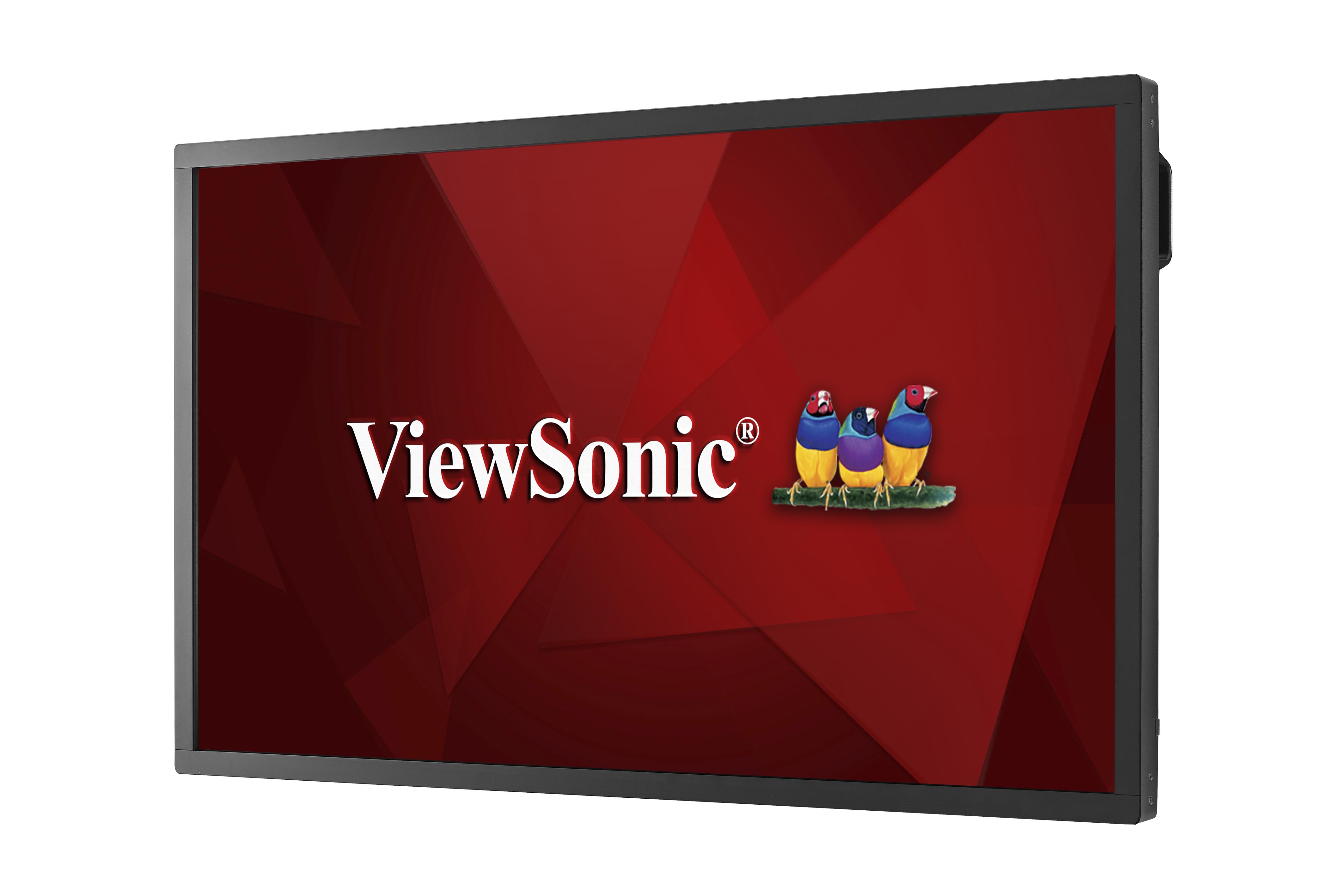

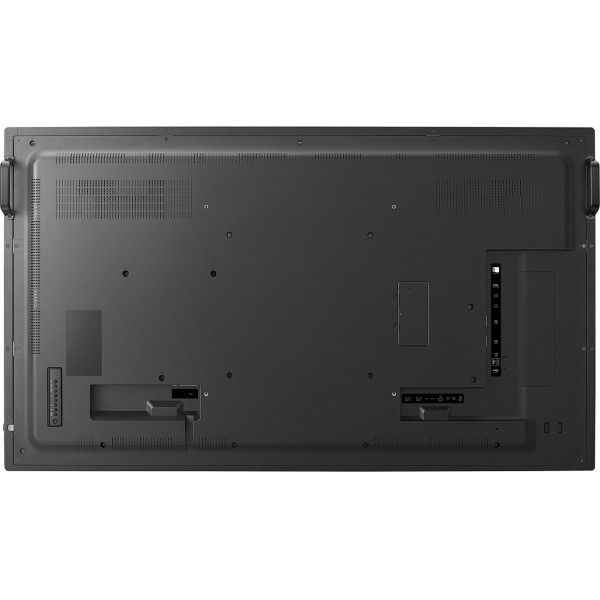

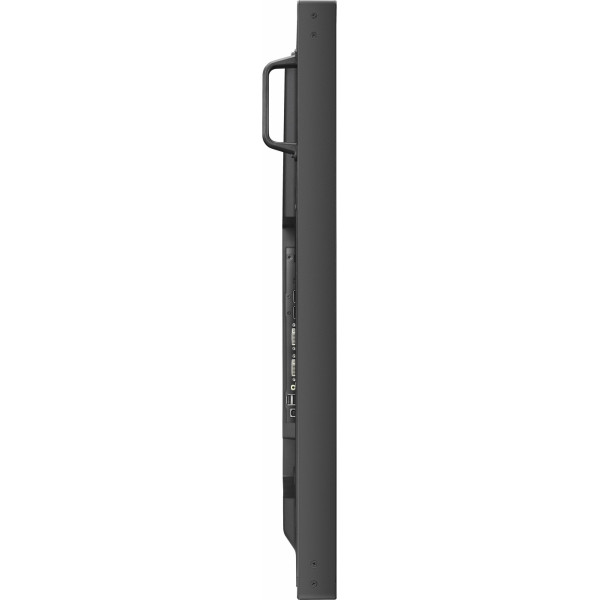

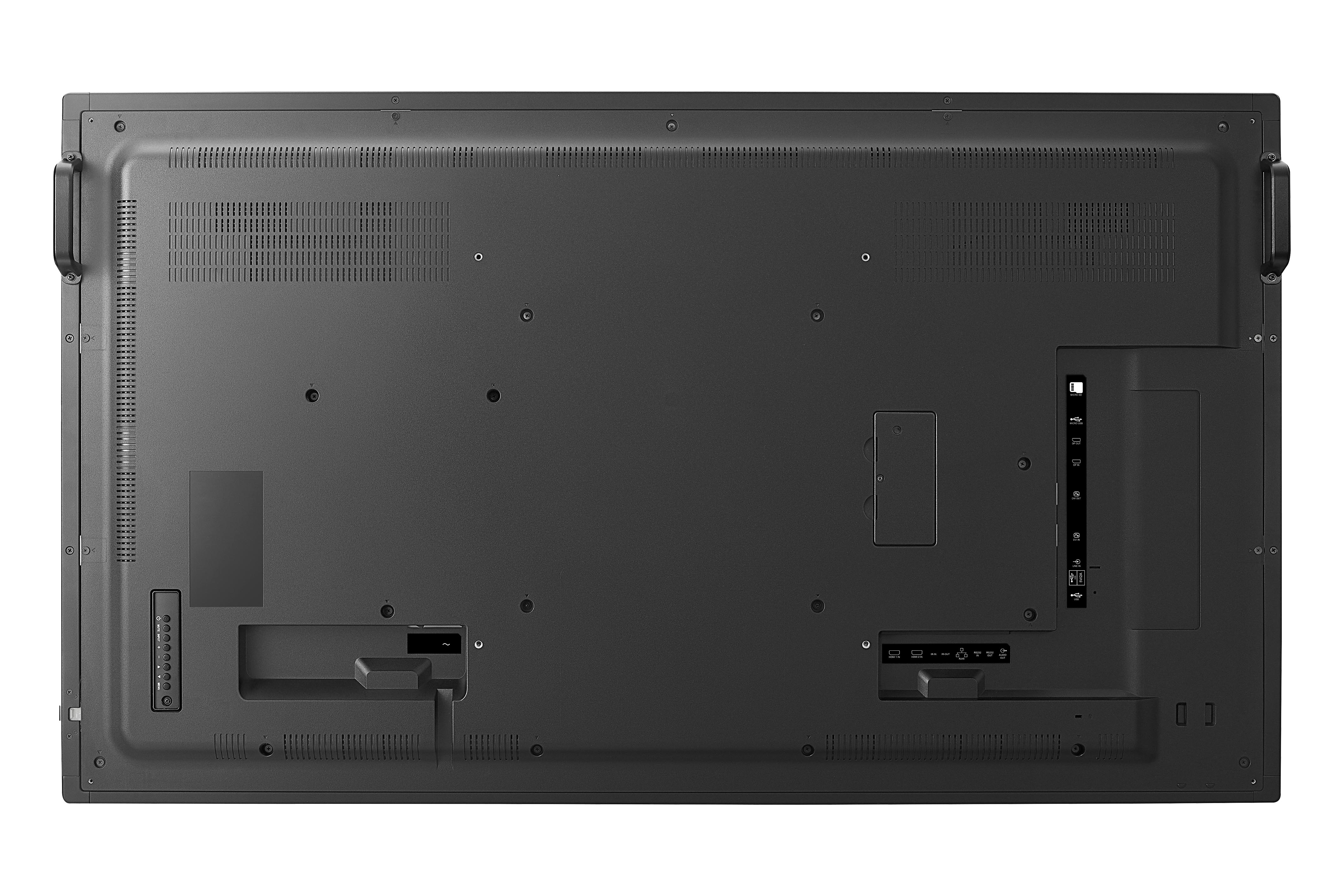

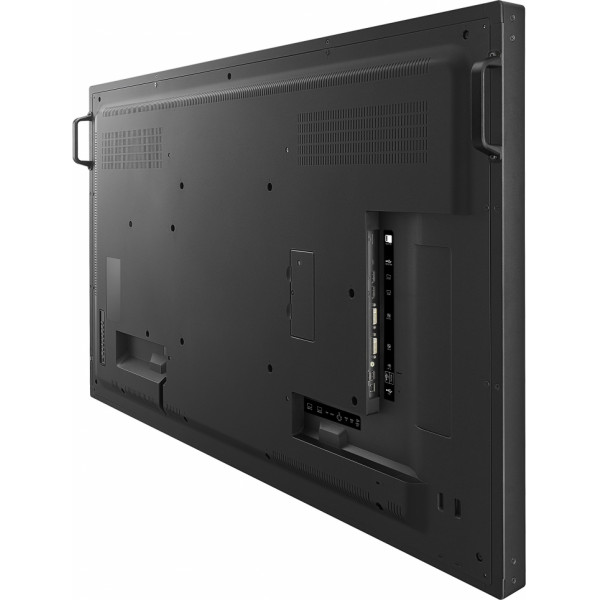

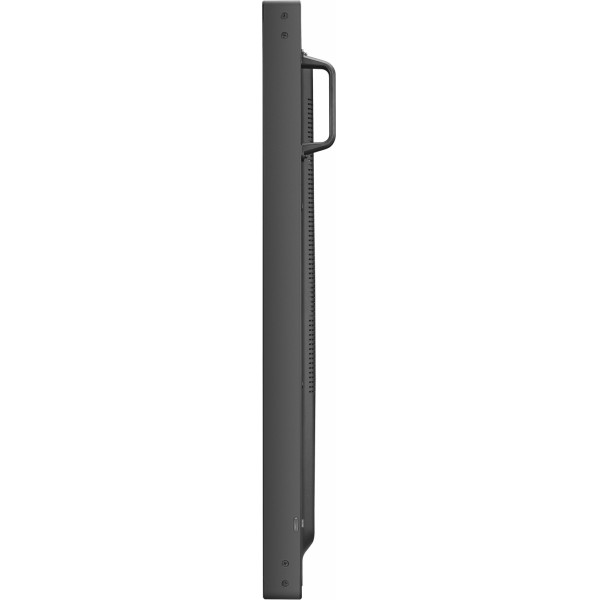

CDM5500T
55" 10-point Multi-touch Presenation Display
- 24 hours a day 7 days a week operations
- Built-in Quad Core Media Player with 16GB Storage
- Embedded LAN and Wi-Fi
- Internal Scheduler
- Content Management Software
ТЕХНІЧНІ ХАРАКТЕРИСТИКИ
- SPECIFICATIONРозмір панелі: 55'' (54.64” diagonal)
Тип/ Технологія: IPS type
Площа екрана (мм): 1209.6 (H) x 680.4 (V)
Співвідношення сторін: 16:09
Роздільна здатність: 1920 x 1080
Colors: 16.7 M colors
Яскравість: 450 nits (typ.)
Коефіцієнт контрастності: 1100:1 (typ.)
Час відповіді: 12 ms
Кути перегляду: H = 178, V = 178 (typ.)
Backlight: ELED
Термін служби підсвітки: 50,000 Hours (typ.)
Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%) - TOUCHТип/ Технологія: Infrared
Точка дотику: 10 Points - INPUTHDMI: x 2 (HDMI1.4)
DisplayPort: x 1
DVI: x 1
Аудіо: x 1
RS232: x 1
SD/SDHC: Micro SD card slot (Up to 32GB)
IR: x 1
- OUTPUTDisplayPort: x 1
DVI: x 1
RS232: x 1
IR: x 1 - LANRJ45: x 1
- USBType A: x 2 (Multi-media playback x 1, 5V/2A x 1)
Type B: x 1 (Touch out)
Micro USB: x 1 (Support USB OTG) - ДИНАМІКИ10W x 2
- BUILT-IN PCПроцесор: Quad core A9, 1.6G
Зберігання: eMMC 16G - COMPATIBILITYVGA: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz - CONTROLSPhysical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
PCTURE: Brightness, Contrast, Sharpness, Black level, Tint, Color, Noise reduction, Gamma selection, Color temperature, Color control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture reset
SCREEN: H Position, V Position, Clock, Clock phase, Zoom mode, Custom Zoom, Auto adjust, Screen reset
AUDIO: Balance, Treble, Bass, Volume, Maximum volume, Minimum volume, Mute, Audio source, Audio out, Sync. Volume, Audio reset
PIP: Sub mode, PIP size, PIP position, PIP change, PIP source, PIP audio, PIP reset
CONFIGURATION 1: Switch on state, Panel saving, RS232 routing, Boot on source, WOL, DDC/CI, Light sensor, Human sensor, Power LED light, Configuration 1 reset, Factory reset
CONFIGURATION 2: OSD turn off, OSD H position, OSD V position, OSD transparency, Information OSD, Logo, Monitor ID, Heat status, Monitor information, DP version, Window selection, Rotation, Language, QR code, Configuration 2 reset
ADVANCED OPTION: Input resolution, IR control, Keybard conrol, Off timer, Date and time, Schedule, HDMI with One Wire, Auto signal detection, Power Save, Scaler FW Update, Auto FW Update, USB cloning, Advanced option reset - POWERНапруга: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Споживання: Normal 76W, Max 143W
Настінне кріплення (VESA® ): 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate) - OPERATING CONDITIONSТемпература (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
Вологість: 20% ~ 80% non-condensing - РОЗМІРИ (Ш x В x Г)Фізичні (дюйми / мм): 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400
Physical w/o Stand (inch / mm): 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64
Упаковка (дюйм / мм): 60.12 x 38.78 x 11.02 / 1527 x 985 x 280 - WEIGHTНетто (фунт/кг): 77.38 / 35.1
Net w/o Stand (lb / kg): 68.34 / 31
Брутто (фунт/кг): 87.3 / 39.6 - What's in the box?1. CDM5500T presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. DVI to VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm).
9. IR sensor cable
10. USB cable (Type A-B)
