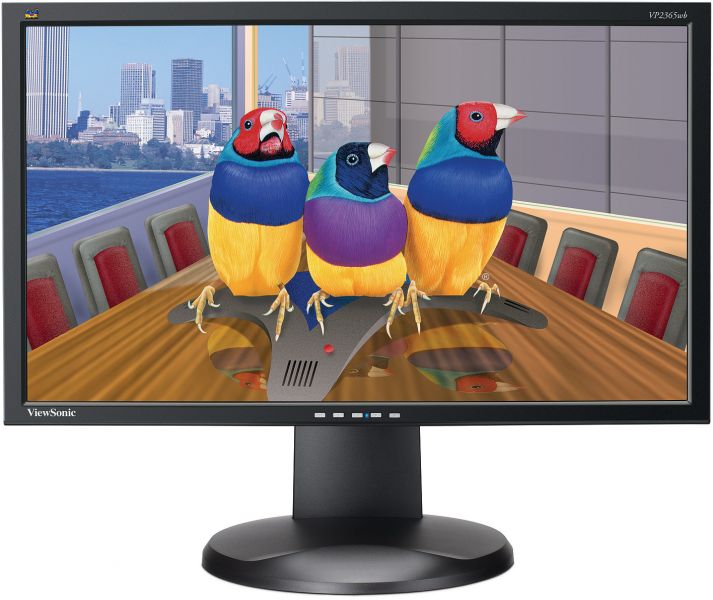

VP2365wb

58cm / 23" VIEWABLE PROFESSIONAL LCD

Excellence Award

COLORS
Black
LCD
Tip: 58cm / 23" Colour a-Si TFT Active Matrix LCD
Rată de contrast: 1000:1 (typ.)
Unghiuri de vizualizare: 178° (H), 178° (V) (CR≧10)
Display Area: 509.18 mm (H) * 286.42 mm (V)
Optimum Resolution: 1920 x 1080
Timp de răspuns: 14ms (on/off) / 5ms (G to G)
Sursă de lumină: 50,000hrs (typ.)
Panel Surface: Anti-Glare type, Hardness (3H)
Pixel Pitch: 0.265 mm(H) x 0.265 mm(V)
Spectru de culori: 82% NTSC (CIE1976)
Luminozitate: 250 cd/m² (typ.)
Rată de contrast dinamic: 20,000:1
COMPATIBILITY
PC: VGA up to 1920 x 1080 Non-Interlaced
Mac®: Power Mac (up to 1920 x 1080 )

DIMENSIONS
Dimensiuni (DxÎxA): 548 mm x 433 mm x 250 mm
CONNECTOR
Analogue: 15 pin mini D-sub x 1
Digital: DVI-D x1
USB: USB 2.0 up-stream x 1 , down-sream x 4
Putere: 3-pin plug (CEE22) x 1
POWER
Voltaj: AC 100-240V AC ; 50/60 Hz (Switch)
Consum: 130 W (max.) / 110 W (typ.)
CONTROLS
Basic: [1], [2], AC power switch, Up[▲], Down[▼]
Main Menu: Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI),
Colour Adjust, (sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B]),
Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine
Tune, Sharpness, Dynamic Contrast, Aspect ratio [1:1, Fill Aspect Ratio,
Full Screen], Display Mode [PC Mode, HD Mode]), Setup Menu (Language,
Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD
Pivot), Memory Recall
OPERATING CONDITIONS
Temperatură: 0°C - 40°C (32°F - 104°F)
Umiditate: 10% - 90% (no condensation)
WEIGHT
Masă: 6.8 Kg (15 lbs)
VIDEO INPUT
Sync: Separate Sync / Composite Sync / SOG
Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital: DVI (TMDS, 100 ohms)
Frequency: Fh: 22 – 82 kHz , Fv : 50 – 75 Hz
VESA MOUNT COMPLIANT
Meet VESA (100mm x 100mm) Standards
ERGONOMICS
Înclinare: 20~-5 degrees
Pivotant: 360 degrees
Height Adjustment: 0~135 mm
Rotation: 0~90 degrees (Clockwise)
